BTF-LIGHTING SP630E LED Controller – Works With Most LED Strips

Product description

Do you have different LED strips that all need different controllers?

Does setting up custom lighting effects feel too complicated?

The SP630E smart LED controller fixes that.

It supports both addressable SPI strips and standard PWM strips in one device. Using the BanlanX app via Bluetooth you can control colors, brightness, animations, music effects, and timers all from your phone.

One controller, endless lighting possibilities.

Key features & benefits

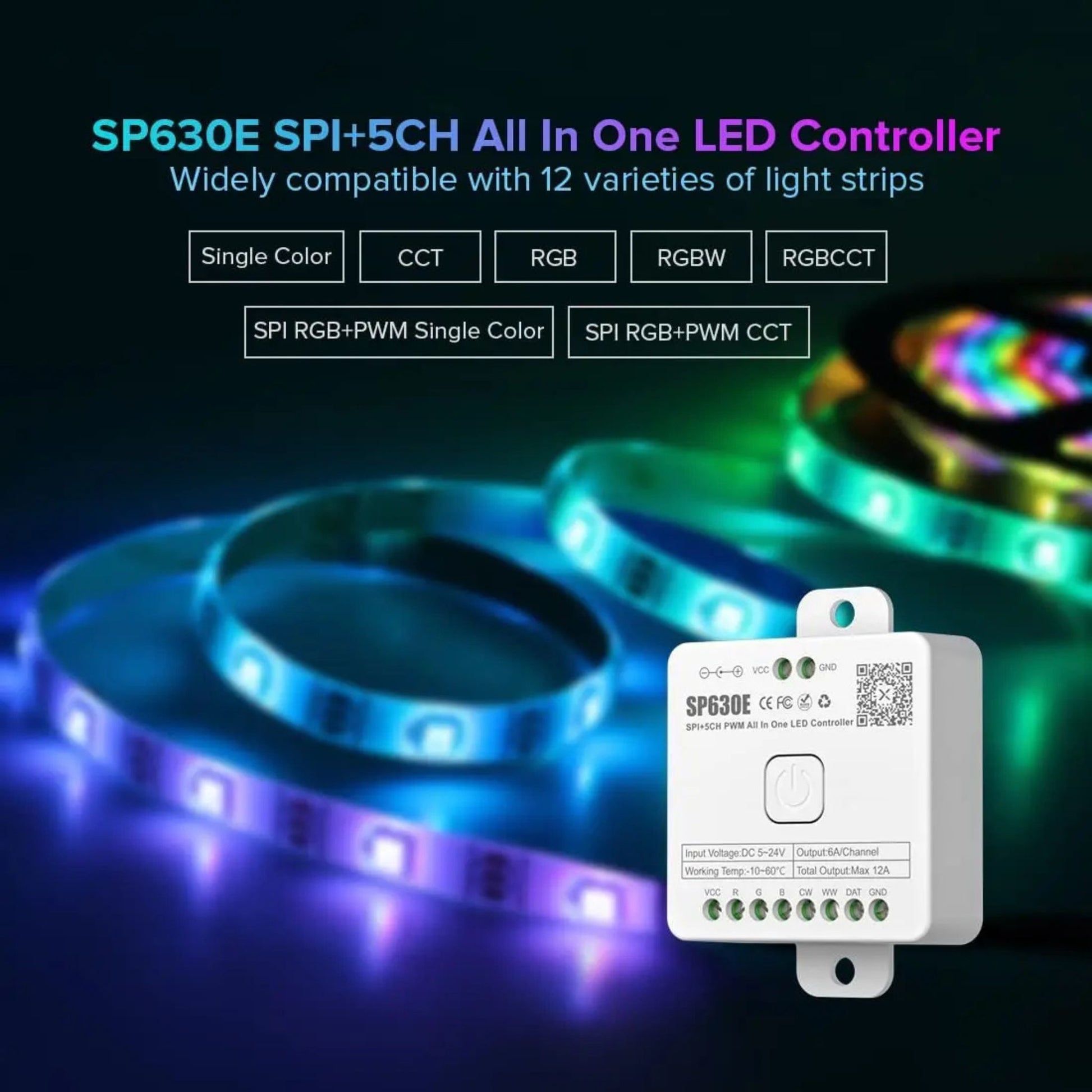

• Controls many strip types in one device: Supports SPI addressable and PWM strips including WS2812B, WS2811, SK6812, FCOB, RGB, RGBW, and CCT.

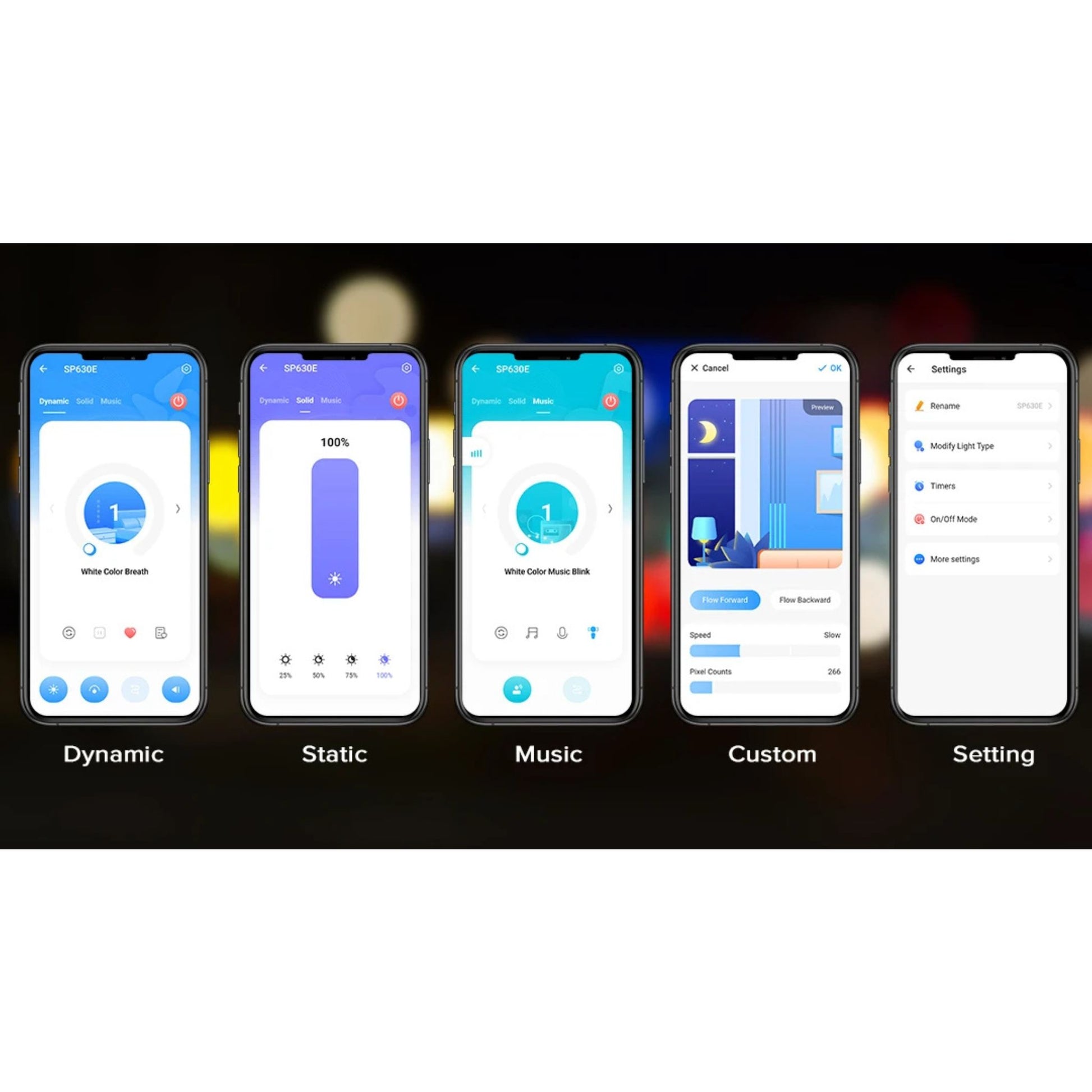

• Adjust lighting from your phone: Bluetooth control using the BanlanX mobile app for full customisation.

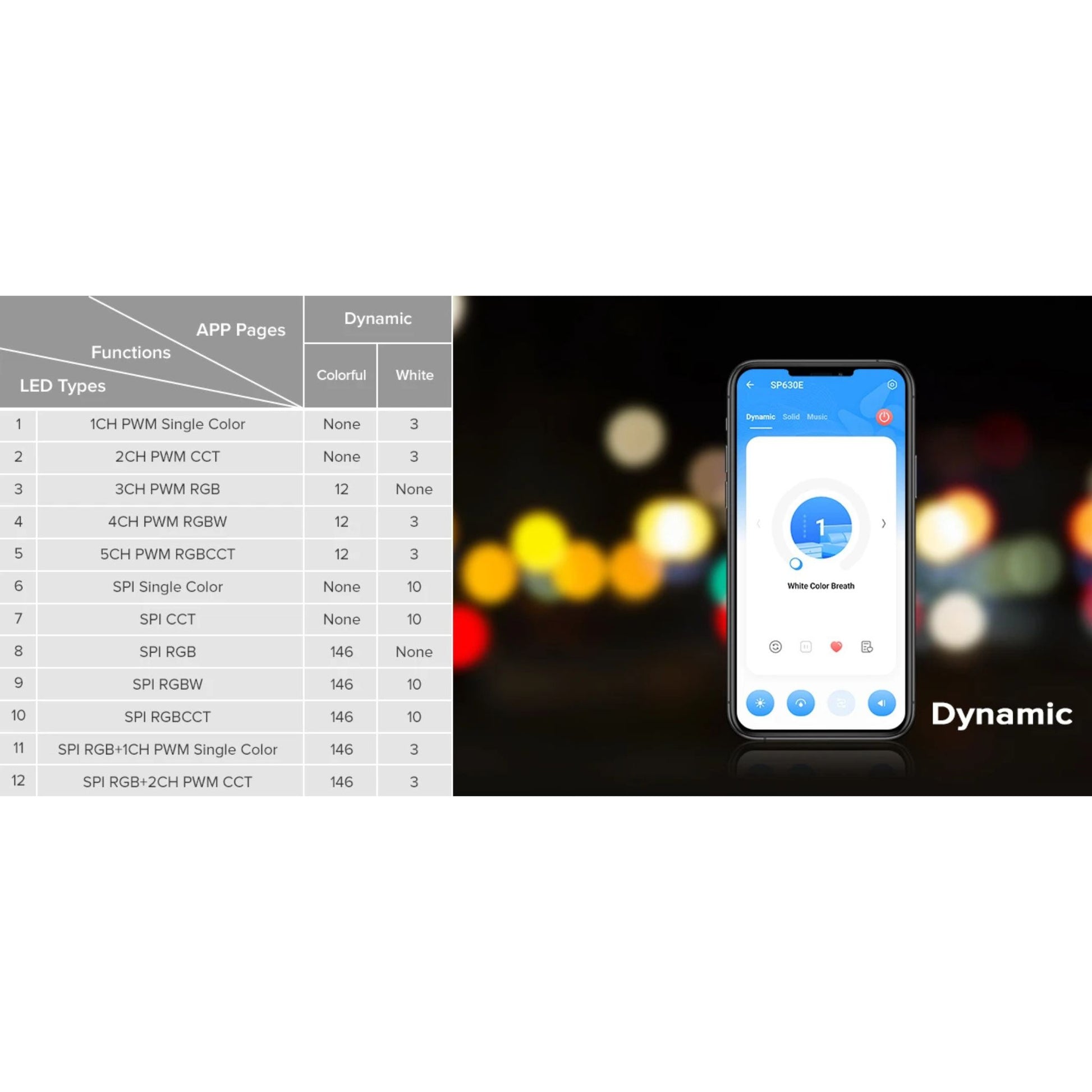

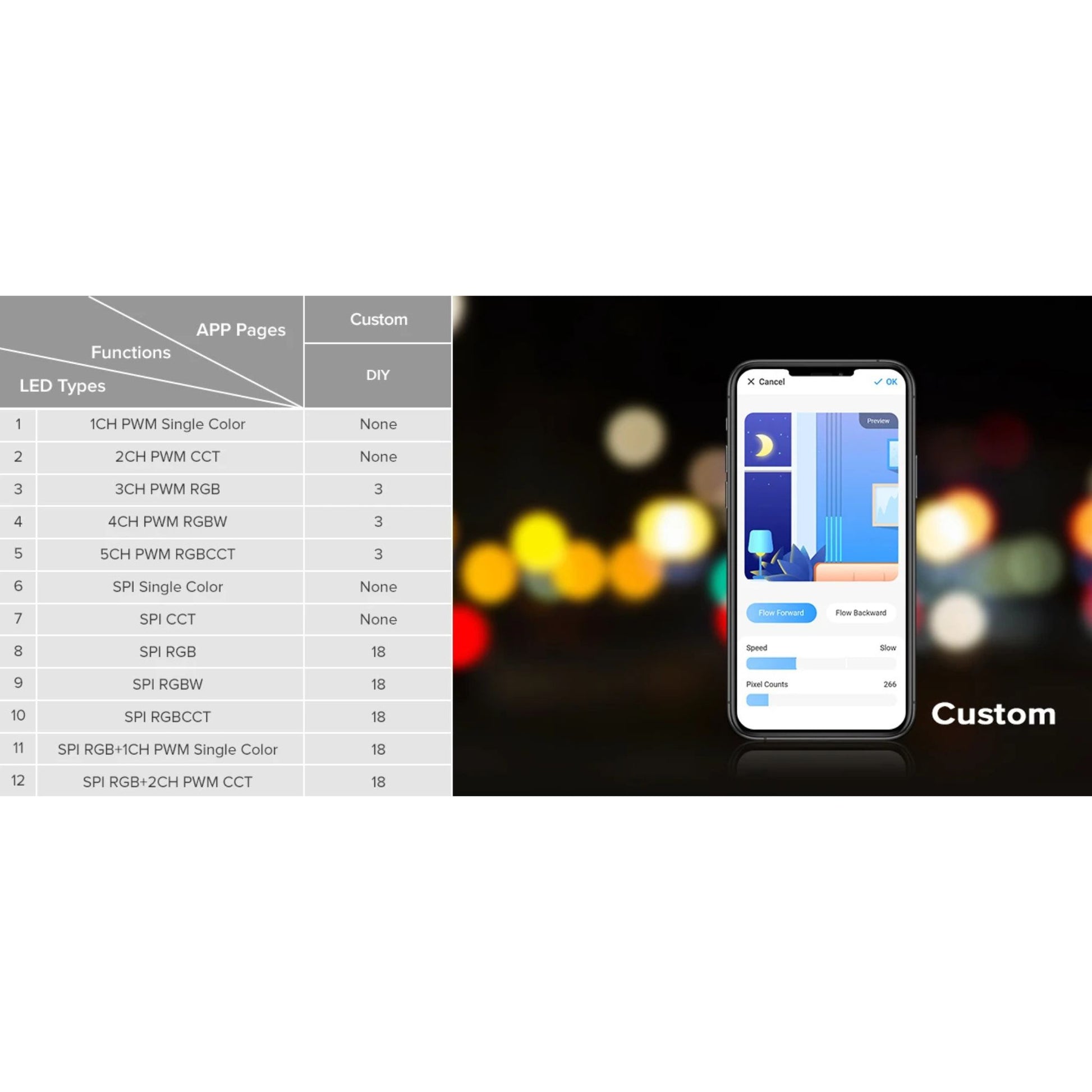

• Create dynamic lighting effects easily: Multiple modes including static colors, dynamic effects, and custom scenes.

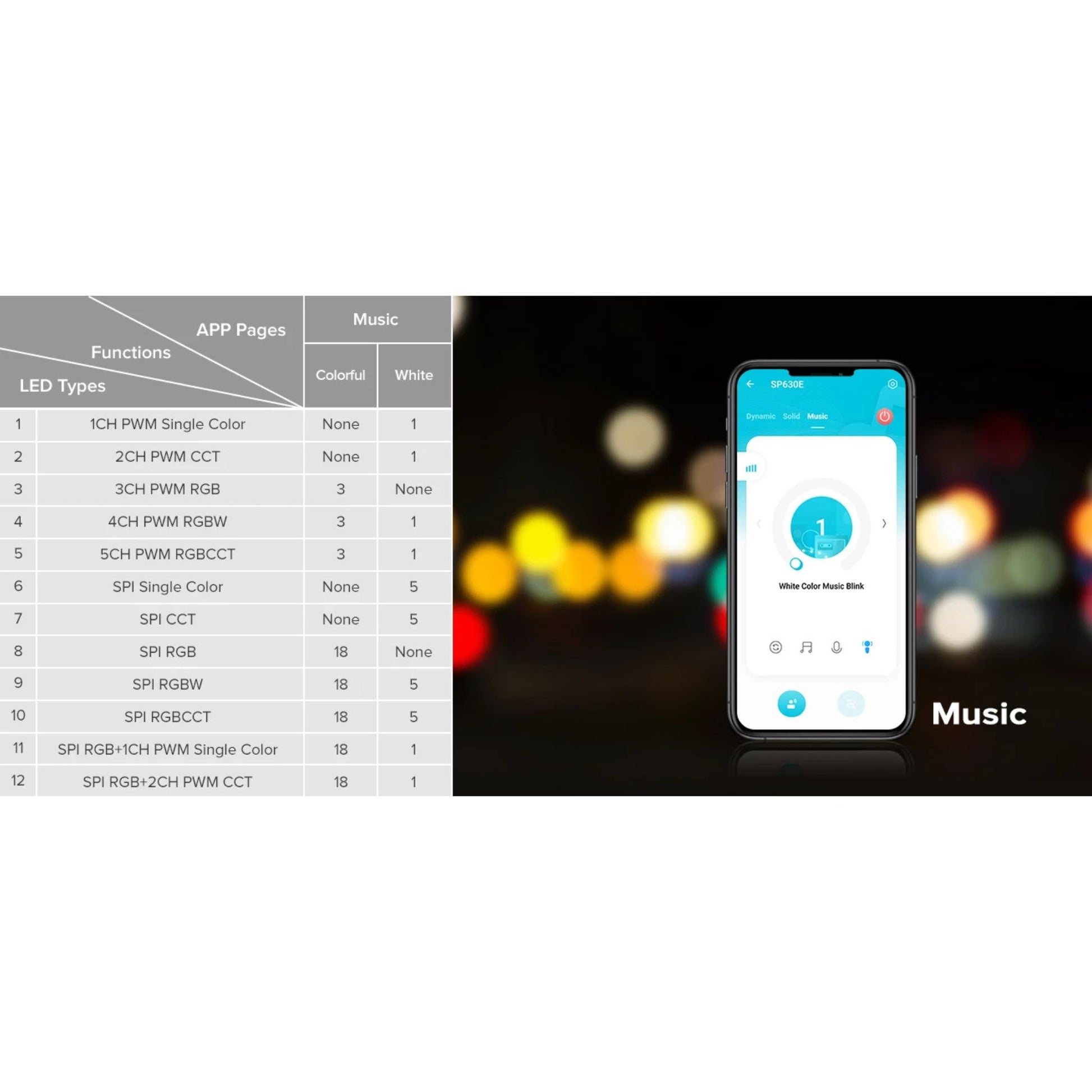

• Make lights react to music: Built-in music sync using phone microphone, onboard mic, or audio streaming.
• Customise without rewiring: App allows color order correction, device naming, and effect adjustments.
• Control multiple lighting zones: Zone control when paired with a compatible RF remote or wall panel.
• Powers large installations: Supports up to 600 IC addressable LEDs depending on strip type.

Compatibility & important notes

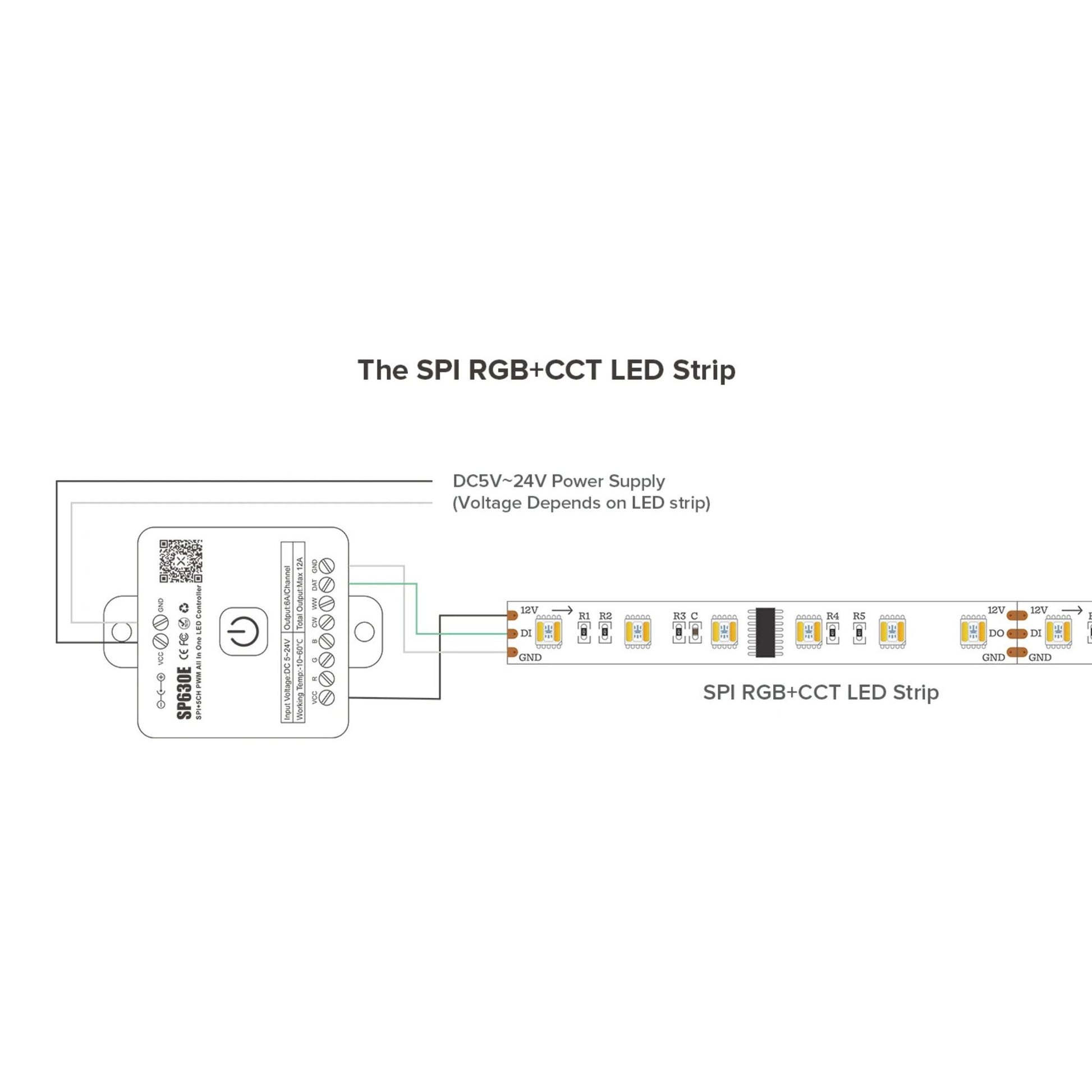

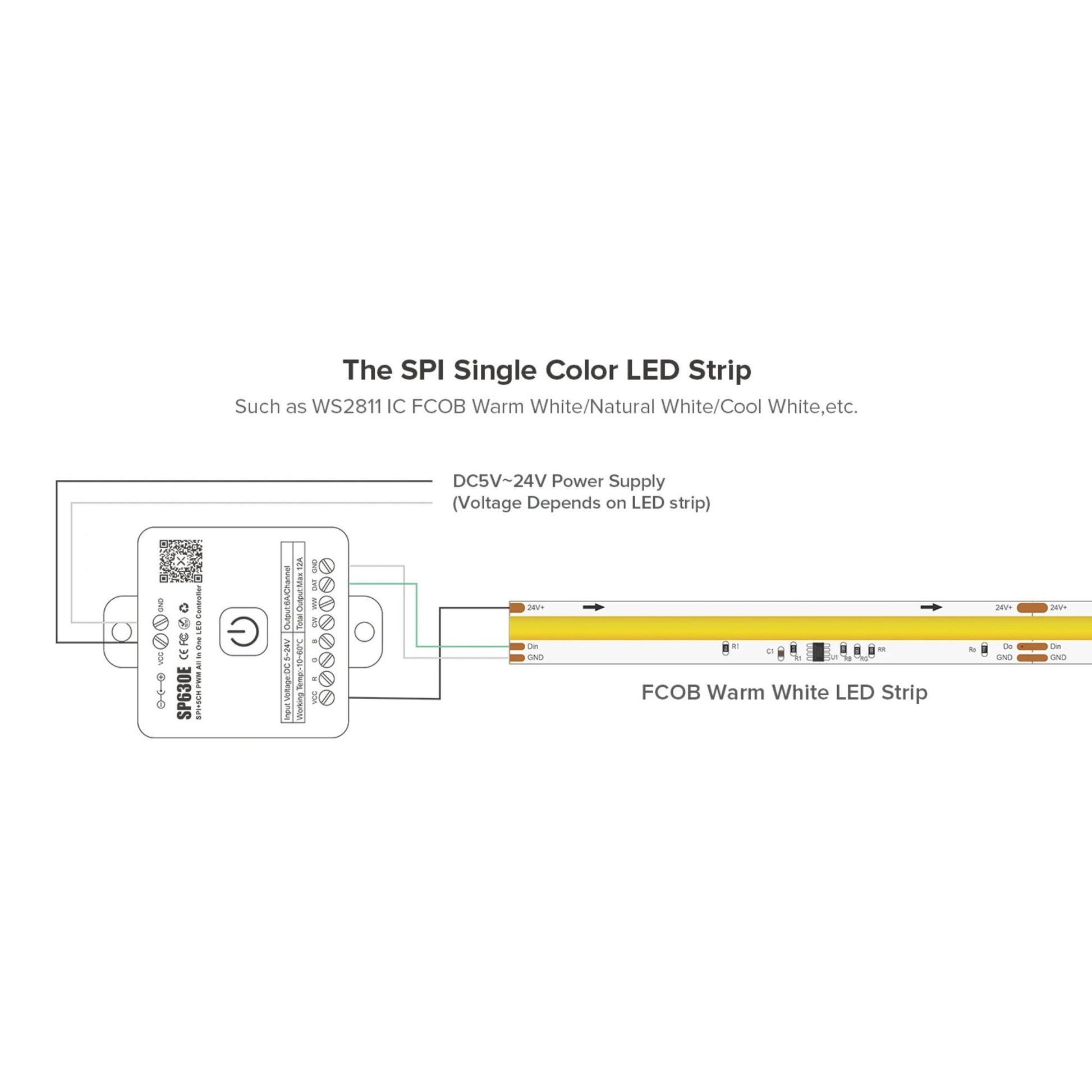

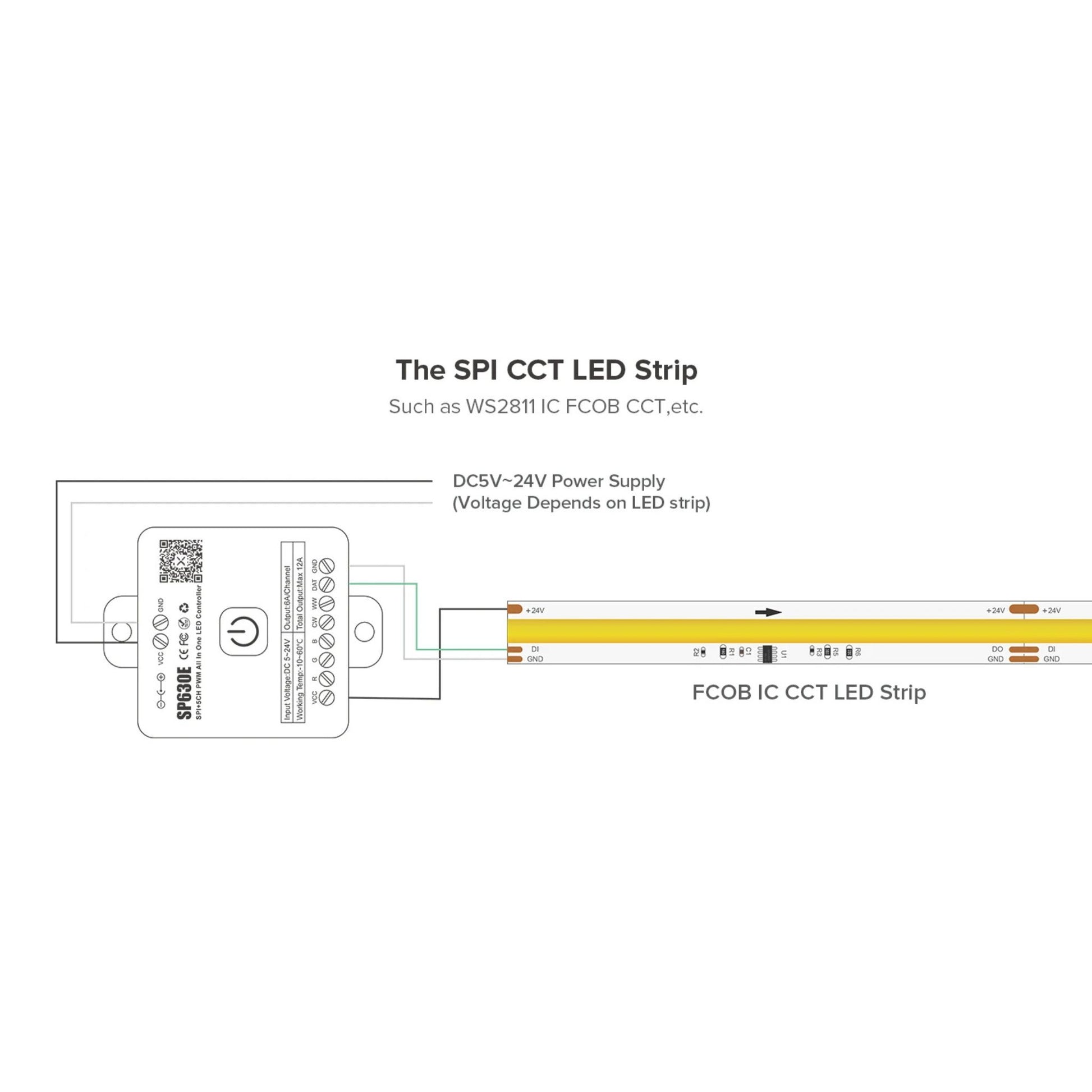

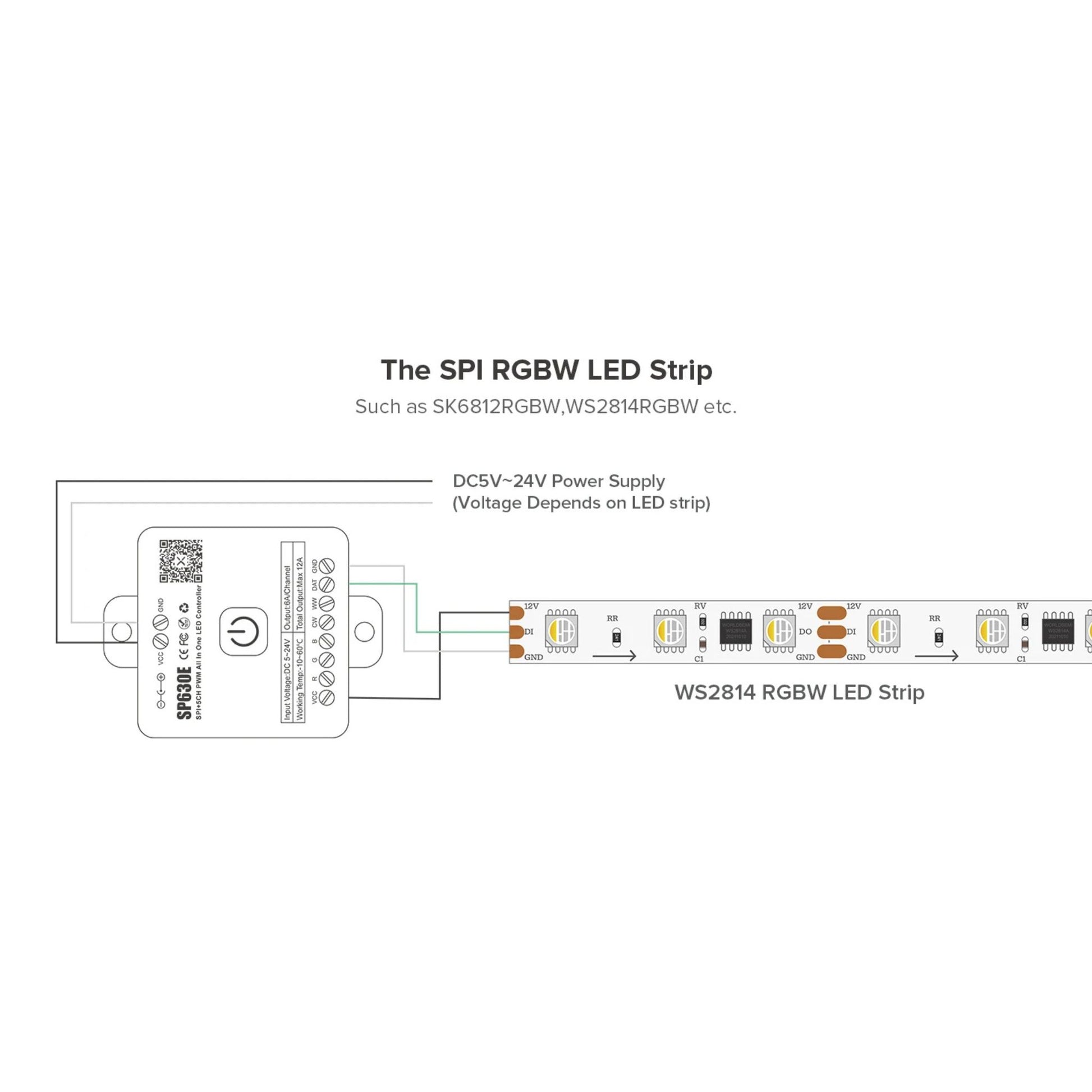

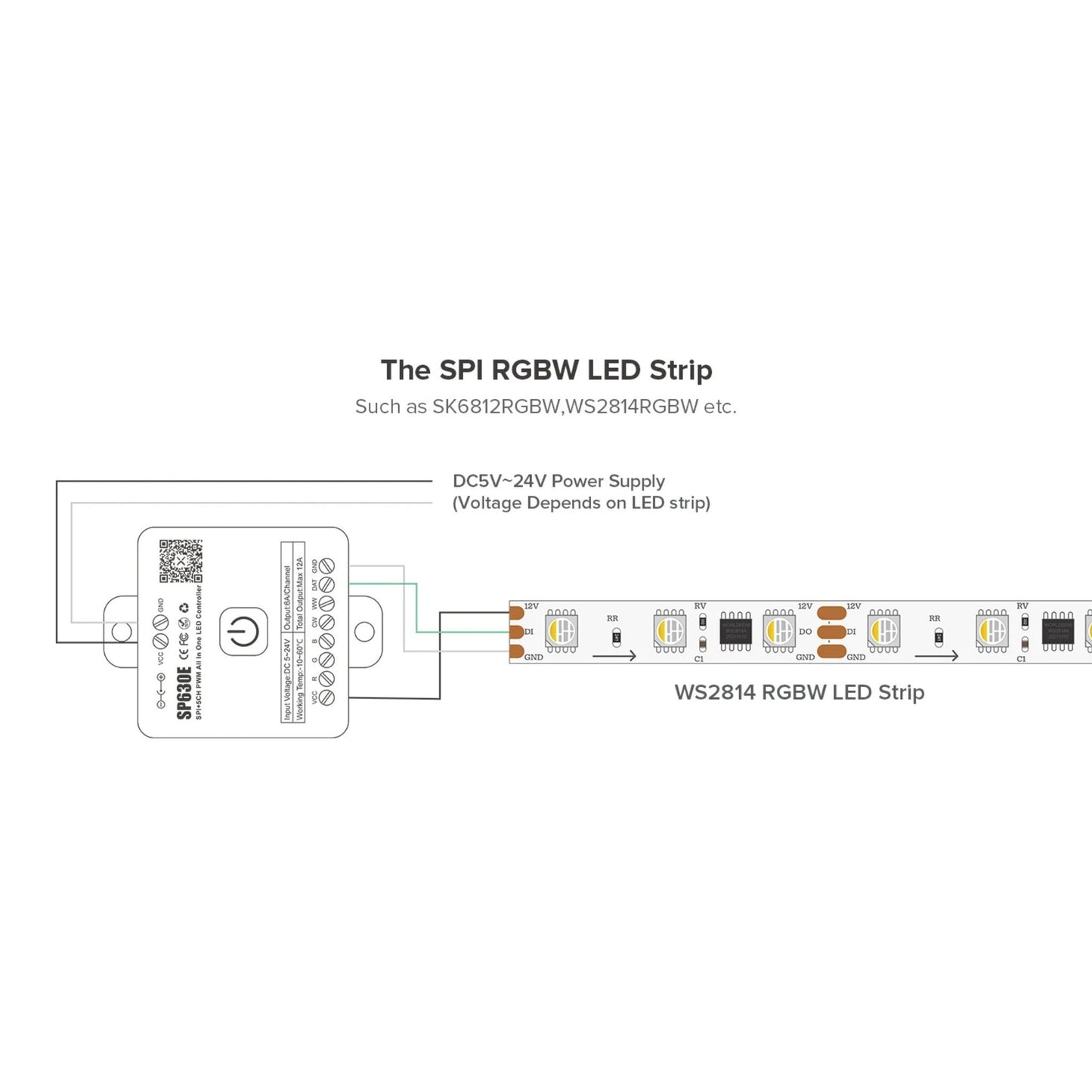

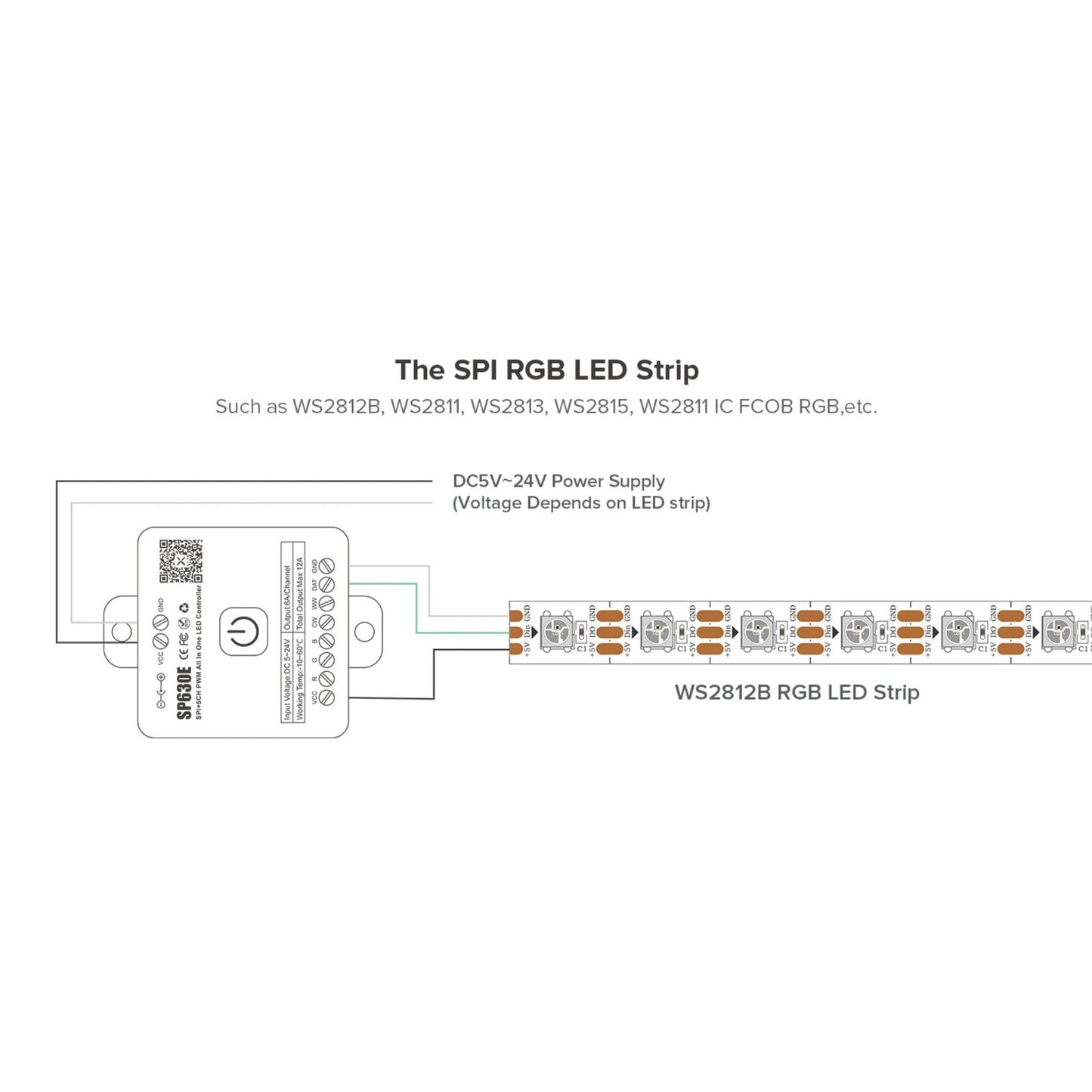

• Designed for SPI addressable and PWM LED strips

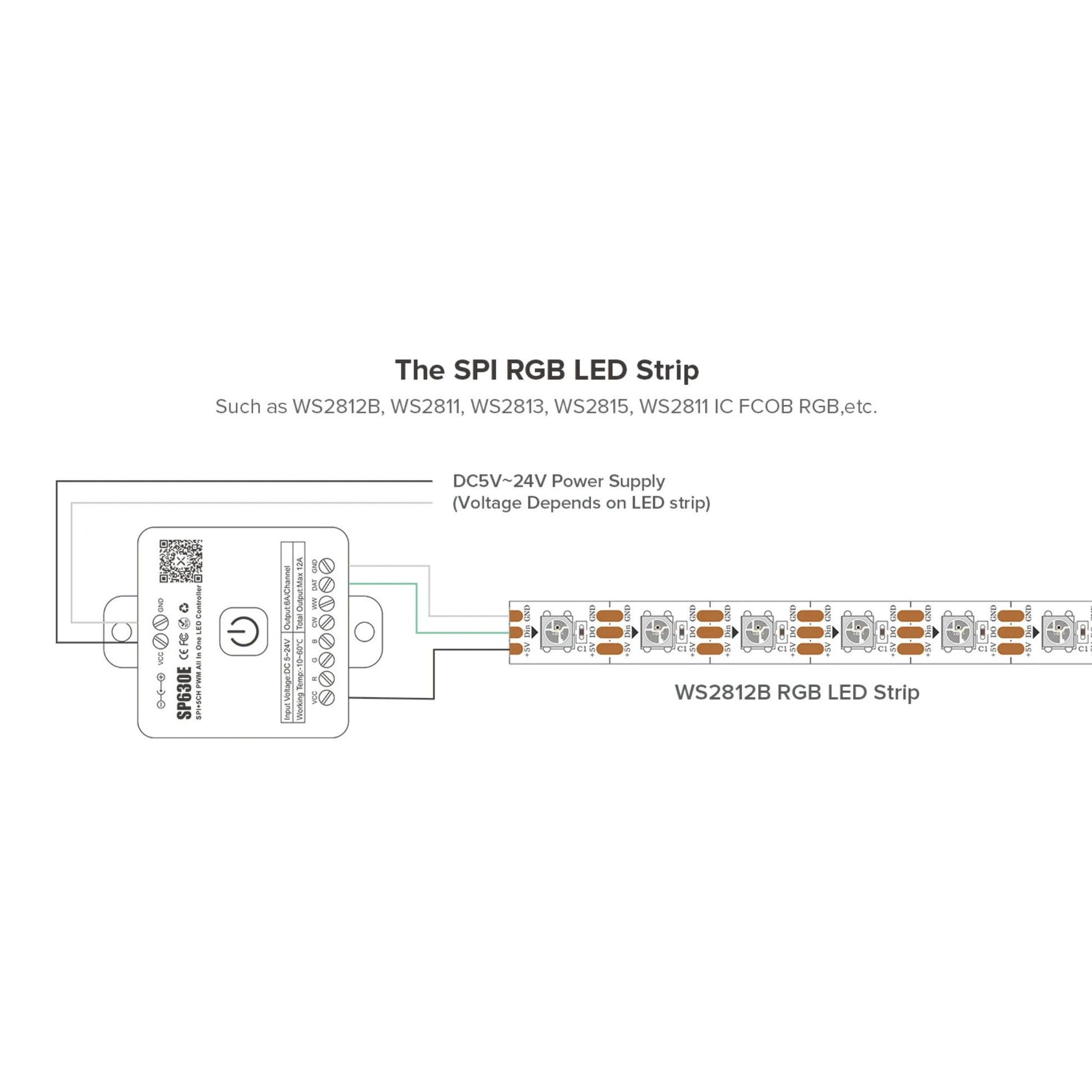

• Compatible SPI chips: WS2811, WS2812, WS2813, WS2814, WS2815, SK6812 and others

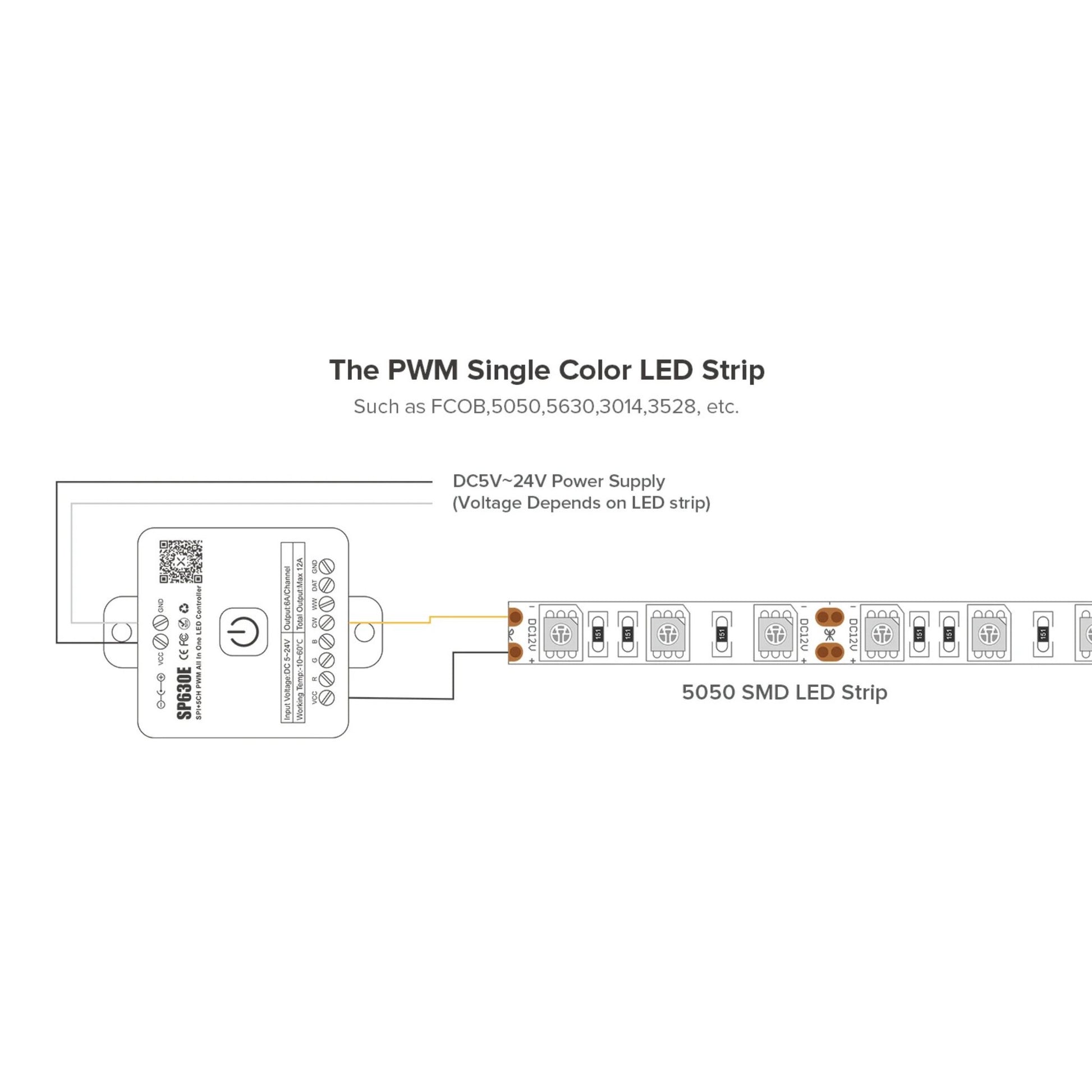

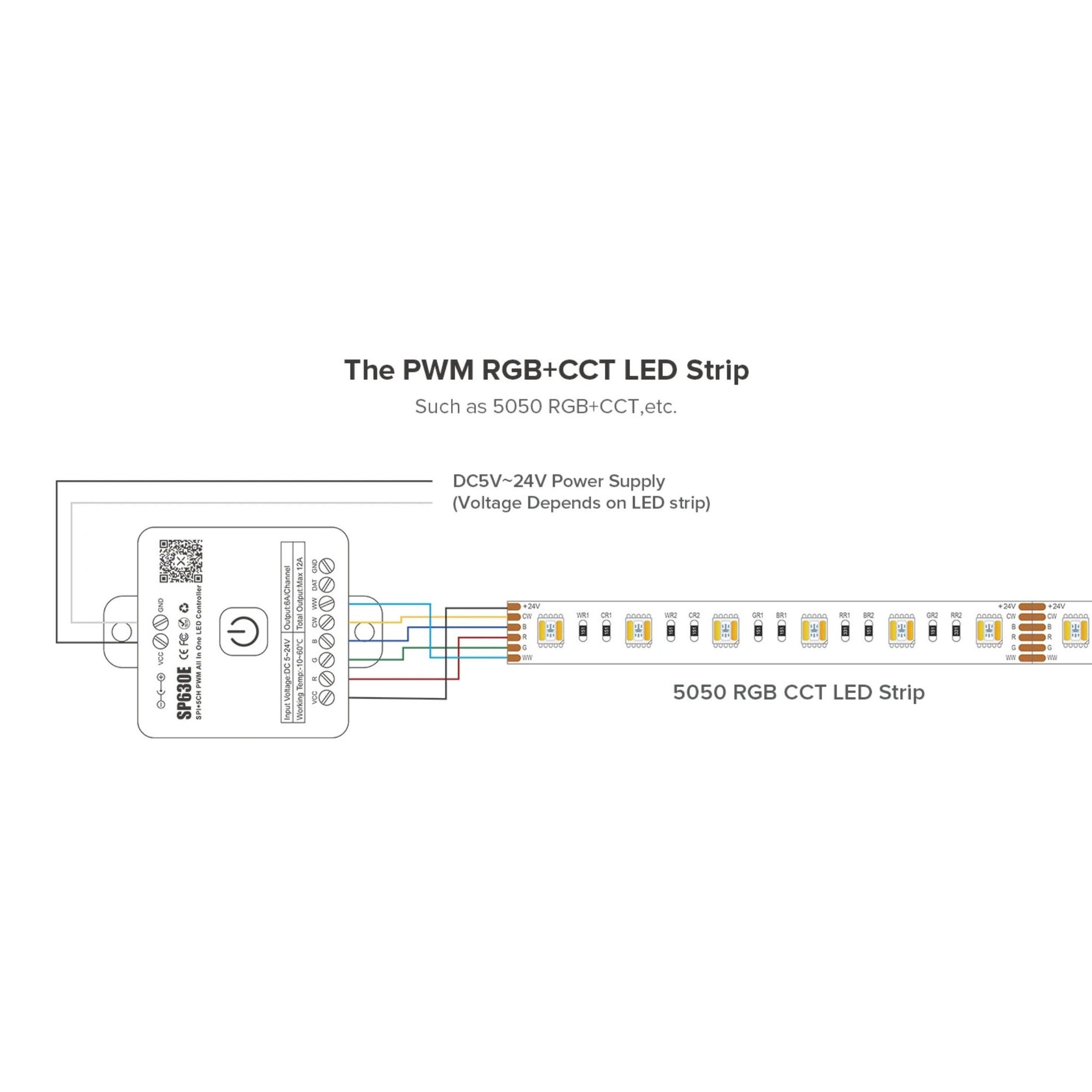

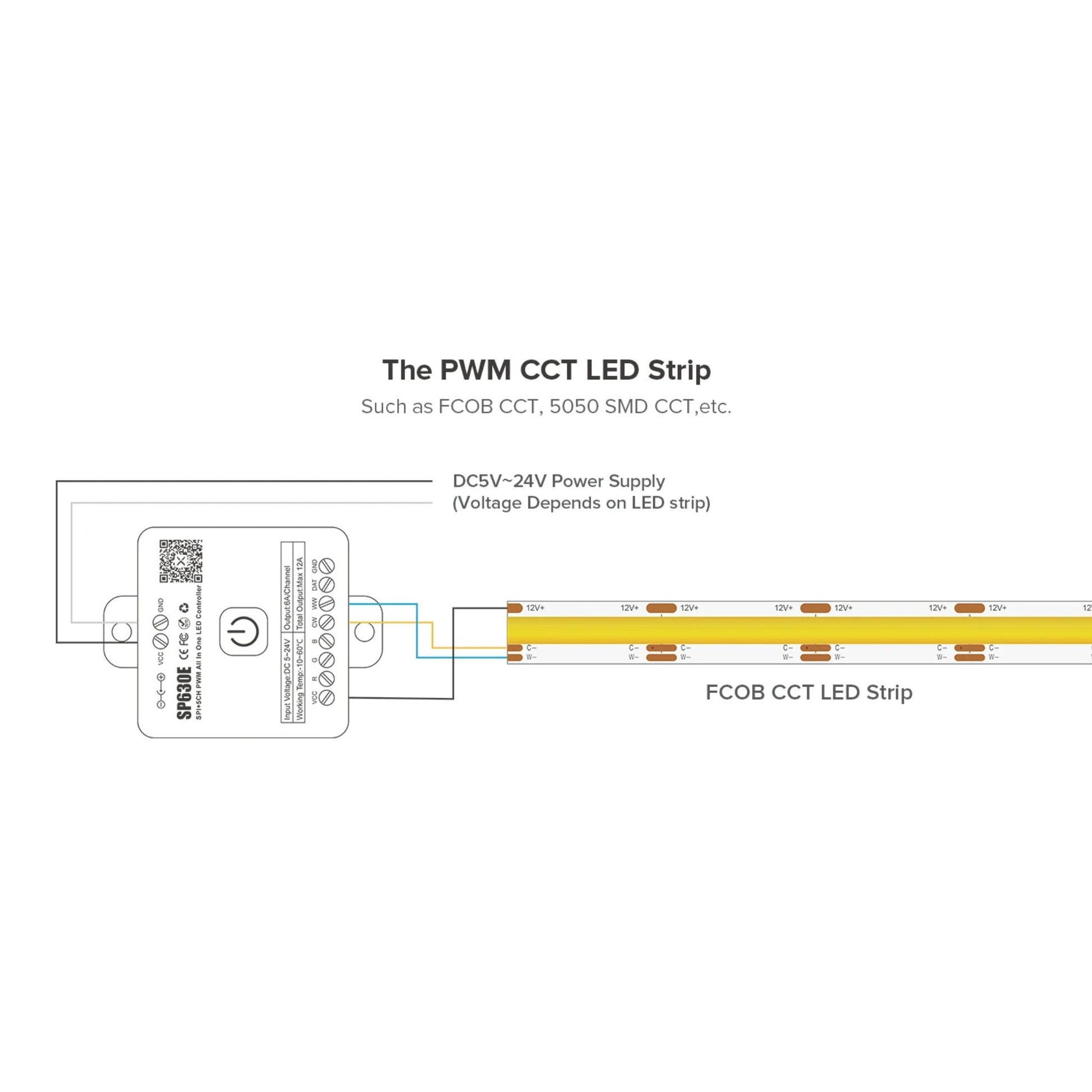

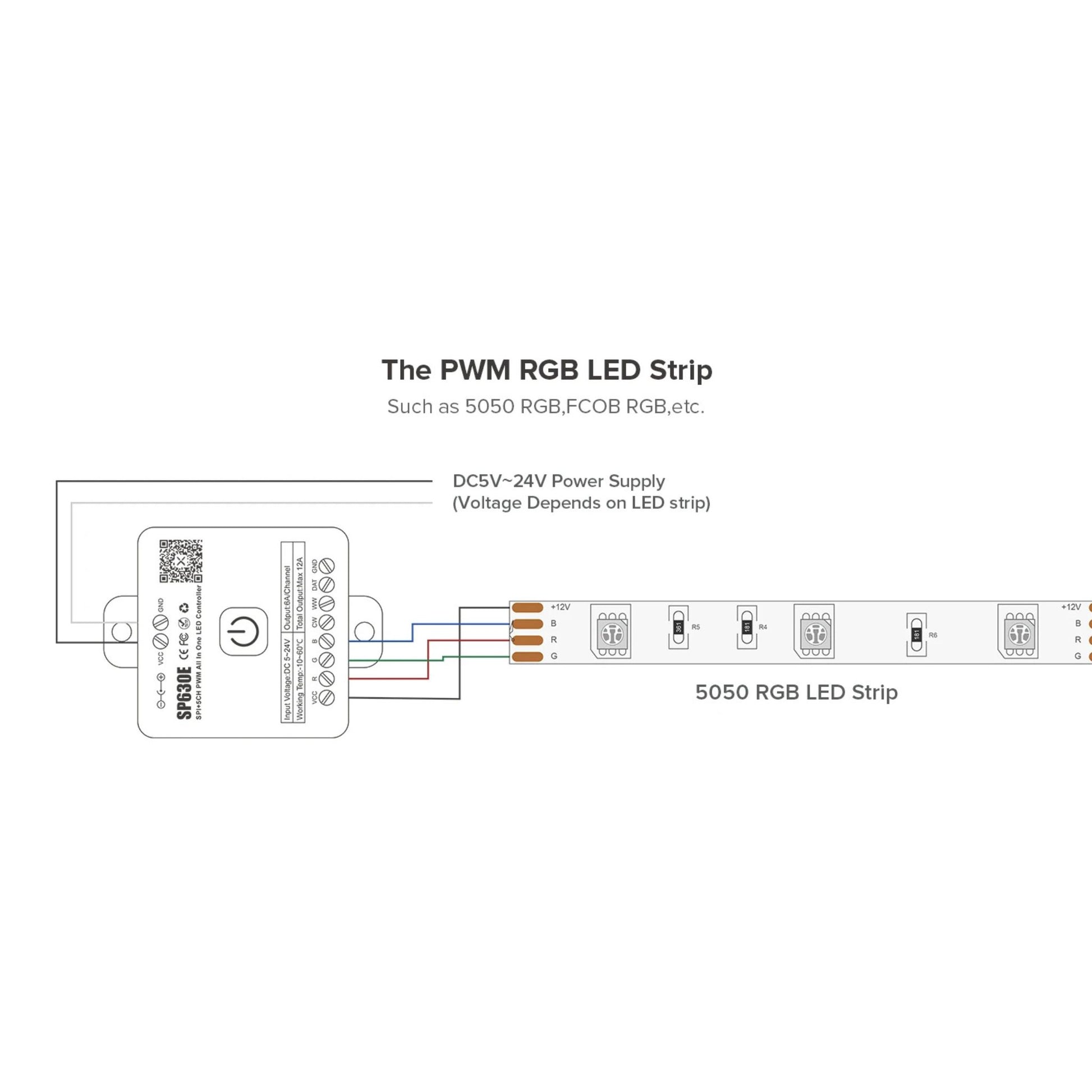

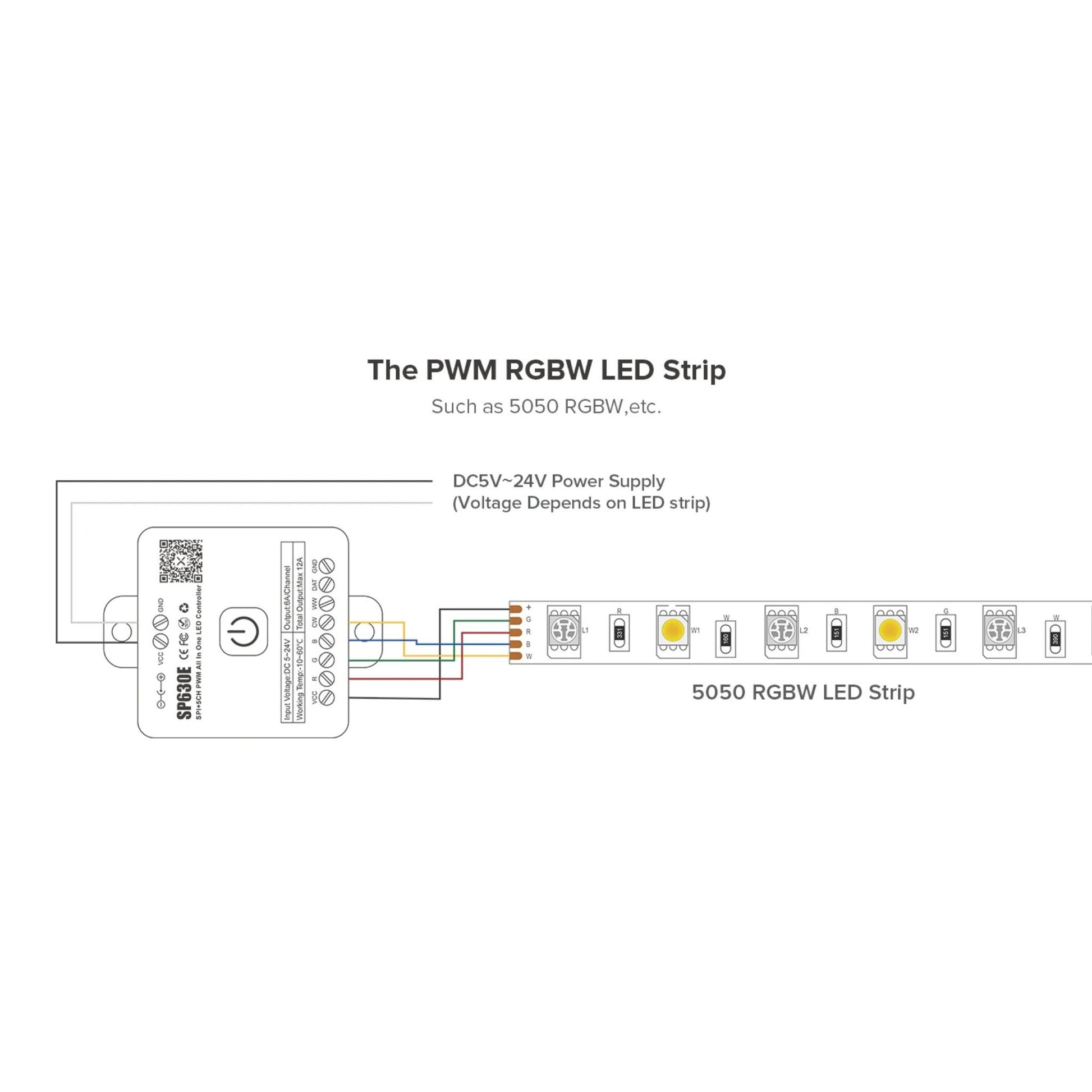

• Compatible PWM types: Single color, CCT, RGB, RGBW, RGBCCT
• Requires DC power supply between 5V and 24V
• Power supply voltage must match your LED strip voltage
• App control requires Bluetooth connection
• Not waterproof, IP30, indoor use only
• Optional RF remote or wall panel can be added separately
• Not sure about setup? Book our installation service

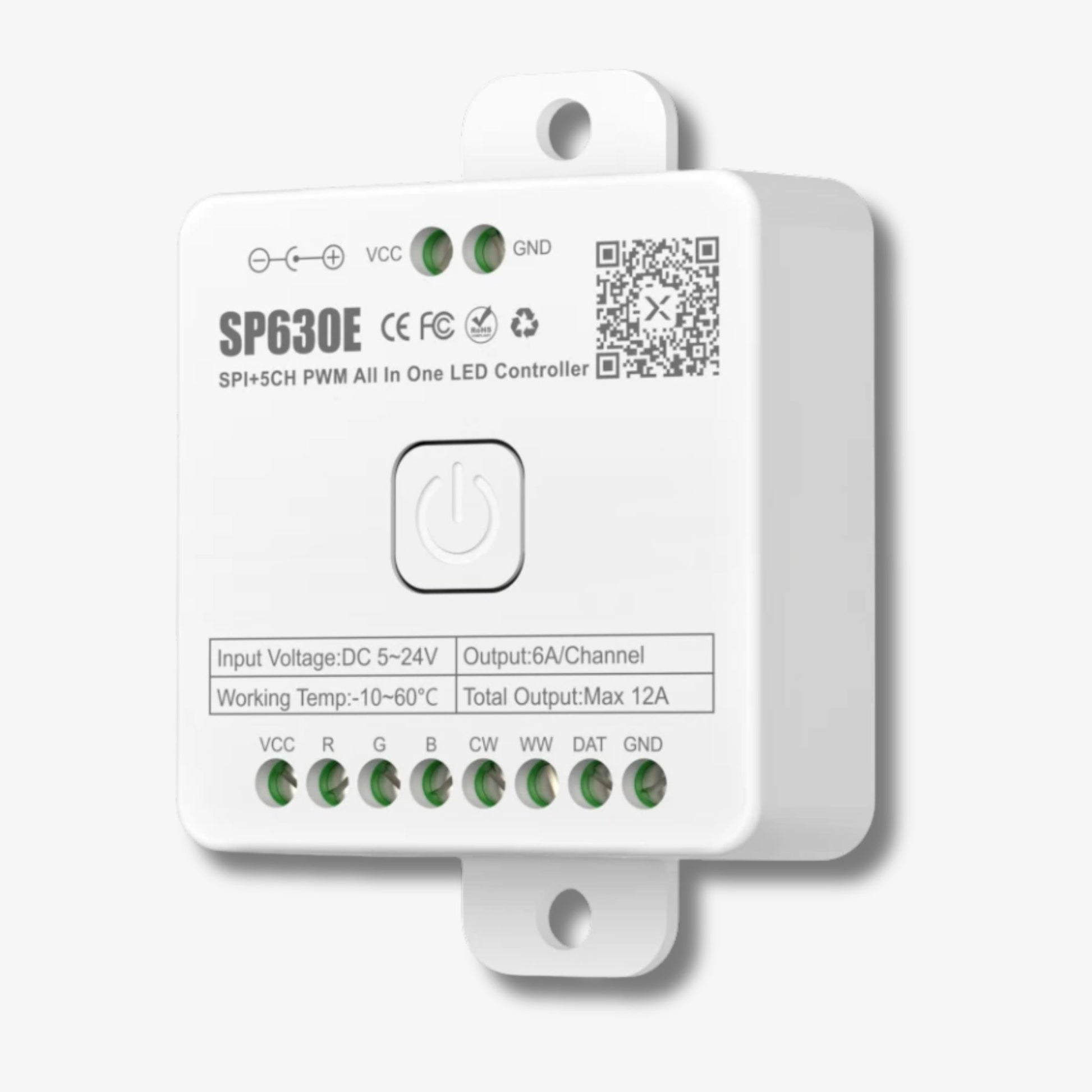

Specifications

• Brand: BTF-LIGHTING
• Model: SP630E
• Controller Type: SPI + 5CH PWM LED controller
• Input Voltage: DC 5V to 24V
• Output Current: 6A per channel
• Maximum Total Output: 12A
• Connectivity: Bluetooth
• App: BanlanX
• Supported SPI Chips: WS2811, WS2812B, WS2813, WS2814, WS2815, SK6812, TM1812, UCS1903, UCS2903 and others
• Supported PWM Types: Single color, CCT, RGB, RGBW, RGBCCT
• Max IC Quantity: Single color / CCT / RGB: 600 IC, RGBW: 450 IC, RGBCCT: 300 IC
• Operating Temperature: -20°C to 60°C
• Protection: IP30, indoor use only

Package

• 1 x SP630E LED Controller
• 1 x User manual
