RF 433MHz Light Mini Switch Module with Remote Control, 2-Way Control, No Wi-Fi Needed

Product Description

Want smart lighting control without the hassle of Wi-Fi setup?

This RF 433MHz Light Mini Switch Module lets you control your lights remotely using the included wireless button — no Wi-Fi or app required. It supports 2-way control, so you can operate two switches for one lamp.

Ideal for staircases, hallways, or anywhere you want convenient remote control without complicated wiring or internet connections.

Key Features & Benefits

RF 433MHz Wireless Control

Use the compact remote button to turn your lights on or off from up to 30 meters indoors (50 meters outdoors).

No Wi-Fi or App Needed

Enjoy reliable smart control without needing a smartphone or WiFi network.

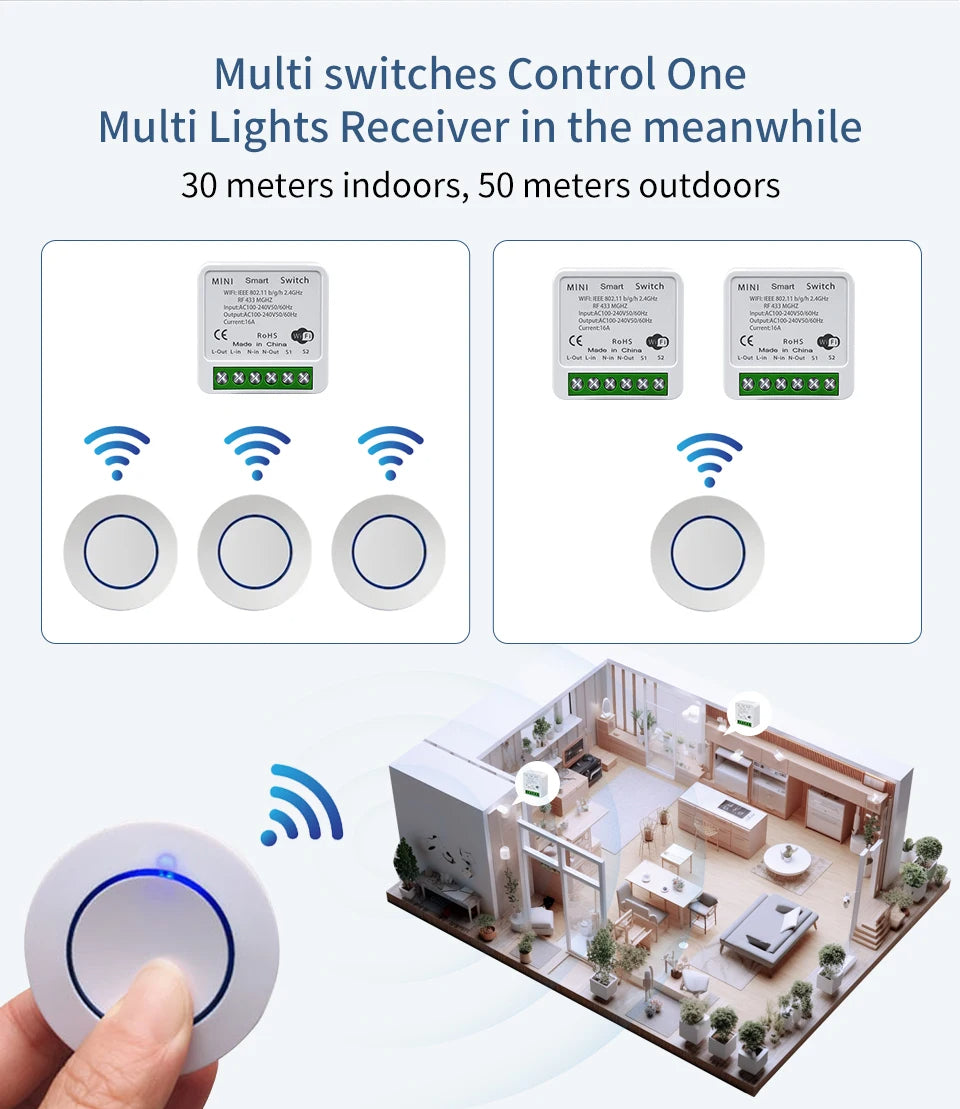

Multi-Switch / Multi-Light Support

Control one light from multiple remotes or switches, or one remote can control multiple switches—perfect for flexible lighting setups.

Easy Pairing & Reset

Pair remotes and switches by pressing buttons — no technical setup needed. Reset with a simple 8-click press.

Small & Compact Design

The mini receiver fits easily into your switch box. The remote button is slim and wireless for easy wall mounting or carrying.

2-Way Control

Supports classic 2-way (two switches for one lamp).

Safe & Reliable

Works with AC 100-240V and supports loads up to 16A.

How It Works / How to Use

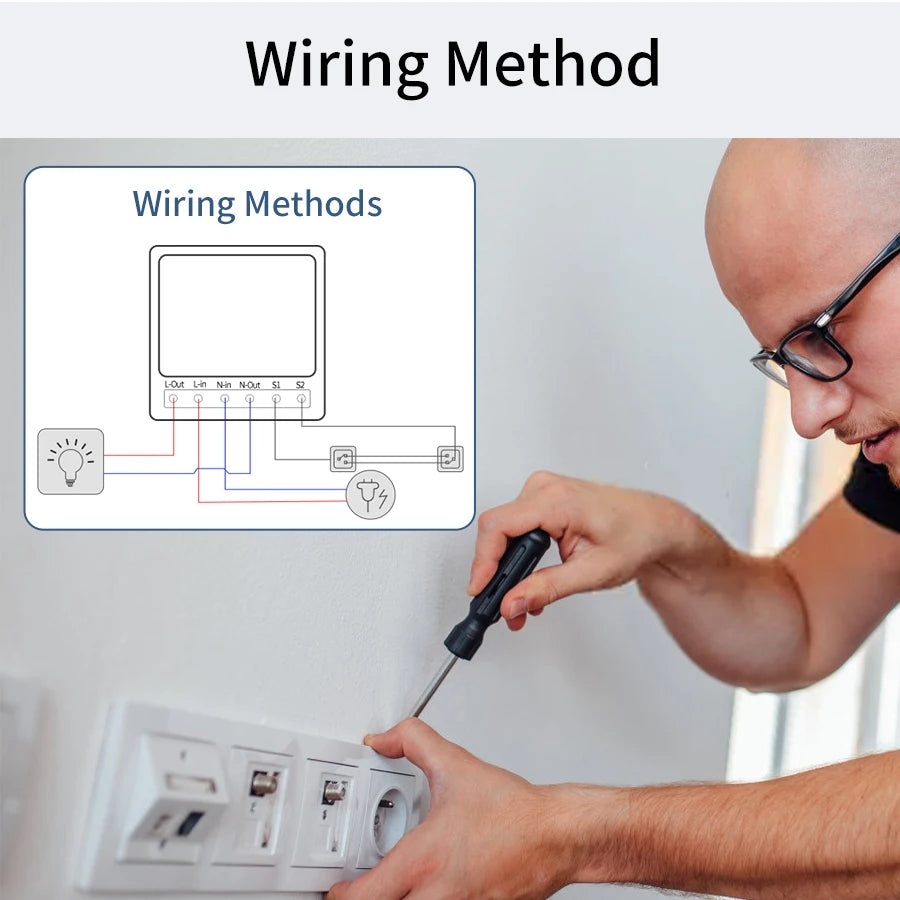

1. Connect the mini RF switch receiver behind your existing light switch (requires basic wiring).
2. Use the remote button to wirelessly control your lights up to 30 meters away indoors.

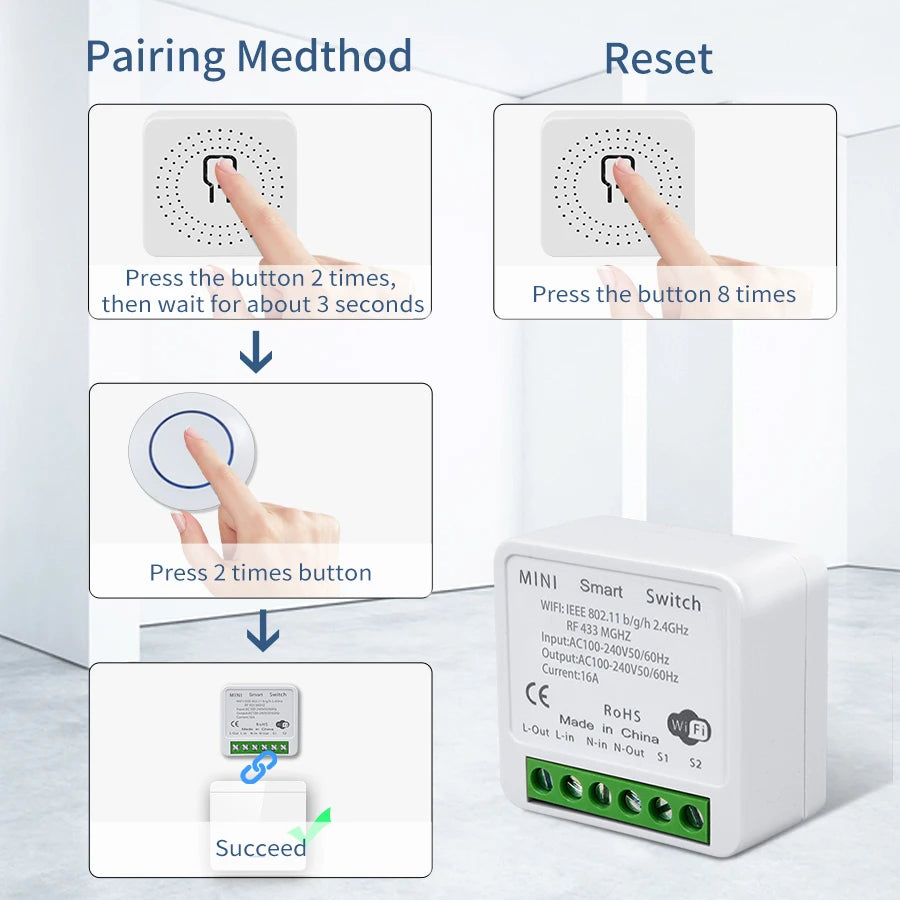

3. Pair additional remotes or receivers easily by pressing buttons twice and waiting for confirmation.
4. Reset pairing by pressing the pairing button 8 times.
5. Enjoy without needing Wi-Fi or a smartphone app.

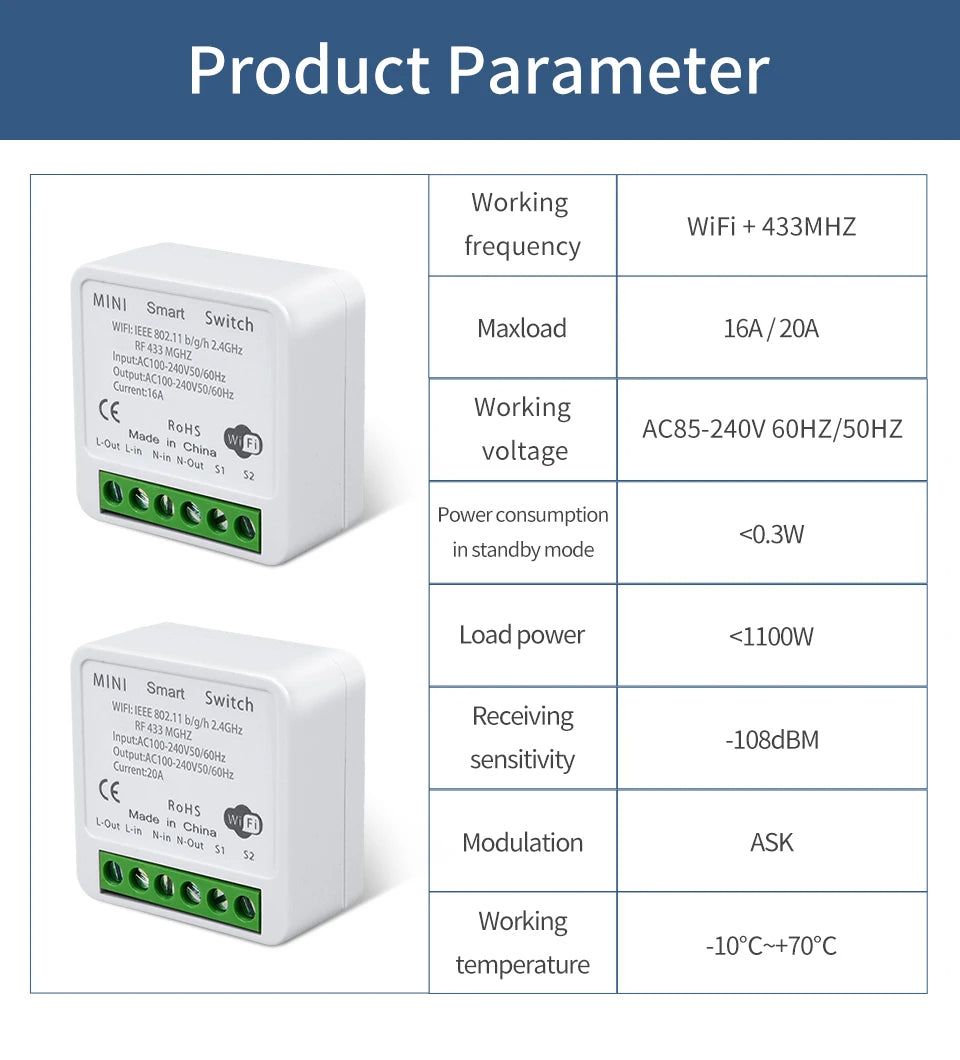

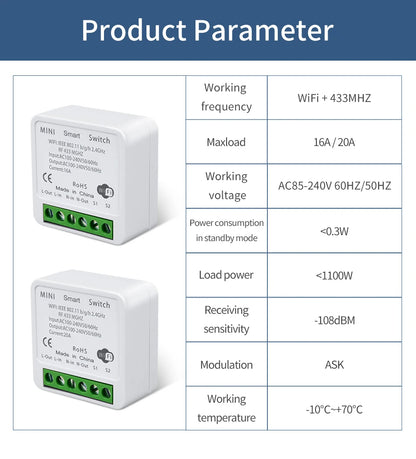

Specifications

• Wireless Frequency: RF 433 MHz
• Max Load Current: 16A
• Working Voltage: AC 100-240V, 50/60 Hz
• Standby Power Consumption: < 0.3W
• Load Power: < 1100W
• Receiving Sensitivity: -108 dBm
• Modulation: ASK
• Operating Temperature: -10°C to +70°C

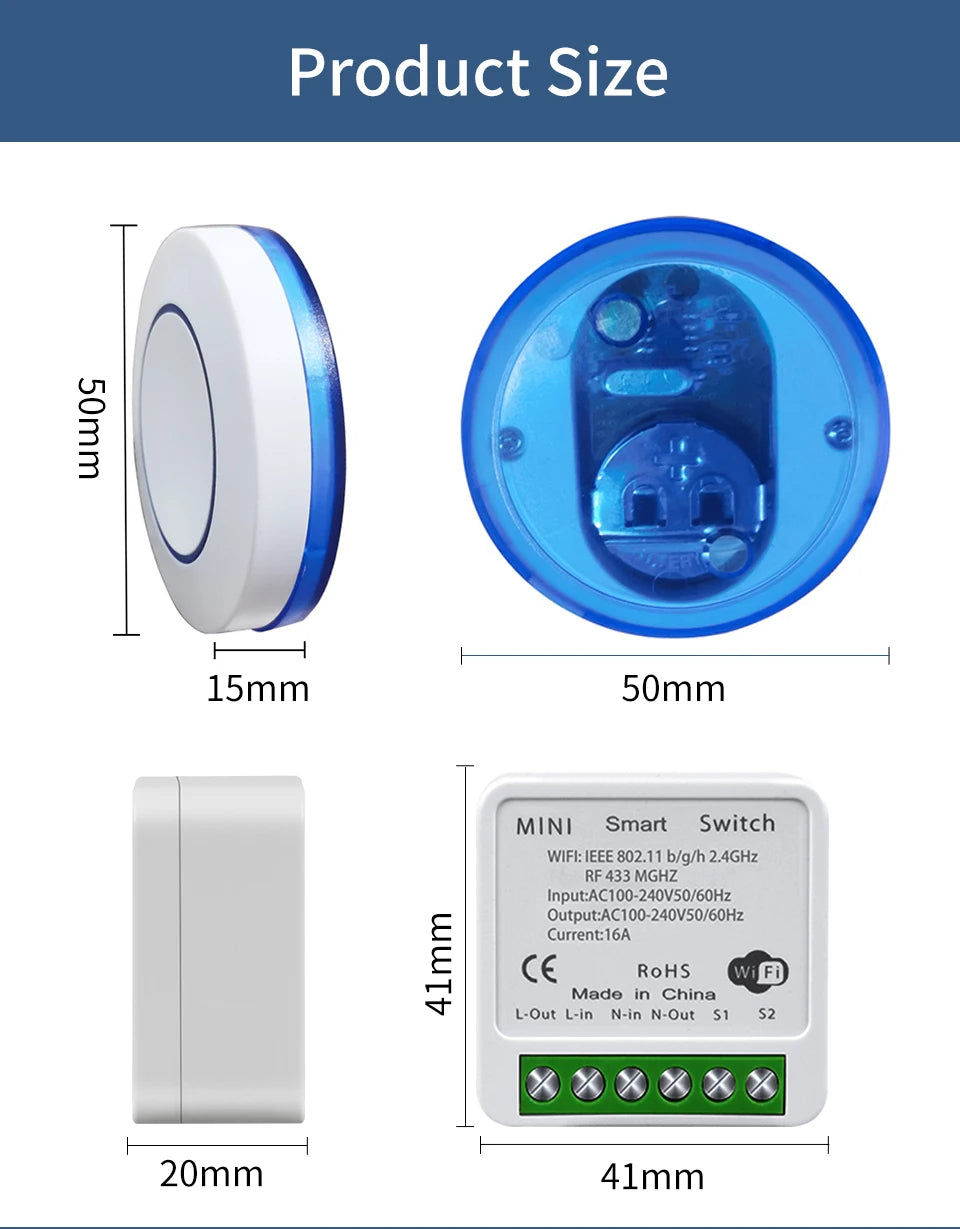

• Receiver Size: 41mm x 41mm x 20mm
• Remote Button Size: 50mm diameter, 15mm thick

What’s in the Box

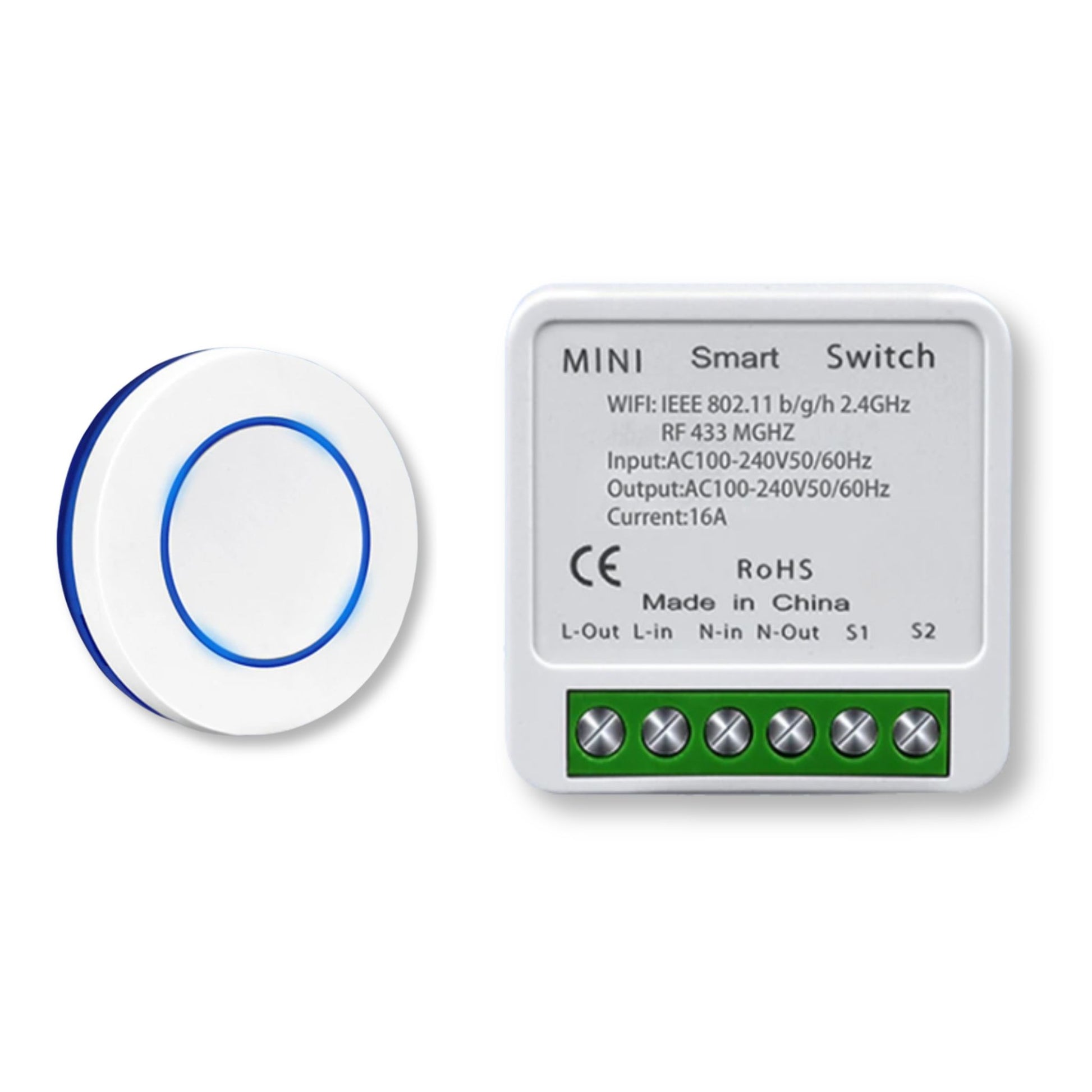

• 1 × Mini RF 433MHz Smart Switch Receiver
• 1 × Wireless RF Remote Button
