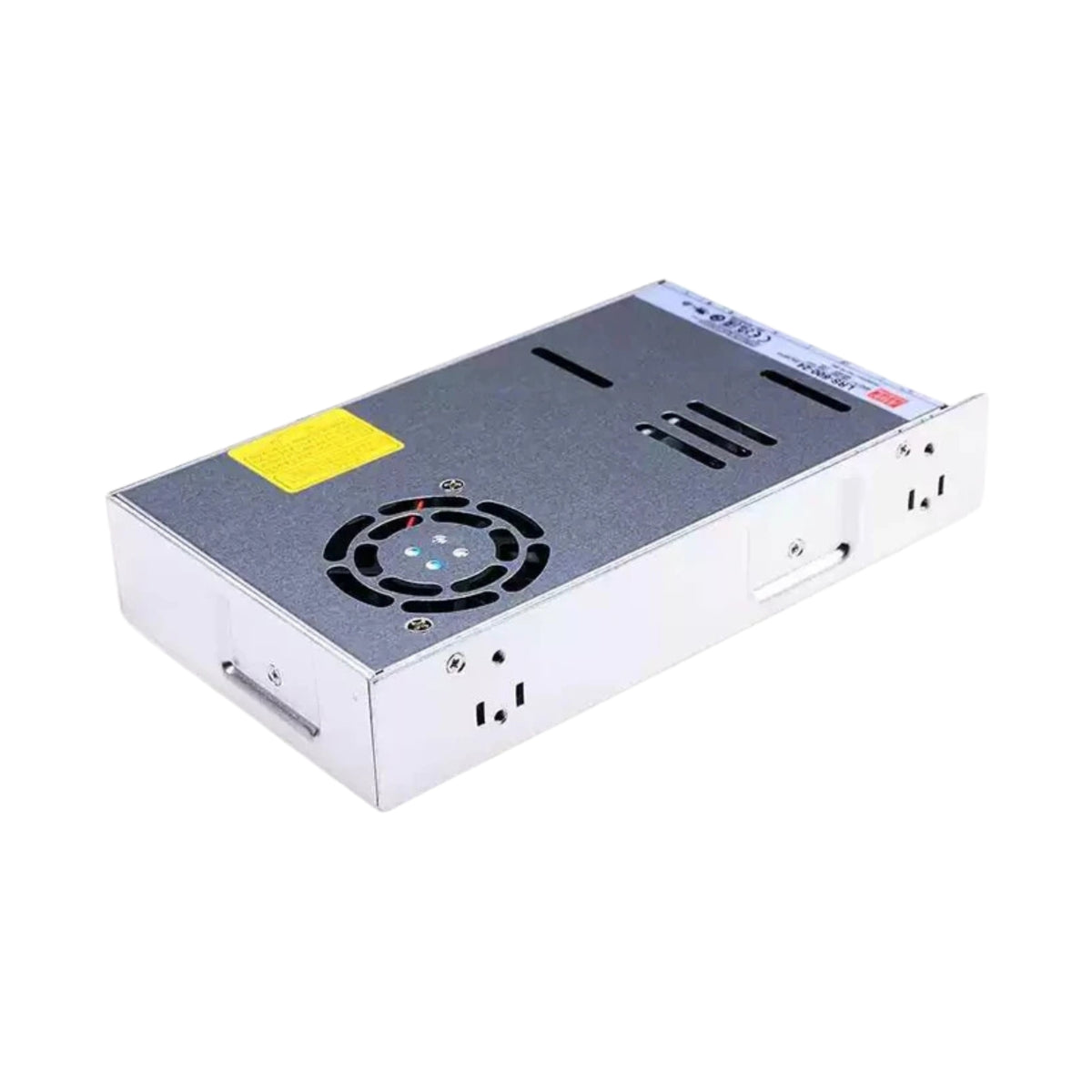

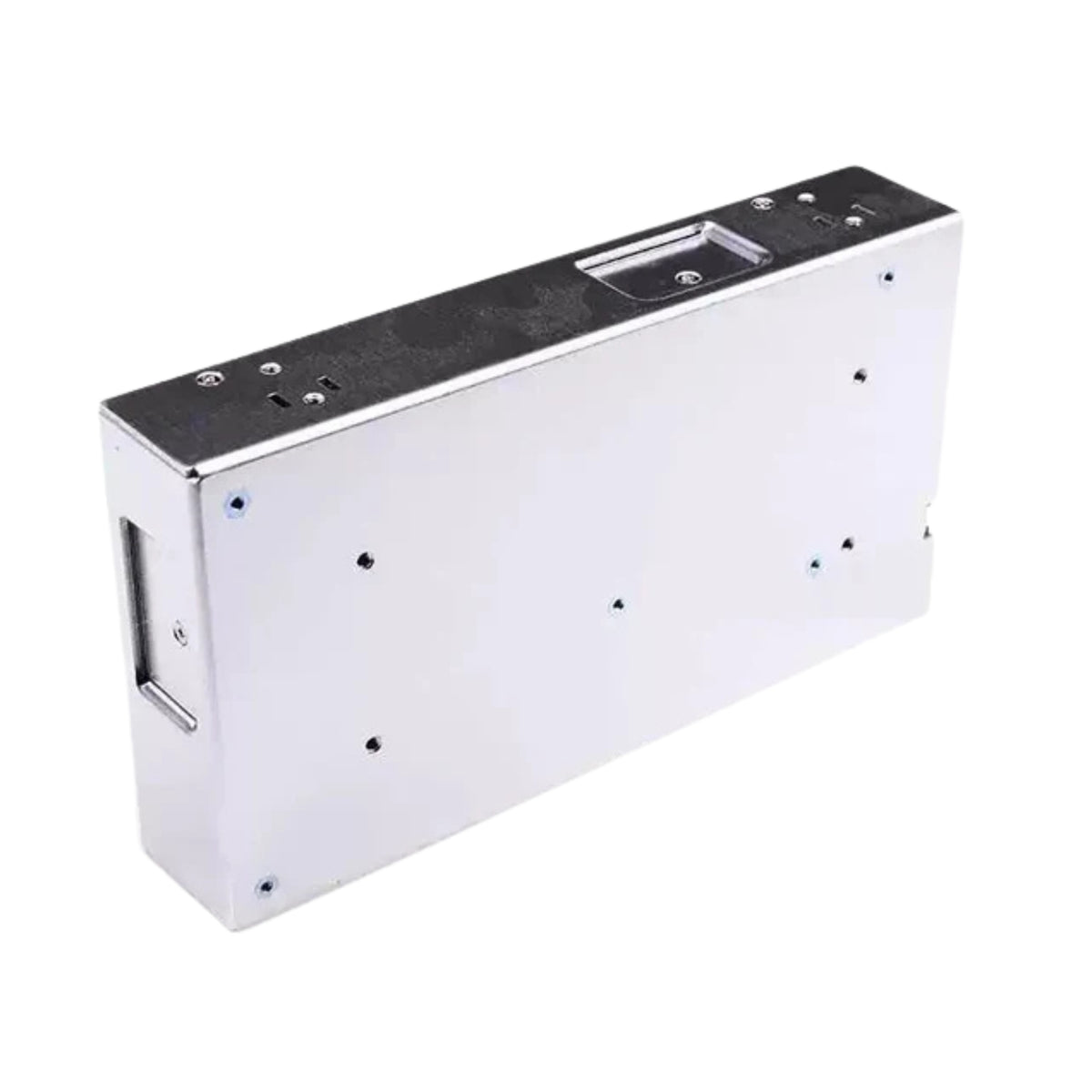

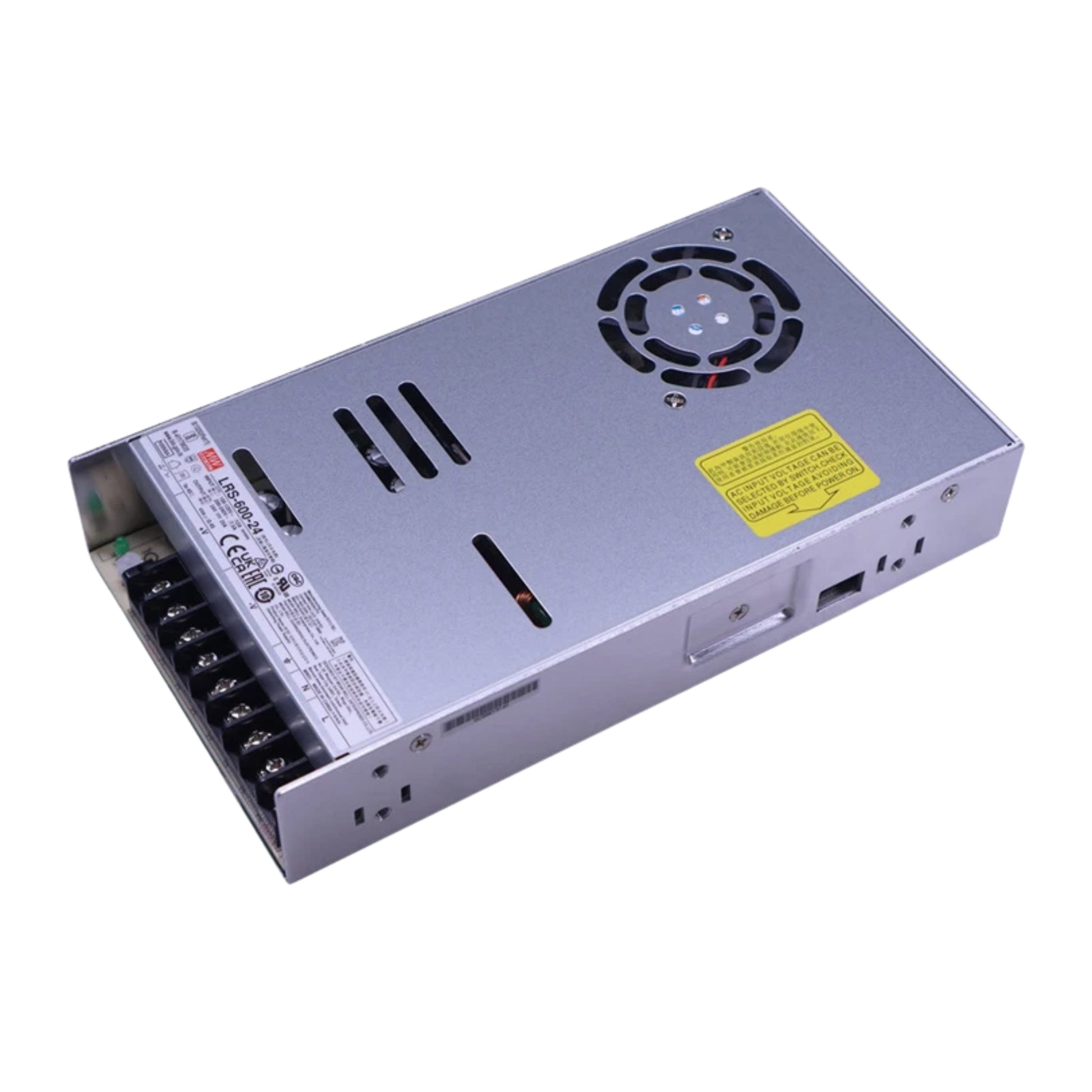

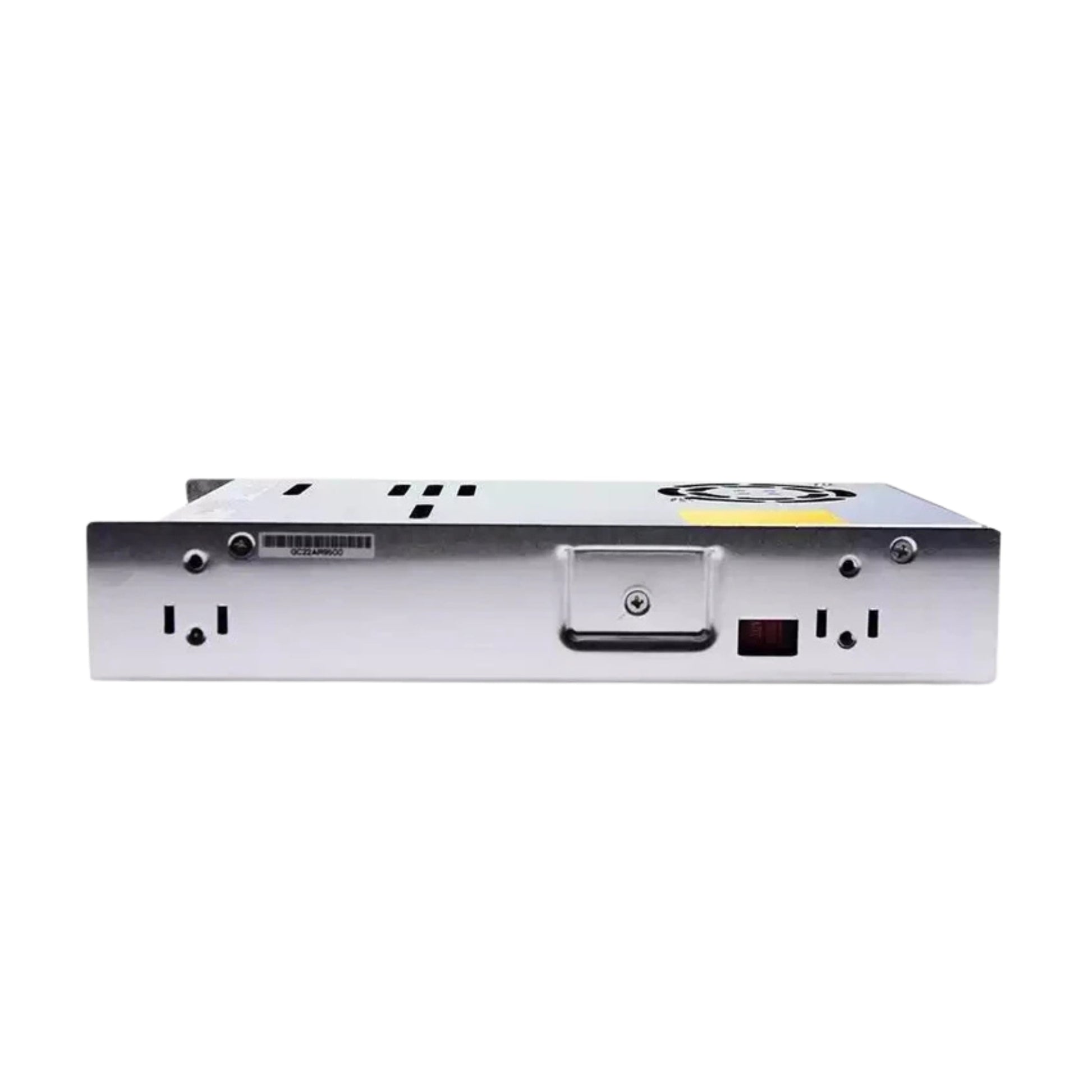

Mean Well LRS 600W 24V 25A DC Power Supply

Product Description

Need more power for a demanding 24V setup?
Want one dependable supply instead of struggling with an undersized power source?

This 600W Mean Well power supply gives your 24V system the capacity it needs.

It converts 115V or 230V AC power into stable 24V DC, delivering up to 25A / 600W for compatible high-demand equipment.

Built-in cooling and electrical protection help keep your system running reliably, while adjustable output gives installers added flexibility.

Get the 24V power your larger system needs from one dependable supply.

Key Features & Benefits

• Works With 115V or 230V Power: Select the appropriate AC input voltage for the installation, giving you more flexibility across different electrical setups.
• Power Bigger 24V Systems: Delivers up to 600W / 25A at 24V DC, giving demanding compatible equipment the power it needs from one supply.
• Keep Your Equipment Running Reliably: Stable regulated 24V output provides dependable power for compatible LED lighting, automation, control and electronic systems.
• Built-In Protection for Greater Peace of Mind: Short-circuit, overload, over-voltage and over-temperature protection help protect the power supply during abnormal operating conditions.
• Handles Heat Under Heavy Loads: Forced-air cooling helps manage internal temperature when powering demanding equipment.
• Quieter When Full Cooling Isn't Needed: Automatic fan control switches the cooling fan on and off according to internal temperature.
• Adjust the Output to Suit Your Setup: Fine-tune the DC output from 22.8V to 26.4V when a compatible installation requires voltage adjustment.
• More Power With Less Energy Wasted: Up to 91% typical efficiency helps reduce unnecessary energy loss as heat.
• Fits More Easily Into Equipment Installations: The slim 41mm profile delivers 600W capacity without requiring an unnecessarily bulky power supply.
• Made for Demanding Installations: Suitable for compatible industrial automation, control systems, electrical equipment, LED systems and other high-power 24V applications.

Compatibility & Important Notes

• Designed for equipment requiring 24V DC power.
• Maximum continuous output is 25A / 600W.
• AC input is selectable between 115V and 230V using the input selector switch.
• AC operating input ranges are 90–132VAC / 180–264VAC.
• Input frequency range is 47–63Hz.
• DC output can be adjusted from 22.8V to 26.4V.
• Uses hardwired screw terminals for AC input and DC output.
• The FG ground terminal must be connected to earth ground.
• Fan and ventilation openings must remain unobstructed.
• Mean Well recommends 10–15cm clearance when an adjacent device is a heat source.
• Do not install in high-moisture areas or near water.
• Connected equipment must not exceed the power supply's rated output current or wattage.
• This is an enclosed component power supply intended for integration into a suitable system or enclosure.
• Professional installation is recommended when working with mains AC power.


Not sure about installation? Book our installation service

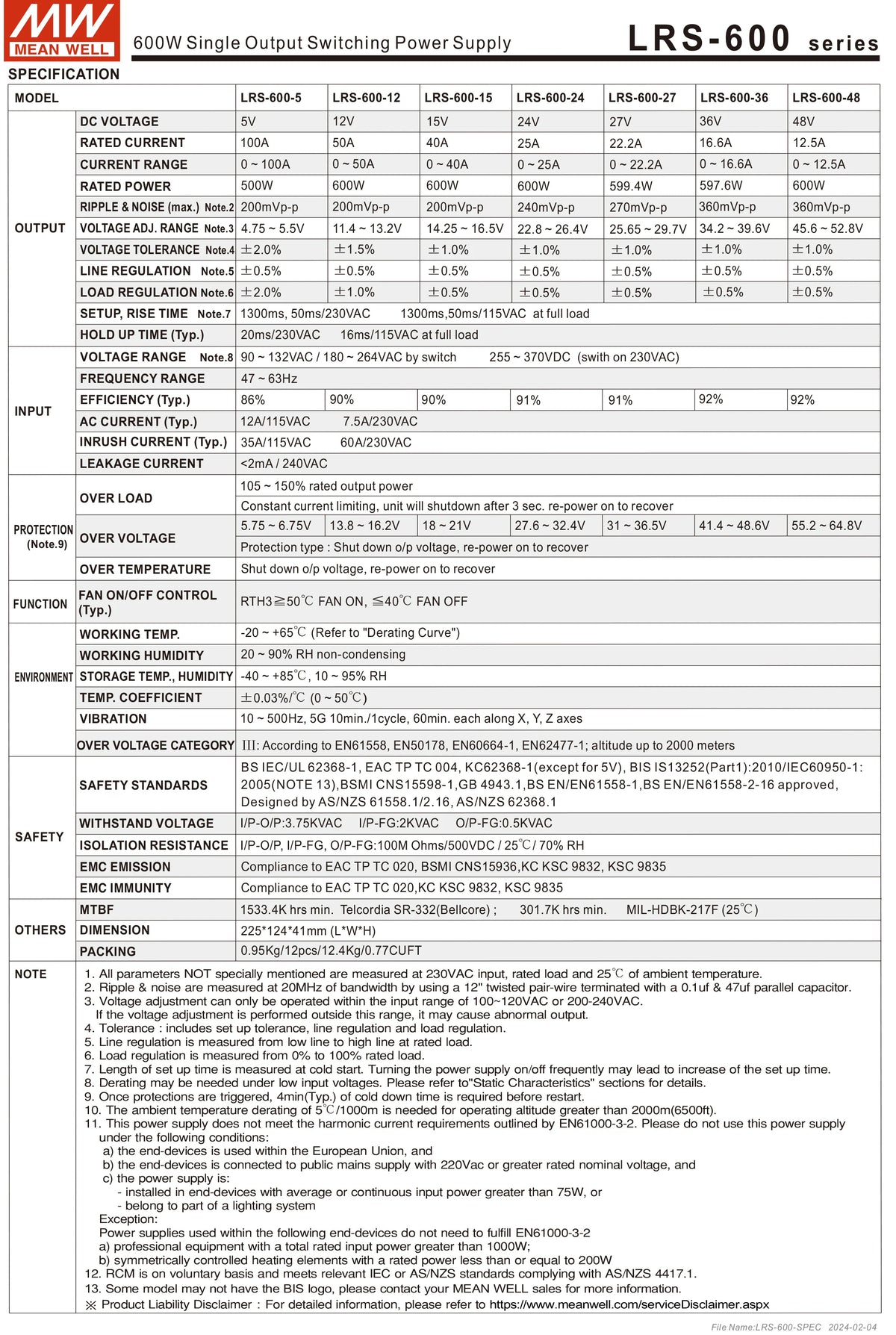

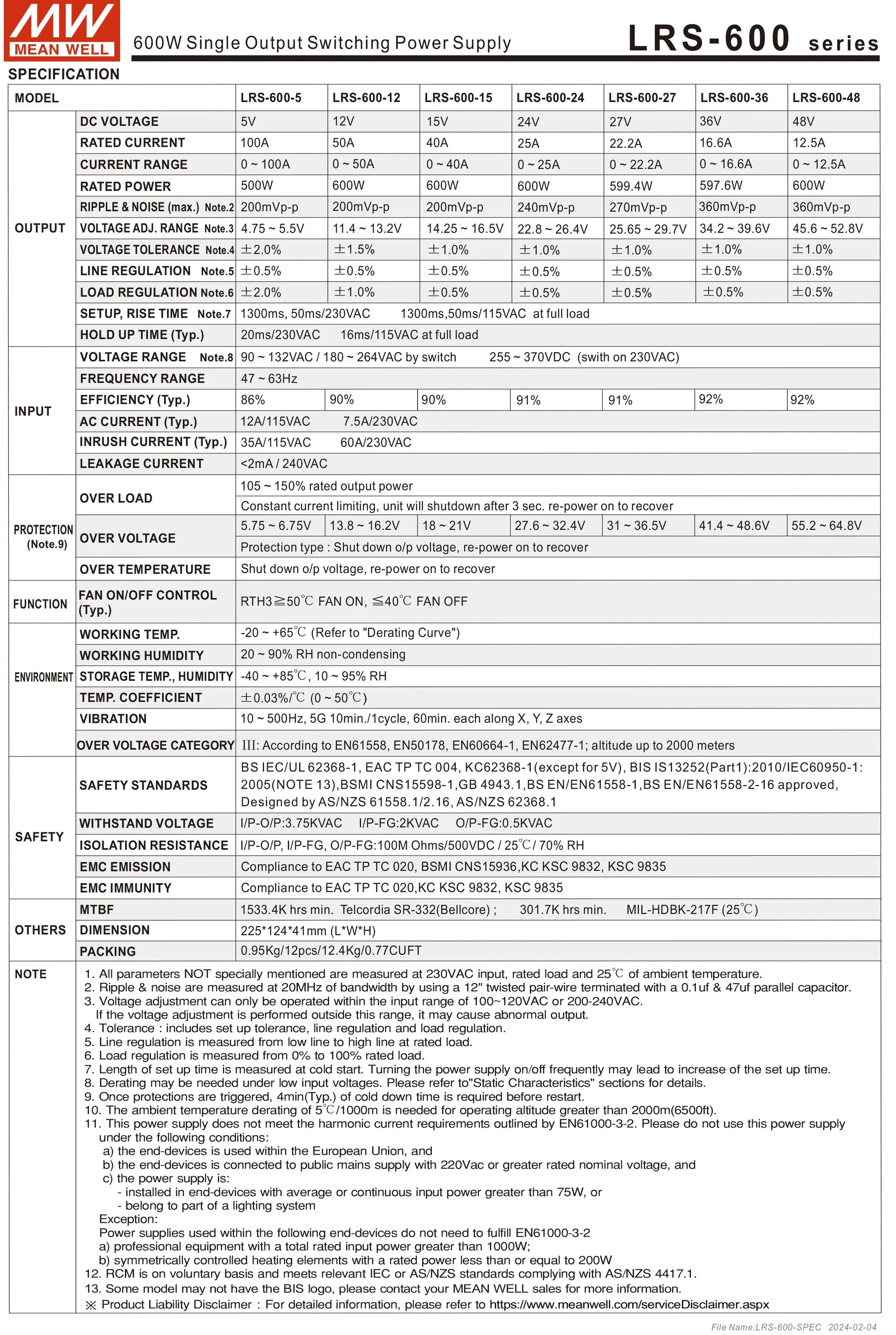

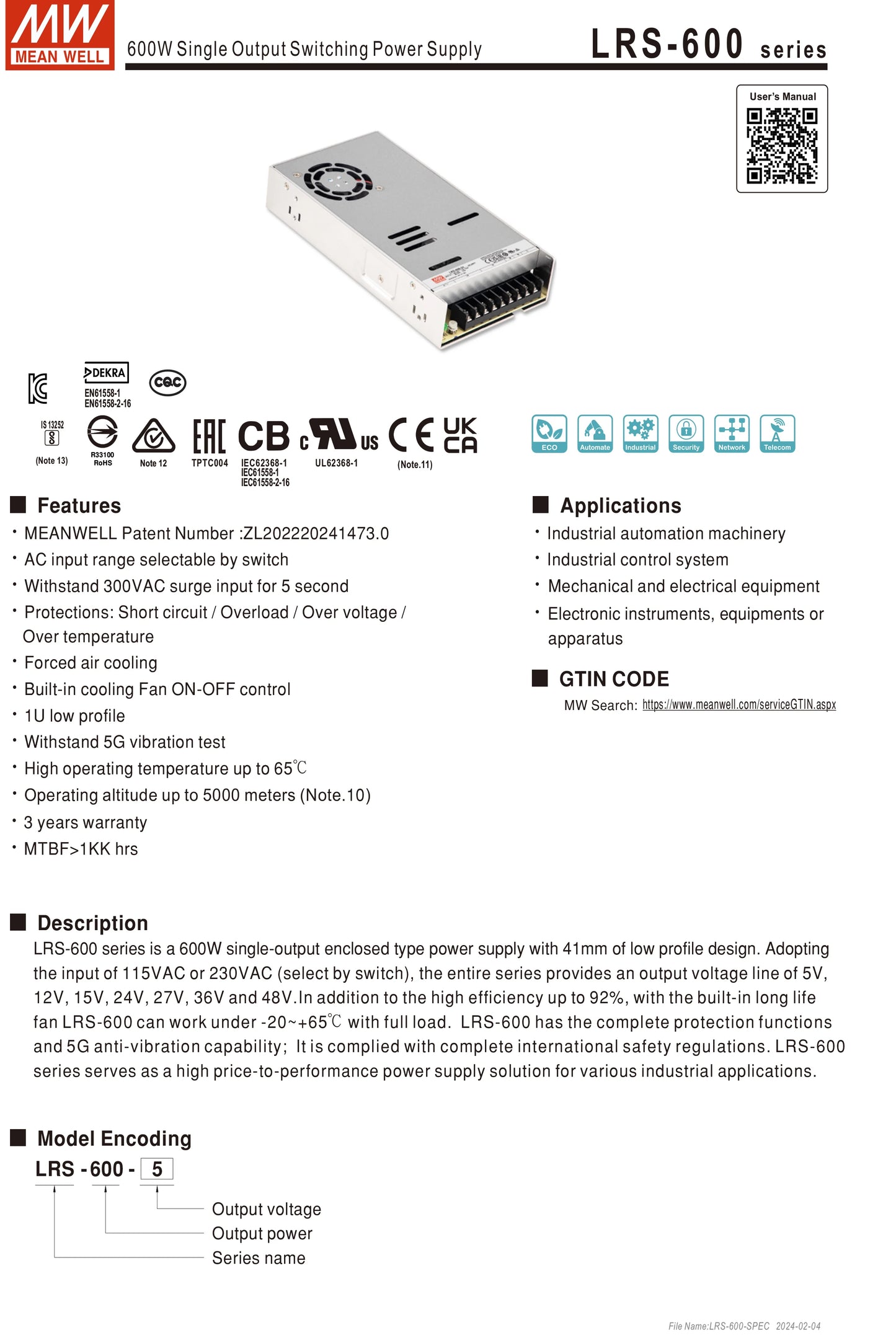

Specifications

• Brand: Mean Well
• Series: LRS-600
• Model: LRS-600-24
• Type: Enclosed Single-Output Switching Power Supply
• Output Voltage: 24V DC
• Rated Output Current: 25A
• Current Range: 0–25A
• Rated Output Power: 600W
• Output Adjustment Range: 22.8–26.4V DC
• Voltage Tolerance: ±1.0%
• Line Regulation: ±0.5%
• Load Regulation: ±0.5%
• Ripple & Noise: 240mVp-p max.
• Typical Efficiency: 91%
• AC Input: 90–132VAC / 180–264VAC, selectable
• Nominal Input Selection: 115VAC / 230VAC
• DC Input: 255–370VDC with selector set to 230VAC
• Frequency Range: 47–63Hz
• Typical AC Current: 12A at 115VAC / 7.5A at 230VAC
• Inrush Current: 35A at 115VAC / 60A at 230VAC
• Overload Protection: 105–150% rated output power
• Over-Voltage Protection: 27.6–32.4V
• Over-Temperature Protection: Yes
• Cooling: Forced air
• Fan Control: Automatic on/off

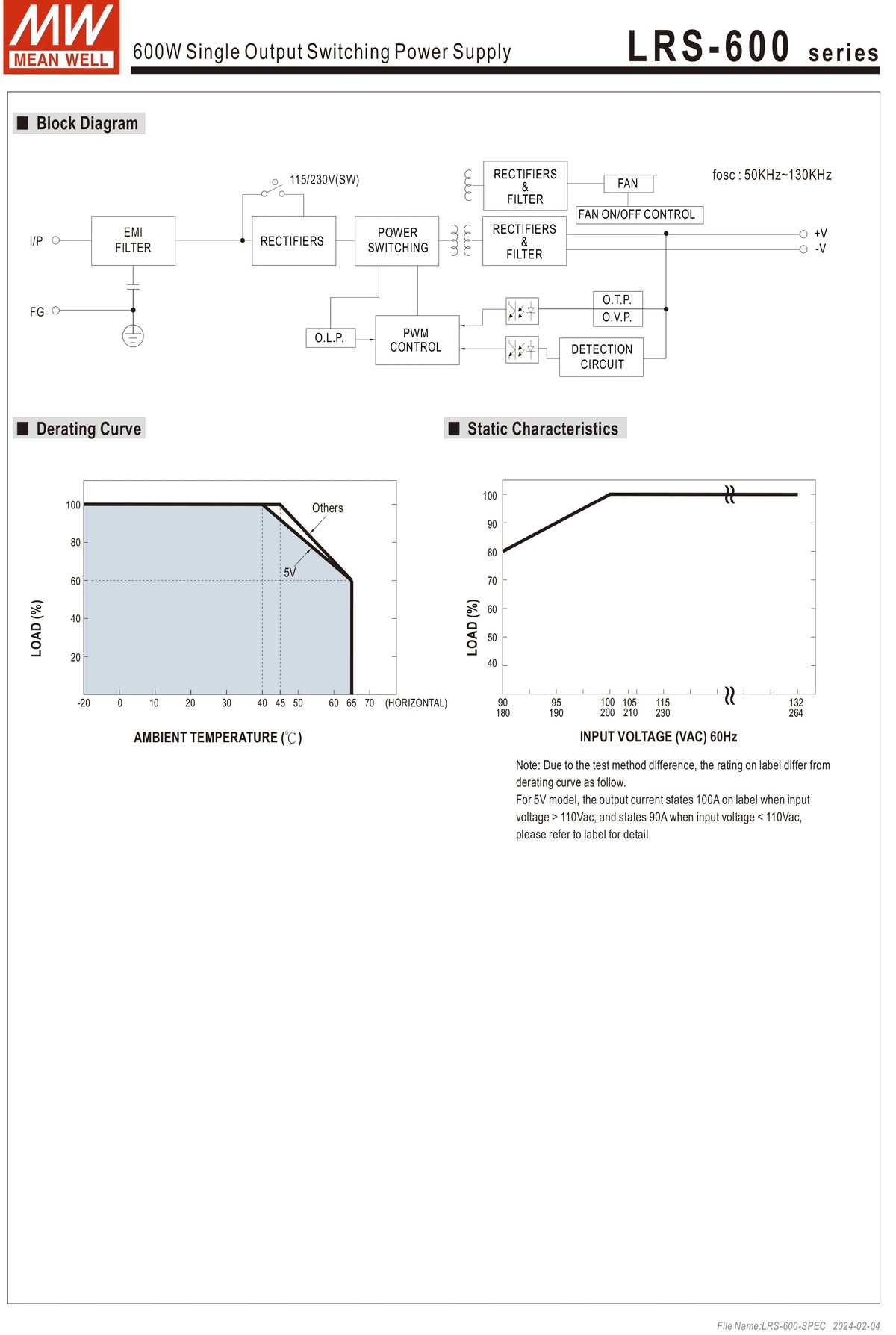

• Working Temperature: -20°C to +65°C, subject to derating
• Working Humidity: 20–90% RH, non-condensing
• Vibration Resistance: 5G

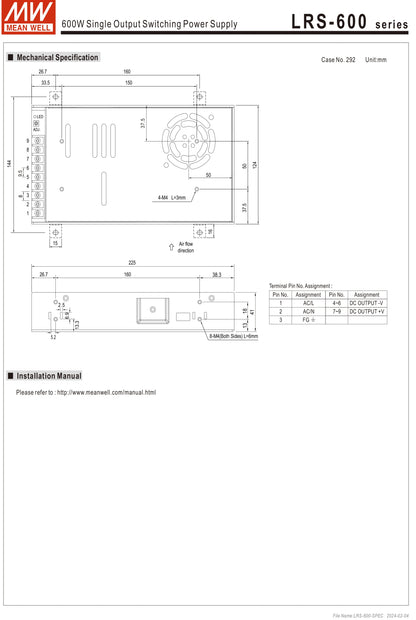

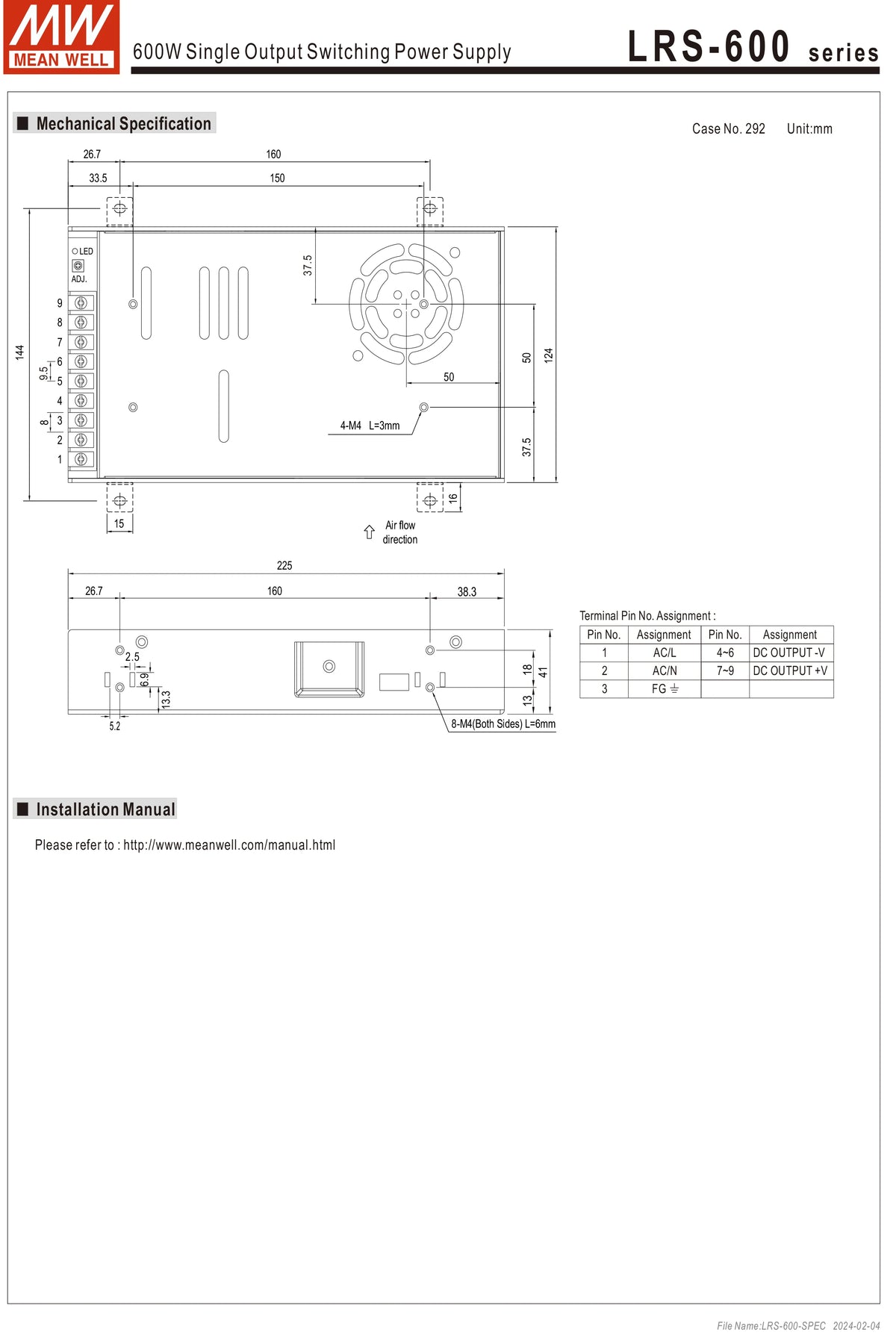

• Dimensions: 225 × 124 × 41mm
• Weight: Approx. 0.95kg

Package

• 1 × Mean Well LRS-600-24 24V 25V 600W Switching Power Supply
