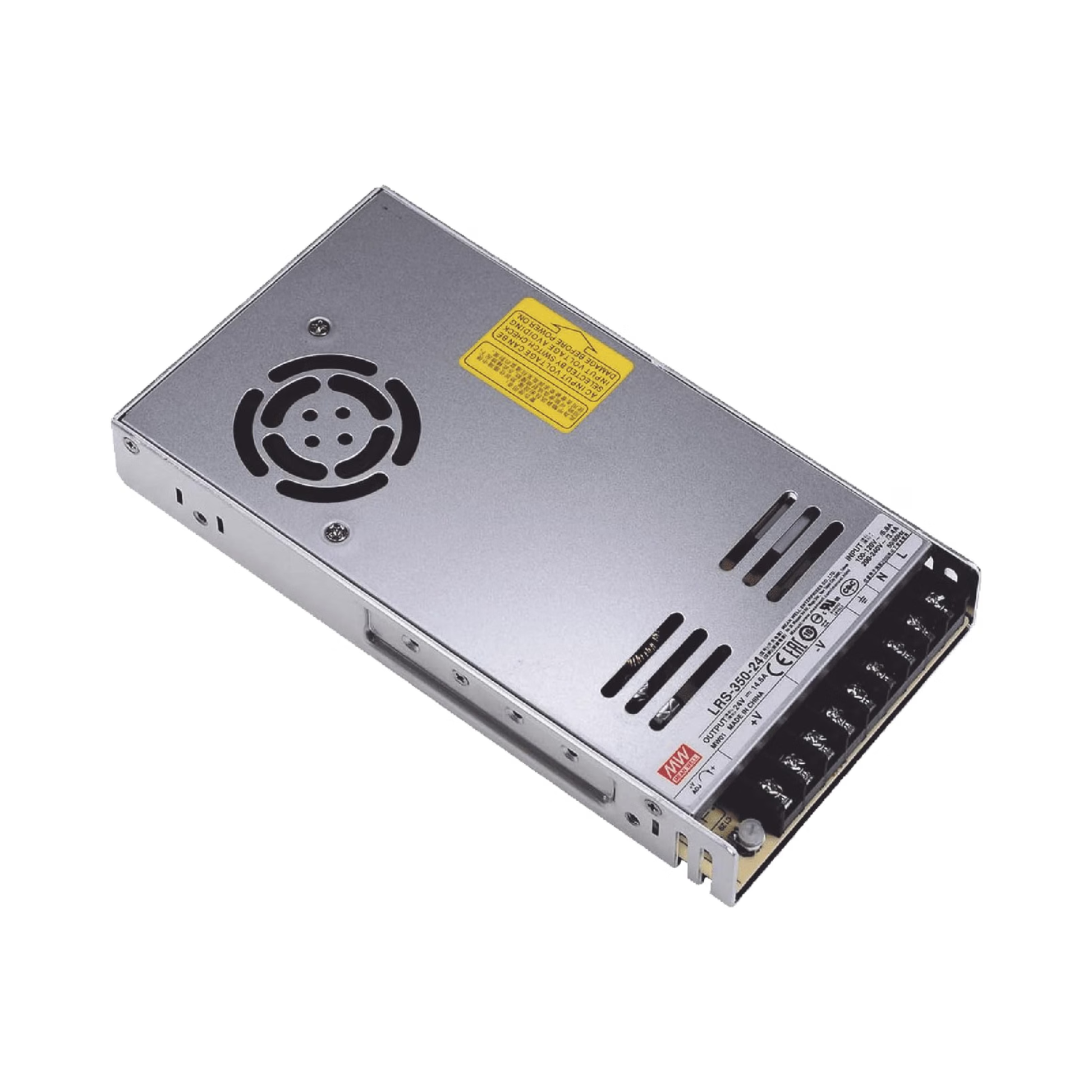

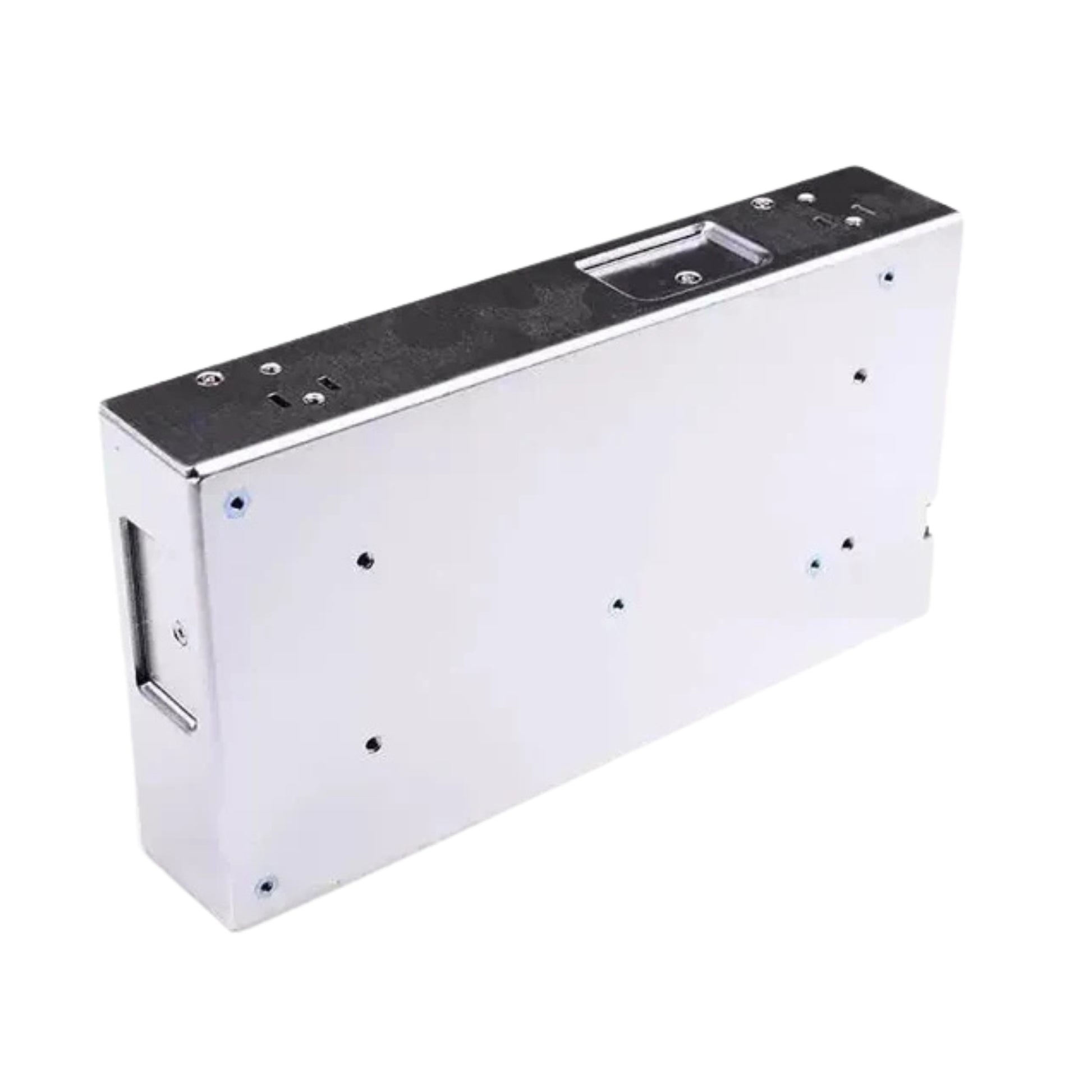

Mean Well LRS 350W 24V 14.6A DC Power Supply

Product Description

Need dependable power to keep your 24V equipment running properly?
Want one power supply that can handle a higher-load setup without relying on multiple smaller adapters?

Give Your 24V System the Power It Needs

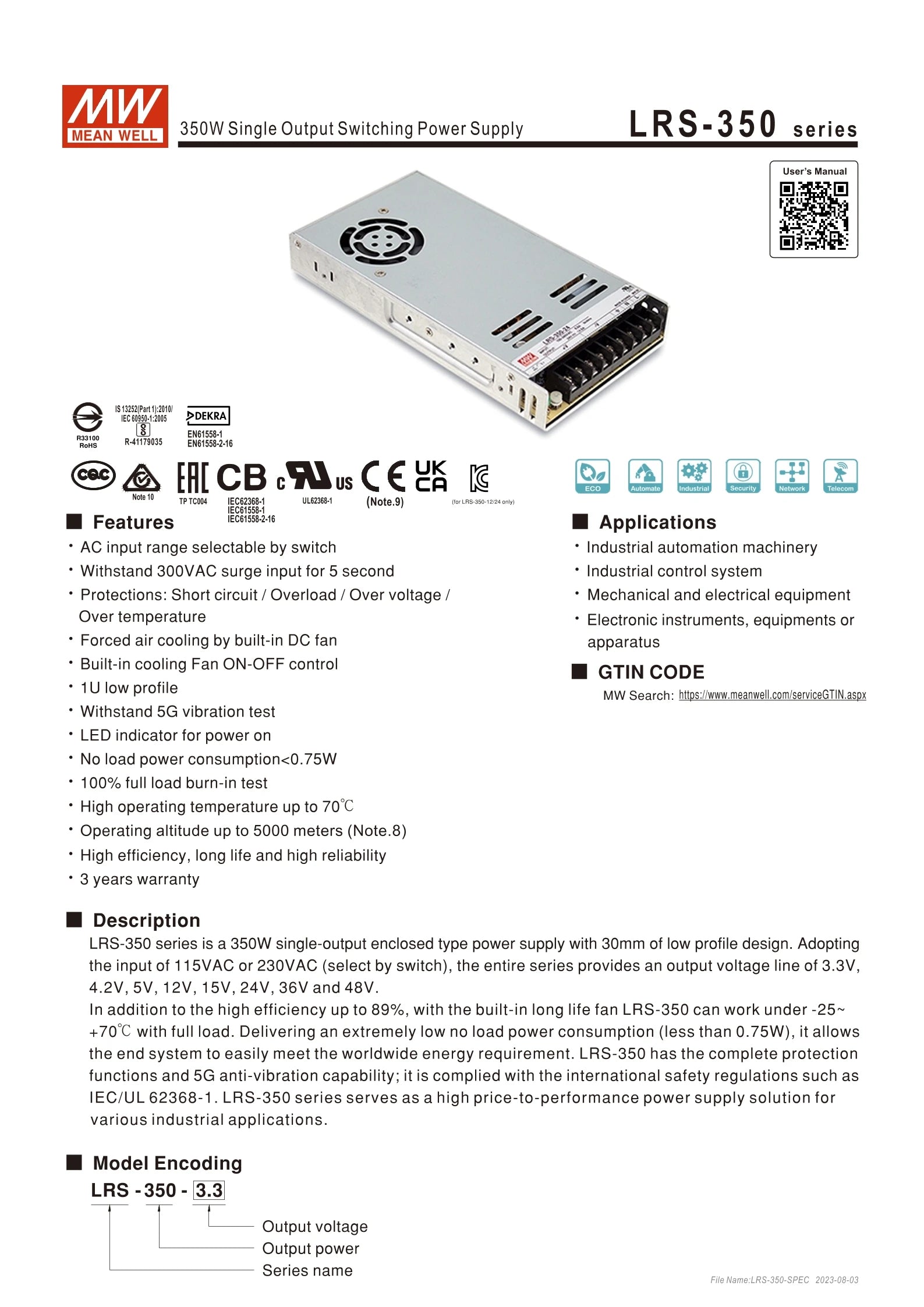

The Mean Well LRS-350-24 converts 115V or 230V AC power into stable 24V DC, delivering up to 350.4W / 14.6A for compatible equipment.

Use it to provide reliable power for compatible 24V LED lighting, automation, control equipment and other electronic systems.

Built-in electrical protection and active cooling help support dependable operation, while adjustable output gives installers additional flexibility.

Key Features & Benefits

• Works With 115V or 230V Power: Select the appropriate AC input voltage for your installation, giving you flexibility across different electrical setups.
• Power Higher-Load 24V Equipment: Get up to 350.4W / 14.6A at 24V DC from one supply for compatible equipment that needs more power than a standard adapter can provide.
• Keep Your Equipment Running Reliably: Regulated 24V DC output provides consistent power for compatible LED lighting, automation, control and electronic systems.
• Protect Against Common Electrical Problems: Built-in short-circuit, overload, over-voltage and over-temperature protection helps protect the power supply during abnormal operating conditions.
• Keep Heat Under Control: The built-in cooling fan helps manage temperature when the power supply is working under load.
• Fine-Tune the Power for Your Setup: Adjust the DC output from approximately 21.6V to 28.8V when compatible equipment or installation conditions require it.
• Get More Usable Power From Your Electricity: Up to 88% typical efficiency helps reduce unnecessary energy loss during AC-to-DC conversion.
• Fit High-Capacity Power Into Less Space: The slim 30mm profile makes the power supply easier to integrate into compatible equipment and enclosures.
• Built for More Demanding Installations: A practical power source for compatible 24V lighting, automation, control systems and other electronic equipment.

Compatibility & Important Notes

• Designed for compatible equipment requiring 24V DC power.
• Maximum rated output is 14.6A / 350.4W.
• AC input is selectable between 115V and 230V.
• AC input ranges are 90–132VAC / 180–264VAC.
• Input frequency range is 47–63Hz.
• DC output can be adjusted from 21.6V to 28.8V.

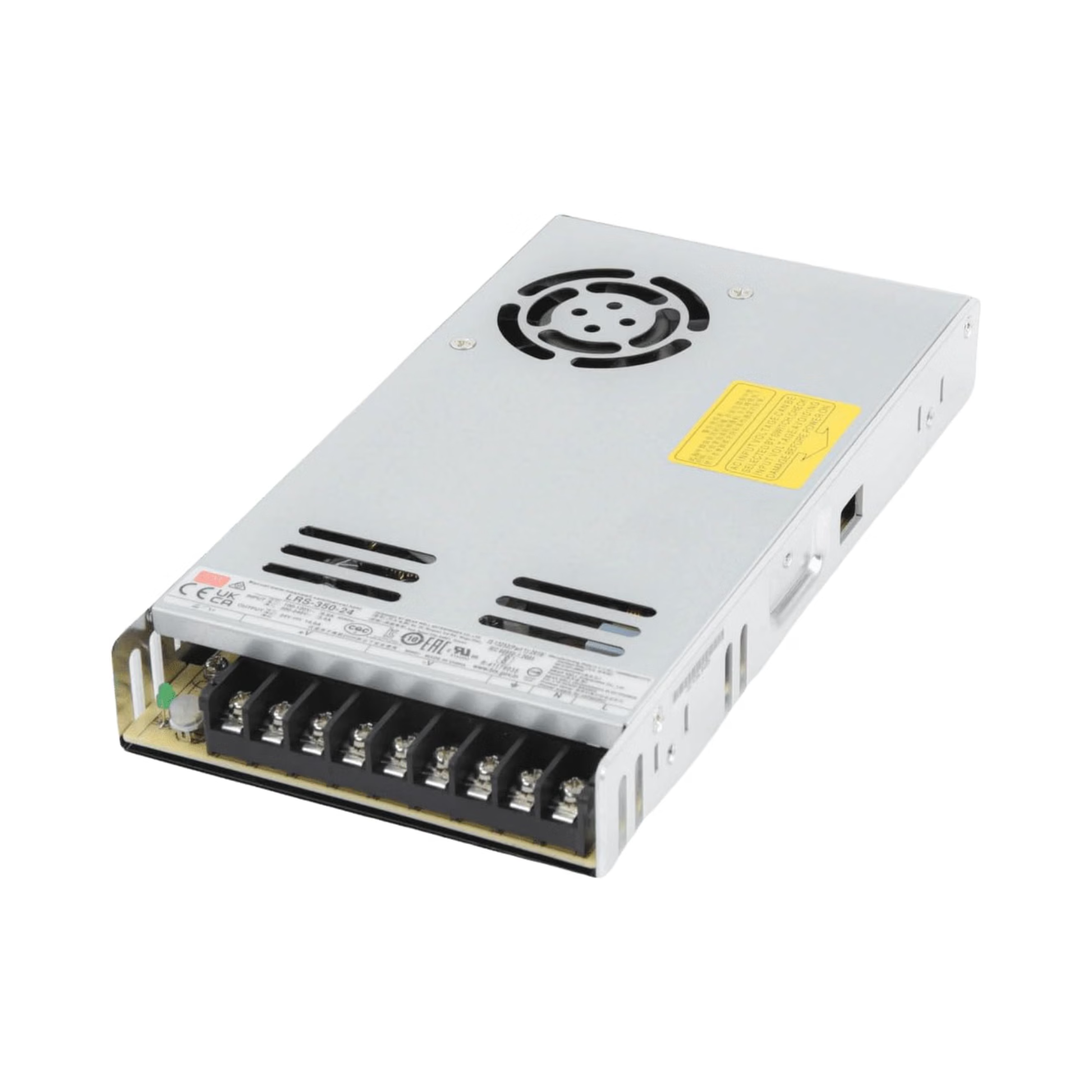

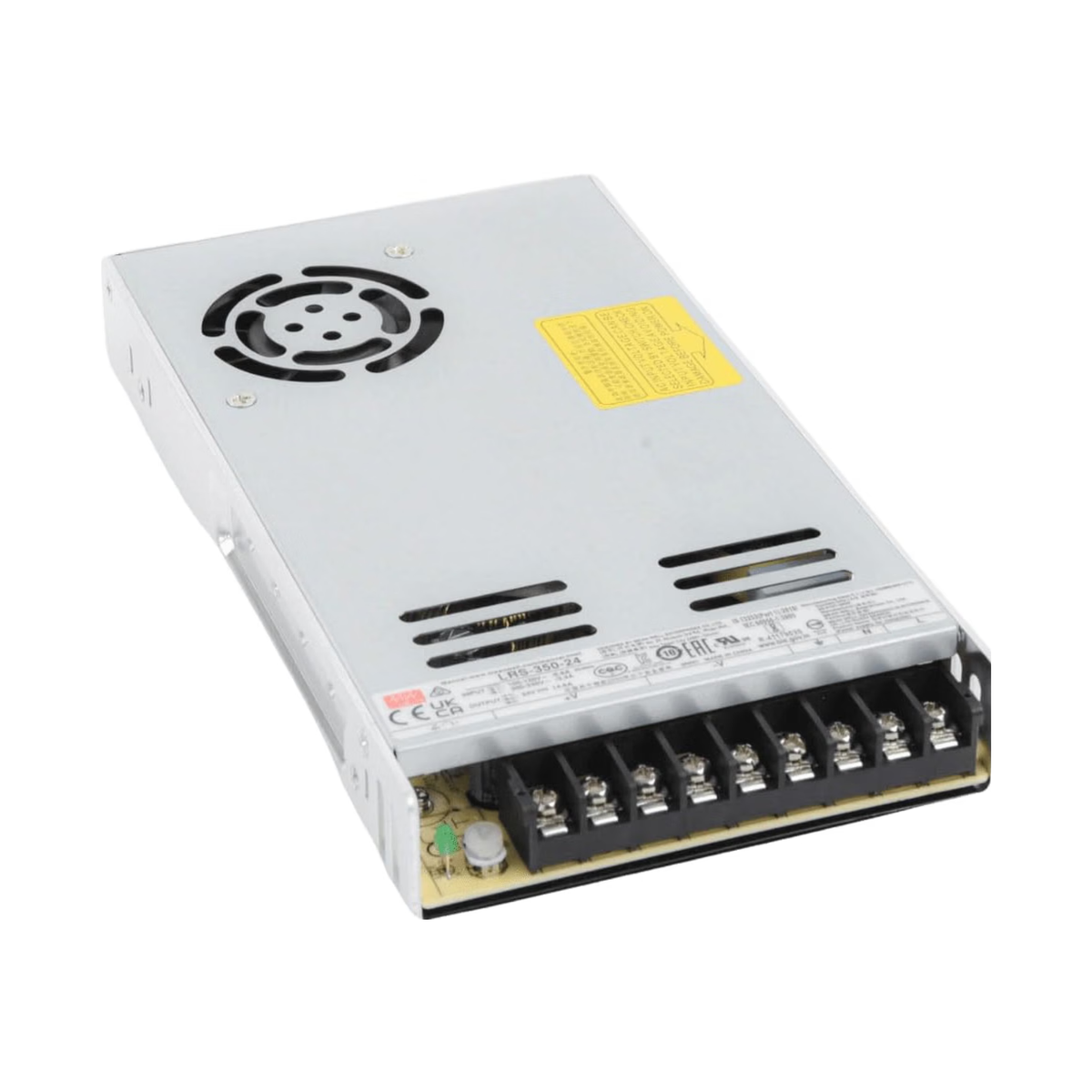

• Uses screw terminals for AC input and DC output.
• Ensure the input voltage selector is set correctly before connecting power.
• Proper grounding is required.
• Keep the fan and ventilation openings clear for adequate cooling.
• Do not exceed the rated output current or wattage.
• Install in a dry, protected location away from water and excessive moisture.
• This is a mains-powered component power supply intended for integration into a suitable installation.
• Professional installation is recommended when working with mains AC power.

Not sure about installation? Book our installation service

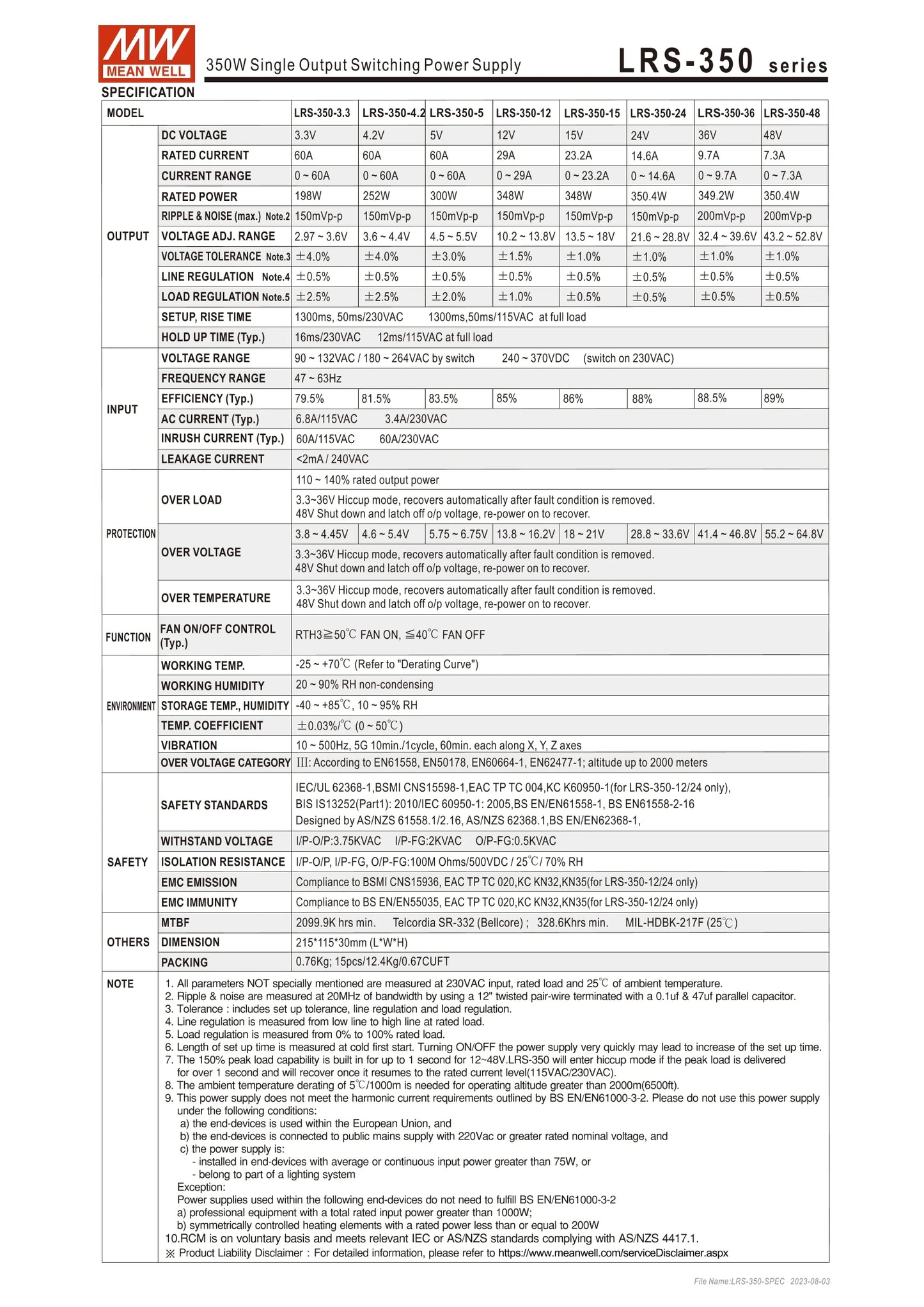

Specifications

• Brand: Mean Well
• Series: LRS-350
• Model: LRS-350-24
• Type: Single-Output Switching Power Supply
• Output Voltage: 24V DC
• Rated Output Current: 14.6A
• Current Range: 0–14.6A
• Rated Output Power: 350.4W
• Output Adjustment Range: 21.6–28.8V DC
• Voltage Tolerance: ±1.0%
• Ripple & Noise: 150mVp-p max.
• Typical Efficiency: 88%
• AC Input: 90–132VAC / 180–264VAC, selectable
• Nominal Input Selection: 115VAC / 230VAC
• DC Input: 240–370VDC when set to 230VAC
• Frequency Range: 47–63Hz
• Typical AC Current: 6.8A at 115VAC / 3.4A at 230VAC
• Inrush Current: 60A at 115VAC / 60A at 230VAC
• Protection: Short Circuit / Overload / Over Voltage / Over Temperature
• Cooling: Built-in DC Fan
• Fan Control: Automatic On/Off

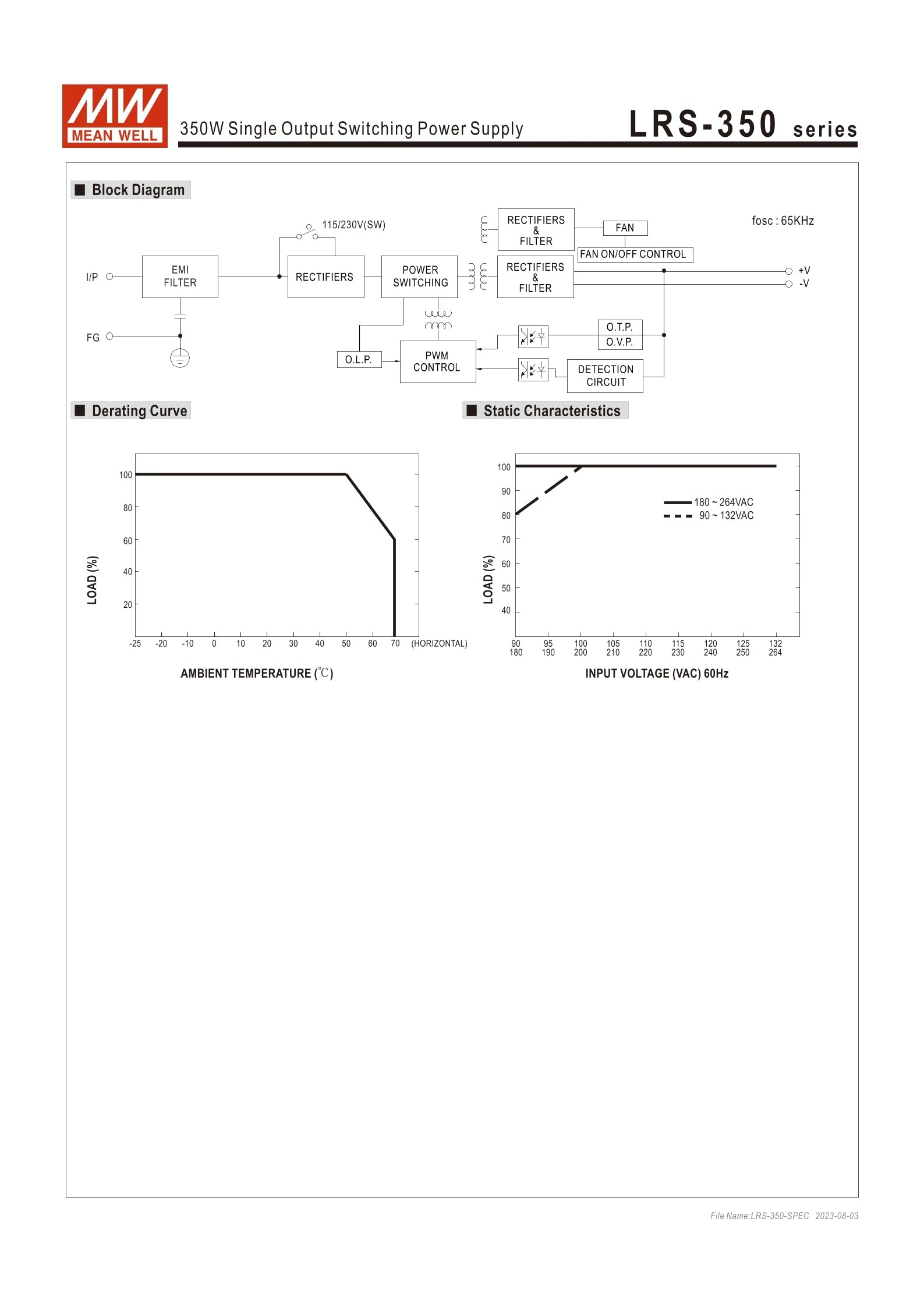

• Working Temperature: -25°C to +70°C, subject to derating
• Working Humidity: 20–90% RH, non-condensing
• No-Load Power Consumption: <0.75W

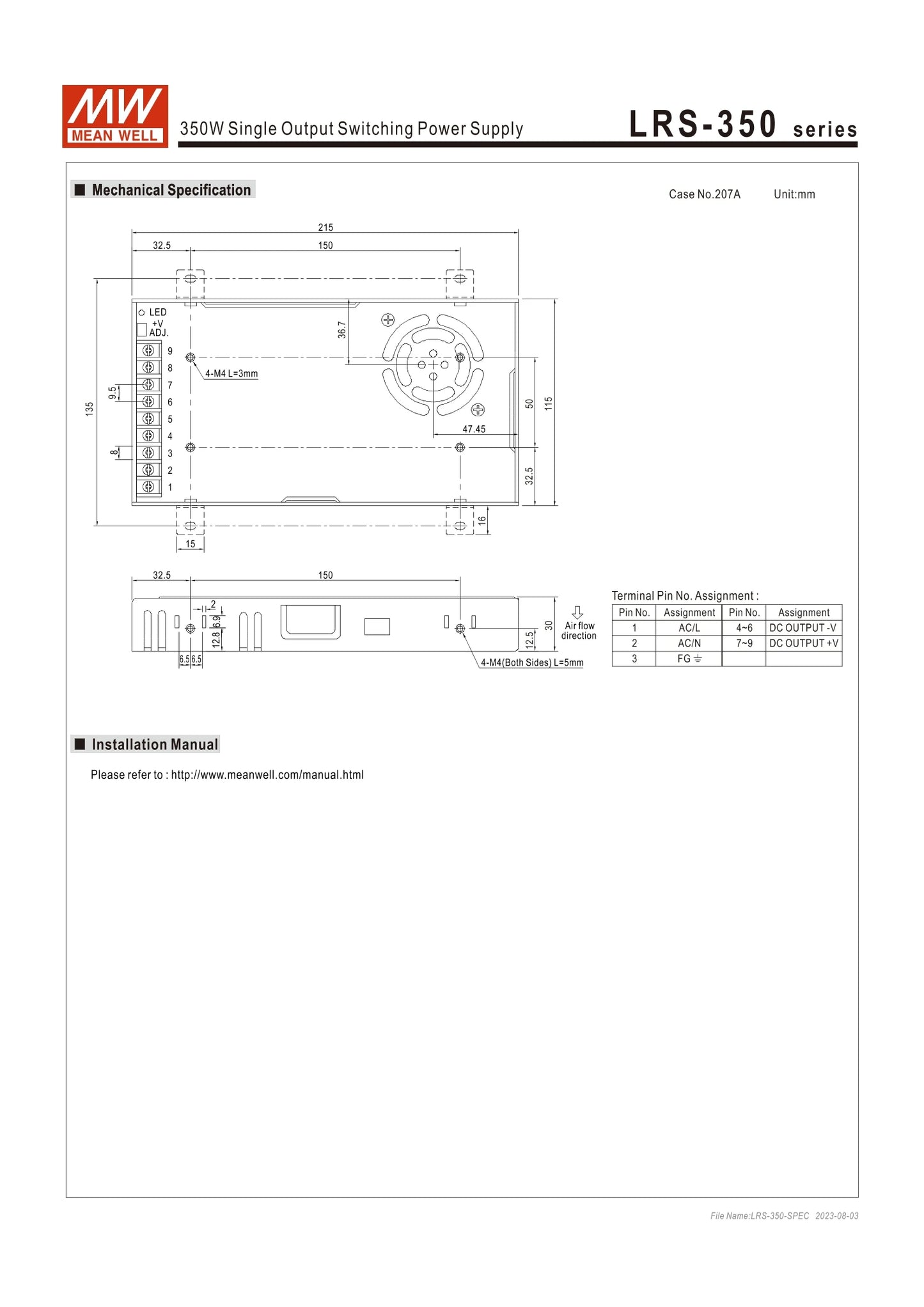

• Dimensions: 215 × 115 × 30mm

Package

• 1 × Mean Well LRS-350-24 24V 350W Switching Power Supply
