GSM Gate Opener - Open Your Gate With a Free Phone Call From Anywhere

Product description

Do you have a gate at a farm, rental property, or remote land that has no Wi-Fi and no way to connect a smart device?

What if you could open that gate from anywhere in Trinidad just by making a phone call that costs you nothing?

This GSM gate opener fixes that.

Just insert a Digicel or TSTT SIM card, connect it to your existing gate system, and call the number to open the gate instantly.

The device sees your number, rejects the call so you pay nothing, and the gate opens automatically.

No Wi-Fi. No app. No internet. No monthly fees. Just your phone and a mobile signal.

Key features & benefits

• Open your gate with a free phone call: Call the SIM number and the gate opens automatically. The call is rejected so you are never charged anything.
• Works anywhere there is a mobile signal: No Wi-Fi or internet needed so it works at farms, remote land, warehouses, and properties far from a router.
• Add up to 200 authorized users by text message: Send a simple text to add or remove anyone who is allowed to open the gate without needing to be on-site.
• Unknown callers are completely ignored: Only phone numbers you have approved can trigger the gate so random callers cannot access your property.
• No app to download or configure: Everything is managed through simple text message commands so anyone can use it without needing a smartphone app.
• Controls gates, garage doors, pumps, and more: The built-in relay connects to most gate controllers, electric locks, barriers, and other equipment.
• Works with Digicel and TSTT SIM cards: Uses the same mobile network your phone runs on so coverage across Trinidad and Tobago is already there.
• Set a timer so the gate closes automatically: Choose how long the relay stays open so the gate closes on its own without anyone needing to close it manually.

Compatibility & important notes

• Does NOT use Wi-Fi or internet, requires a GSM SIM card with active mobile service
• Compatible with Digicel and TSTT SIM cards in Trinidad and Tobago
• SIM card not included, must be purchased separately
• Use a Nano SIM with PIN lock disabled before installation
• SIM must be able to send and receive SMS messages
• Input power: 9V to 36V DC, power adapter not included
• Relay output: dry contact only, 3A at 240VAC
• Default password is 1234, change immediately after installation
• Must be installed in a hidden, sheltered location away from water
• Use an external antenna if the GSM signal is weak at the installation location

Not sure about installation? Book our installation service

Specifications

• Model: RTU5024
• Control Method: GSM phone call and SMS
• GSM Bands: 850, 900, 1800, 1900 MHz
• SIM Type: Nano SIM, 3V
• Input Voltage: 9V to 36V DC

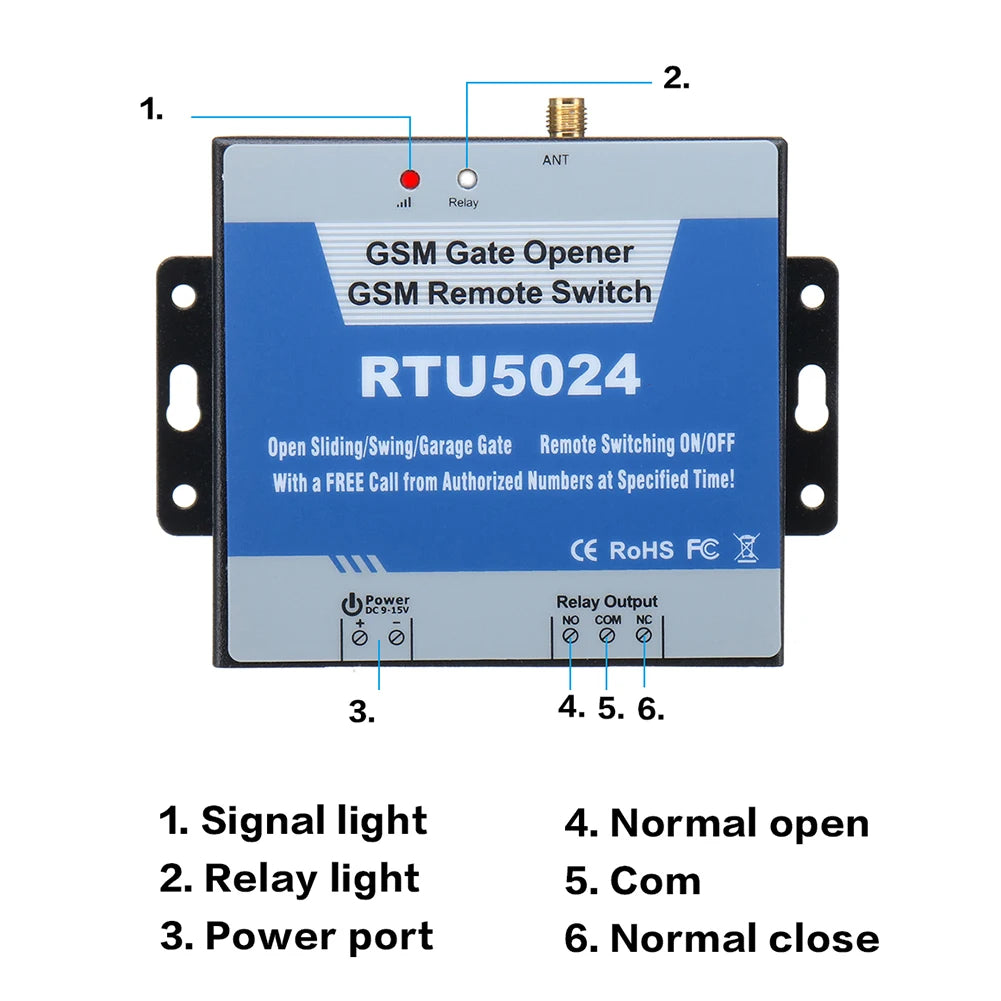

• Relay Output: Normally Open, Common, Normally Closed
• Relay Rating: 3A at 240VAC
• Authorized Users: Up to 200 phone numbers
• Antenna: SMA connector, 50 ohm
• Dimensions: 96.5 x 50 x 31.5mm
• Weight: 88g
• Operating Temperature: -10°C to +60°C
• Operating Humidity: 10% to 90% non-condensing

Package

• 1 x RTU5024 GSM Gate Opener
• 1 x GSM antenna
• 1 x User manual


Note: Power adapter, and SIM card not included
