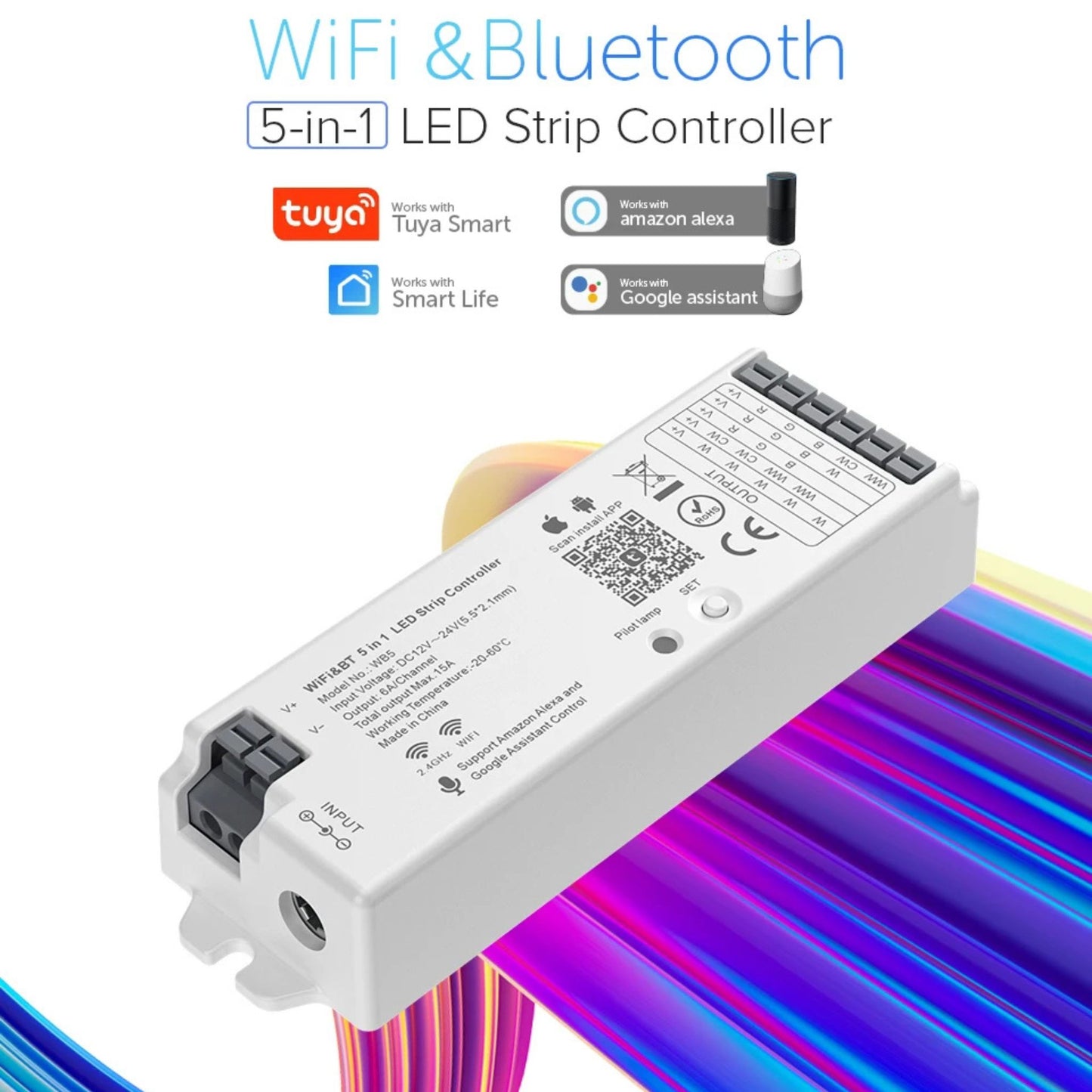

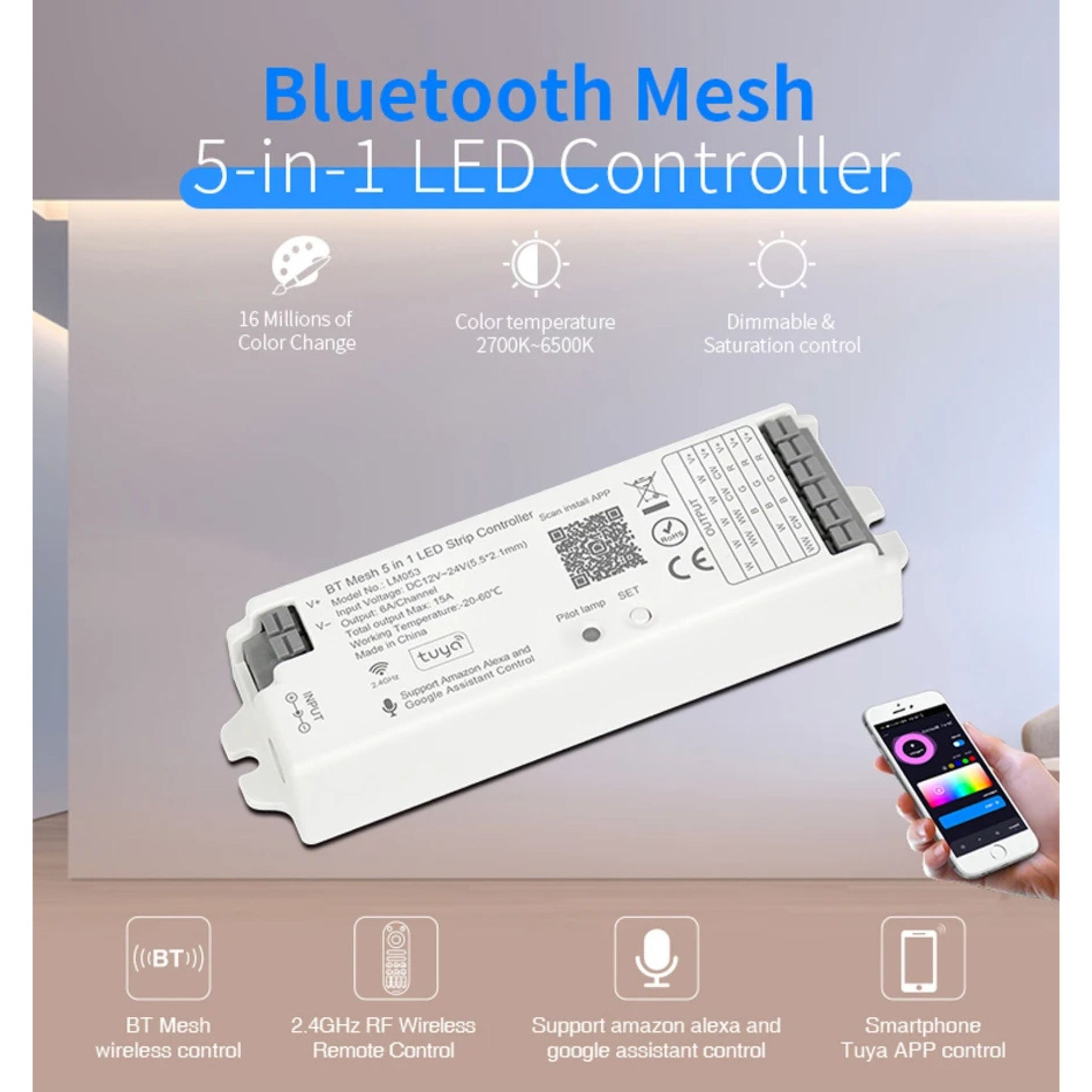

5-in-1 Smart LED Controller – Turn Your LED Strips into Smart Lighting

Product description

LED strip lighting becomes much more useful when you can control it easily from your phone.

This Tuya 5-in-1 smart LED controller allows you to control brightness, color temperature and colors directly from the Smart Life or Tuya app. It works with many LED strip types including RGB, RGBW, CCT and RGBCCT strips, making it a flexible solution for smart lighting installations.

Perfect for homes, offices, accent lighting and LED strip projects across Trinidad & Tobago.

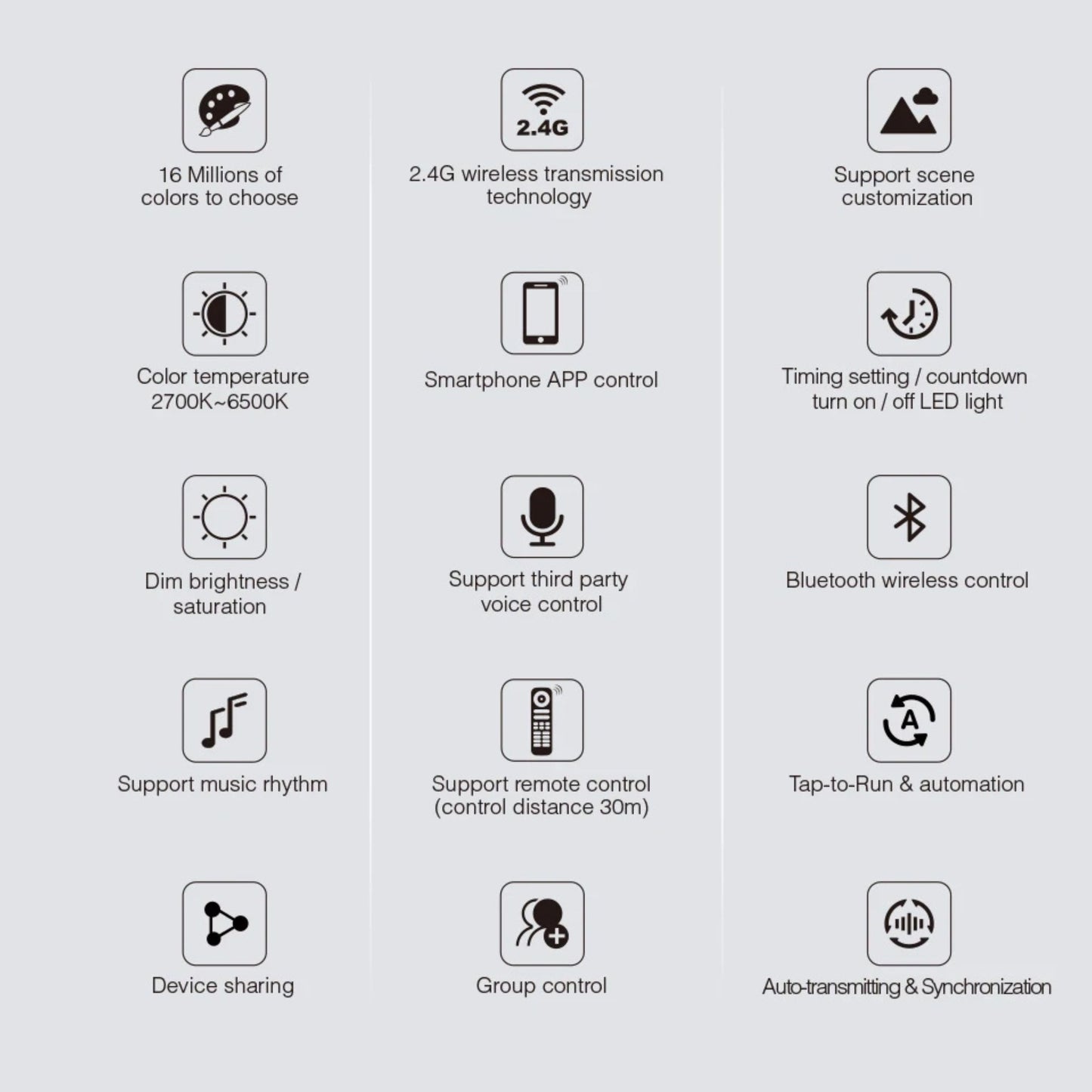

Key features & benefits

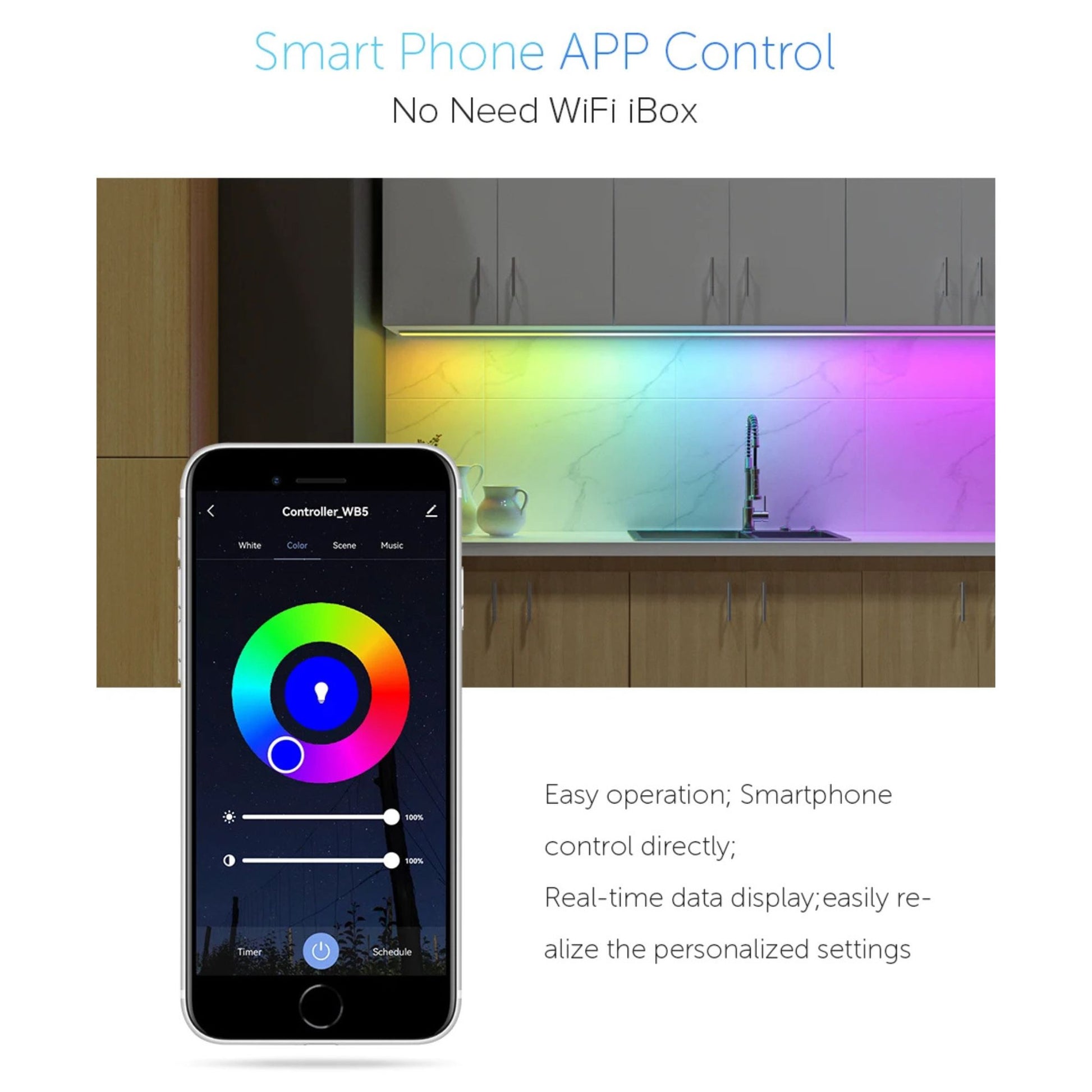

• Control your LED strip lighting from anywhere: Wi-Fi control using the Smart Life or Tuya Smart app

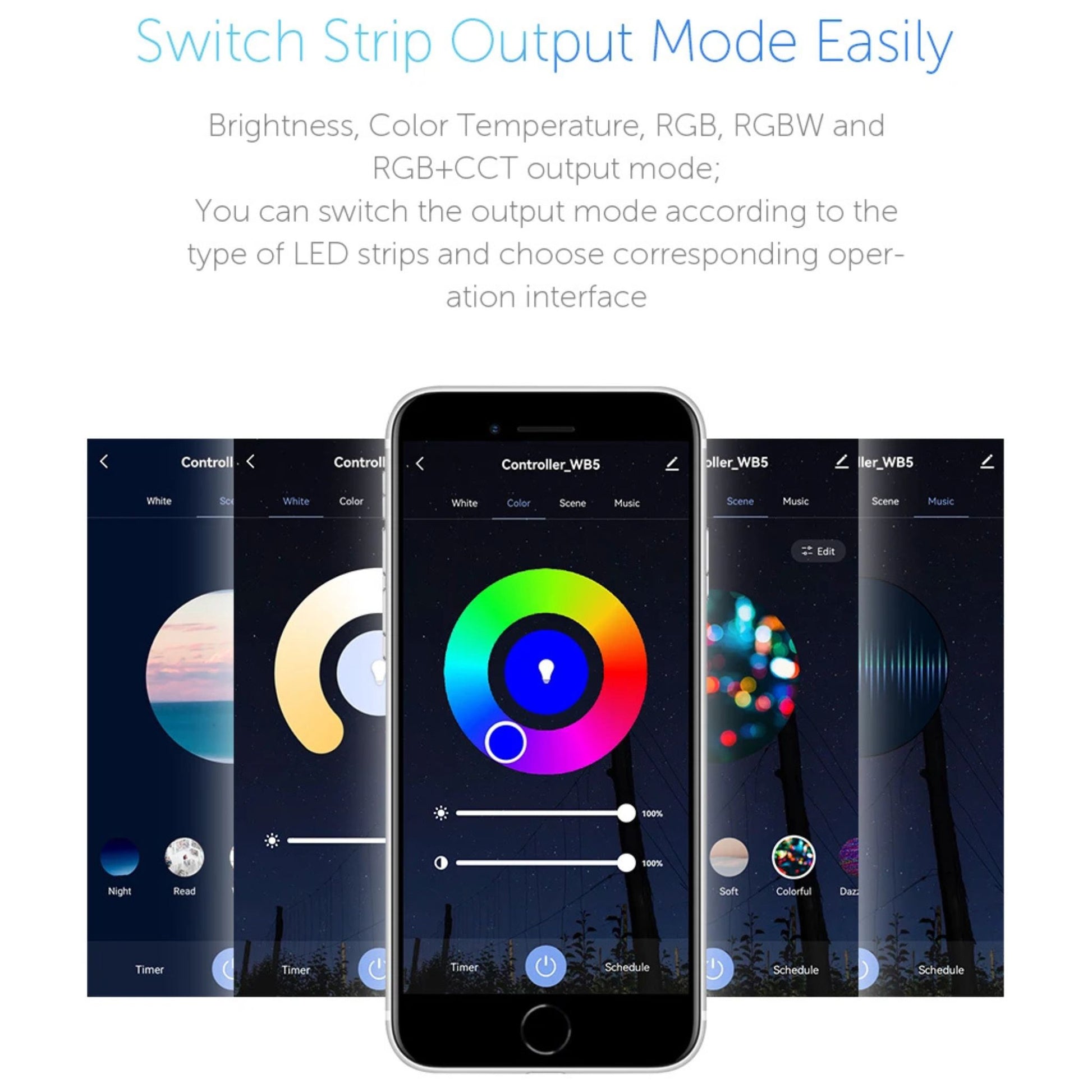

• Adjust colors and brightness exactly how you want: Supports RGB, RGBW, CCT and RGBCCT LED strips

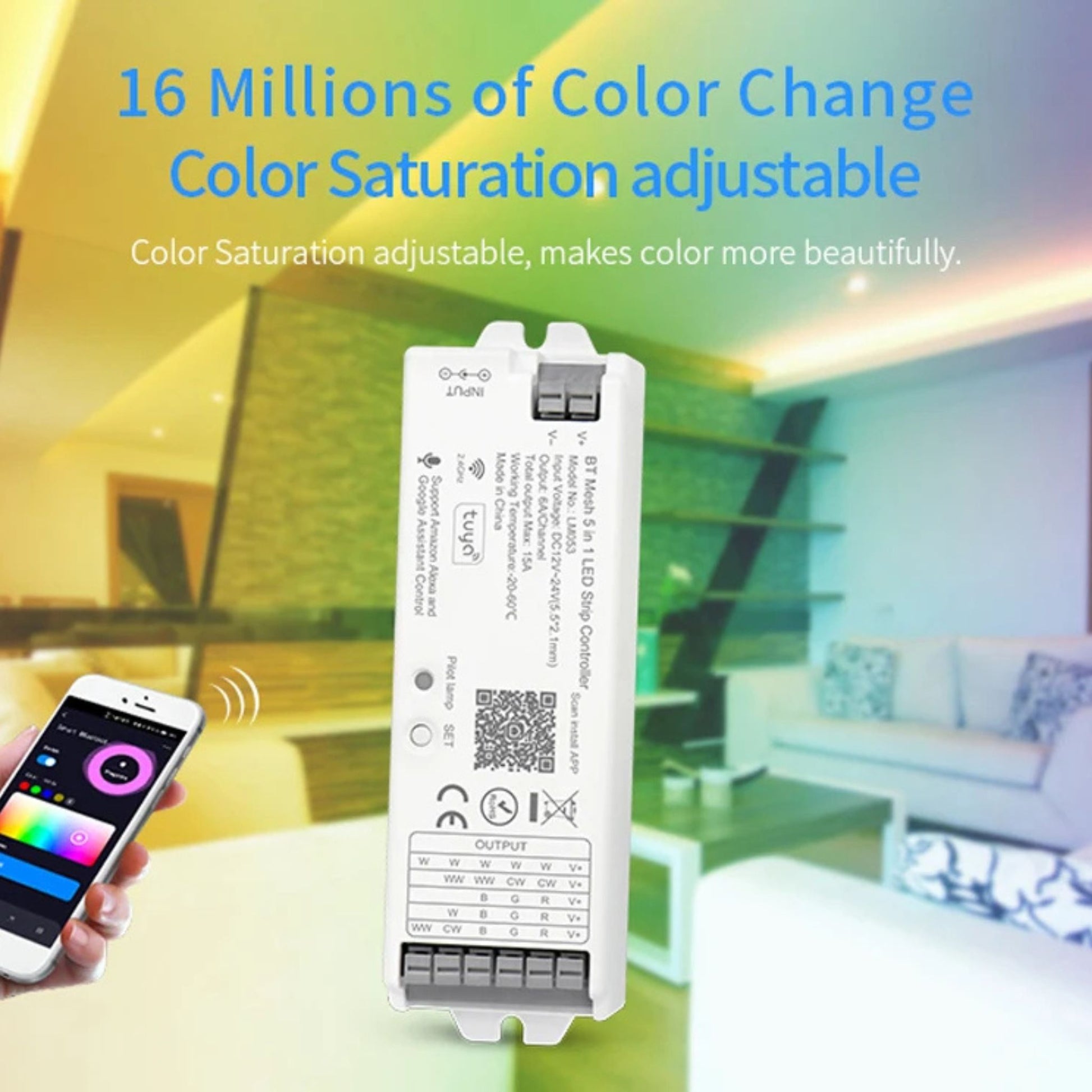

• Create the perfect lighting atmosphere: 16 million color options with adjustable brightness and saturation

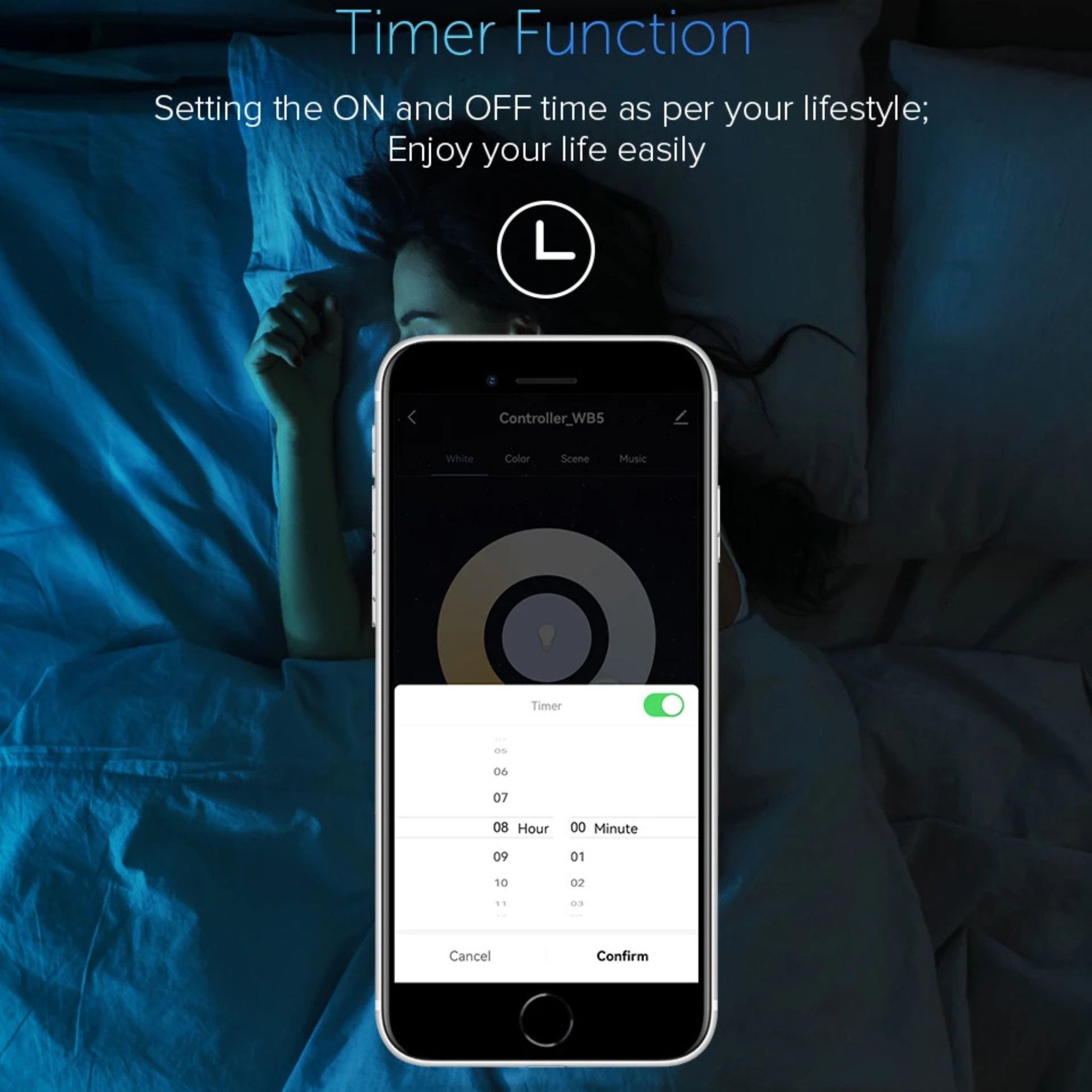

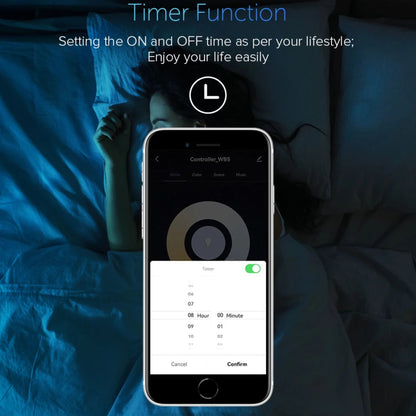

• Change lighting automatically during the day: Built-in timers and scheduling functions
• Control lighting using voice commands: Works with Amazon Alexa and Google Assistant
• Manage multiple rooms easily: Supports group control and device sharing

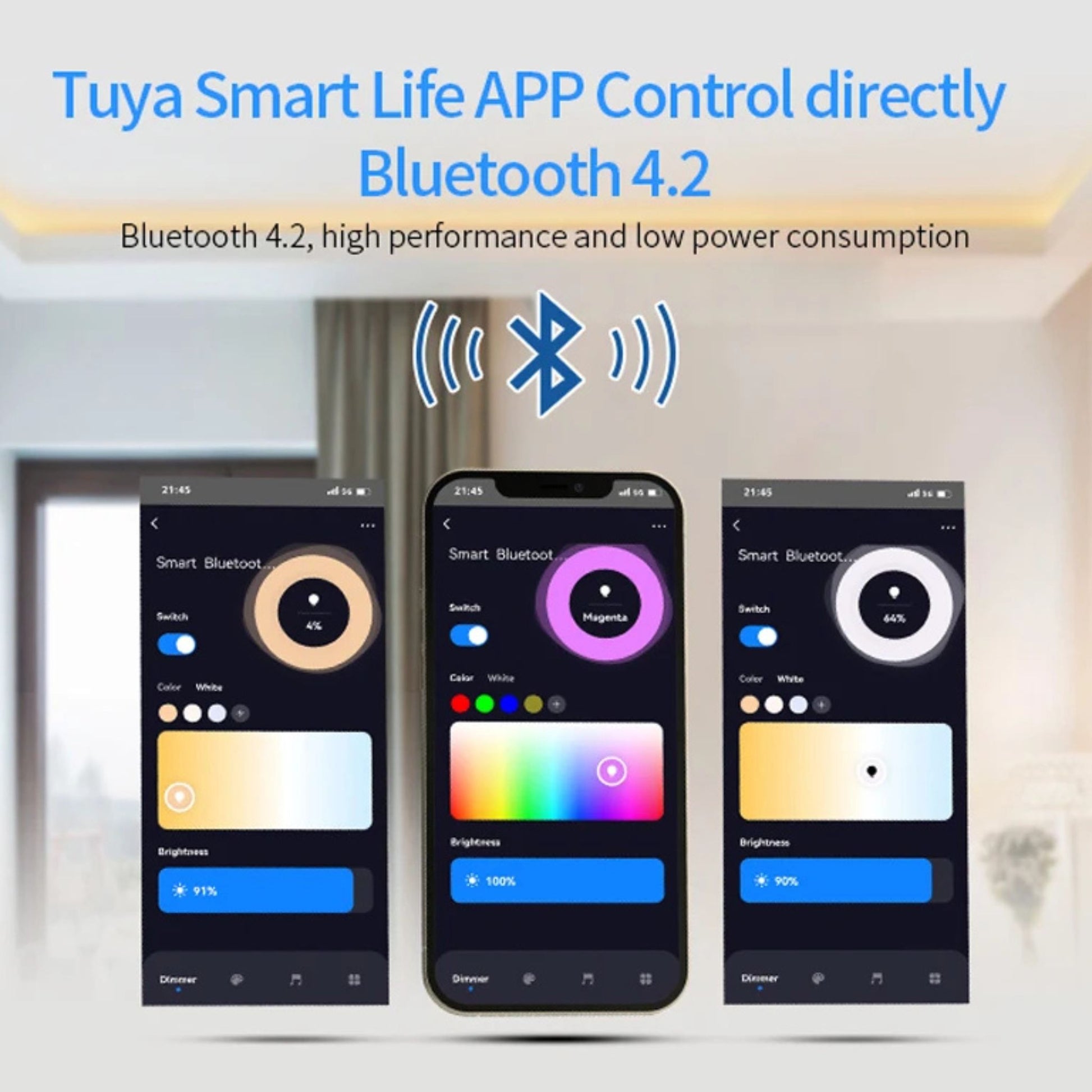

• Control lights even without Wi-Fi nearby: Bluetooth control available when connected locally

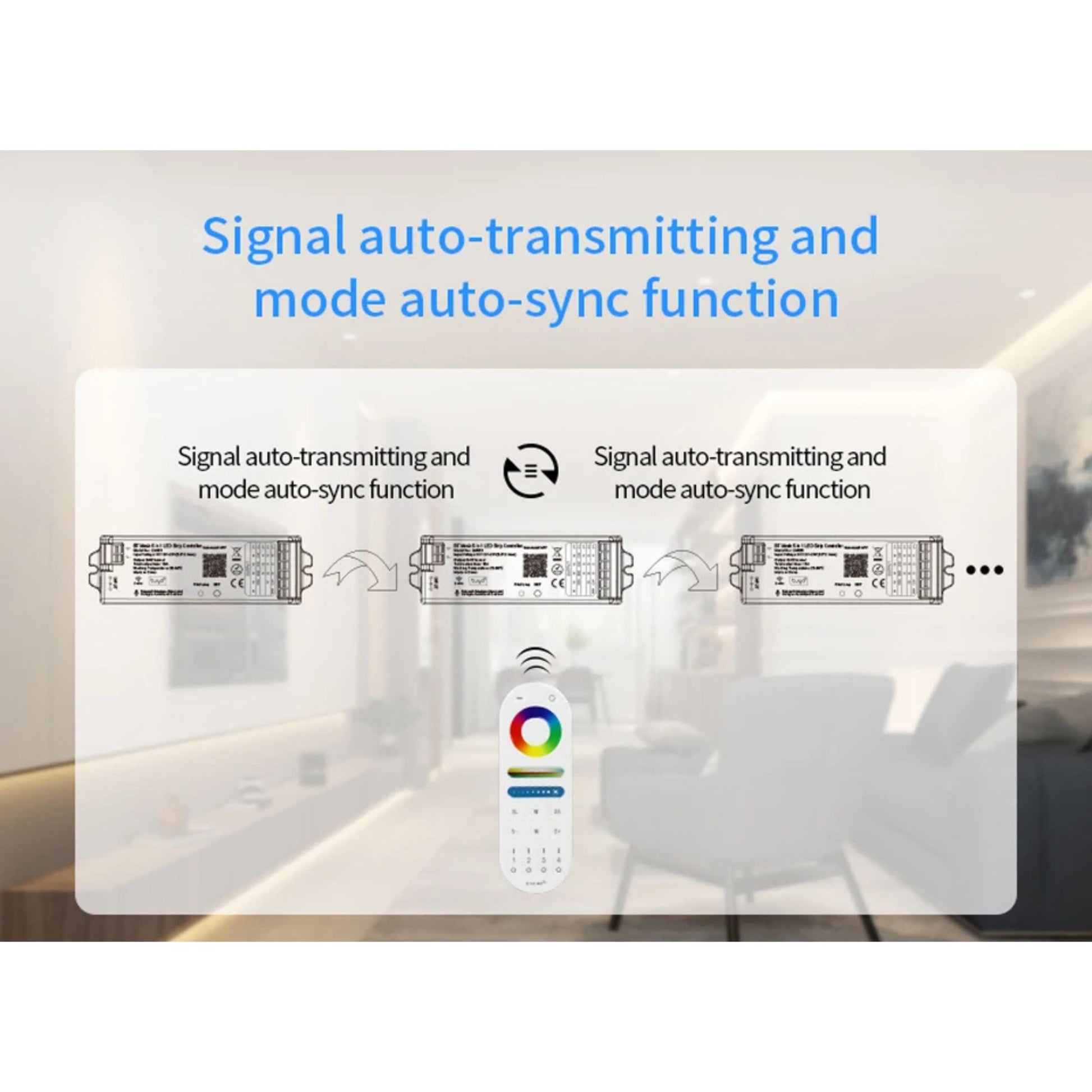

• Create synchronized lighting across rooms: Signal auto-transmission allows multiple controllers to work together

Compatibility & important notes

• Works with Smart Life or Tuya App
• Requires 2.4 GHz Wi-Fi network for remote control
• Bluetooth control works locally once paired through the app

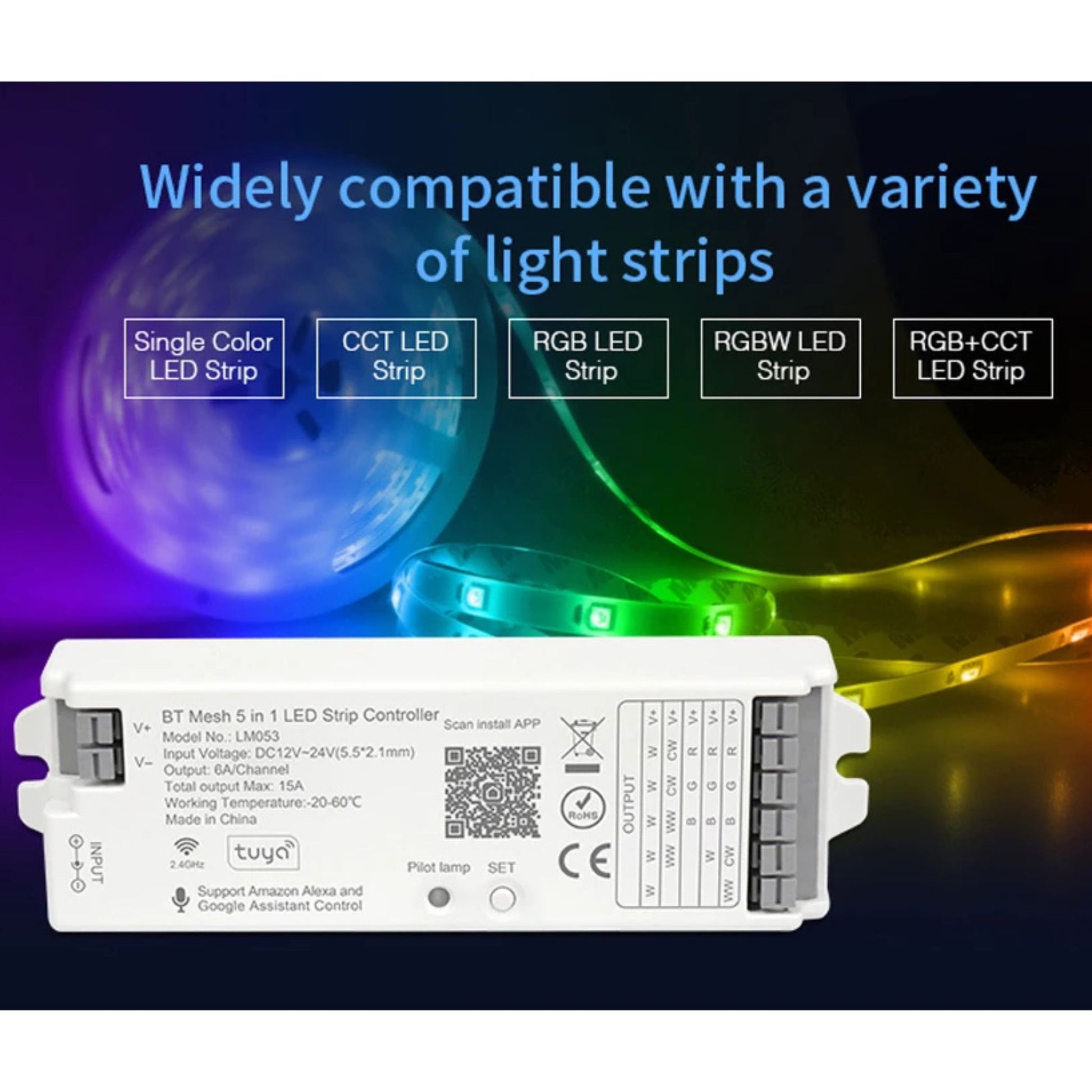

• Compatible LED strip types: Single color, CCT, RGB, RGBW, RGBCCT
• Designed for DC 12V or DC 24V LED strips
• Input voltage must match the LED strip voltage
• Controller is indoor use only
• Voice control requires compatible Alexa or Google Assistant device
• Remote control requires optional 2.4GHz RF remote

Specifications

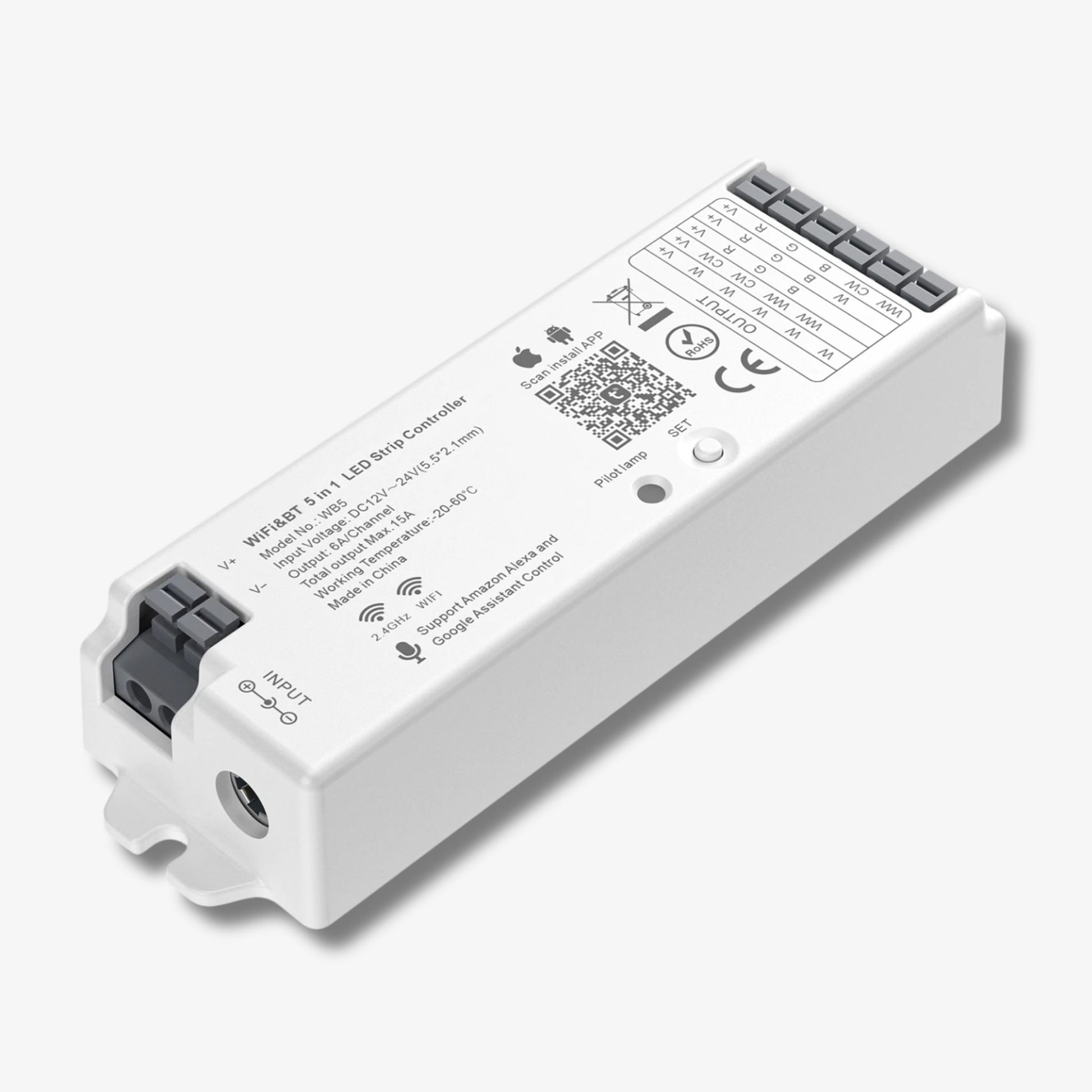

• Model: WB5 / LM053
• Input voltage: DC 12V – 24V

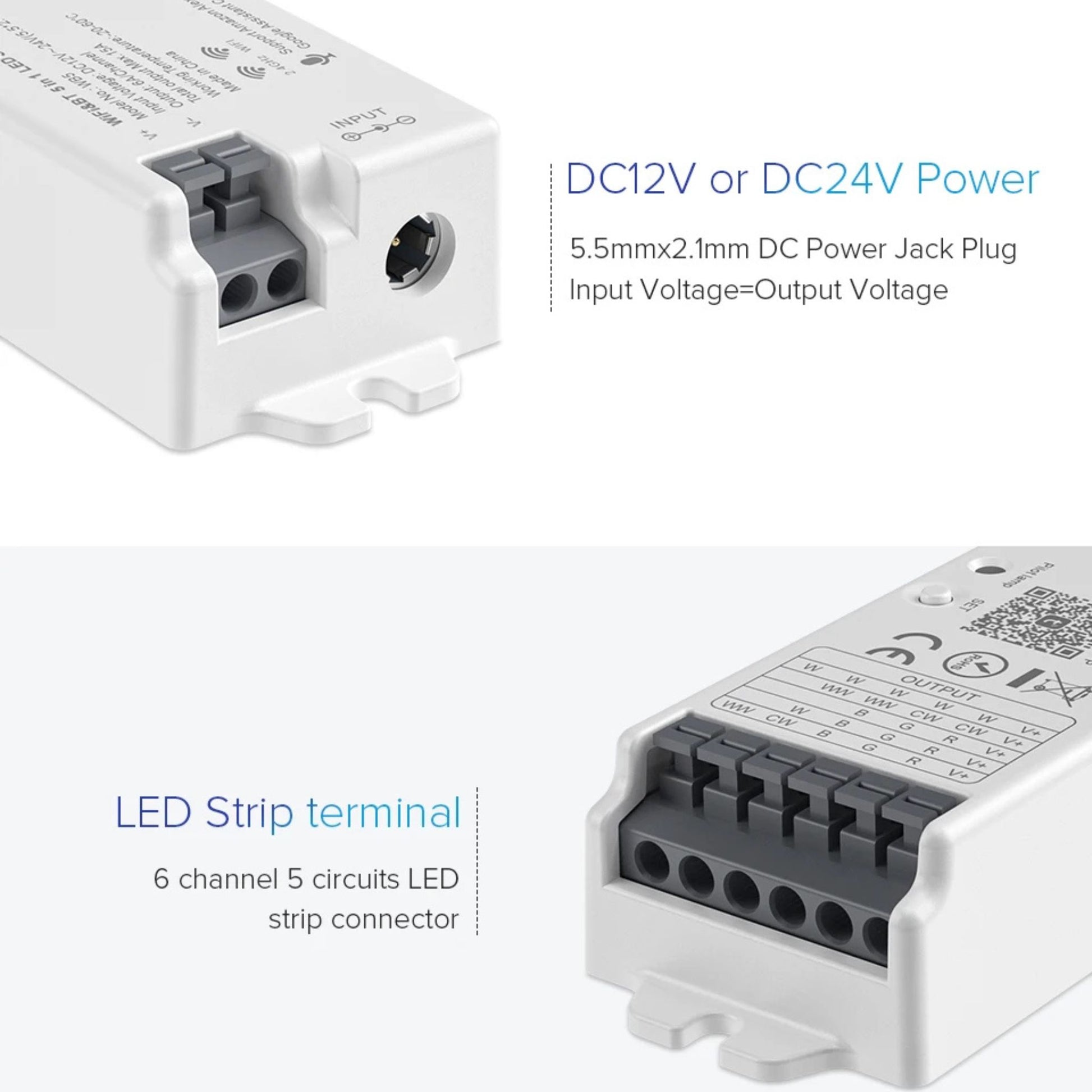

• Power connector: 5.5 mm × 2.1 mm DC jack
• Output current: 6A per channel
• Total output: Maximum 15A
• Channels: 5 channels
• Connectivity: Wi-Fi + Bluetooth mesh
• Wi-Fi standard: IEEE 802.11 b/g/n 2.4 GHz
• App compatibility: Smart Life / Tuya Smart
• Voice assistant support: Amazon Alexa, Google Assistant
• Operating temperature: -20°C to 60°C
• Control modes: App control, optional RF remote control, voice control

Package

• 1 × 5-in-1 Smart LED strip controller
• 1 × User manual
