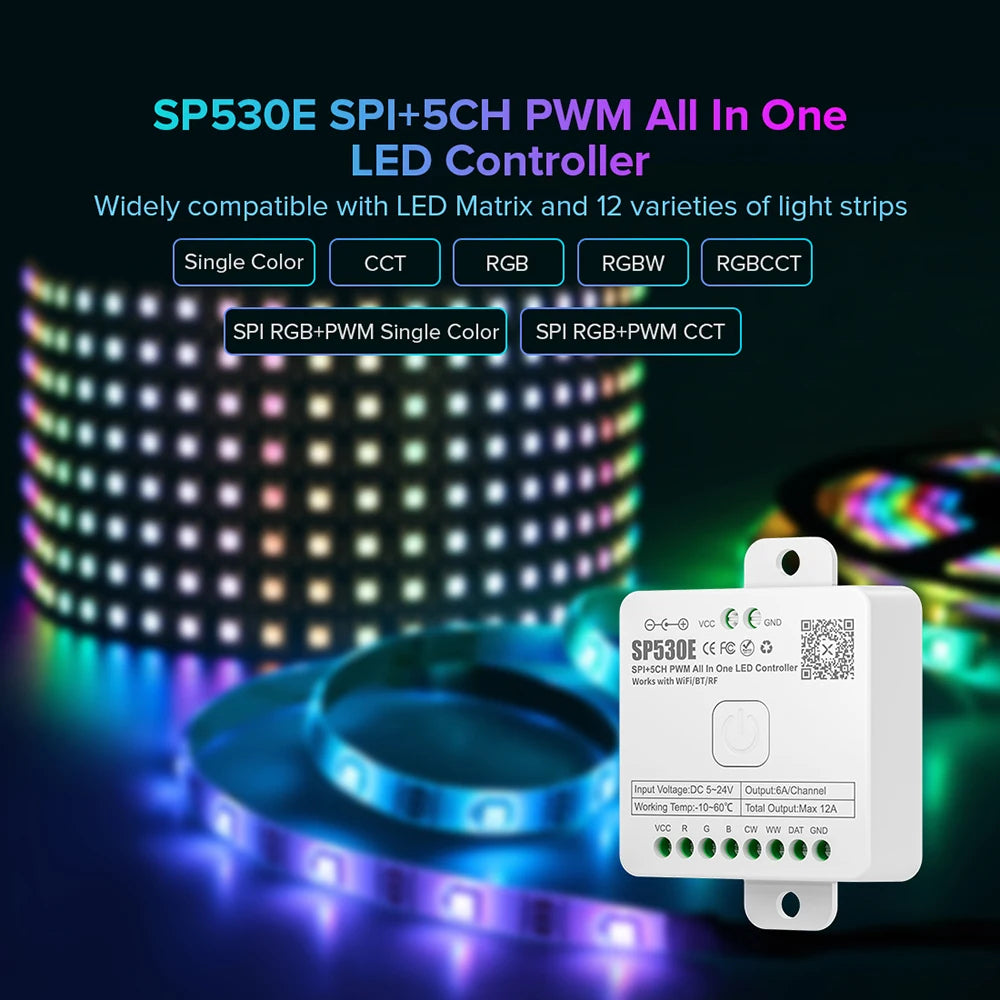

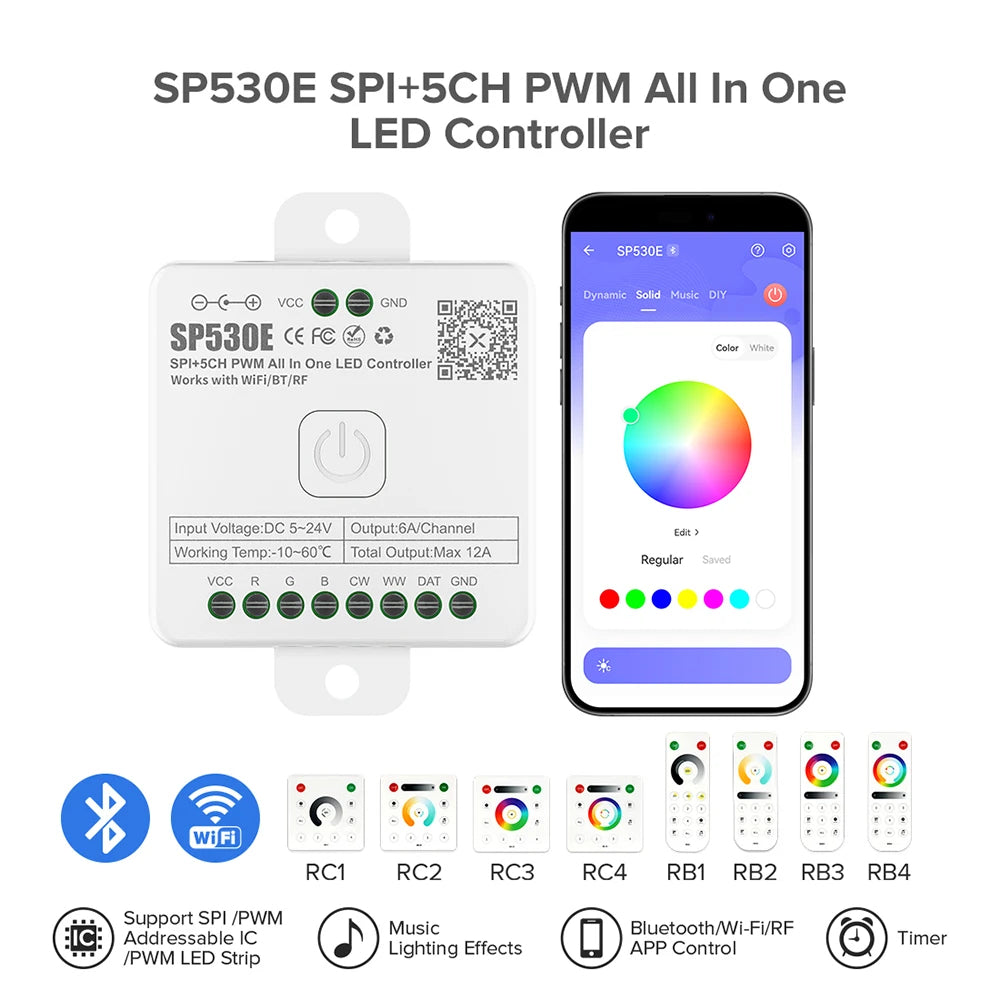

SP530E All-in-One LED Controller, Chasing & Dynamic Effects

Product description

Have an addressable LED strip but no easy way to unlock its effects?

Want app, remote and voice control from one controller?

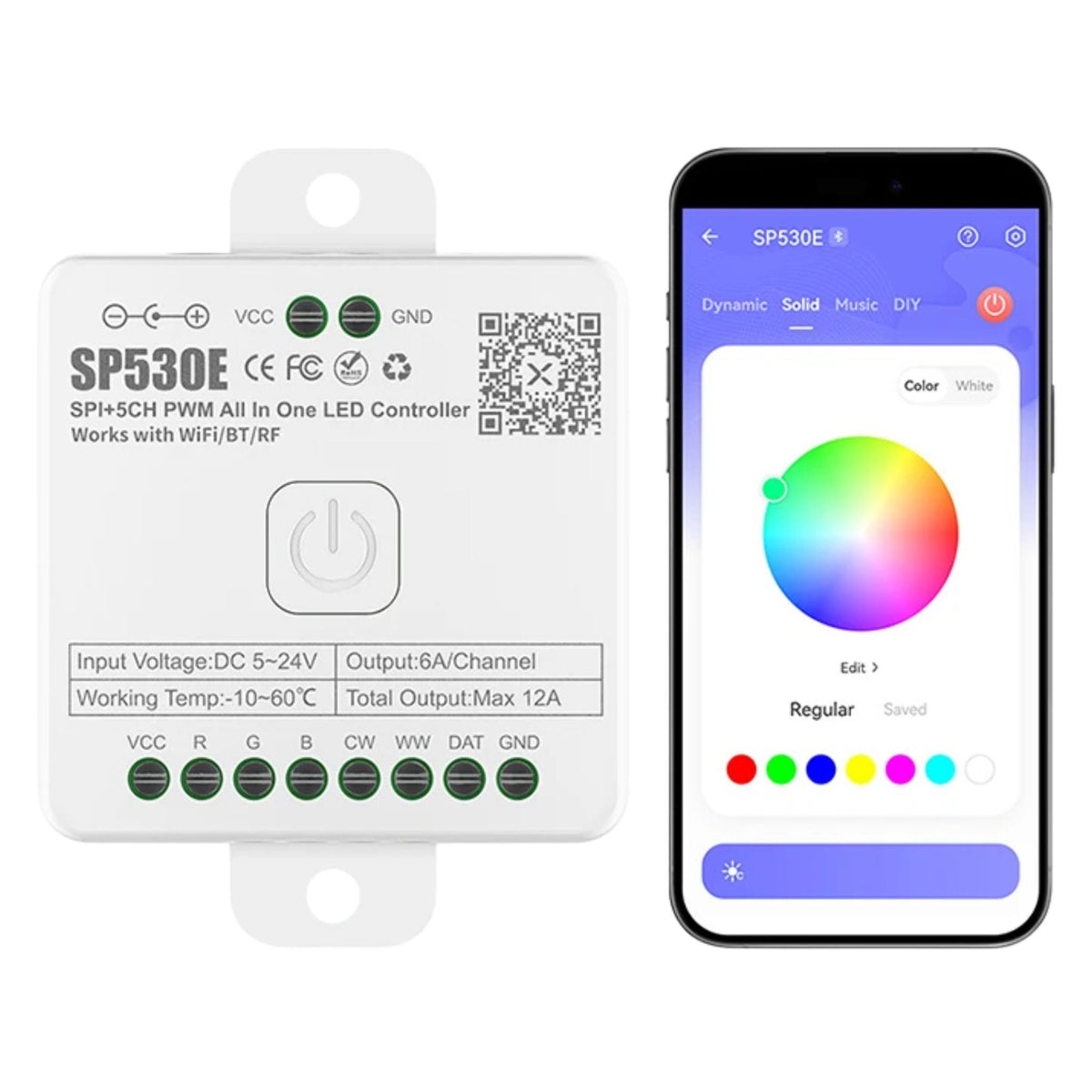

The SP530E gives you smart control for both addressable SPI and standard PWM LED strips.

Use it with compatible IC strips to create chasing, flowing, segmented and music-reactive effects.

Control your lights through the BanlanX app, Alexa, Google Home or the included 2.4G RF remote.

Choose the CCT or RGBCCT remote option to match your lighting setup.

Key features & benefits

• Unlock addressable IC effects: Create chasing, flowing, segmented and dynamic lighting with compatible SPI LED strips.
• Control from your phone: Use Wi-Fi or Bluetooth through the BanlanX app.
• Use voice control: Works with Alexa and Google Home for supported commands.
• Control SPI and PWM strips: Compatible with addressable and standard LED strip types.

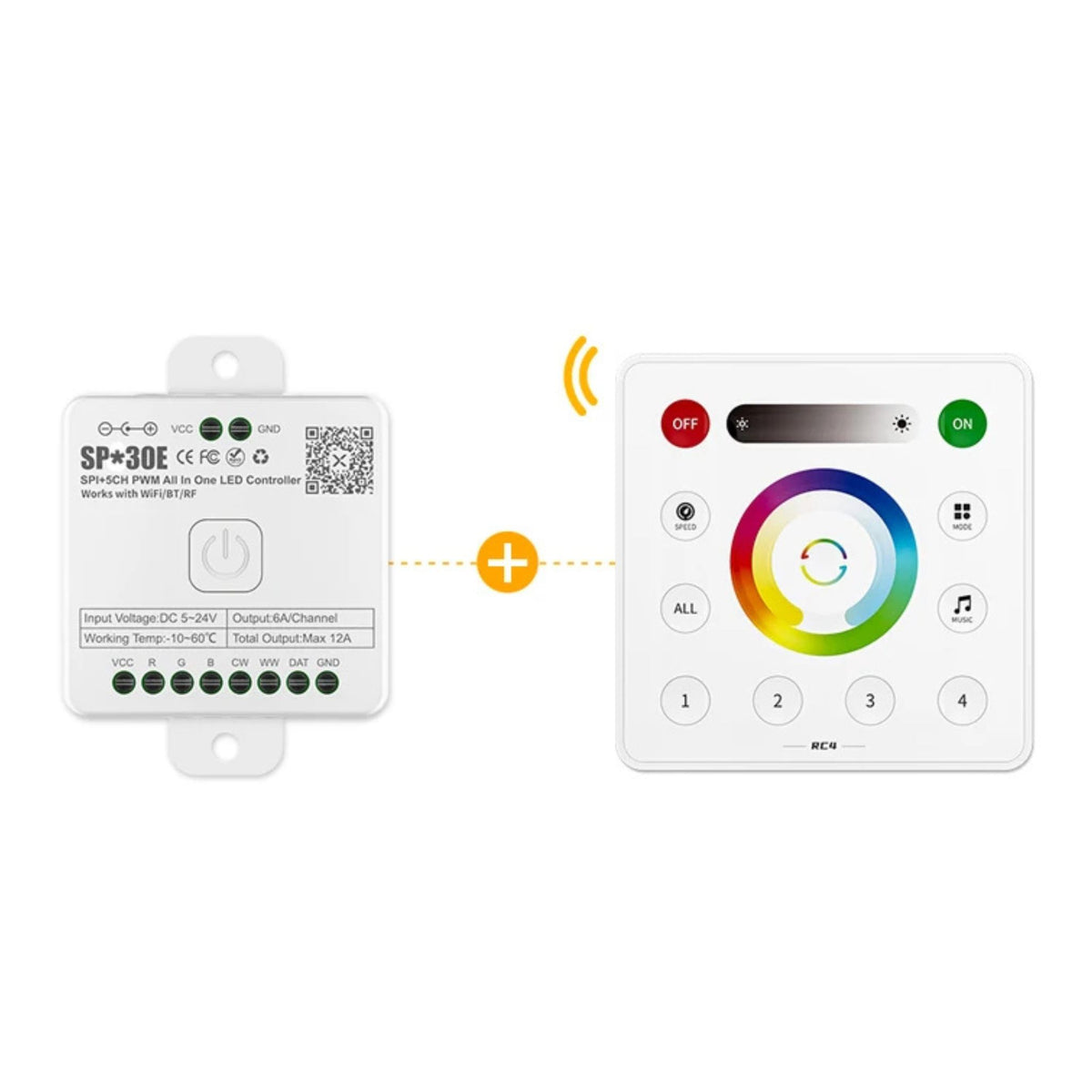

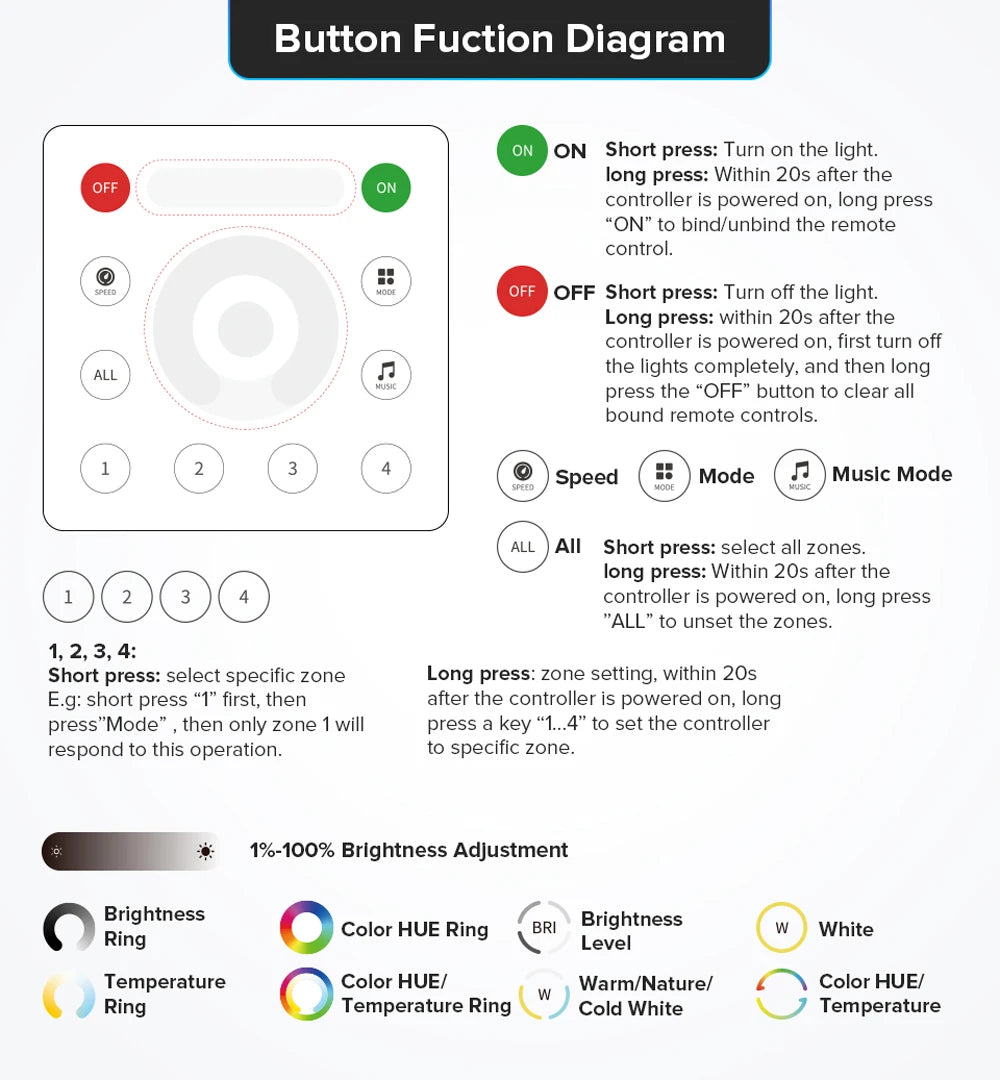

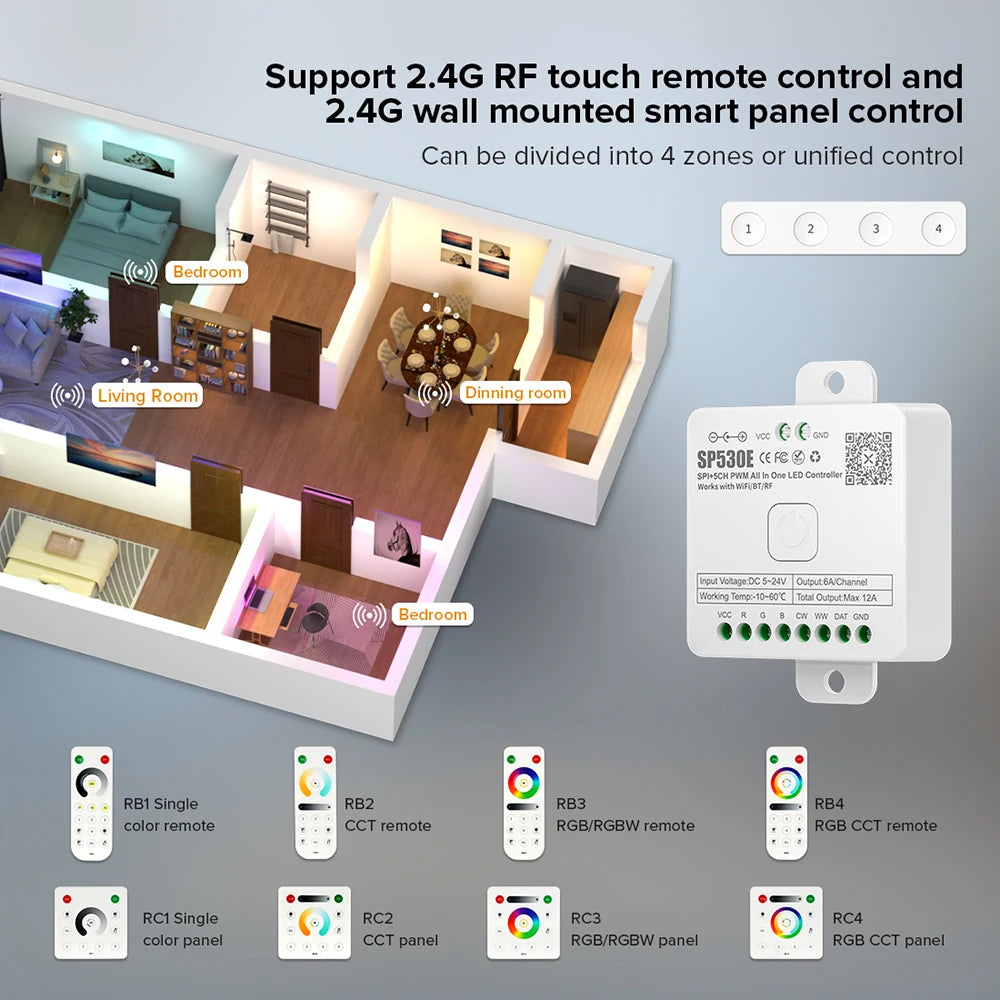

• Choose the right remote: Available with CCT or RGBCCT 2.4G RF remote control.
• Create music-reactive lighting: Compatible SPI strips can respond with dynamic music effects.

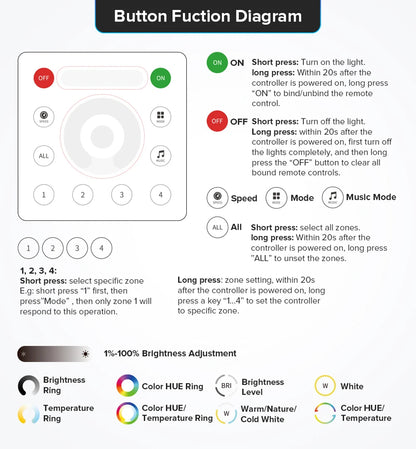

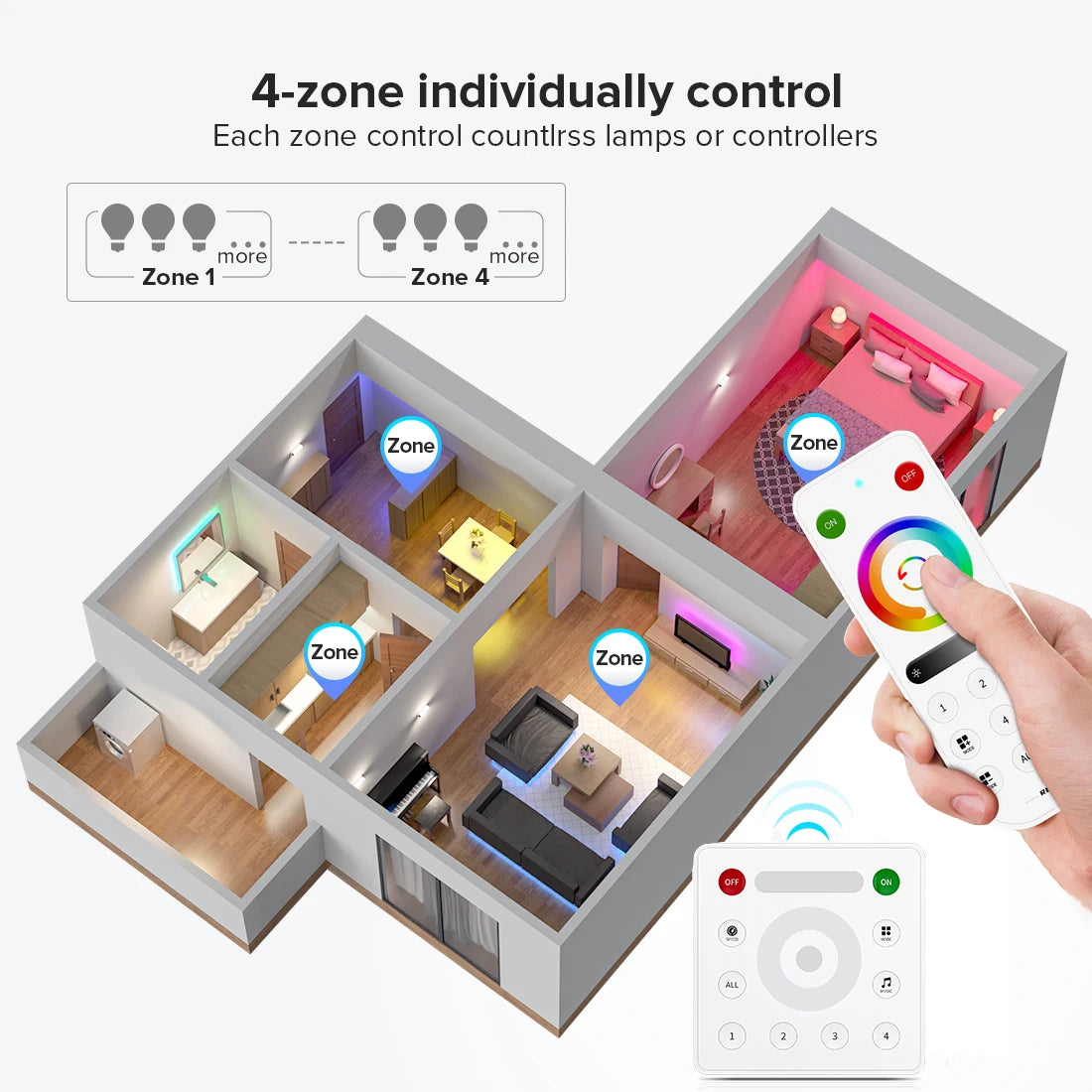

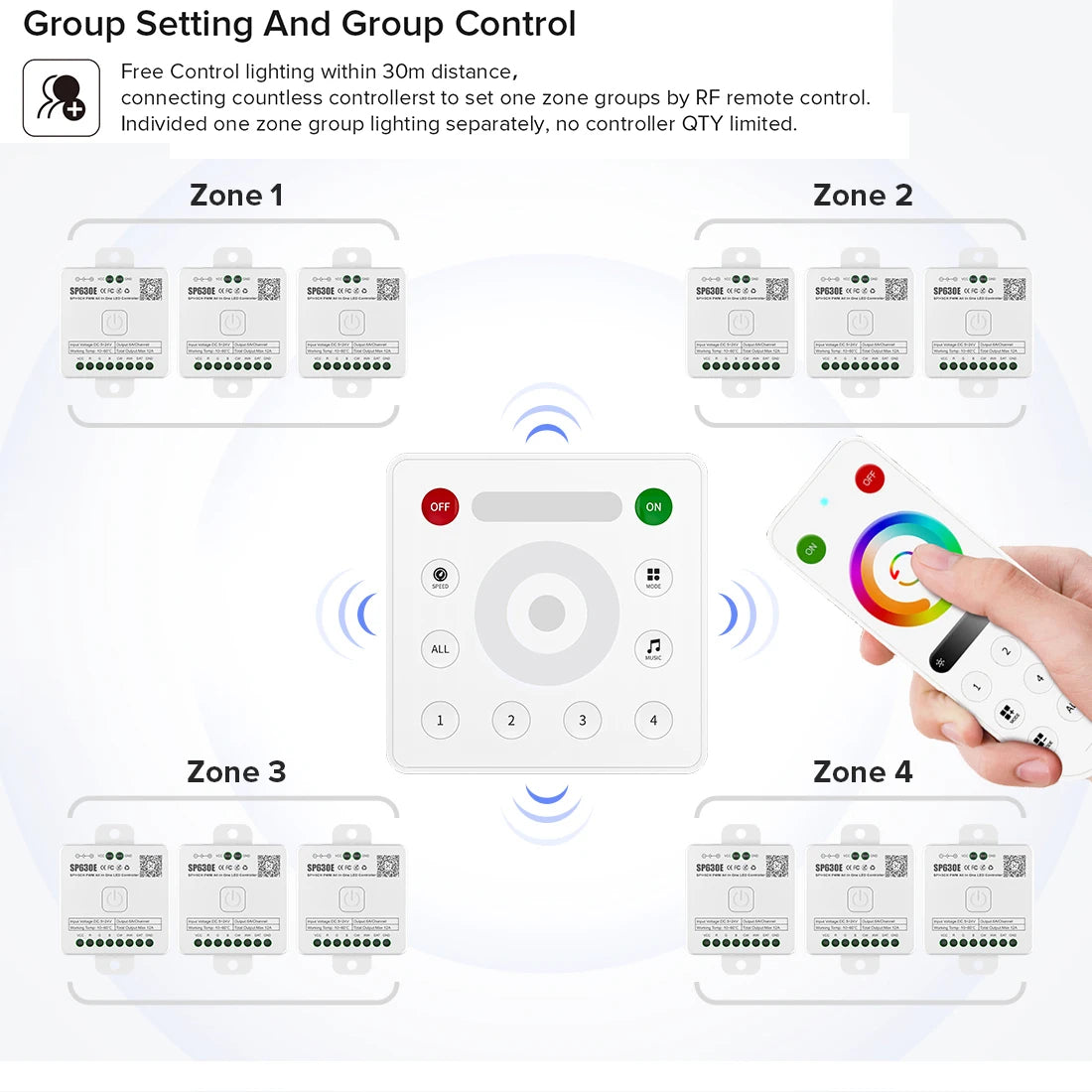

• Control multiple zones: Compatible RF remotes support up to 4 lighting zones.
• Works across 5V to 24V systems: Match the controller voltage to your LED strip and power supply.

IC effects

When paired with a compatible SPI addressable LED strip, the SP530E can create effects that regular PWM controllers cannot.

Depending on the strip and selected mode, this can include:

• Chasing effects
• Flowing light
• Segmented patterns
• Dynamic CCT effects
• Moving color effects
• Music-reactive effects
• Adjustable effect speed

For these moving effects, your LED strip must be SPI/addressable.

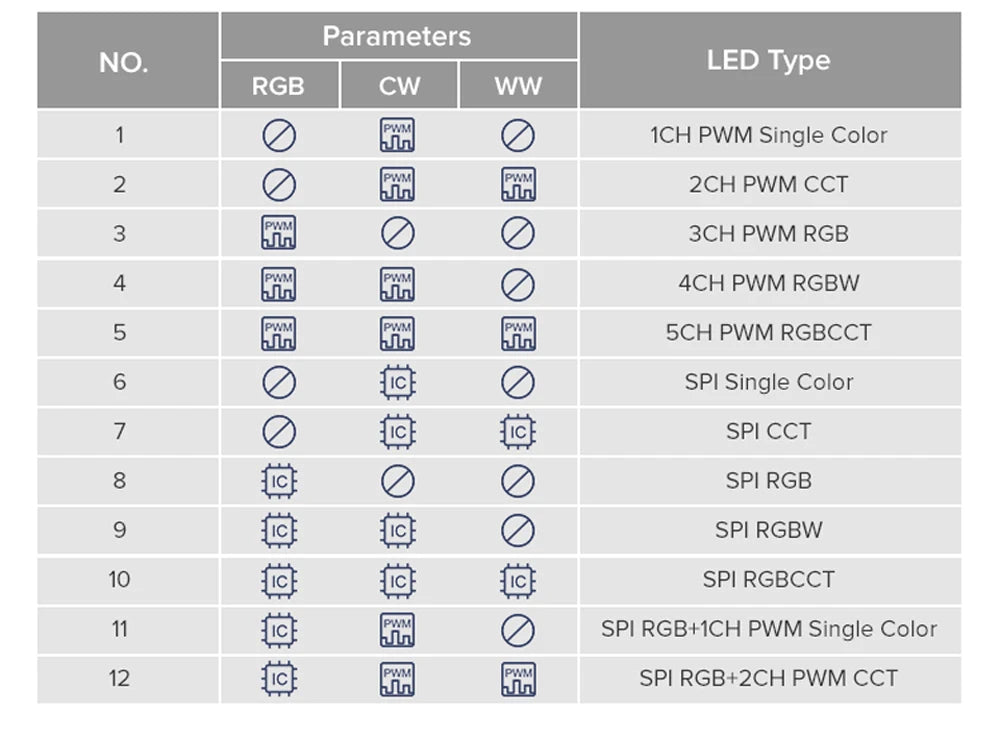

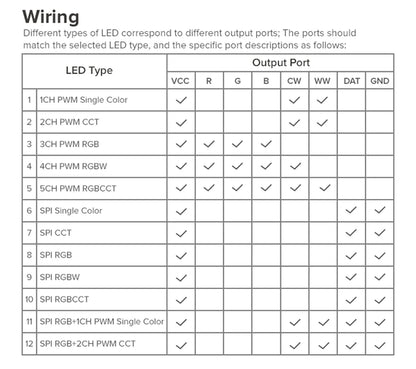

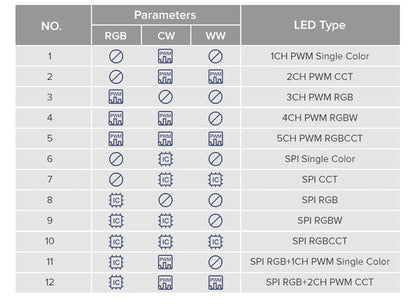

Compatible LED strip types

Supports:

• Single Color
• CCT
• RGB
• RGBW
• RGBCCT
• SPI Single Color
• SPI CCT
• SPI RGB
• SPI RGBW
• SPI RGBCCT

Compatible IC families include WS2811, WS2812, WS2813, WS2814, WS2815 and other supported SPI chips.

Compatibility & important notes

• Choose the CCT remote for adjustable white/CCT lighting setups.
• Choose the RGBCCT remote for RGB + adjustable white lighting setups.
• Chasing, flowing and segmented effects require a compatible SPI/addressable LED strip. Standard PWM strips cannot create these IC effects.
• Your power supply must match the voltage and power requirements of the LED strip being used.
• Power supply is not included unless specifically stated.

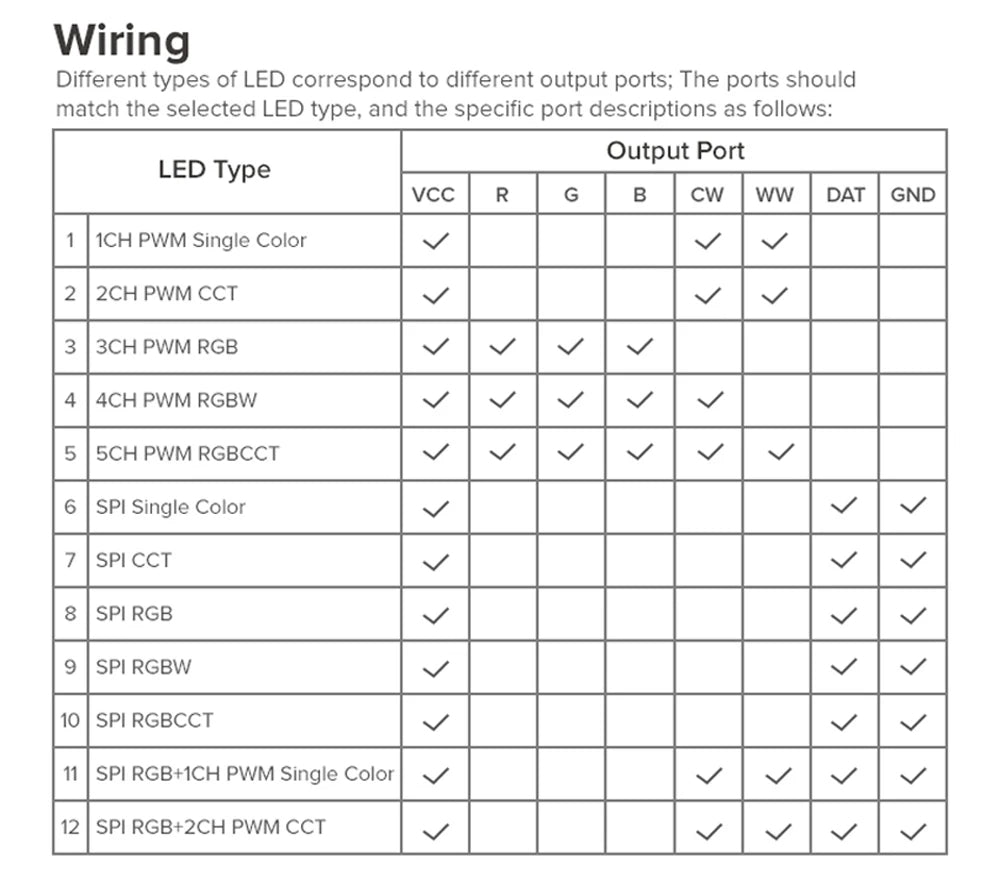

• The controller supports a wide range of LED strips, but the correct strip type must be selected during setup in the BanlanX app.
• Alexa and Google Home features require the SP530E to be connected to Wi-Fi.

Not sure about installation? Book our installation service

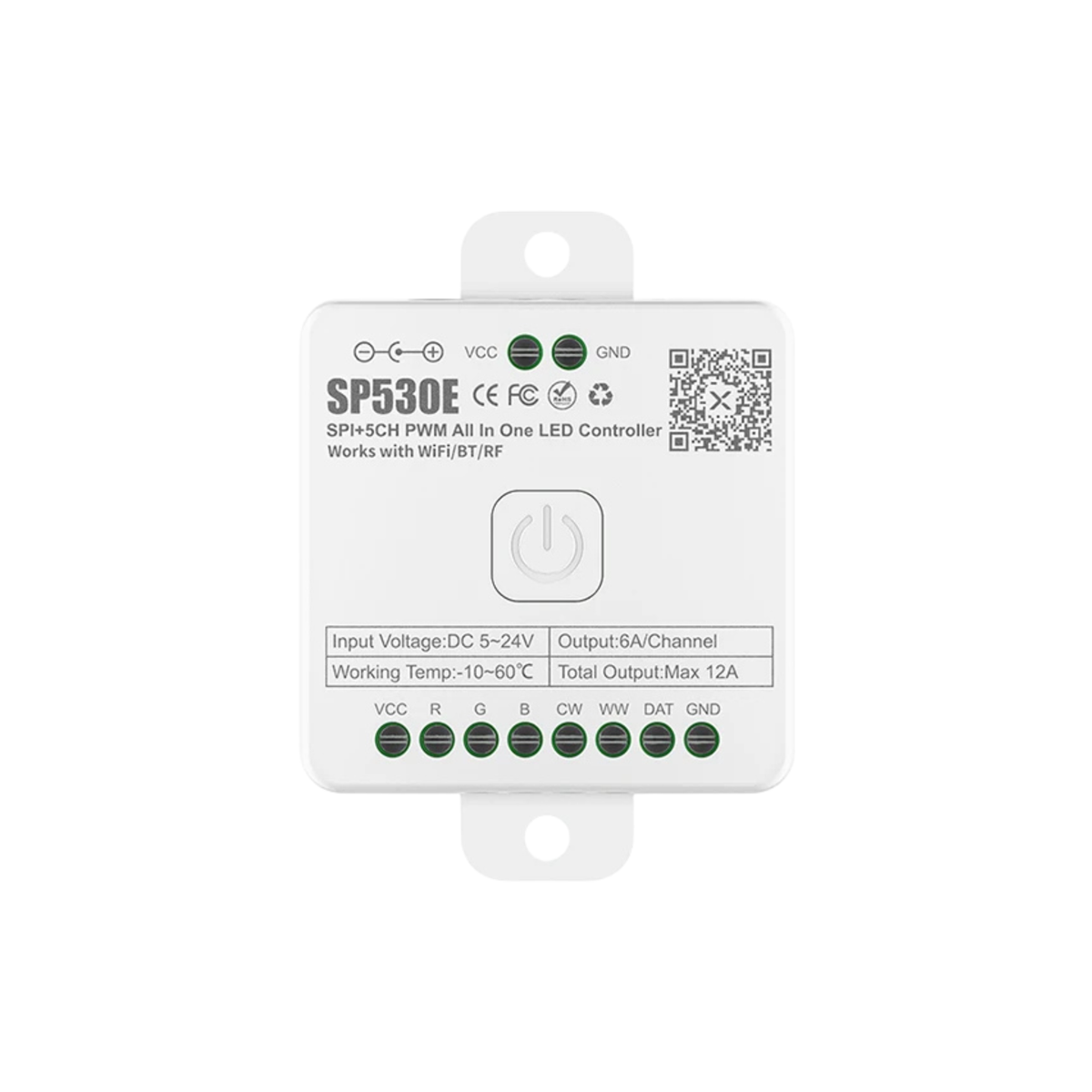

Specifications

• Model: SP530E
• Controller Type: SPI + 5CH PWM
• Input Voltage: DC 5V to 24V
• Output: 6A per channel
• Maximum Total Output: 12A
• Wi-Fi: 2.4GHz
• Bluetooth: Bluetooth LE 5.0
• RF Remote: 2.4GHz
• App: BanlanX
• Voice Assistants: Alexa / Google Home
• Supported PWM Types: Single Color, CCT, RGB, RGBW, RGBCCT
• Supported SPI Types: Single Color, CCT, RGB, RGBW, RGBCCT
• Maximum SPI CCT: 600 ICs
• Maximum SPI RGB: 1200 ICs
• Maximum SPI RGBW: 900 ICs
• Maximum SPI RGBCCT: 600 ICs
• Timer: Yes
• Music Mode: Yes
• RF Zones: Up to 4

Package

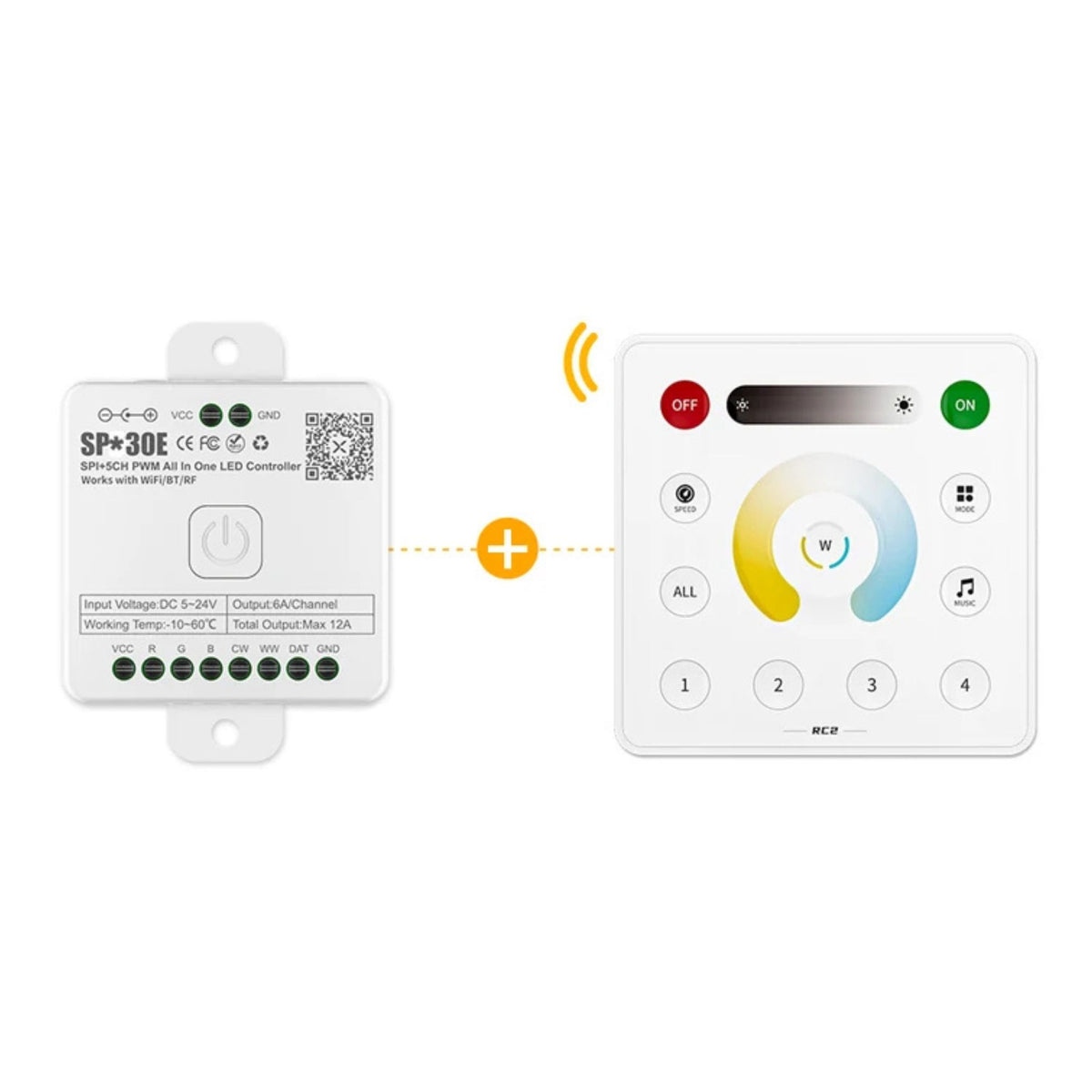

CCT Remote Variant

• 1 x SP530E LED Controller
• 1 x CCT RF Remote
• 1 x Remote Base
• 1 x Instructions

RGBCCT Remote Variant

• 1 x SP530E LED Controller
• 1 x RGBCCT RF Remote
• 1 x Remote Base
• 1 x Instructions
