Smart Tank Monitor With Indoor Display – No More Roof Climbing

Product description

Do you have to climb onto the roof just to check if your water tank is full or running low?

What if you could see the exact level from inside your home or on your phone without going outside at all?

This smart tank level monitor fixes that.

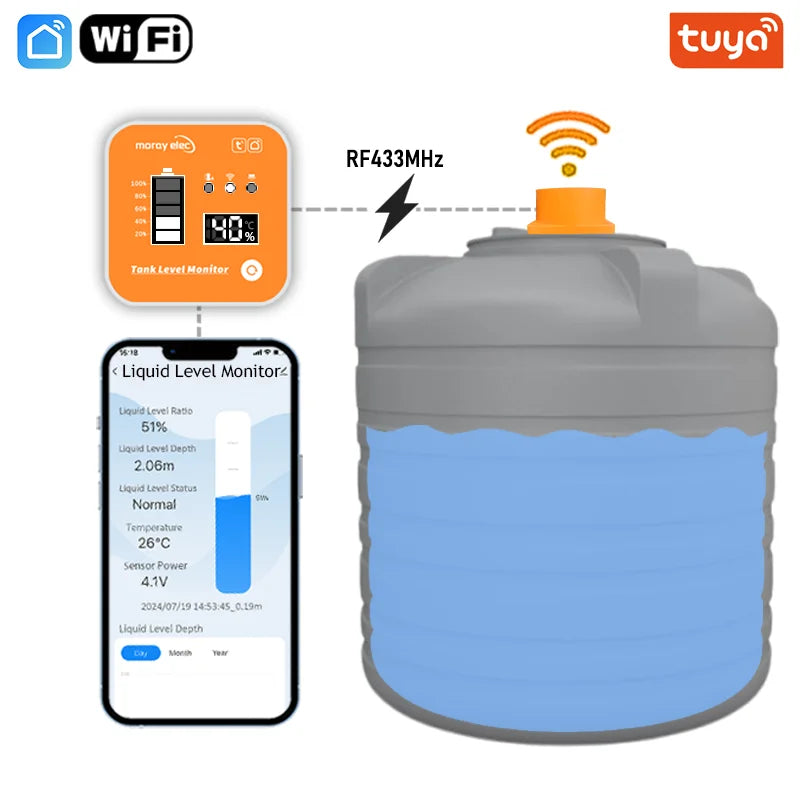

It uses an ultrasonic sensor mounted on your tank lid to measure the water level and sends the reading wirelessly to an indoor display and your Smart Life or Tuya app.

See the percentage at a glance from inside your home and get alerts before your tank runs empty or overflows.

Know your tank level anytime, from anywhere, without ever climbing the roof again.

Key features & benefits

• Check your tank from inside: Indoor display shows tank level percentage clearly without going outside.
• Monitor from anywhere: Smart Life or Tuya app lets you view tank levels from your phone anytime.
• Accurate ultrasonic sensing: Measures tank depth from 0.1 to 4 meters with ±0.02m accuracy.
• High and low level alerts: Get notified before your tank runs empty or overflows so you can act in time.
• Temperature display: Indoor monitor also shows ambient temperature alongside tank level.
• Long wireless range: RF433MHz link reaches up to 300 meters between sensor and indoor display.
• Works with many tank sizes: Compatible with tanks up to 4 meters deep for homes and properties.
• Simple top-mount installation: Mounts on the tank lid without complicated plumbing work.

Compatibility & important notes

• Works with Smart Life and Tuya Smart apps
• 2.4GHz Wi-Fi only, 5GHz not supported
• Wi-Fi signal must reach the indoor display location
• Use a Wi-Fi extender if signal is weak at the display location
• Sensor requires AC power, outlet must be available near the tank
• Indoor display requires USB 5V / 1A power via Type-C cable
• Sensor must be installed in the center of the tank lid
• Installation requires drilling a hole larger than 55mm in the tank lid
• Do not install near water inlet pipes or tank walls
• Floating objects inside the tank may affect readings
• Tank interior should be smooth and unobstructed for best accuracy
• Not sure about installation? Book our installation service

Specifications

• Brand: Moray Elec
• Model: ME201R
• Sensor Type: Ultrasonic liquid level sensor
• Connectivity: Wi-Fi 2.4GHz + RF433MHz
• App: Smart Life / Tuya Smart
• Sensor to Display Range: Up to 300m, no obstacles
• Display to Router Range: Up to 50m, no obstacles
• Measuring Range: 0.1m to 4.0m
• Accuracy: ±0.02m
• Sensor Protection: IP65
• Display: Water level percentage
• Temperature Monitoring: Ambient temperature display
• Alarm: High and low level alerts
• Sensor Power: AC 110 to 240V adapter
• Display Power: 5V / 1A USB Type-C
• Operating Temperature: -20°C to 70°C
• Installation: Top-mounted on tank lid

Package

• 1 x Ultrasonic Tank Level Sensor
• 1 x Indoor gateway and display monitor
• 1 x AC power adapter
• 1 x USB Type-C power cable
• 1 x Mounting plate and gasket
• 1 x Installation screws set
• 1 x User manual
