Solar Tank Level Monitor – Check Your Tank Level Anytime

Product description

Do you run out of water unexpectedly because there was no way to check the tank level in time?

What if your tank could monitor itself and send you an alert before it runs empty, even during a power cut?

This smart solar tank level monitor fixes that.

It mounts on your tank lid and uses ultrasonic sensing to measure the water level accurately. The built-in solar panel and rechargeable battery keep the sensor running even during power outages.

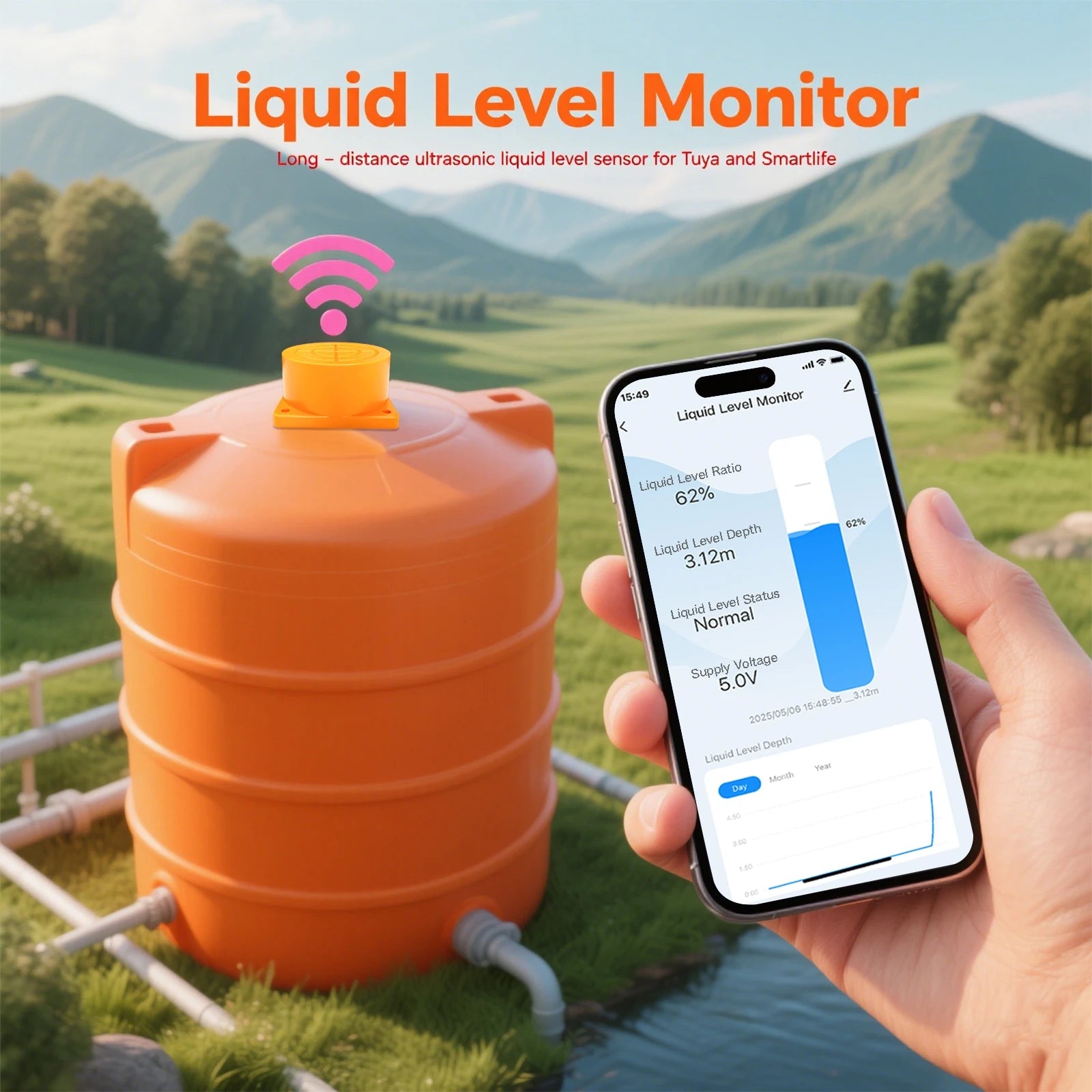

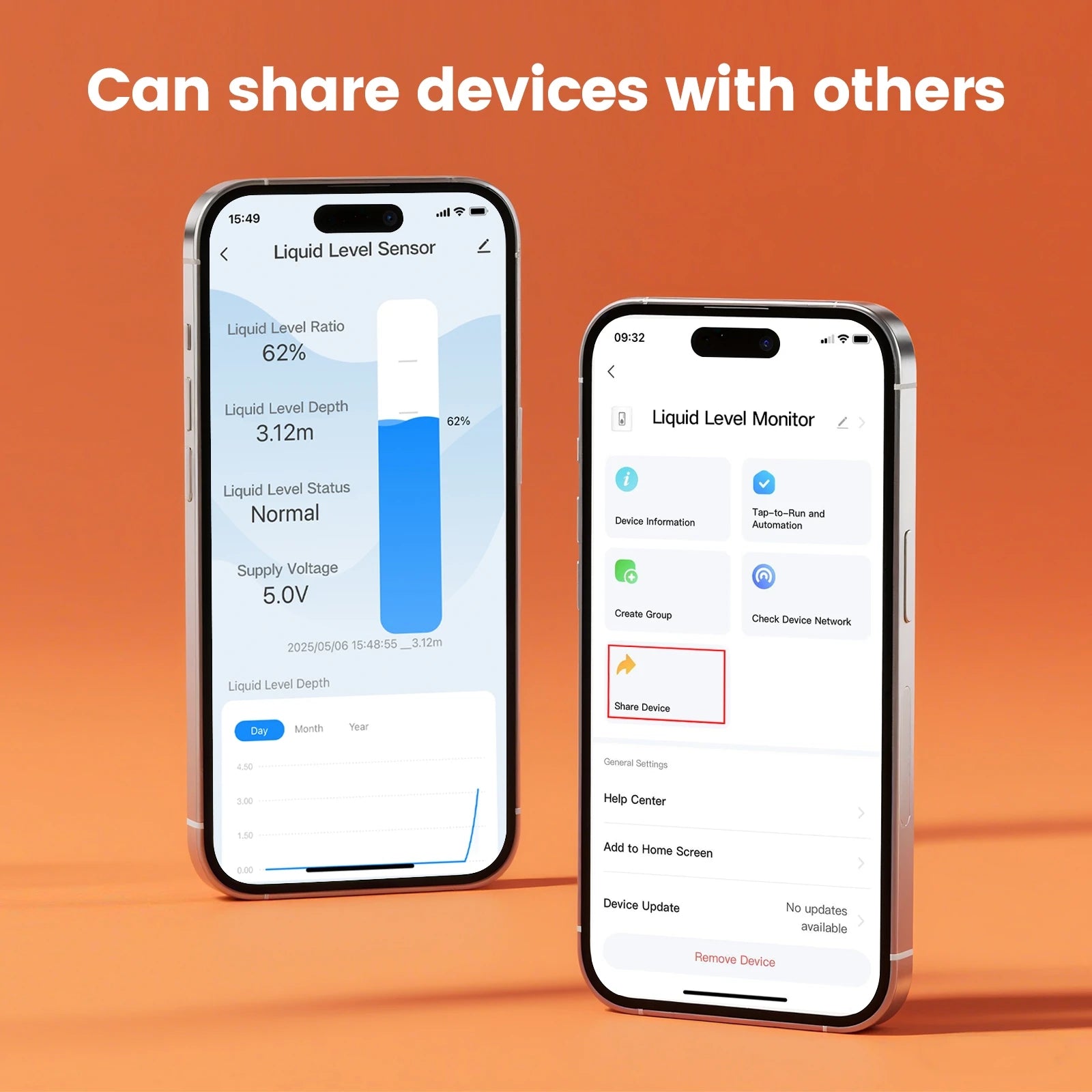

Readings go straight to your Smart Life or Tuya app so you can check your tank from anywhere.

Know your tank level, avoid surprises, and never run out of water unexpectedly again.

Key features & benefits

• Check your tank from anywhere: Monitor water level in real time through the Smart Life or Tuya app on your phone.
• Keeps working during power outages: Solar panel and 3600mAh rechargeable battery power the sensor continuously.
• Accurate ultrasonic sensing: Measures tank depth from 0.1 to 4 meters with ±0.02m accuracy.
• High and low level alerts: Get notified before your tank runs empty or overflows so you can act in time.
• No wiring to the house needed: Wireless communication eliminates the need for long cables to remote tanks.
• Works with many tank sizes: Compatible with tanks up to 4 meters deep for homes and properties.
• Simple top-mount installation: Mounts directly on the tank lid without complicated plumbing work.

Compatibility & important notes

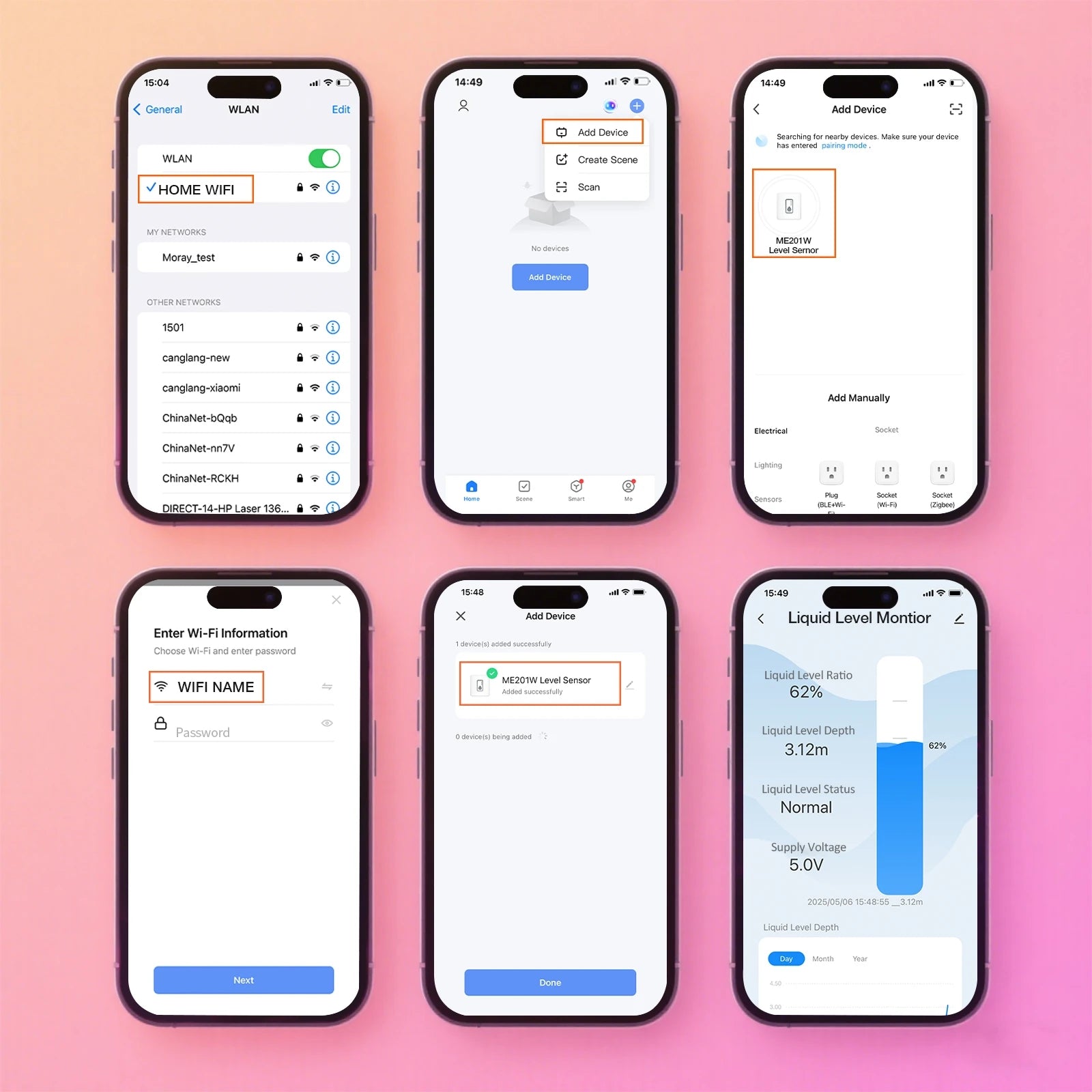

• Works with Smart Life and Tuya Smart apps
• 2.4GHz Wi-Fi only, 5GHz not supported
• Wi-Fi signal must reach the tank location, maximum range about 50 meters
• Use a Wi-Fi extender if signal is weak near the tank
• Solar panel must be installed in direct sunlight
• Sensor continues measuring during power outages but app updates resume once internet returns

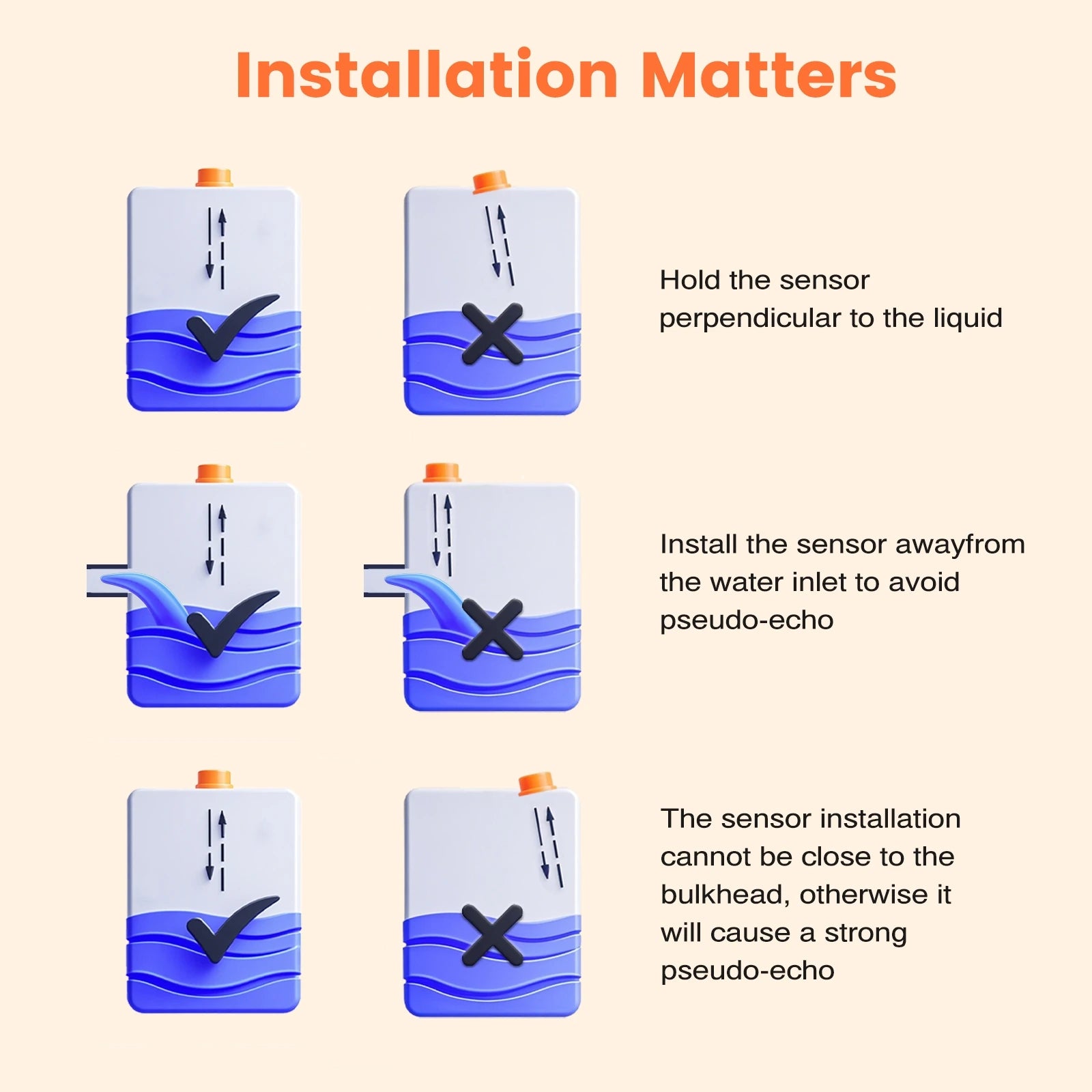

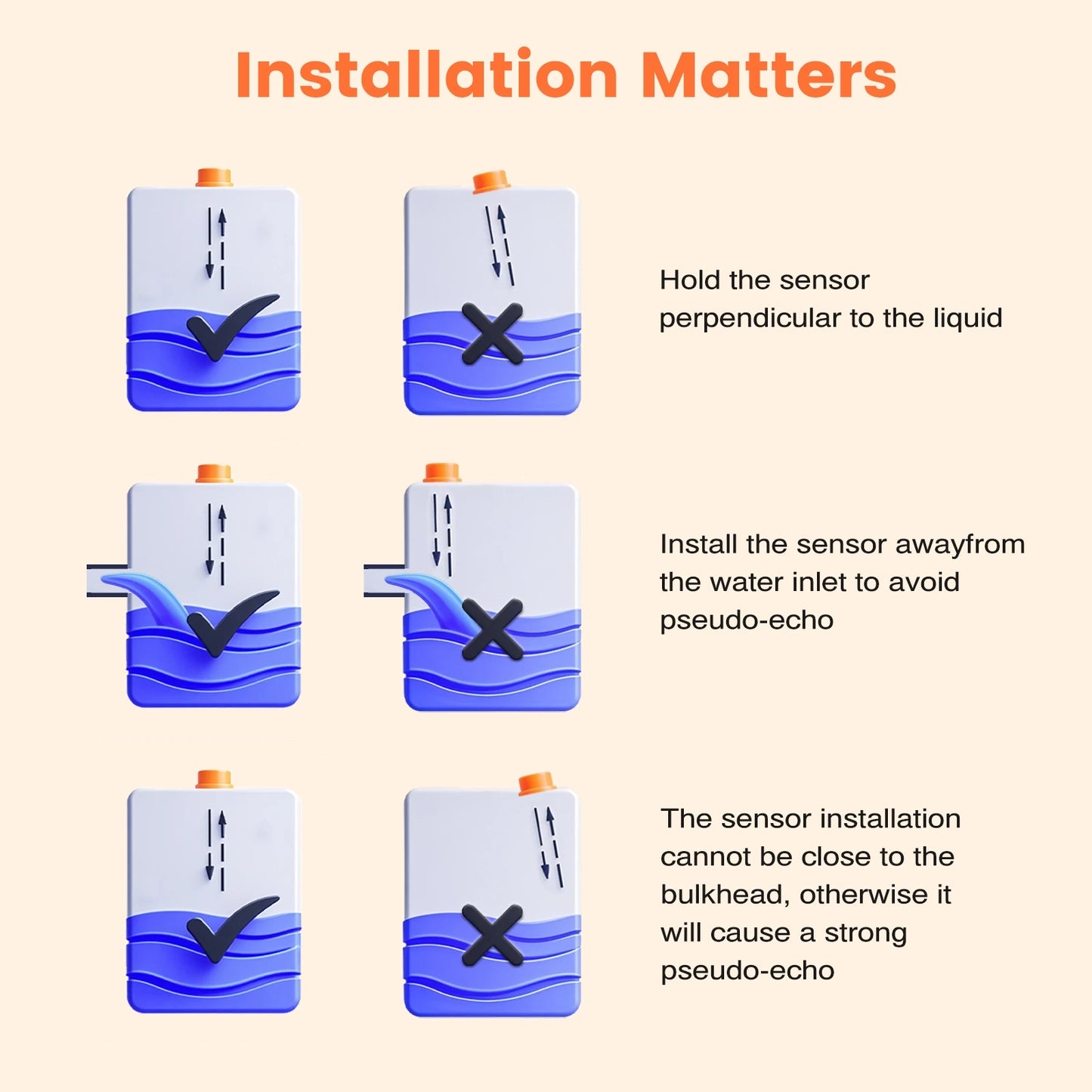

• Sensor must be installed in the center of the tank lid

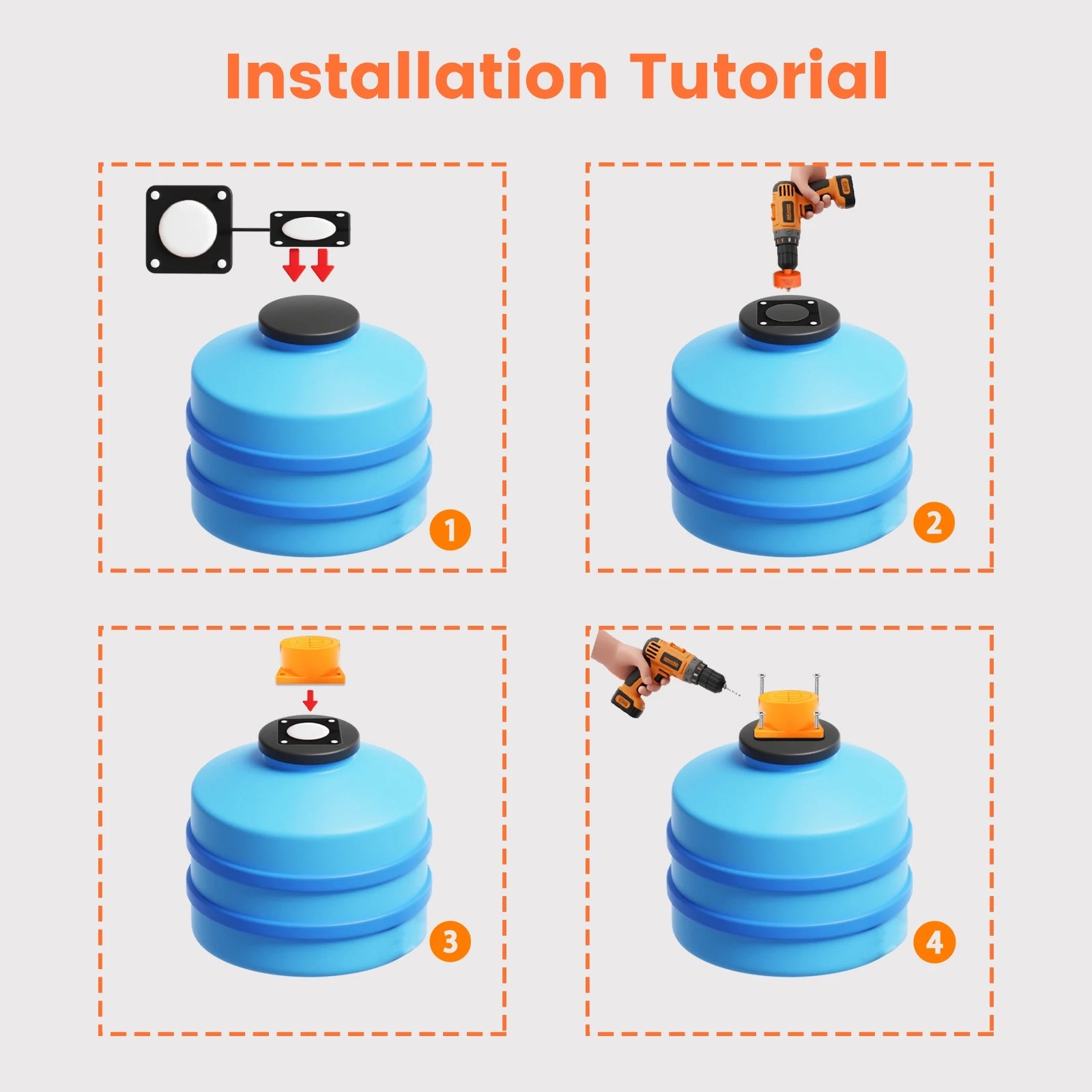

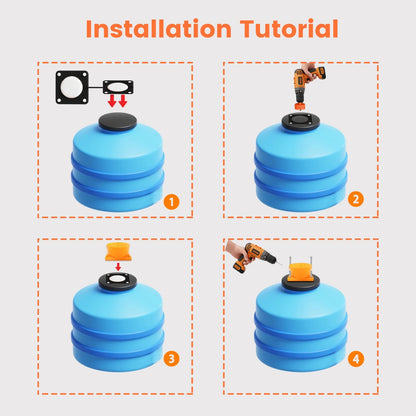

• Installation requires drilling a hole larger than 55mm in the tank lid
• Do not install near water inlet pipes or tank walls
• Floating objects inside the tank may affect readings
• Tank interior should be smooth and unobstructed for best accuracy
• Not sure about installation? Book our installation service

Specifications

• Brand: Moray Elec
• Model: ME201WS
• Sensor Type: Ultrasonic liquid level sensor
• Detection Range: 0.1m to 4.0m
• Accuracy: ±0.02m

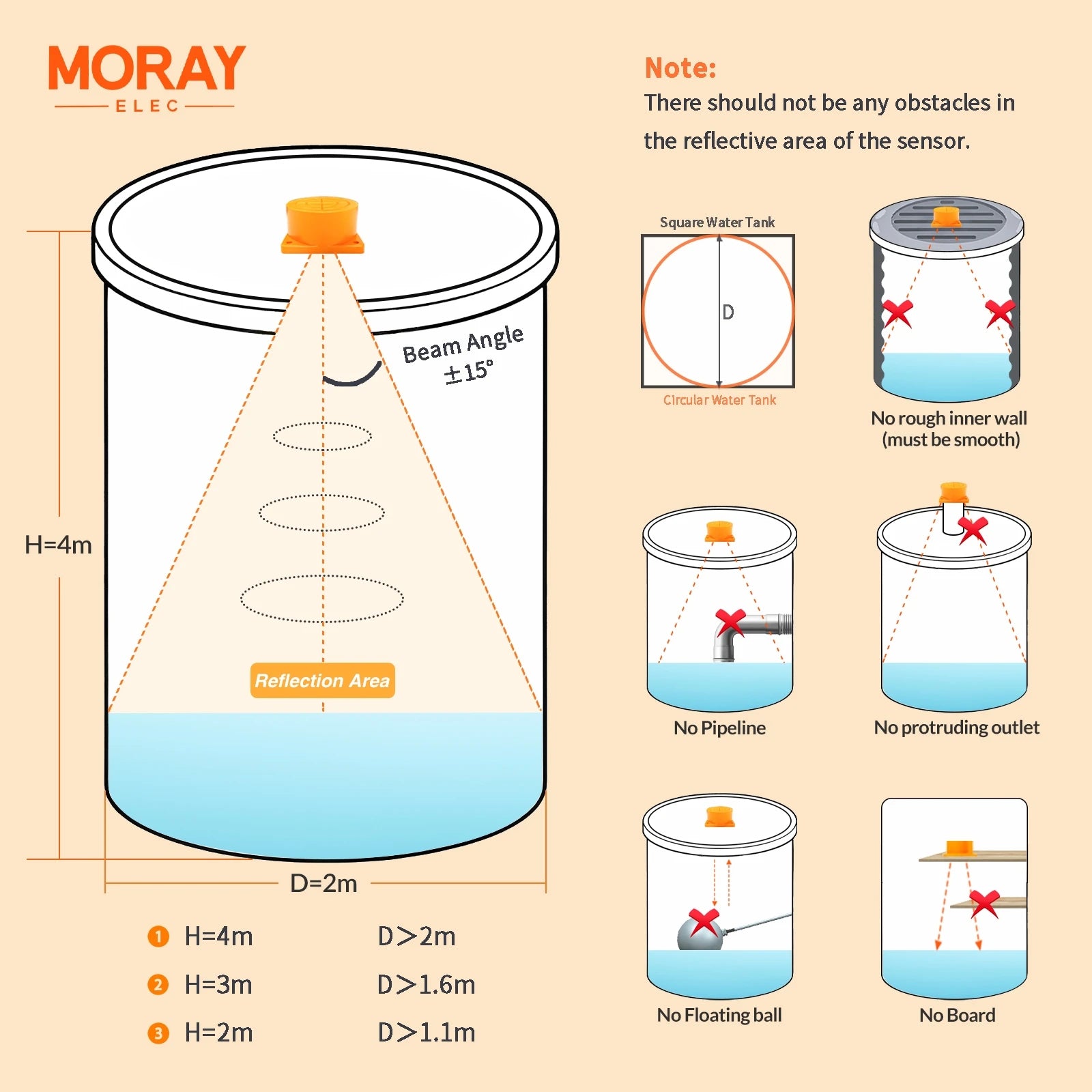

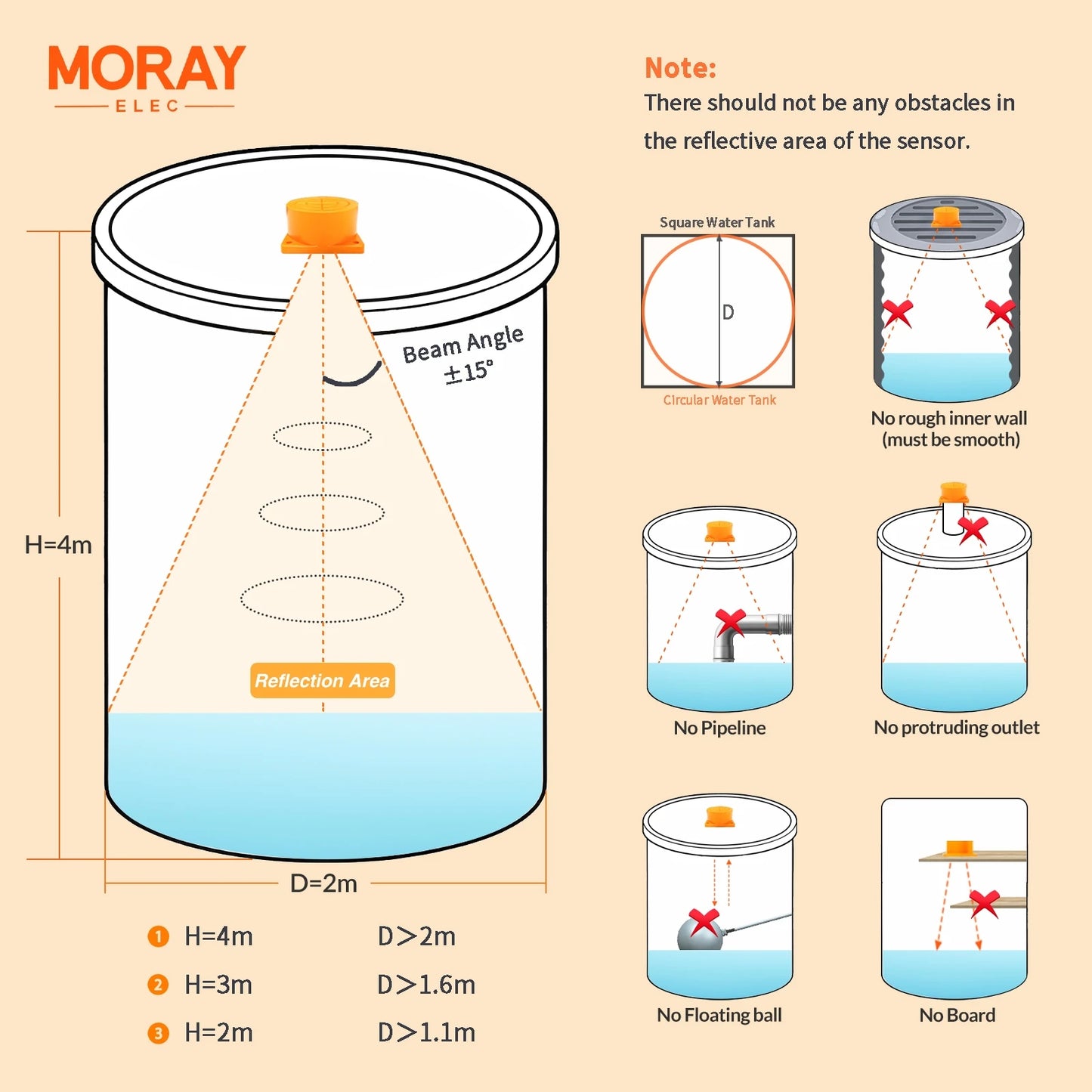

• Beam Angle: ±15°
• Connectivity: Wi-Fi 2.4GHz
• App: Smart Life / Tuya Smart
• Wi-Fi Range: Up to 50 meters
• Solar Panel Output: 6V / 450mA / 3W
• Battery: 3.7V 3600mAh rechargeable
• Charging Port: USB-C (5V 1A)
• Sensor Power Consumption: ≤100mA at 5V DC
• Protection Rating: IP65
• Operating Temperature: -20°C to 70°C

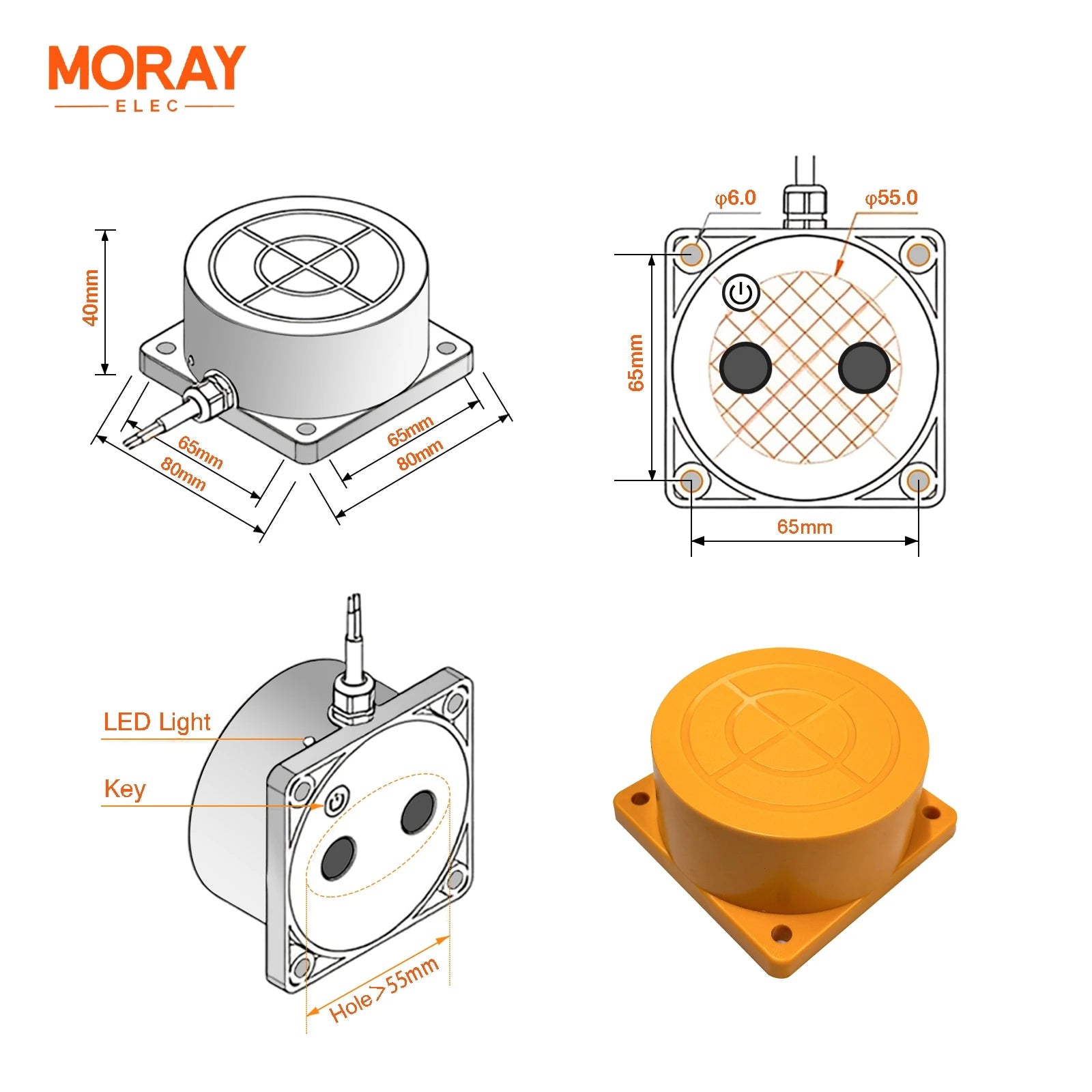

• Installation Hole: Greater than 55mm diameter

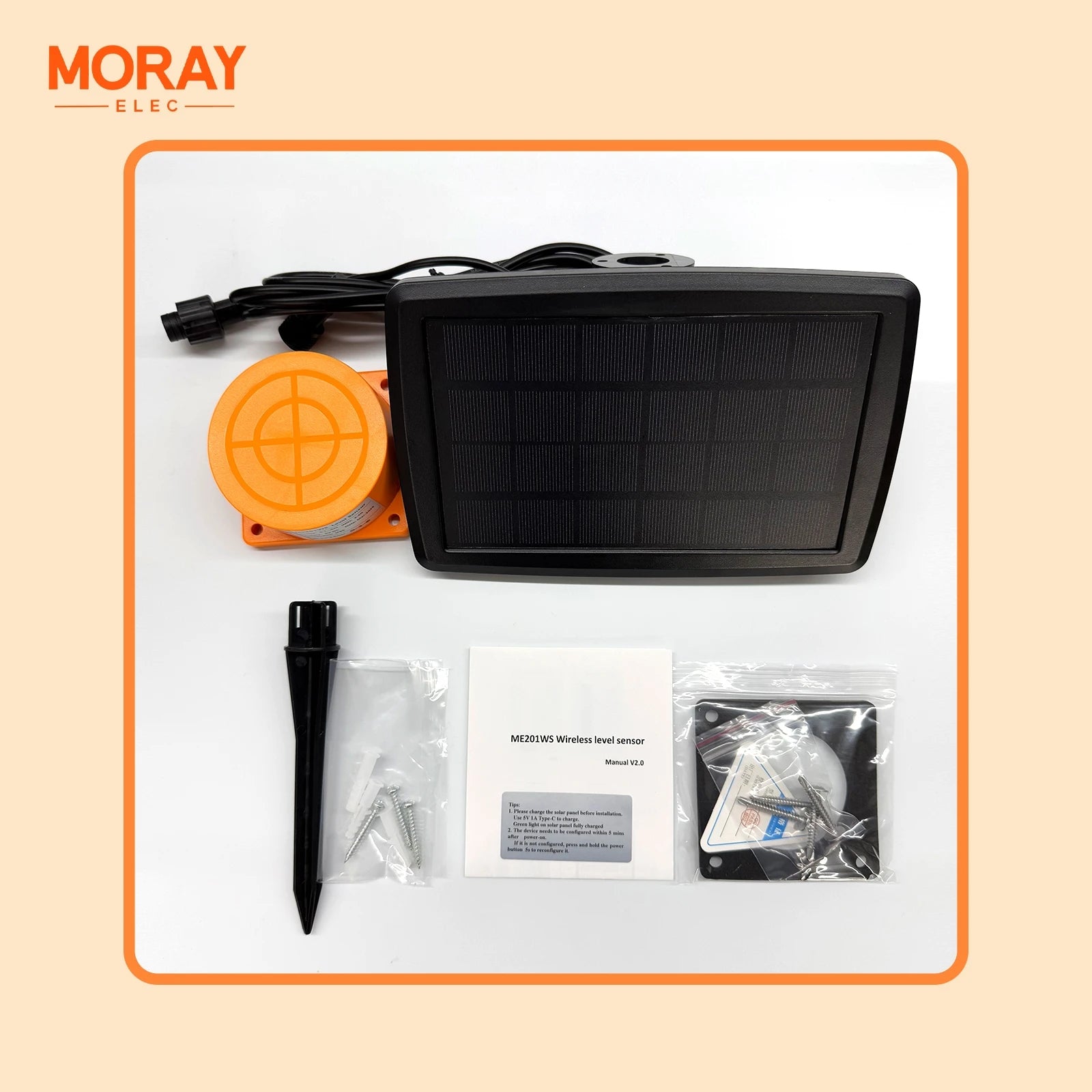

Package

• 1 x Ultrasonic Tank Level Sensor
• 1 x Solar panel power module
• 1 x Solar mounting stand
• 1 x Mounting plate and gasket
• 1 x Screw installation set
• 1 x User manual
