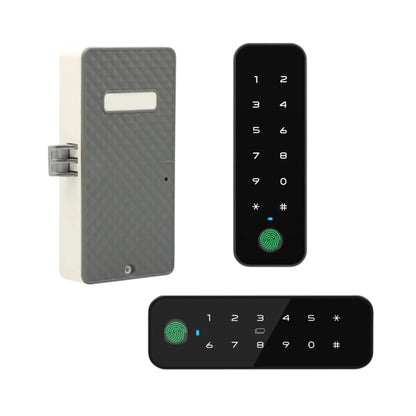

Smart Cabinet Lock, Secure Cabinets & Drawers Without Keys

Product Description

Want to keep important documents, valuables or personal items from being easily accessed?

Tired of hiding small cabinet keys or worrying about losing them?

This smart cabinet lock gives you convenient keyless control over your drawers and cabinets.

Unlock using your fingerprint, PIN, RFID card, compatible NFC device or the Tuya Smart/Smart Life app.

It is ideal for drawers, wardrobes, bedside cabinets, office storage and other compatible furniture.

Key Features & Benefits

• Multiple ways to unlock: Choose fingerprint, PIN, RFID card, compatible NFC device or Bluetooth app access.
• Create temporary access: Generate temporary passwords when someone needs access without permanently adding them as a user.
• Manage access from your phone: Use Tuya or Smart Life app to manage supported users and lock functions.
• Check access records: Review unlocking activity through the app for better awareness of who is accessing the cabinet.
• Store multiple users: Supports multiple fingerprints, passwords and cards for homes, offices and other shared spaces.
• Get low-battery warnings: The lock alerts you when battery power is getting low so you can replace the batteries before they run out.

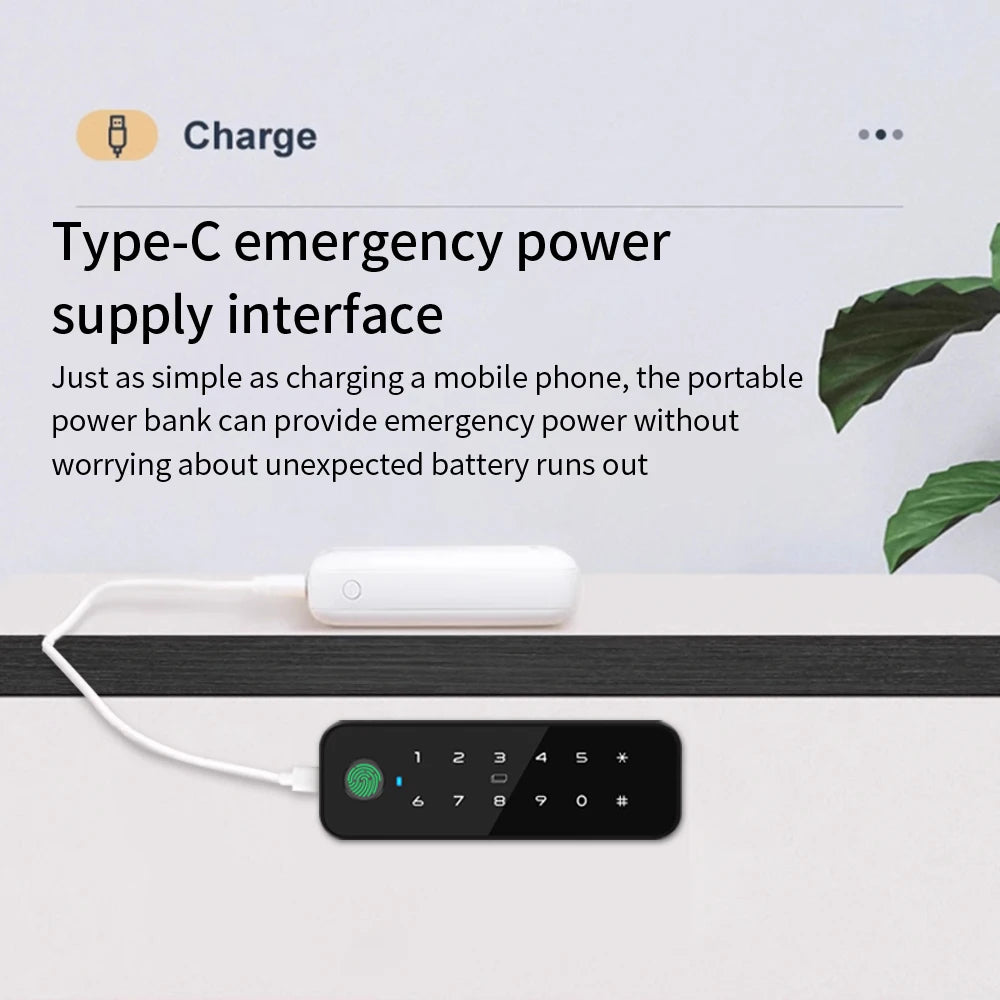

• Emergency Type-C power: If the batteries die, connect an external power source temporarily to regain access.
• Works on different furniture: Suitable for compatible drawers, wardrobes, bedside cabinets, shoe cabinets and storage cupboards.

Bluetooth vs Remote Access

The lock connects directly to your phone through Bluetooth for nearby app control.

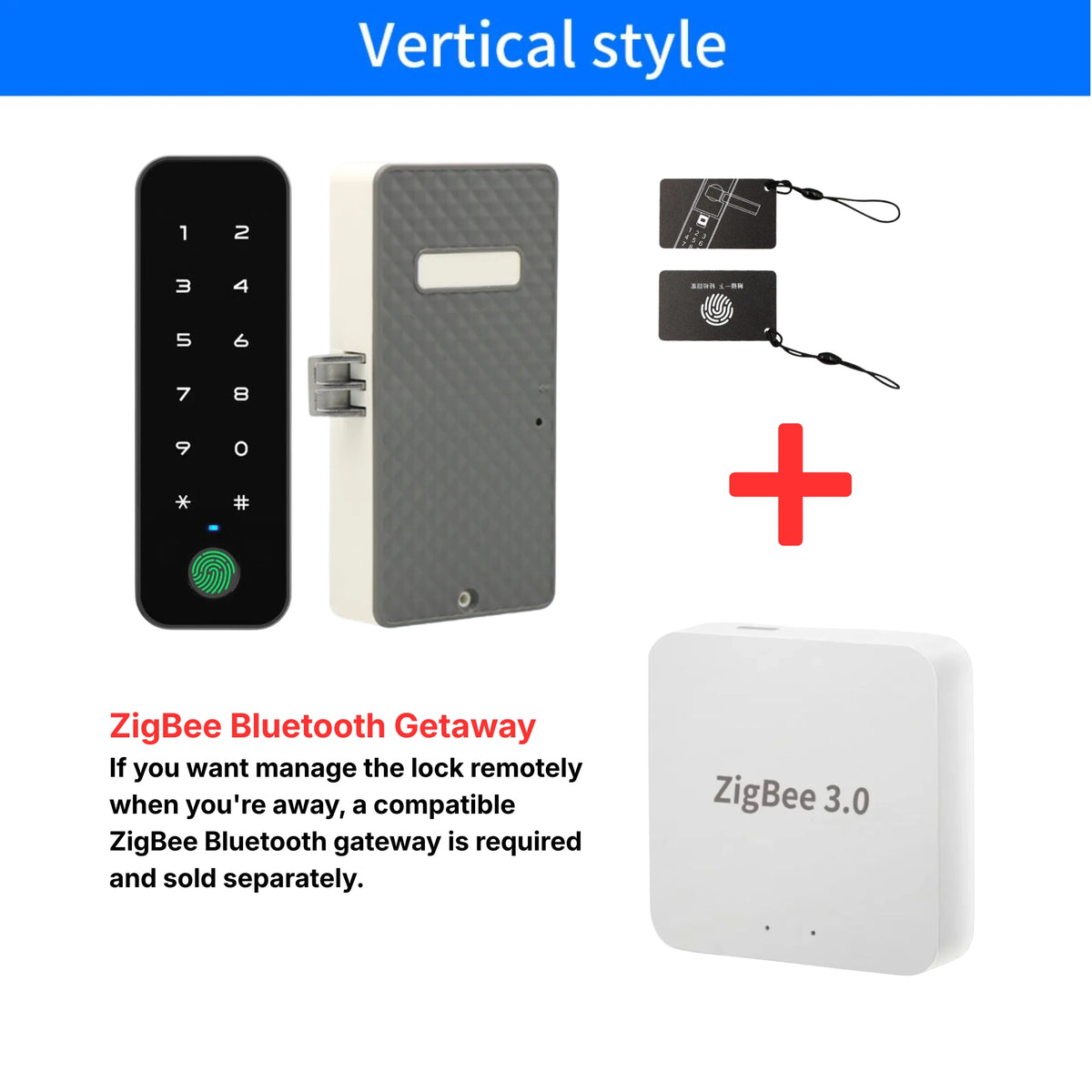

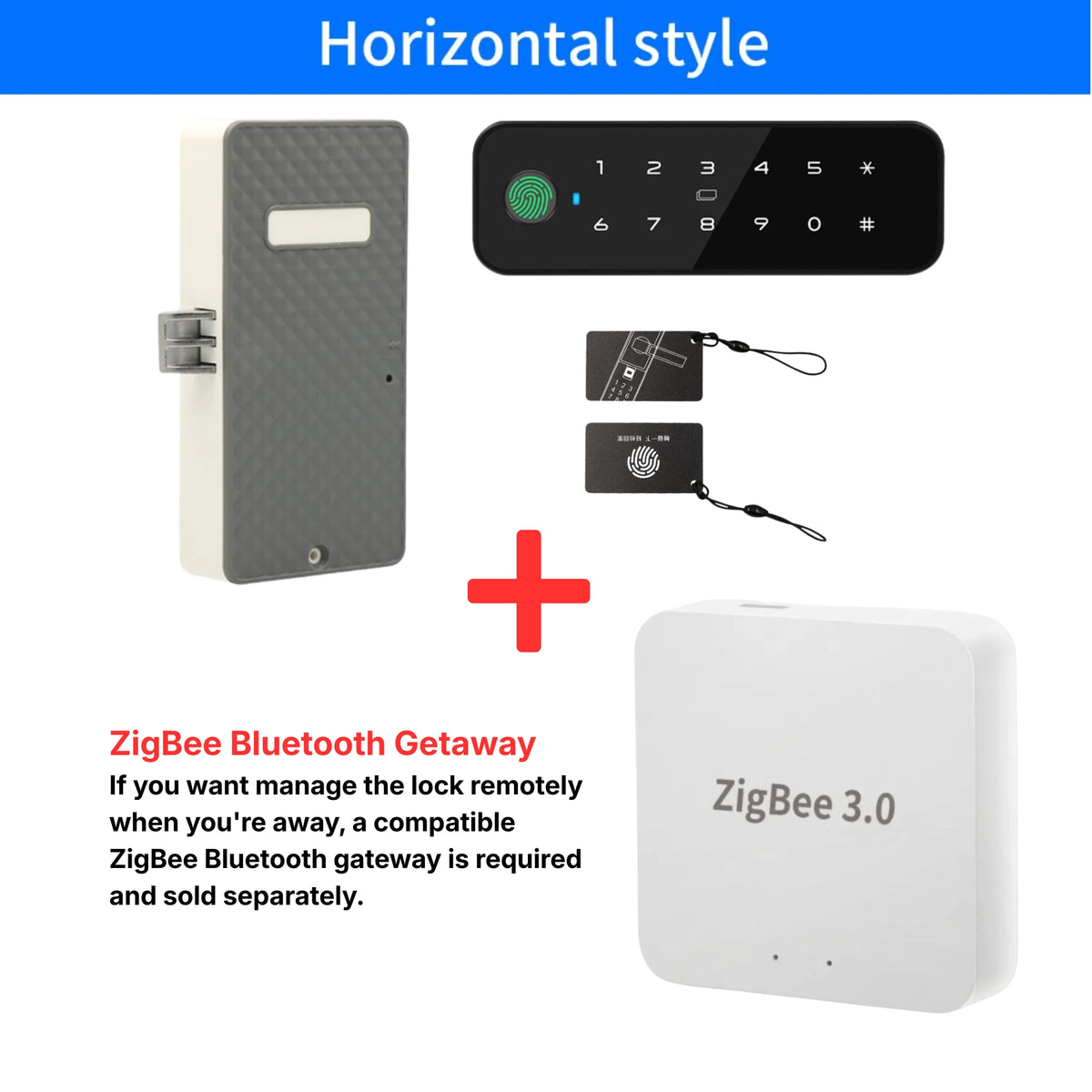

If you want to manage or unlock the door remotely when you're away, a compatible ZigBee Bluetooth gateway is required and sold separately.

Compatibility & Important Notes

• Designed for compatible wooden furniture, drawers and cabinet doors.
• Installation requires drilling holes in the furniture.

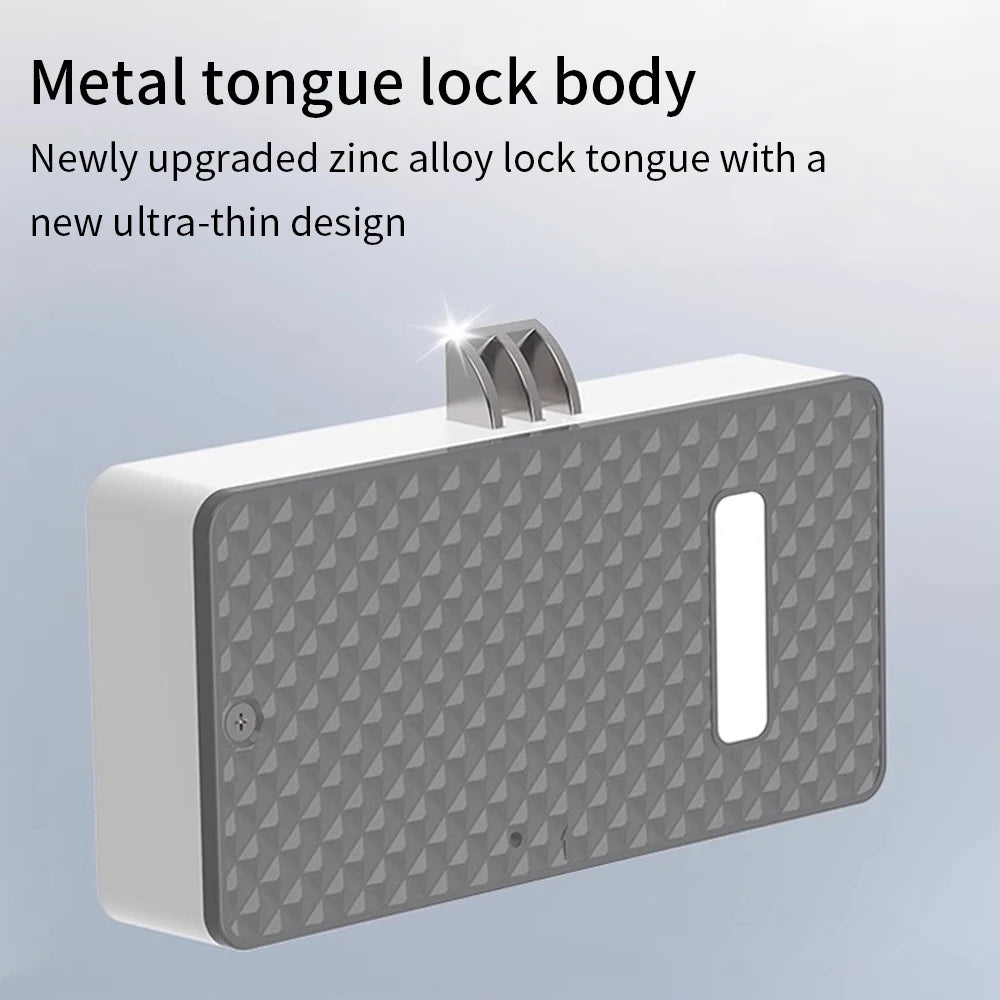

• Front keypad and internal locking mechanism are installed on opposite sides of the cabinet or drawer panel.
• Supports Tuya and Smart Life app.
• Bluetooth connectivity is built in.
• NFC compatibility depends on the NFC device being used.

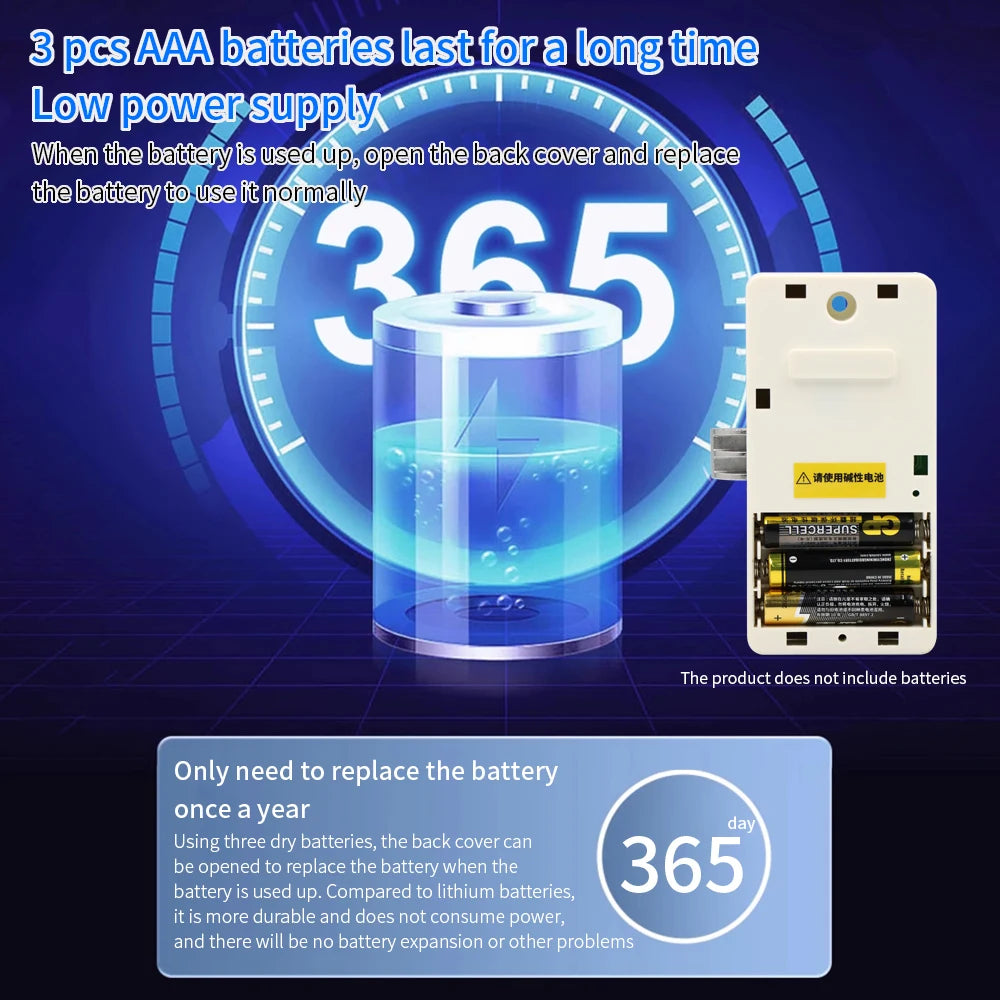

• Uses 3 AAA batteries, not included.
• Type-C connection is for emergency power, not normal battery charging.
• Check the available mounting space and furniture construction before ordering.
• Not sure whether it will fit? Send us a photo of your drawer or cabinet before ordering.


Not sure about installation? Book our installation service

Specifications

• Model: ES285
• Product Type: Smart Cabinet / Drawer Lock
• Connectivity: Bluetooth
• Apps: Tuya / Smart Life
• Unlock Methods: Fingerprint / Password / RFID Card / NFC / App / Temporary Password
• Maximum Users: Up to 300
• Fingerprint Capacity: Up to 50
• Password Users: Up to 250
• Card Users: Up to 250
• RFID Frequency: 13.56MHz

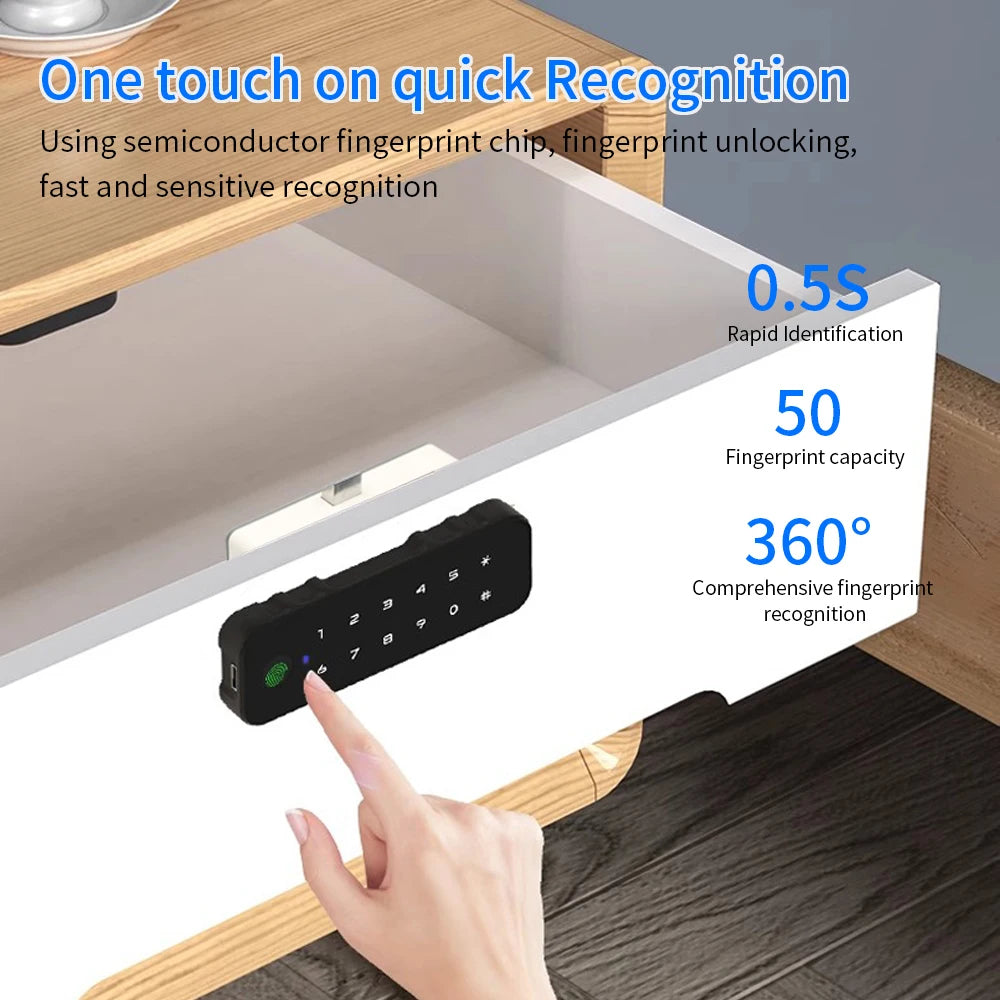

• Fingerprint Recognition: Approx. 0.5 seconds
• Fingerprint Recognition: 360°
• Power Supply: 3 x AAA alkaline batteries
• Standby Current: <80μA with Bluetooth enabled
• Working Current: <50mA
• Emergency Power Interface: USB Type-C
• Relative Humidity: 20% to 85%, non-condensing

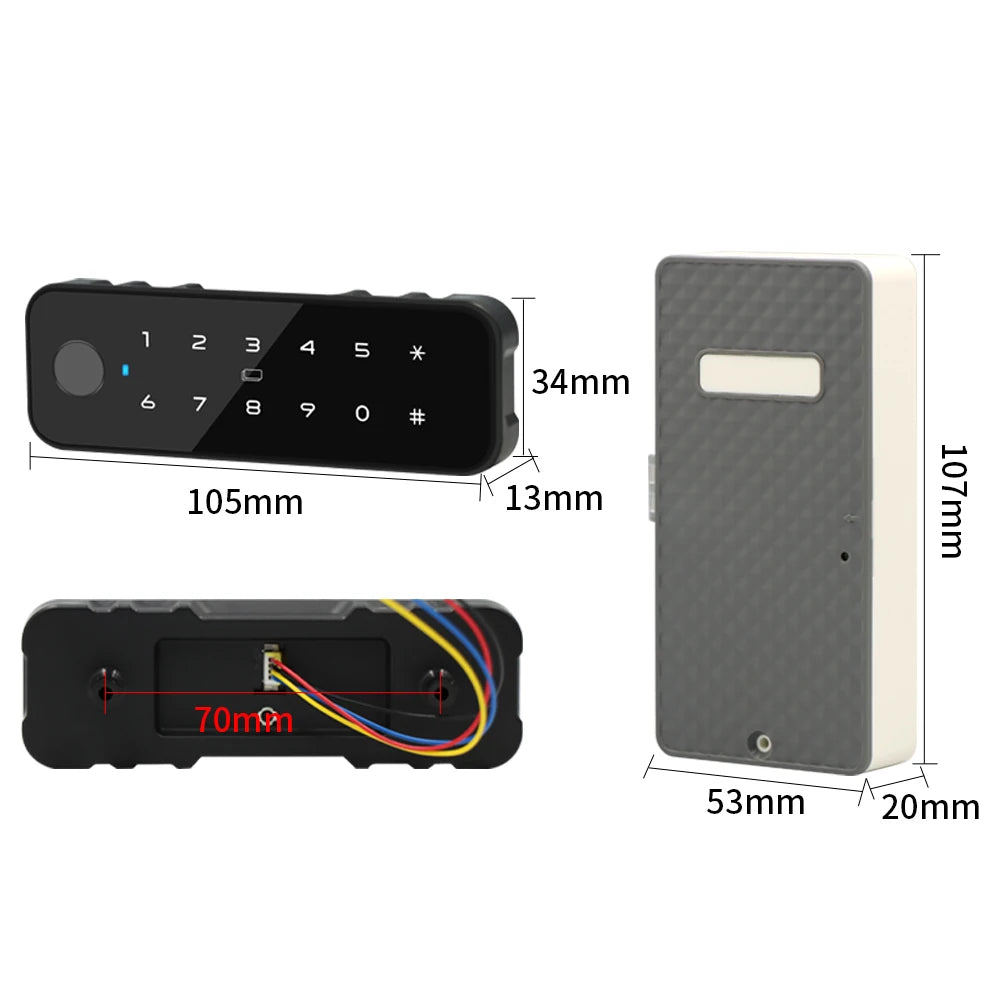

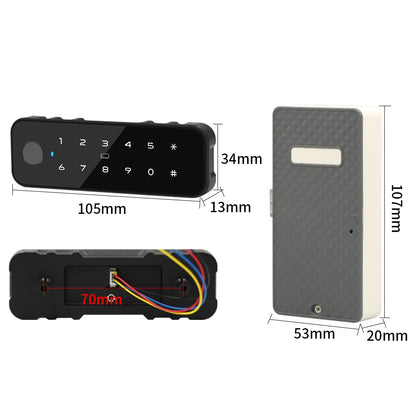

• Front Panel Size: Approx. 105 x 34 x 13mm
• Internal Lock Size: Approx. 107 x 53 x 20mm
• Front Panel Mounting Distance Shown: Approx. 70mm
• Color: Black front panel / light-coloured internal mechanism

Package

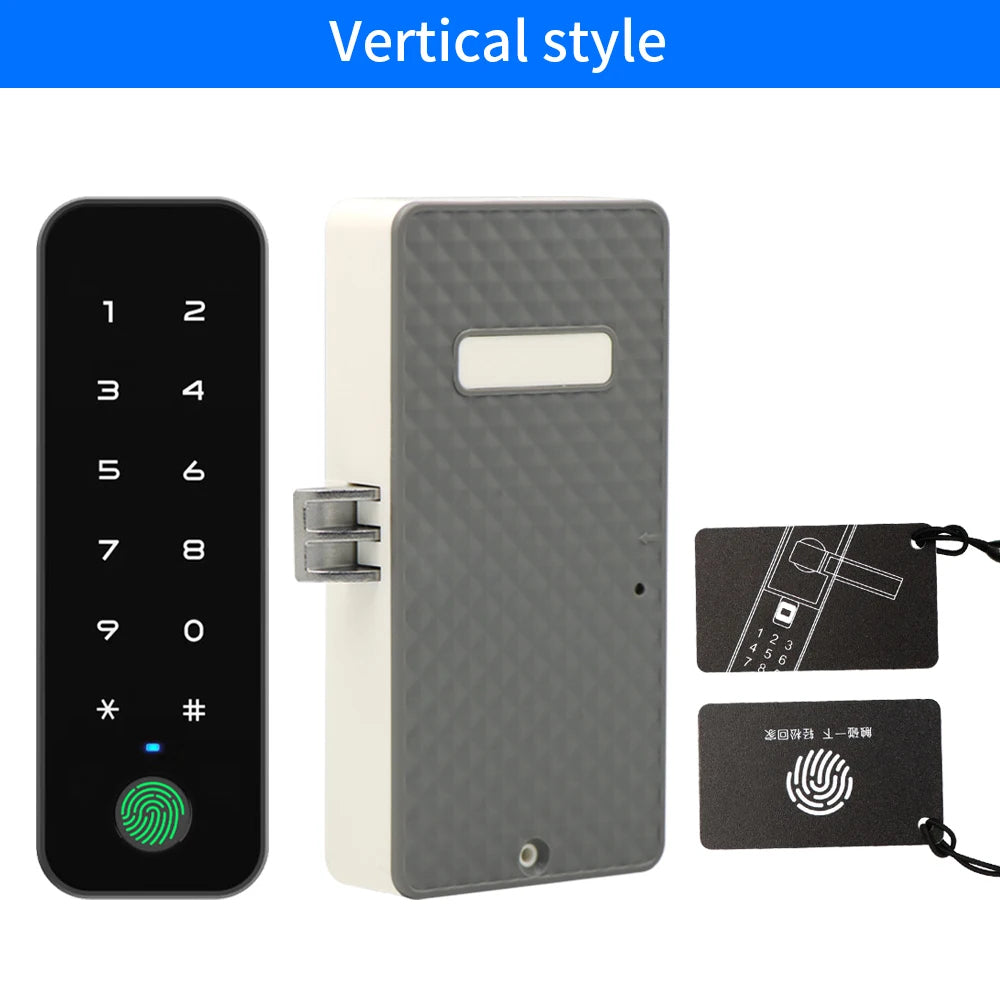

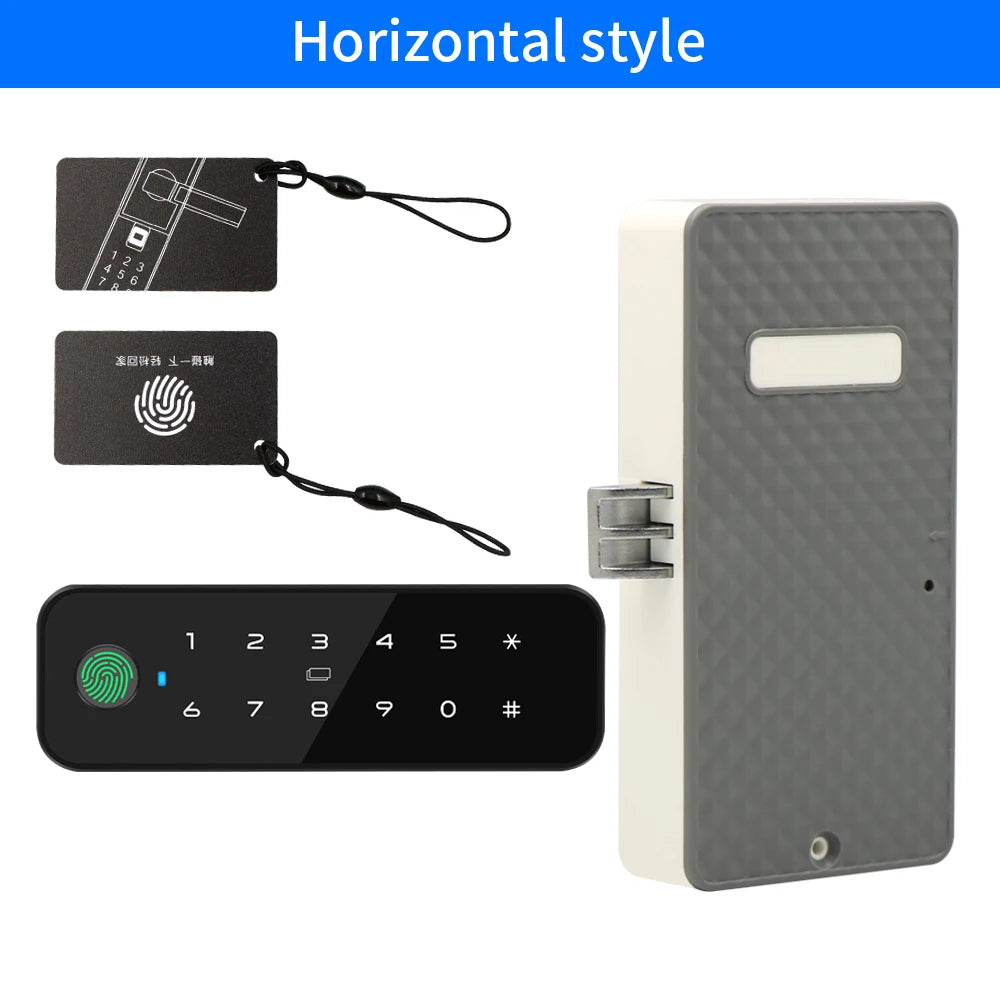

• 1 x Smart Cabinet Lock Front Panel

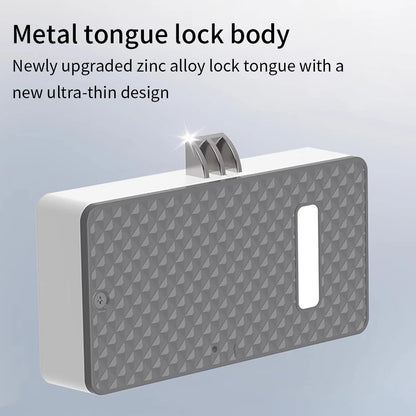

• 1 x Internal Lock Mechanism
• 2 x Access Cards
• 1 x Lock Catch
• Installation Screws & Hardware
• Mounting / Positioning Guide
