RGBW COB LED Strip Light – Control Lighting Effects Across Your Space

Product description

Most LED strips can only show one color across the entire strip at the same time.

This FCOB RGBW addressable LED strip allows different sections of the strip to display different colors and effects. With 784 LEDs per meter and built-in WS2814 IC control, it creates smooth dynamic lighting for cabinets, TV walls and decorative spaces while also providing dedicated white light options.

Key features & benefits

• Control multiple lighting effects on one strip: Addressable WS2814 IC allows sections of the strip to display different colors at the same time
• Get both color lighting and usable white light: RGBW design includes dedicated white LEDs for better lighting compared to RGB only strips

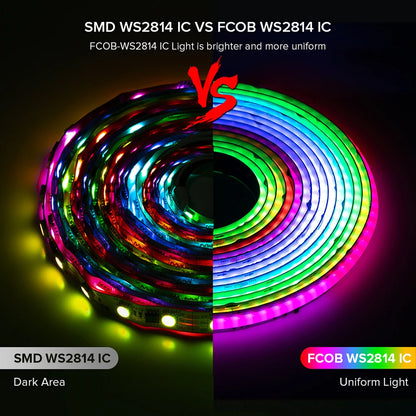

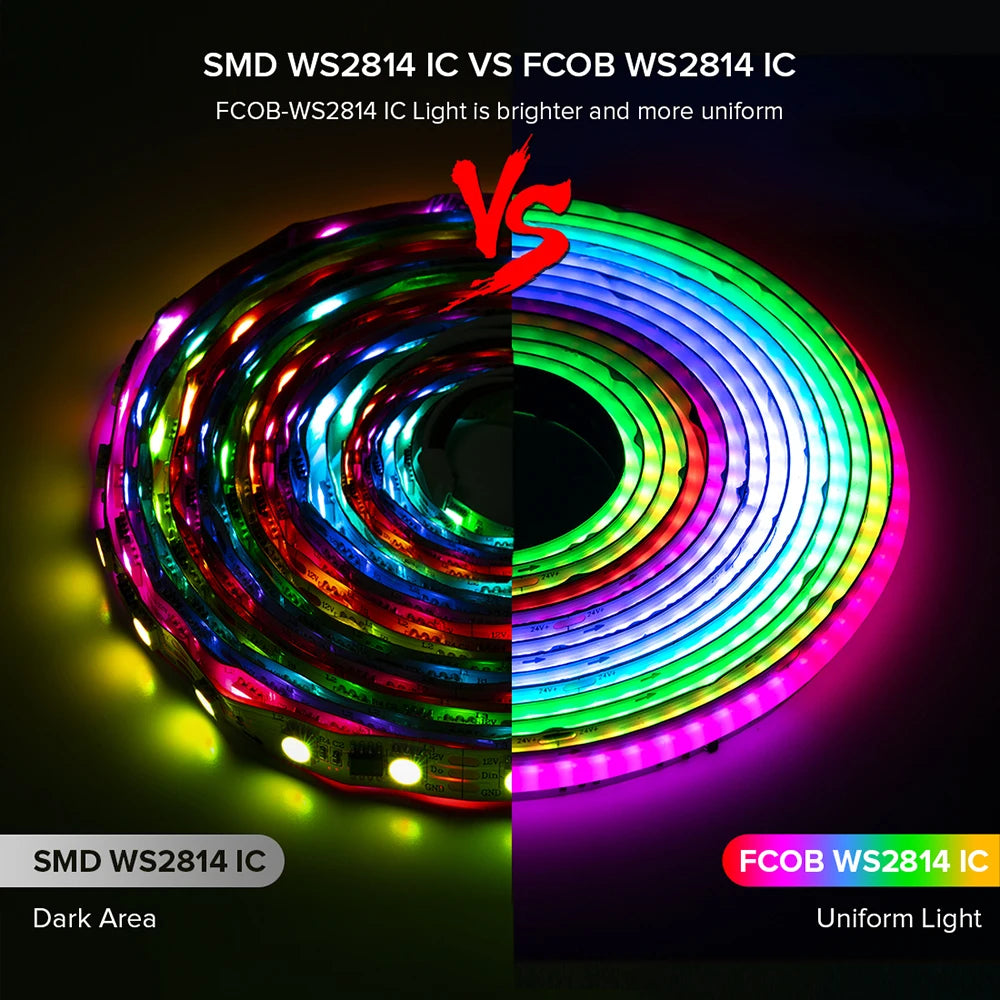

• Create smooth lighting without visible LED dots: High density COB design produces a continuous line of light
• Design custom lighting scenes for your home: Compatible SPI control allows advanced effects like flowing colors and segmented lighting
• Upgrade lighting for cabinets and TV walls: Flexible strip installs easily in shelves, cabinets and entertainment areas
• Adjust lighting for different moods and uses: Choose between RGB colors or white light depending on the situation
• Install lighting around corners and tight spaces: Flexible PCB allows installation along walls, cabinets and furniture
• Use in more exposed areas with added protection: IP66 option helps protect against dust and water splashes for longer-lasting performance in kitchens, patios, and semi-outdoor spaces

Compatibility & important notes

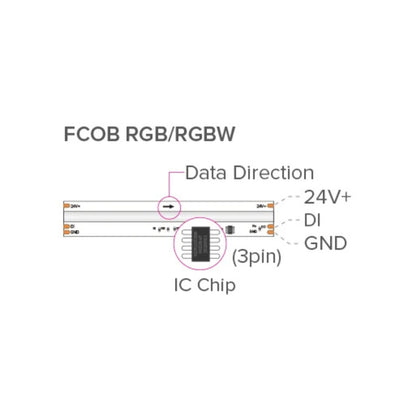

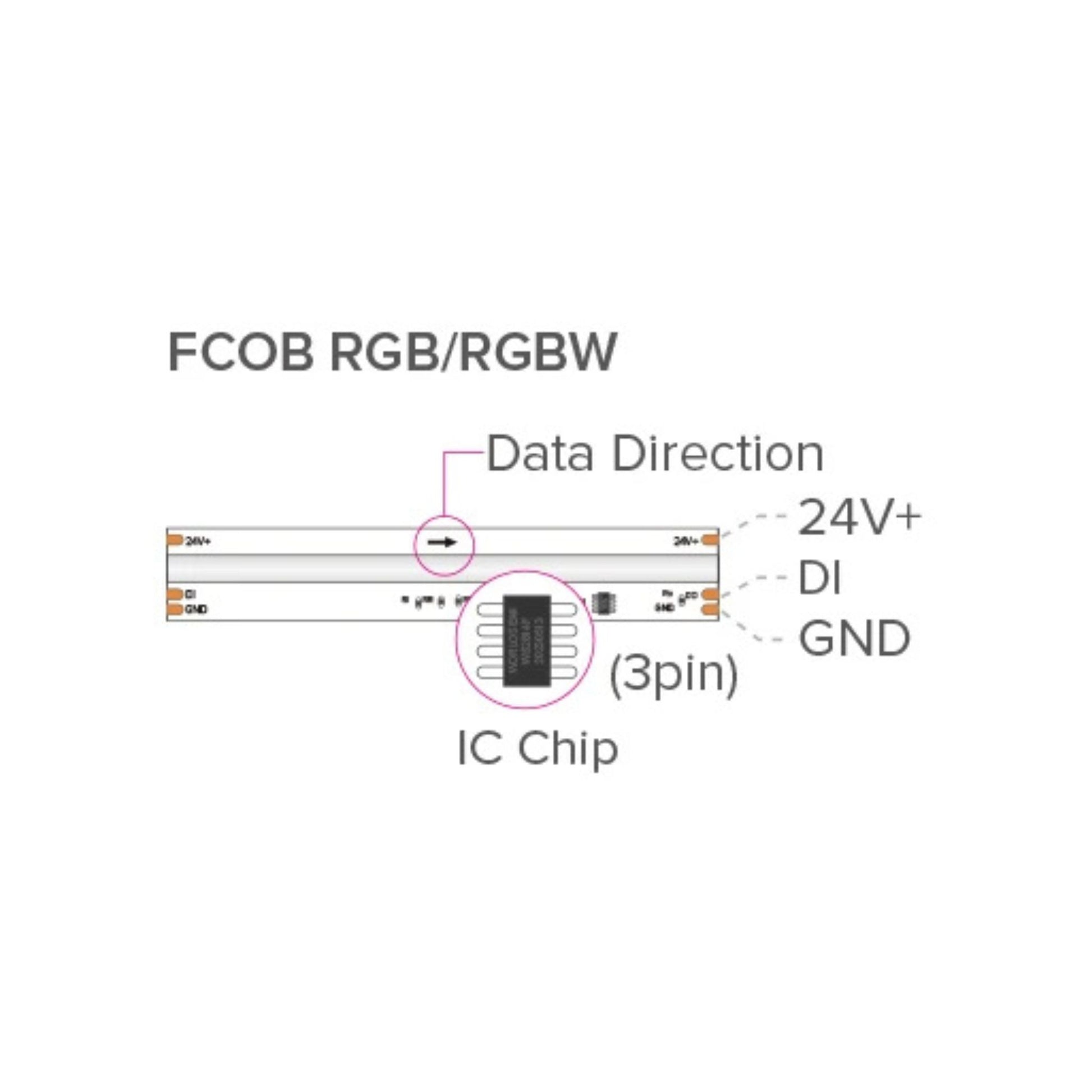

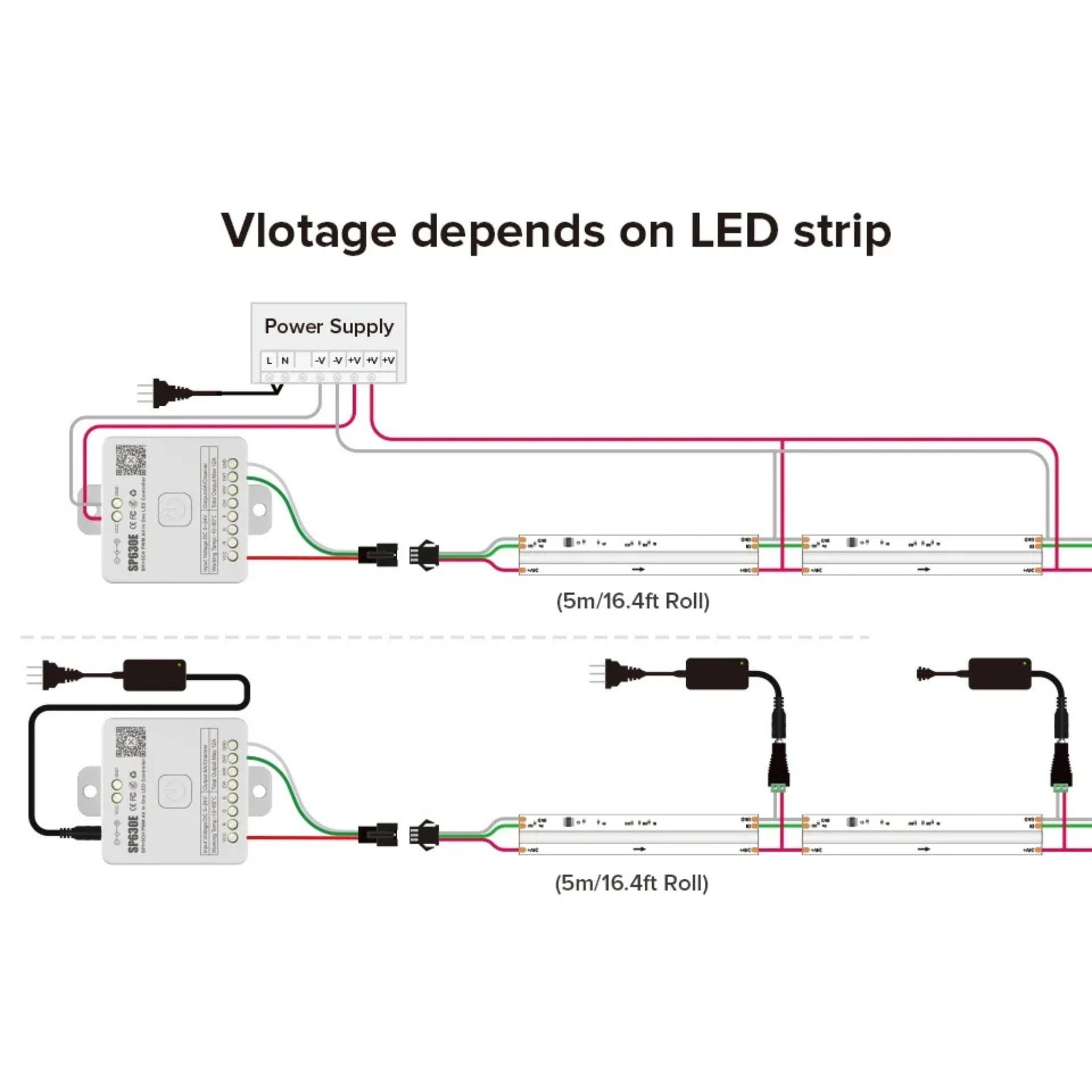

• This LED strip requires an SPI pixel controller (WS2814 IC compatible)
• Power supply and SPI controller are not included
• This strip is NOT compatible with WLED / ESP32 controllers
• Designed for DC24V power only
• Every 0.5 meter includes solder joints, which is normal and not a defect

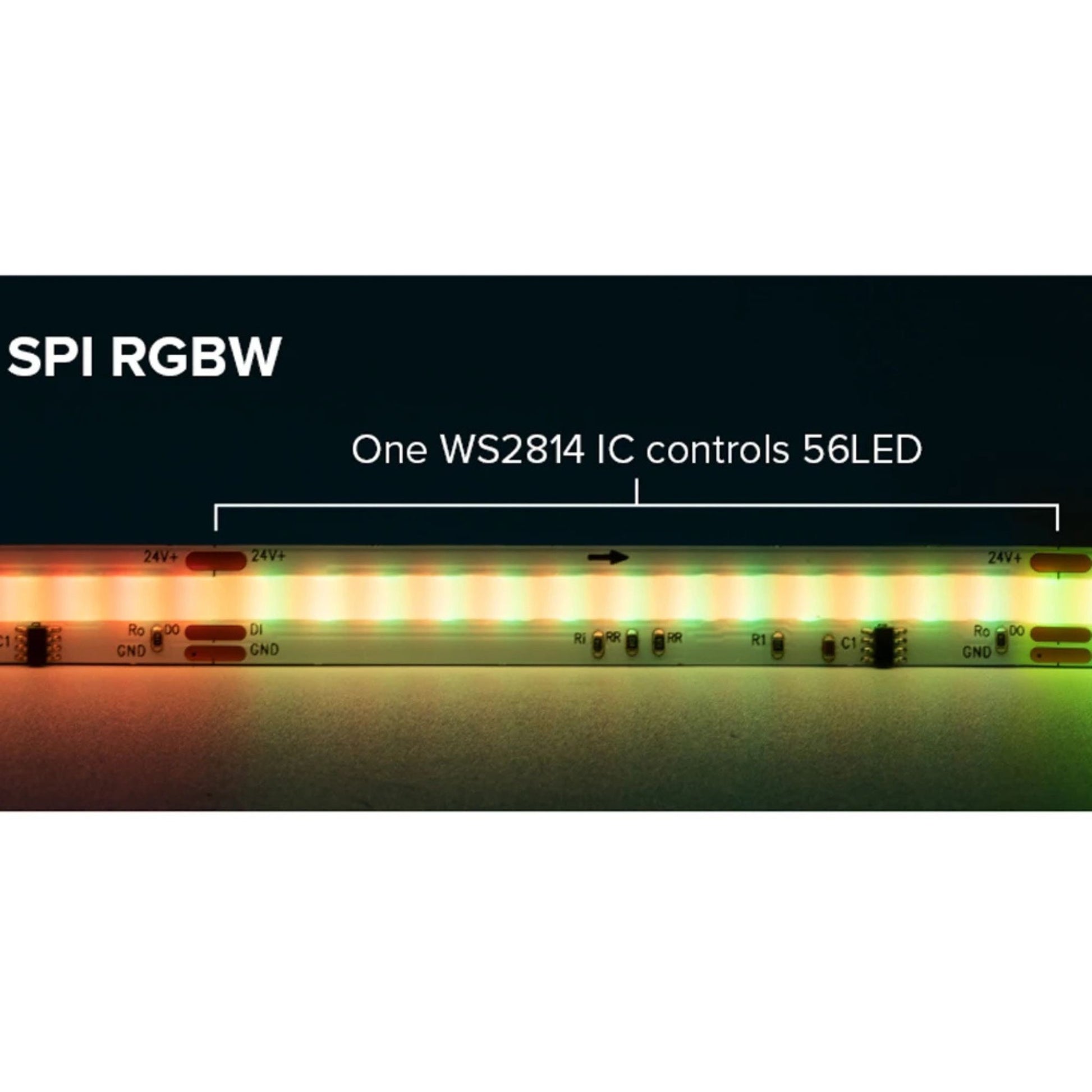

• Each controllable segment is 56 LEDs (71.42 mm)
• Ensure total power draw stays below 80% of the power supply capacity

• Choose the correct variant based on IP rating (IP30 indoor / IP66 protected)

Specifications

• Brand: BTF-Lighting
• Input voltage: DC24V
• Power consumption: 21W per meter

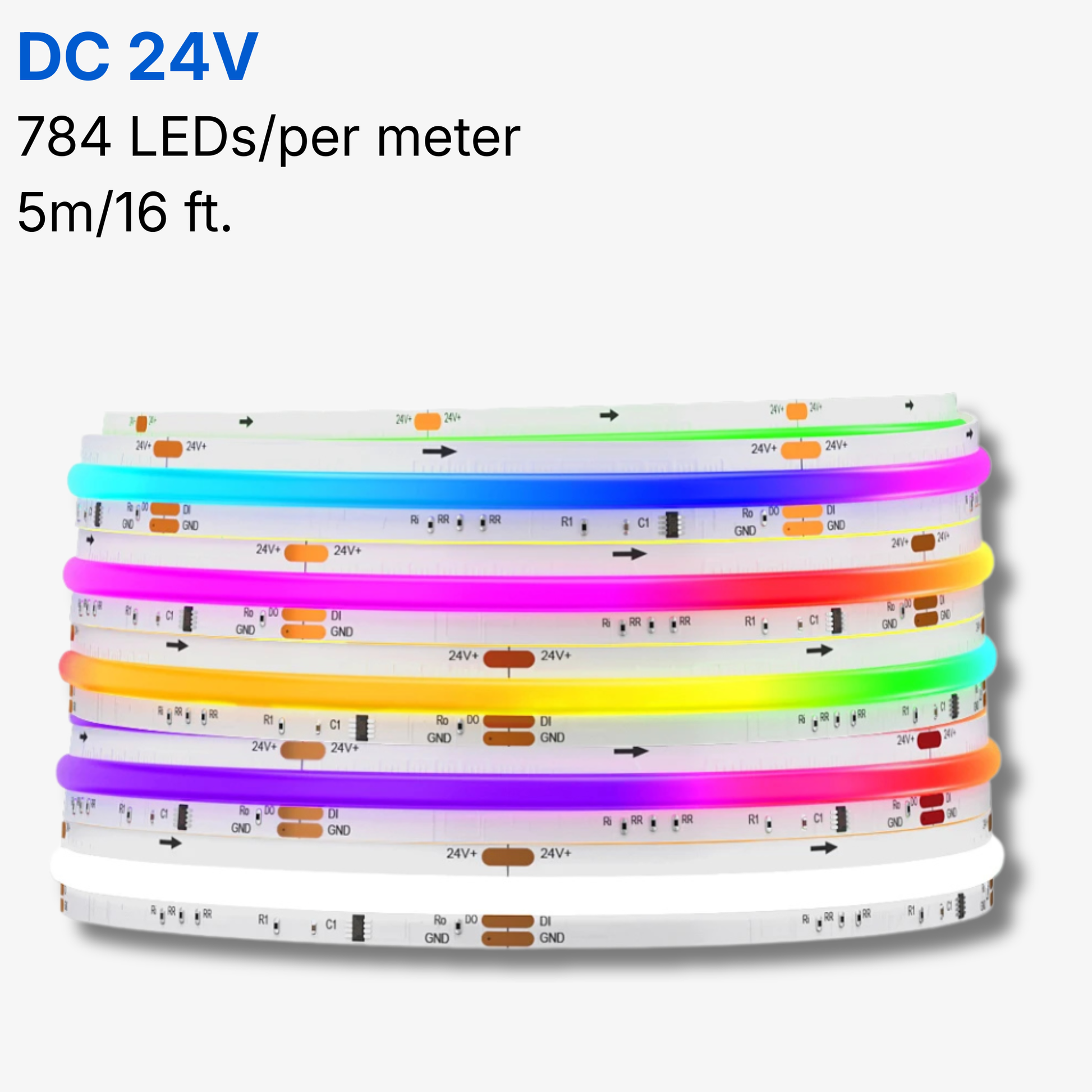

• LED quantity: 784 LEDs per meter

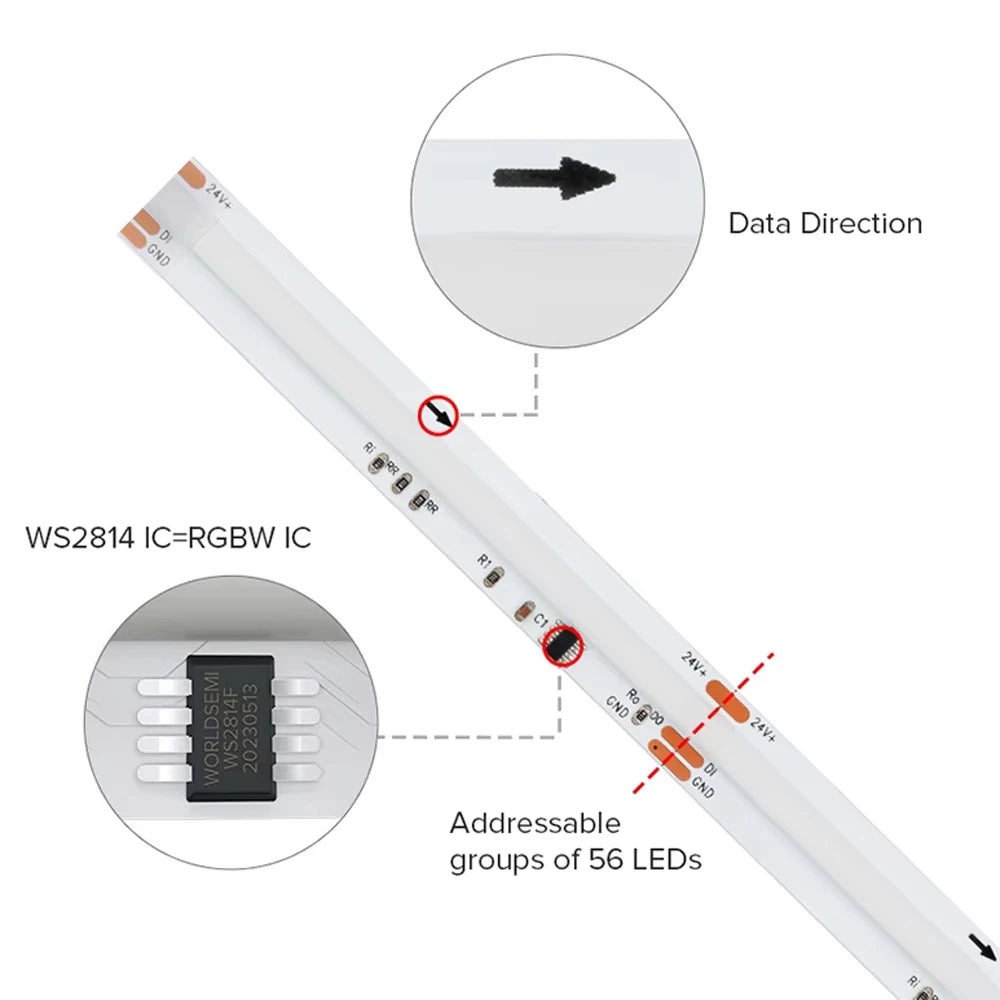

• IC type: WS2814 (addressable)
• IC quantity: 14 ICs per meter
• Color output: RGBW (RGB + White)
• White options: Warm white (WW), Natural White (NW), Cool White (CW)
• Color rendering index: Ra > 90

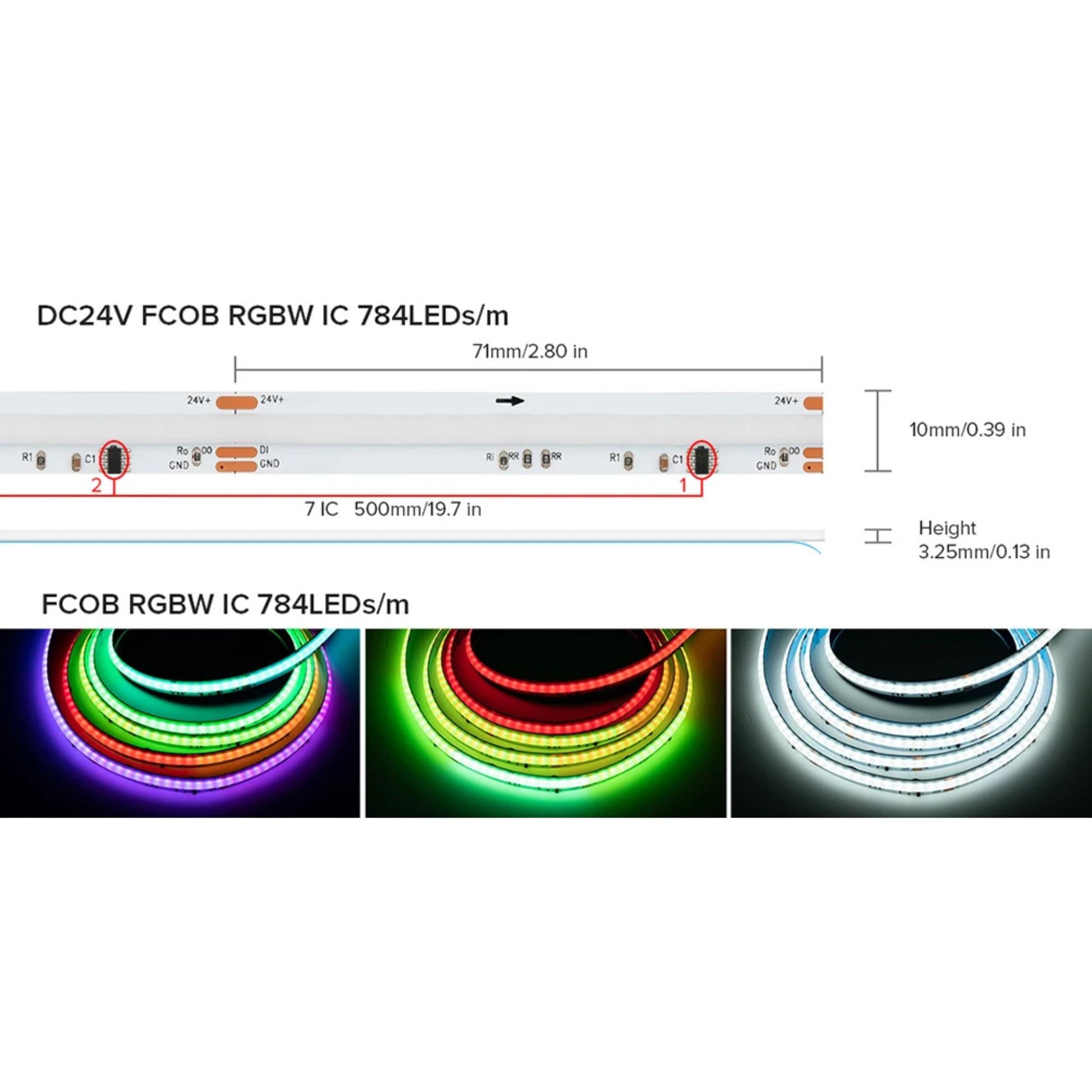

• PCB width: 10 mm (IP30) / 12 mm (IP66)
• Cutting interval: every 56 LEDs (71.42 mm)
• Control type: SPI (addressable control)
• Operating temperature: -20°C to +45°C
• Storage temperature: -20°C to +60°C

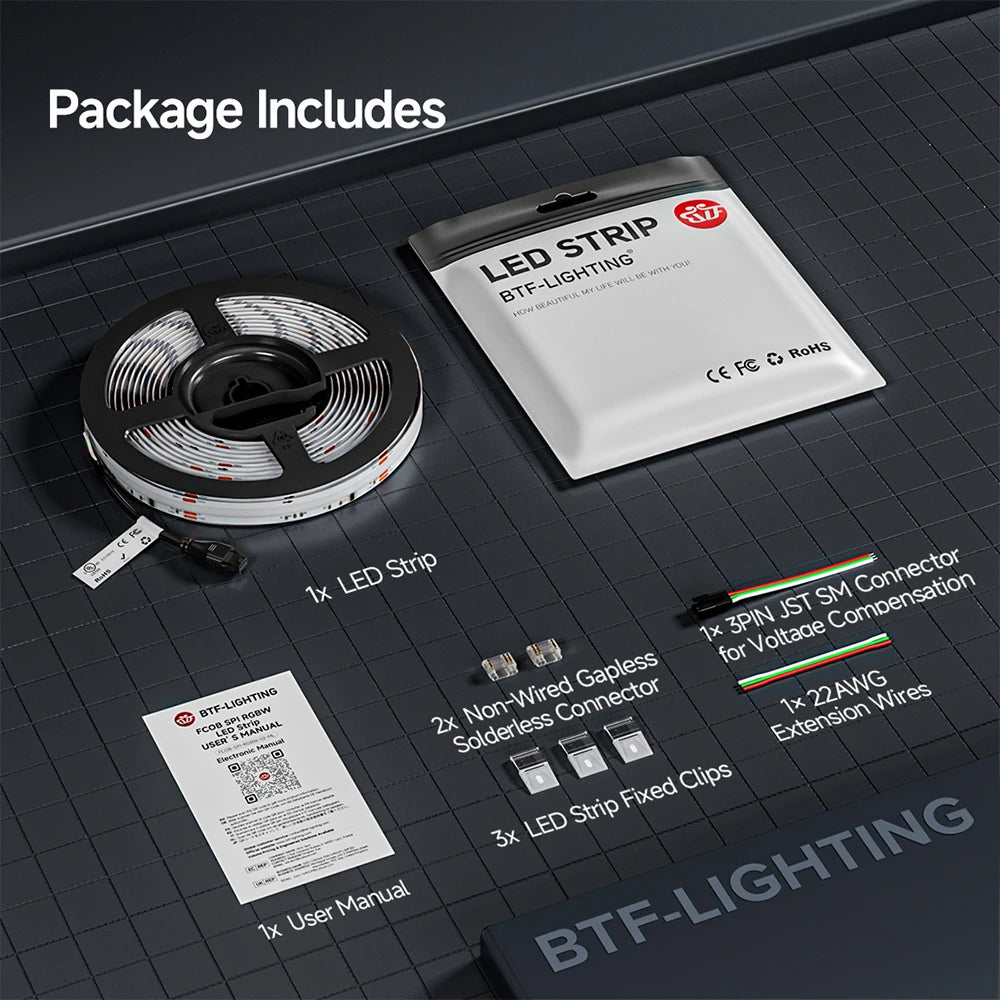

Package

• 1 × FCOB RGBW LED strip light (5 meters, 16 ft.)

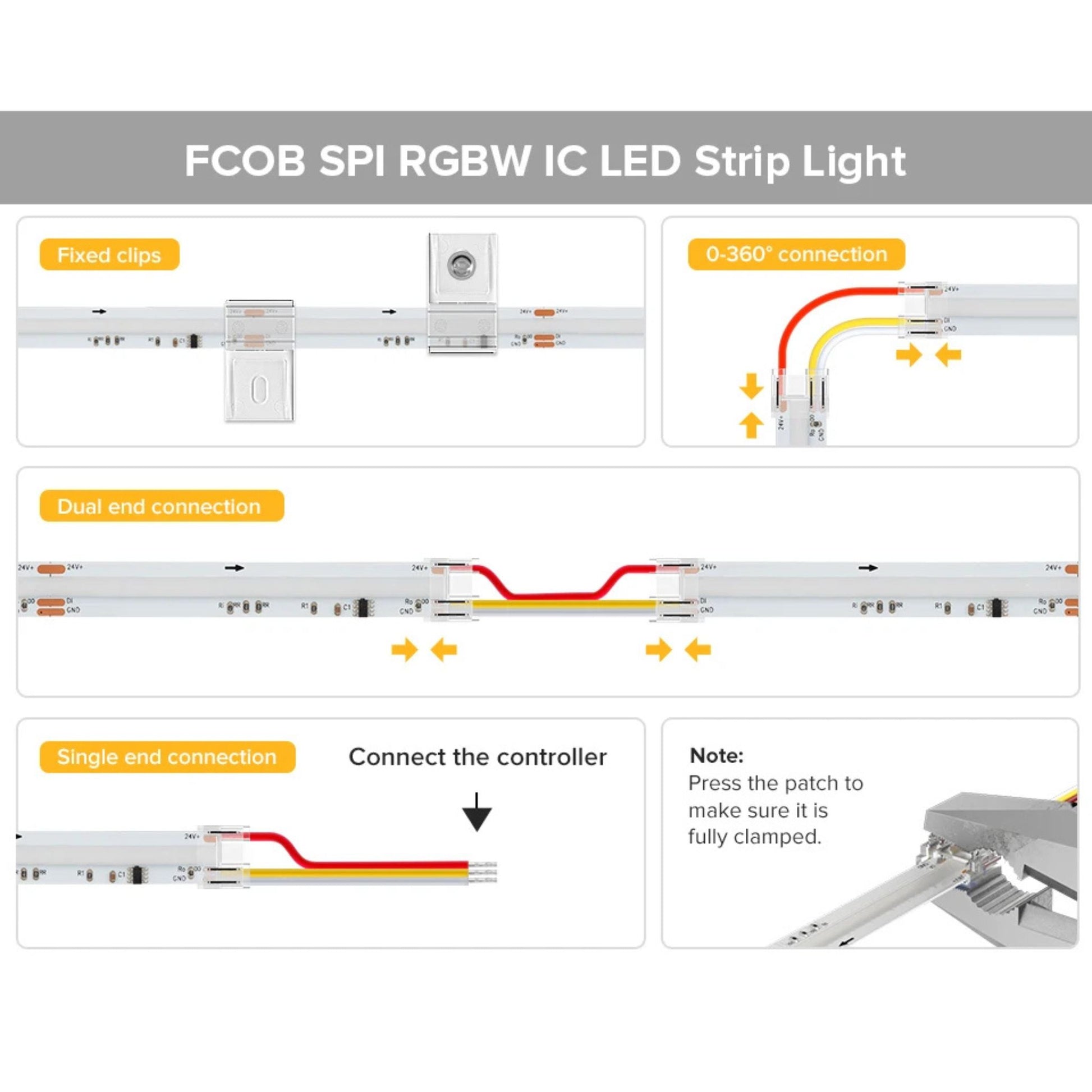

• 2 × Non-wired gapless solderless connectors
• 1 × 3-pin JST SM connector (for voltage compensation)
• 1 × 22AWG extension wire (0.5 mm²)
• 3 × LED strip fixing clips
• 1 × User manual
