RGB COB LED Strip Lights – Smooth Color Lighting Without LED Dots

Product description

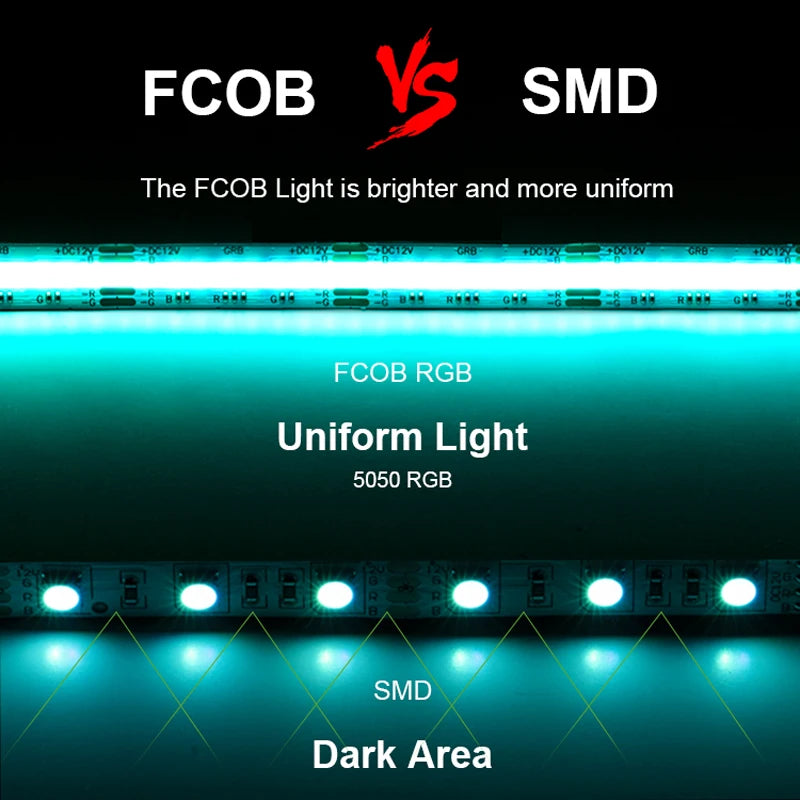

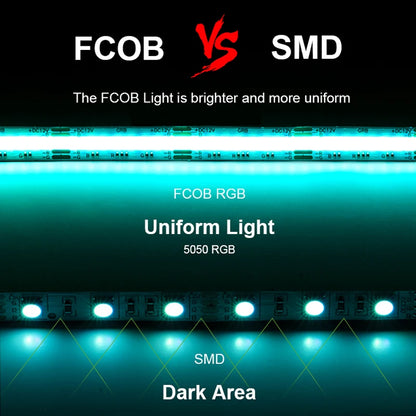

Many RGB LED strips show visible LED dots that make decorative lighting look uneven.

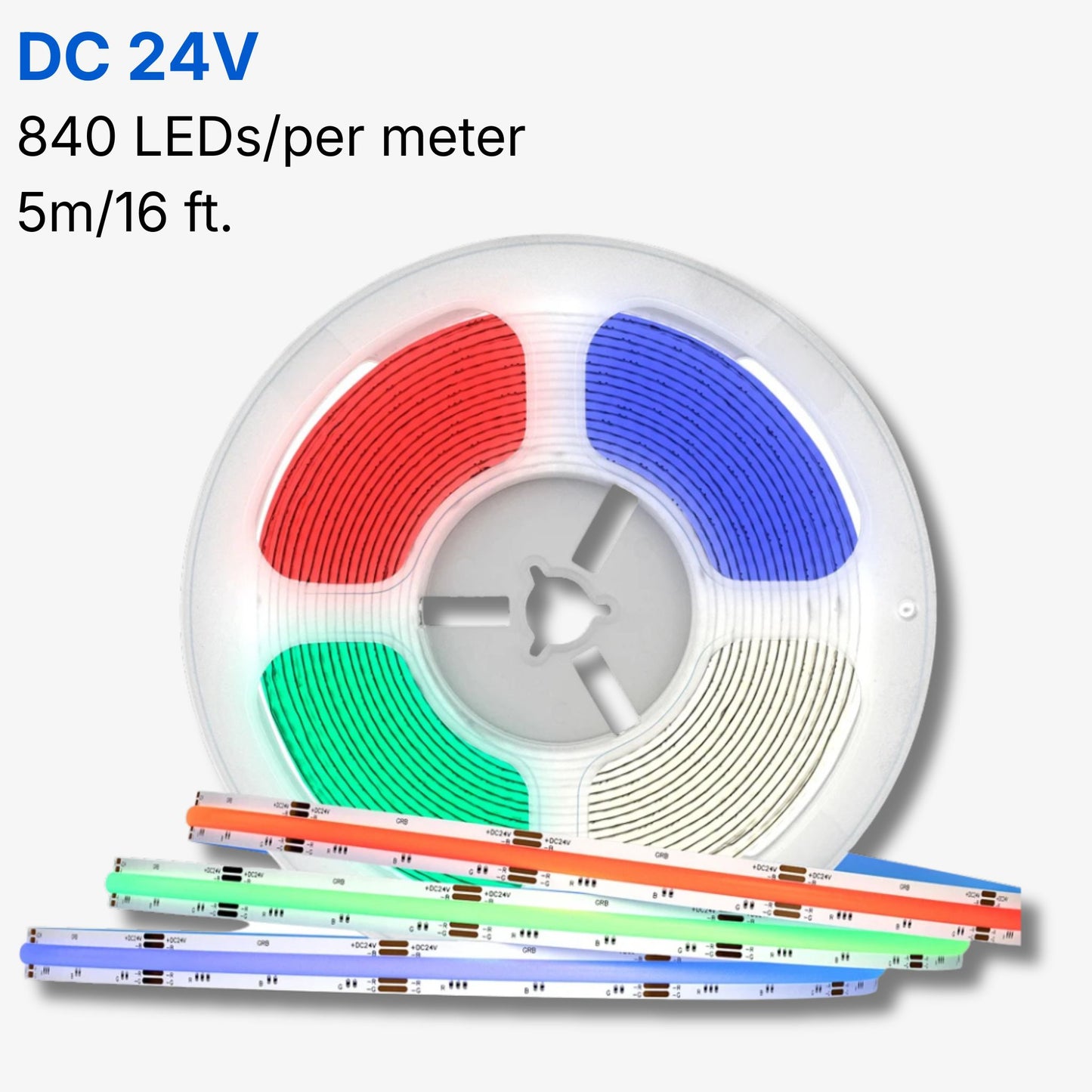

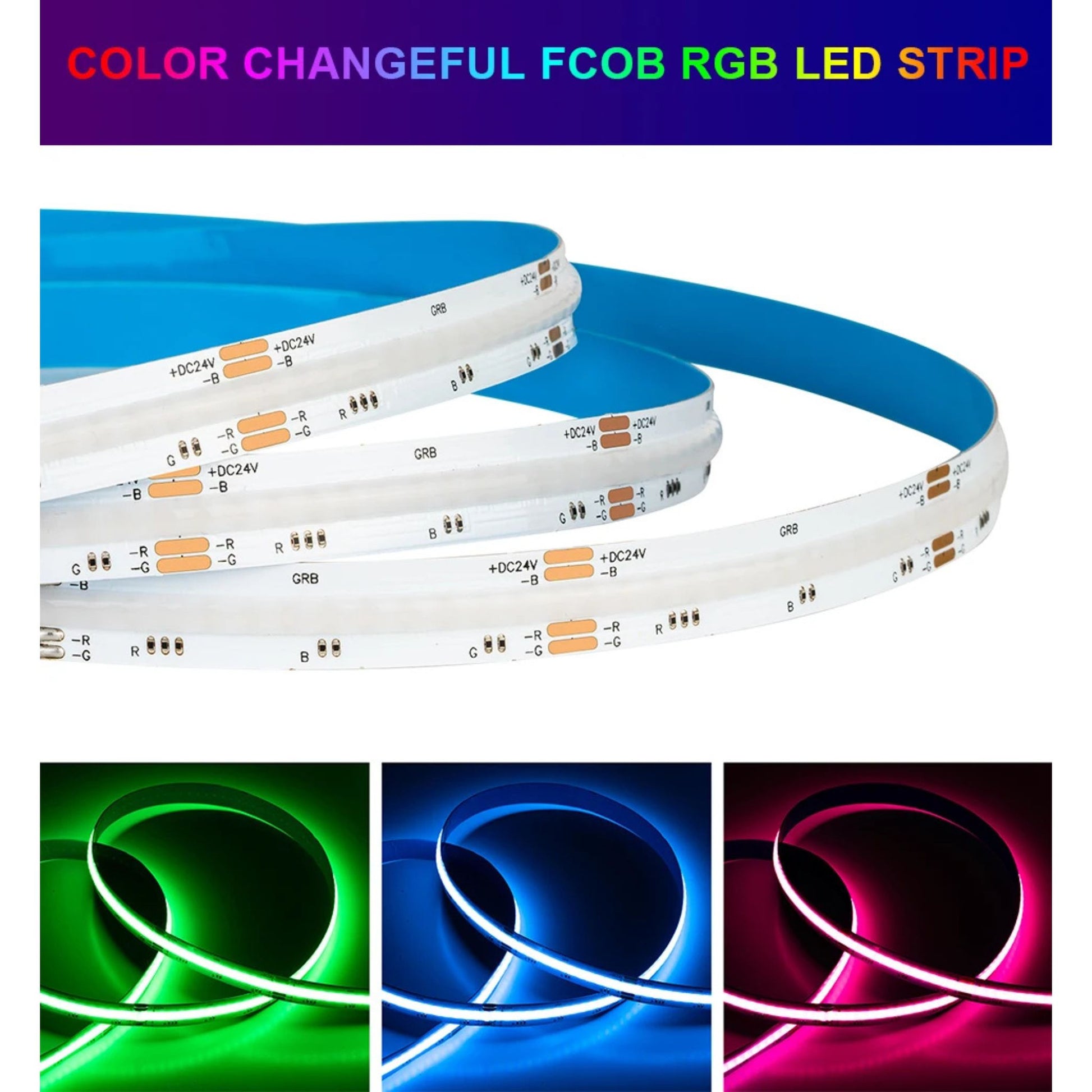

This FCOB RGB LED strip uses high density COB technology with 840 LEDs per meter to produce a smooth continuous line of color. It is designed for cabinets, shelves, TV walls and decorative lighting when connected to a PWM RGB controller.

Key features & benefits

• Create smooth color lighting without visible LED dots: High density FCOB design with 840 LEDs per meter produces a continuous RGB light line
• Change colors to match the mood of your room: Works with most PWM RGB controllers to adjust colors and brightness

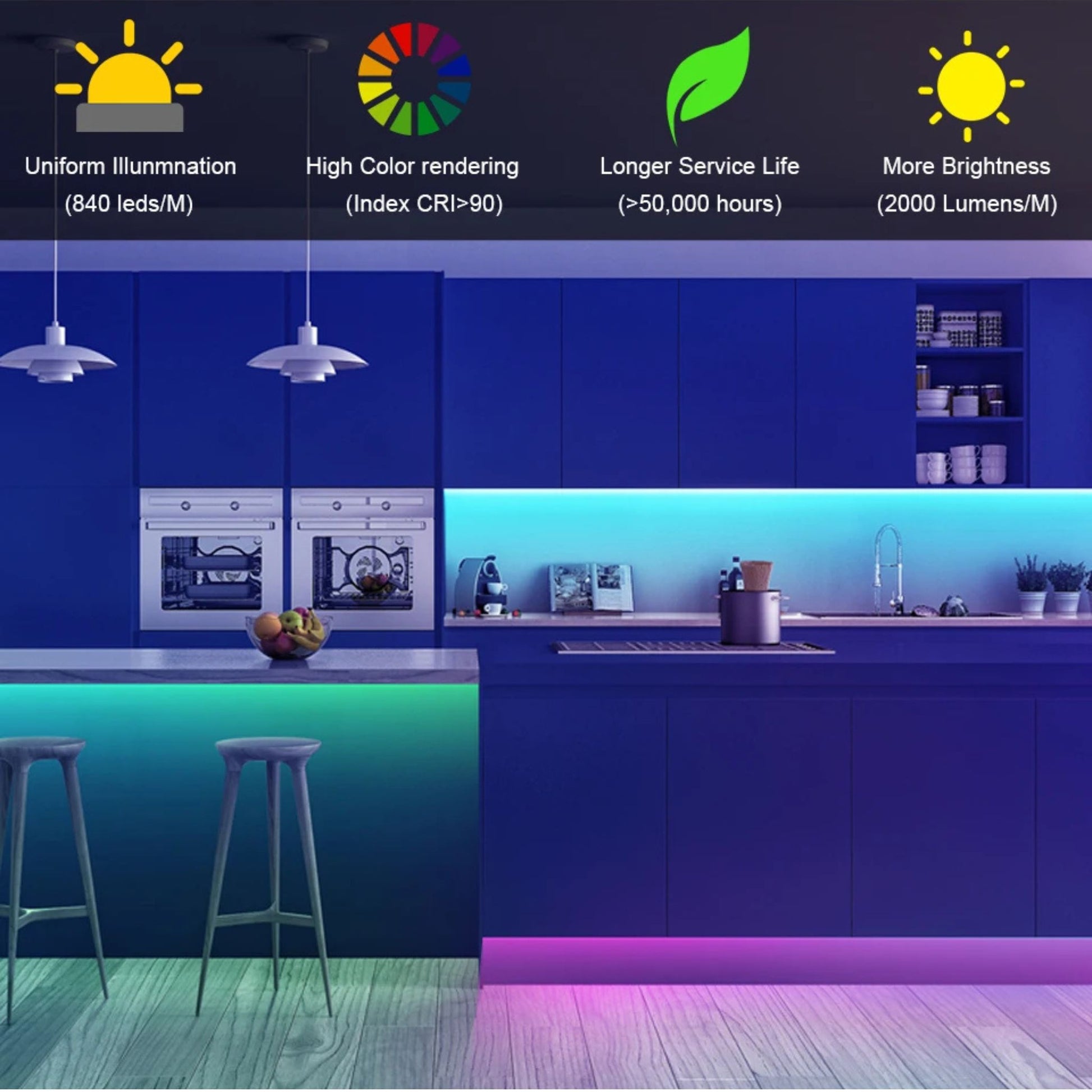

• Add modern lighting to cabinets and shelves: Flexible strip installs easily under cabinets, on shelves or behind TV walls
• Enjoy stable brightness across the strip: Double layer FPCB improves voltage balance and heat dissipation
• Install lighting around corners and furniture edges: Flexible COB strip bends easily for cabinets, furniture and decorative spaces

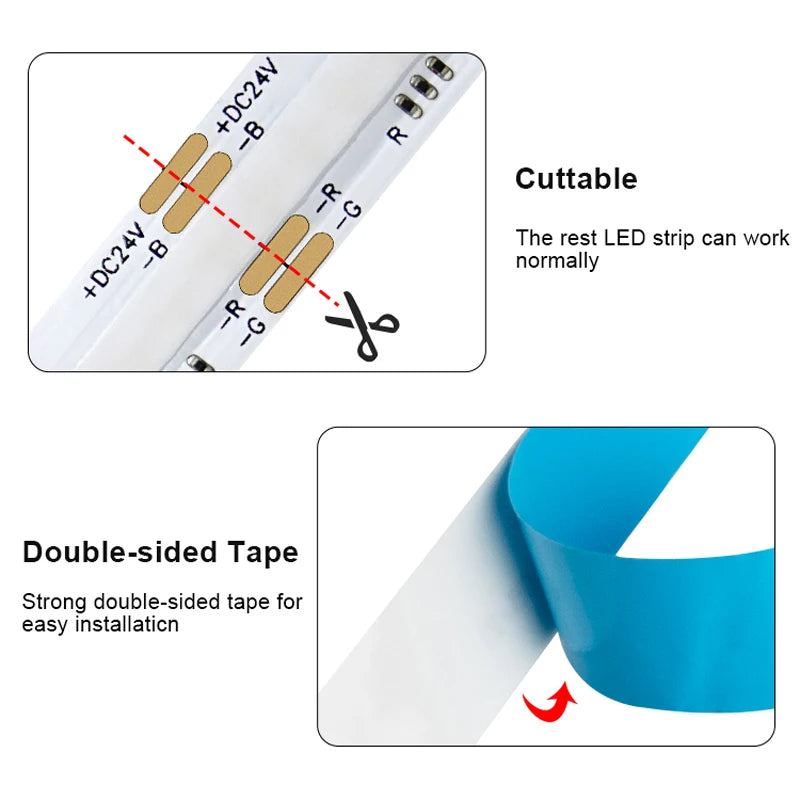

• Customize the strip length for your installation: Cutting points every 50 mm allow the strip to be shortened where needed

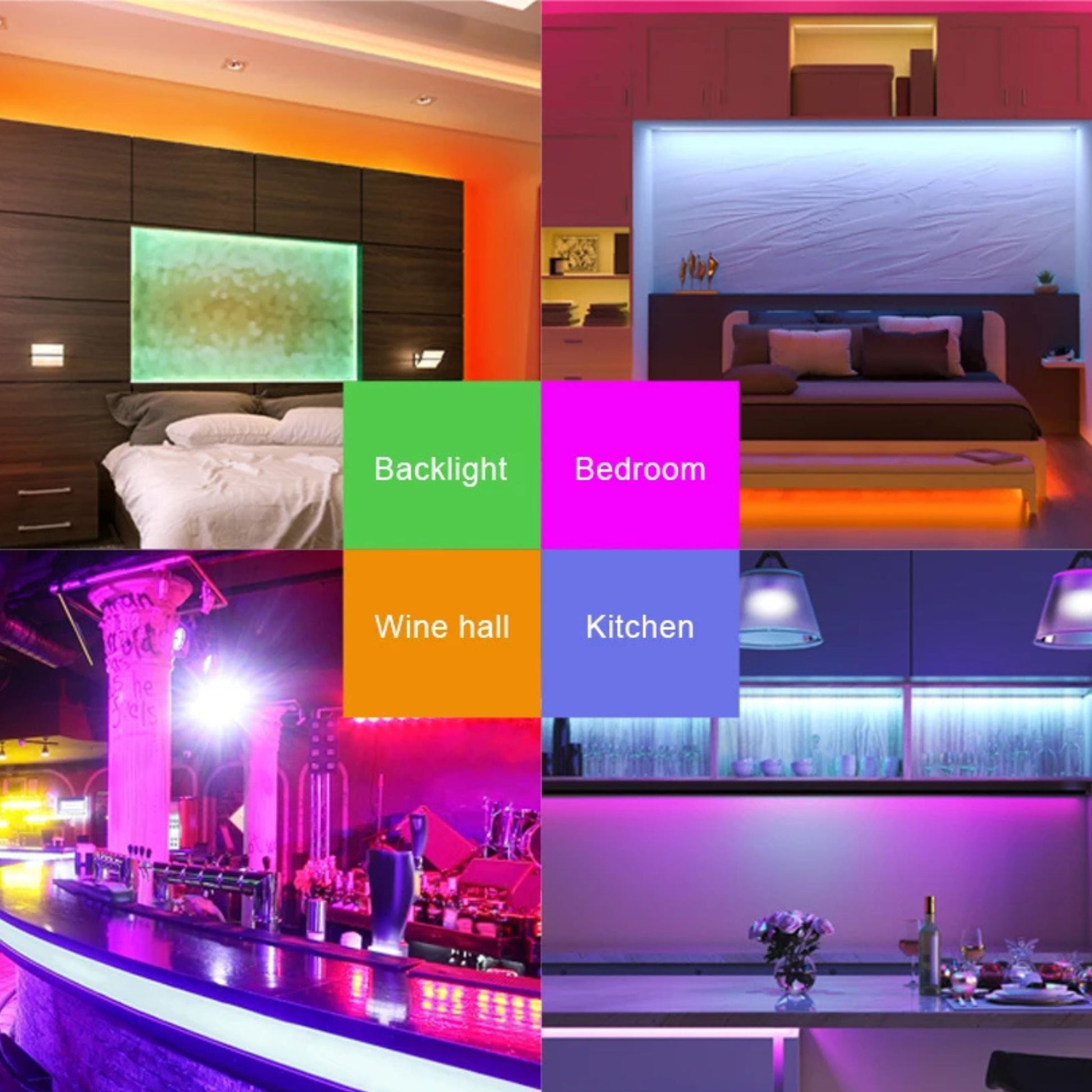

• Use decorative lighting across multiple rooms: Ideal for bedrooms, entertainment areas, shelves and accent walls

Compatibility & important notes

• This LED strip requires a PWM RGB controller to control colors and brightness

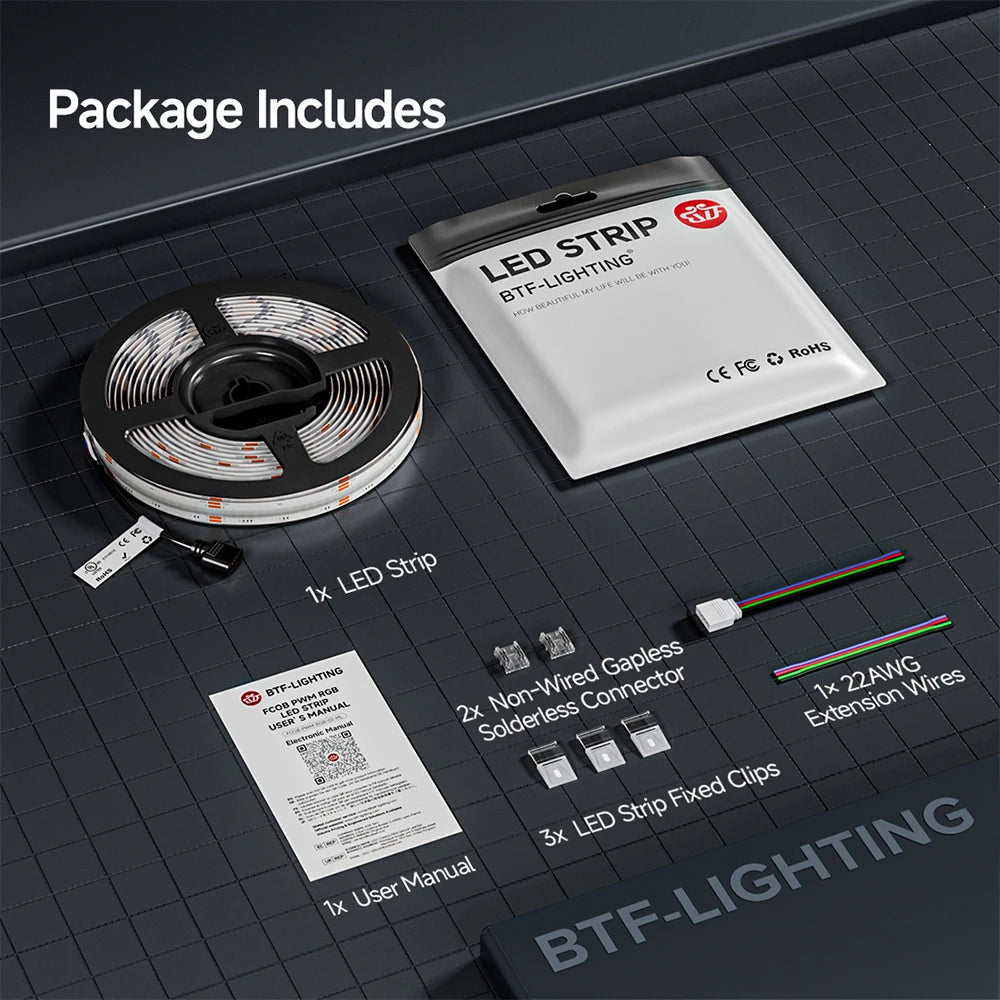

• Power supply and RGB controller are not included
• Designed for DC24V power
• Recommended maximum run powered from one side is about 5 meters
• For installations longer than 6 meters, connect strips in parallel to avoid voltage drop
• Ensure total LED strip wattage stays below 80% of the power supply capacity

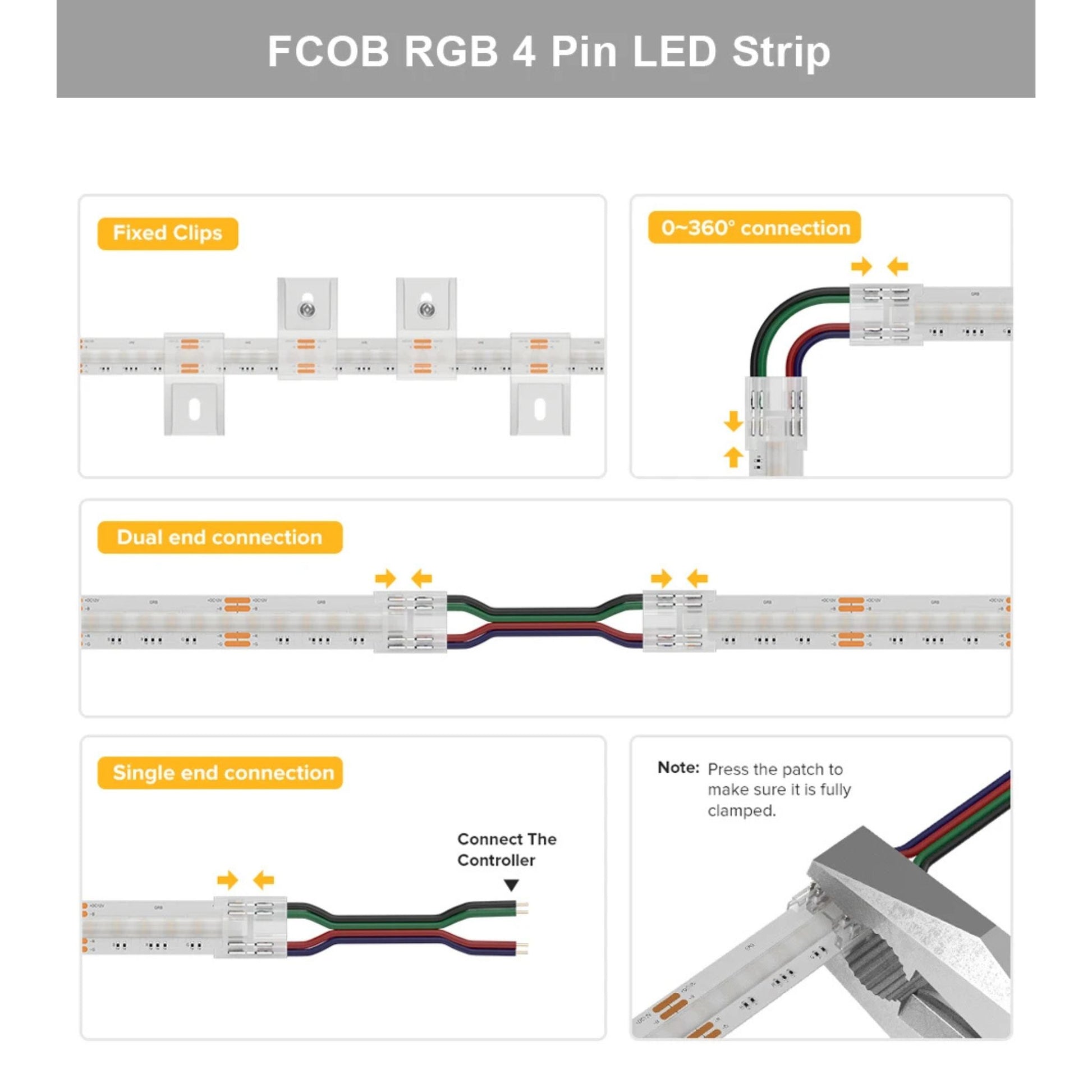

• Always match polarity markings on the strip when wiring
• This strip produces RGB colors only and does NOT include a dedicated white LED channel
• White light cannot be produced as true white because this strip uses RGB LEDs only
• Indoor use only (IP30 protection rating)

Specifications

• Brand: BTF-LIGHTING
• Input voltage: DC24V
• Power consumption: 10W per meter
• LED quantity: 840 LEDs per meter

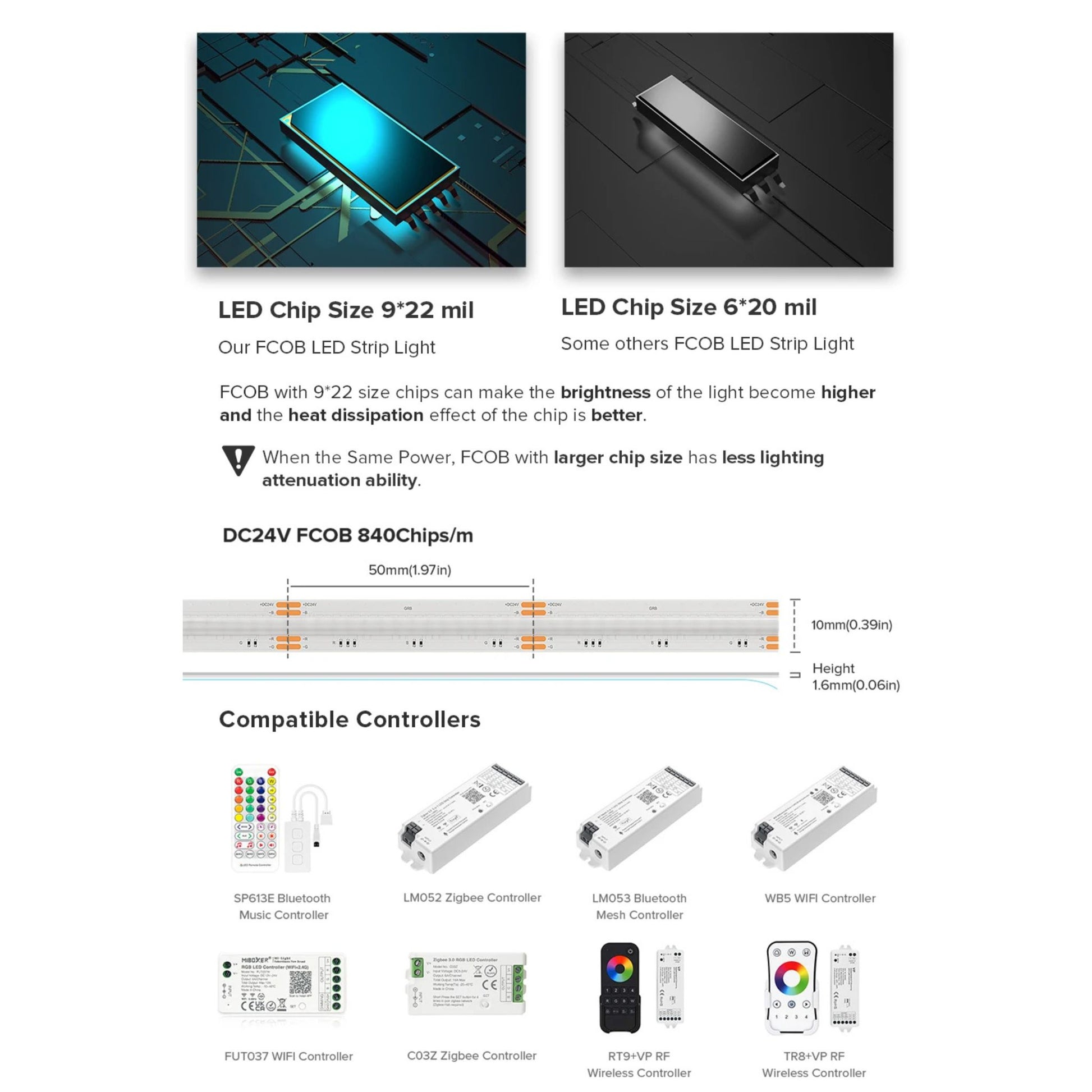

• LED type: Mini 0402 COB LEDs
• Color output: RGB color changing (no dedicated white LED)
• Color rendering index: Ra > 90
• Viewing angle: 180°

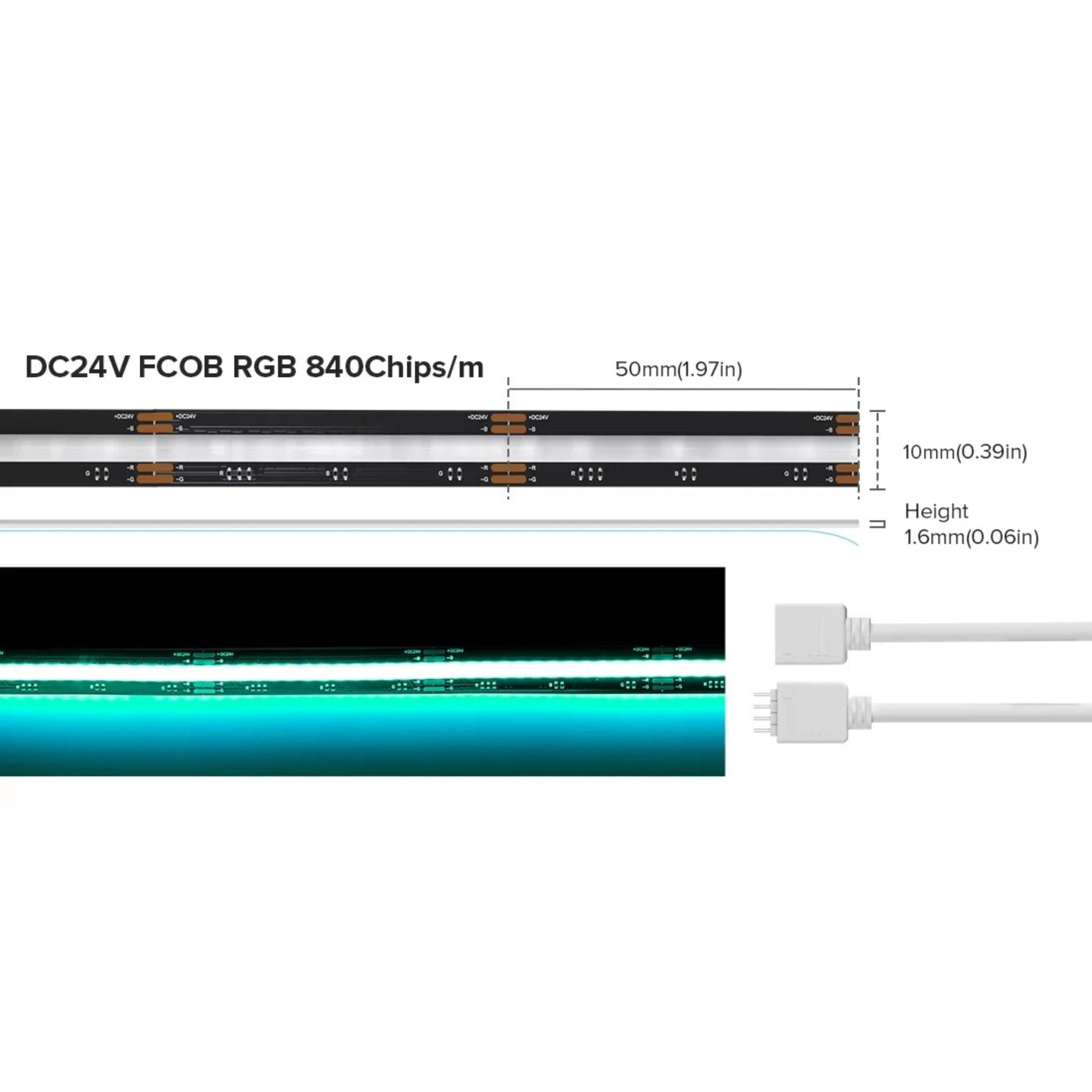

• PCB width: 10 mm
• PCB thickness: 1.6 mm
• Protection rating: IP30 (indoor use)
• Cutting interval: every 50 mm
• Operating temperature: -20°C to +45°C
• Storage temperature: -20°C to +60°C
