Product description

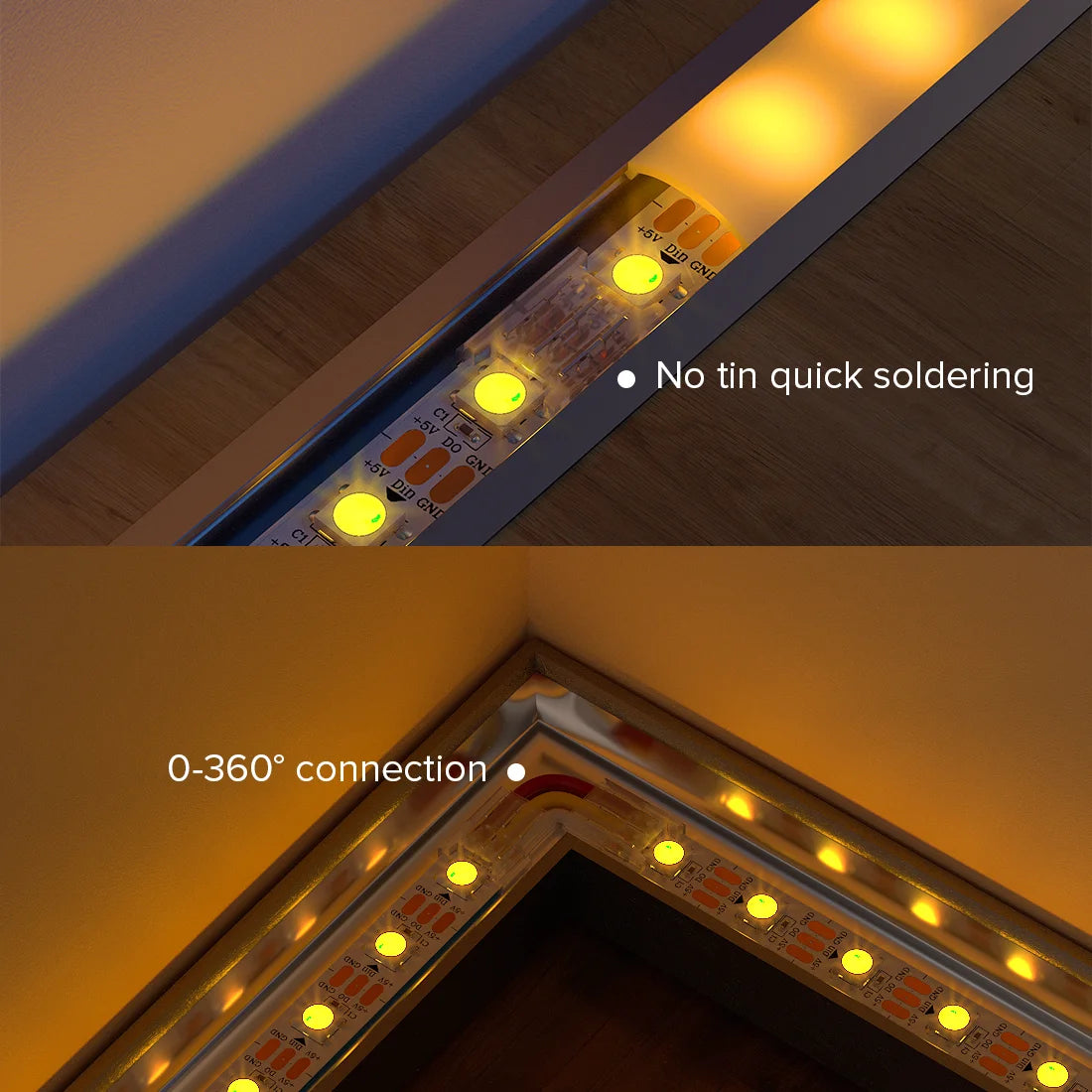

Sometimes LED strips need to cross a small gap, turn around an obstacle, or connect to another strip a short distance away.

This solderless LED strip connector with cable makes that easy. It connects two LED strips using a short flexible wire so you can extend your lighting or bridge small gaps without soldering.

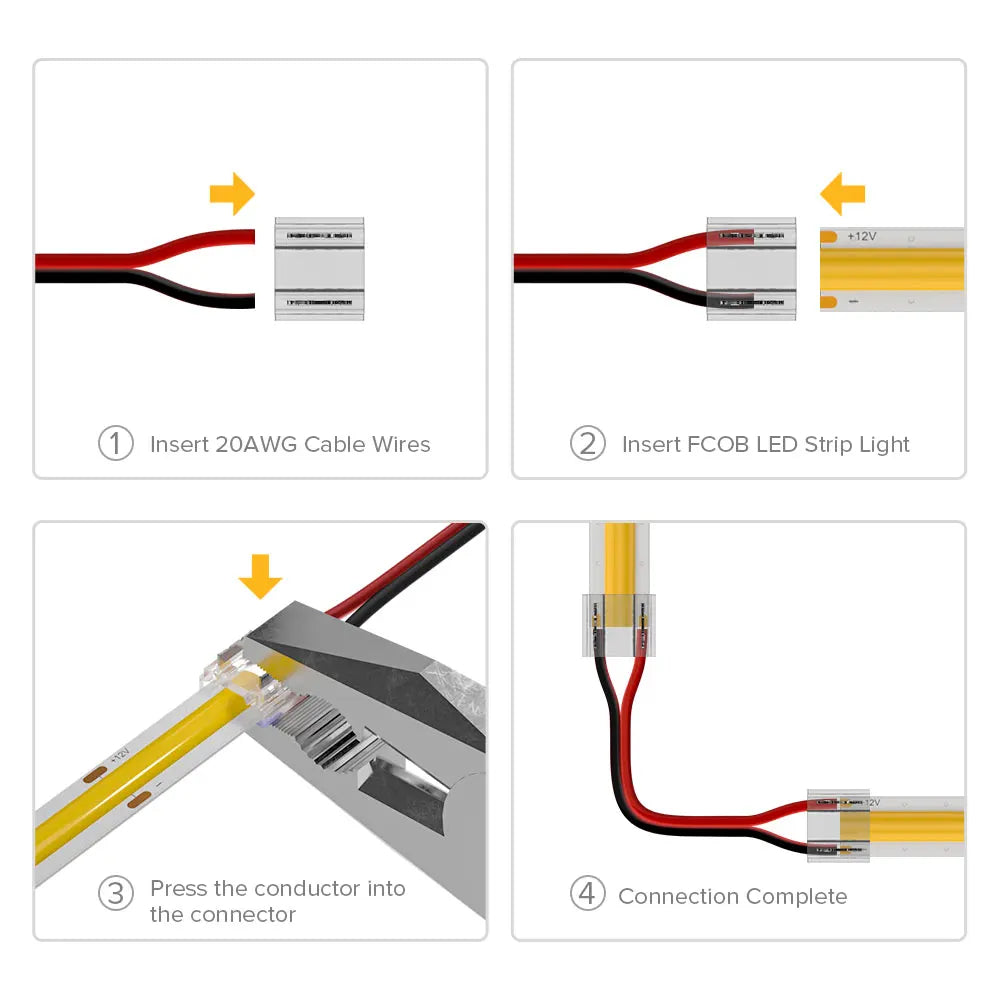

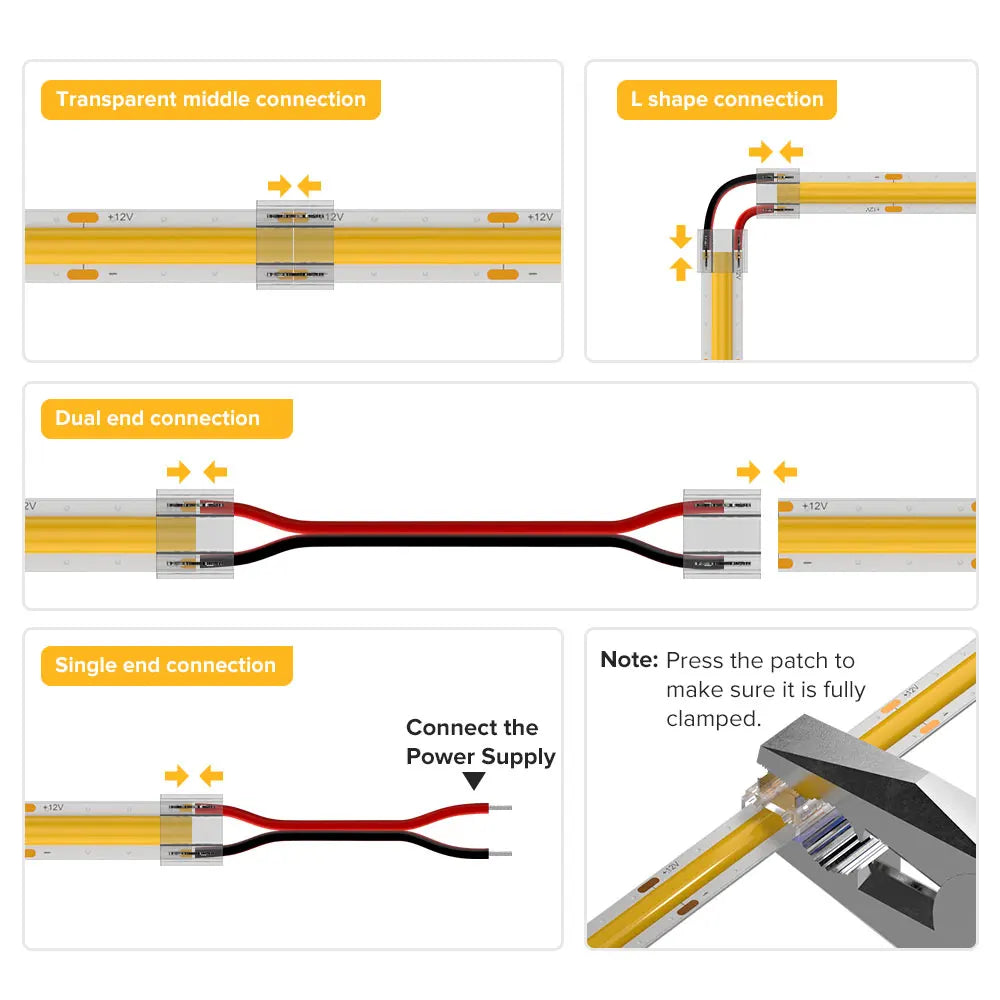

Simply insert the LED strips into the connector clips and close them. The transparent housing keeps the installation clean while the cable gives you flexibility during installation.

Key features & benefits

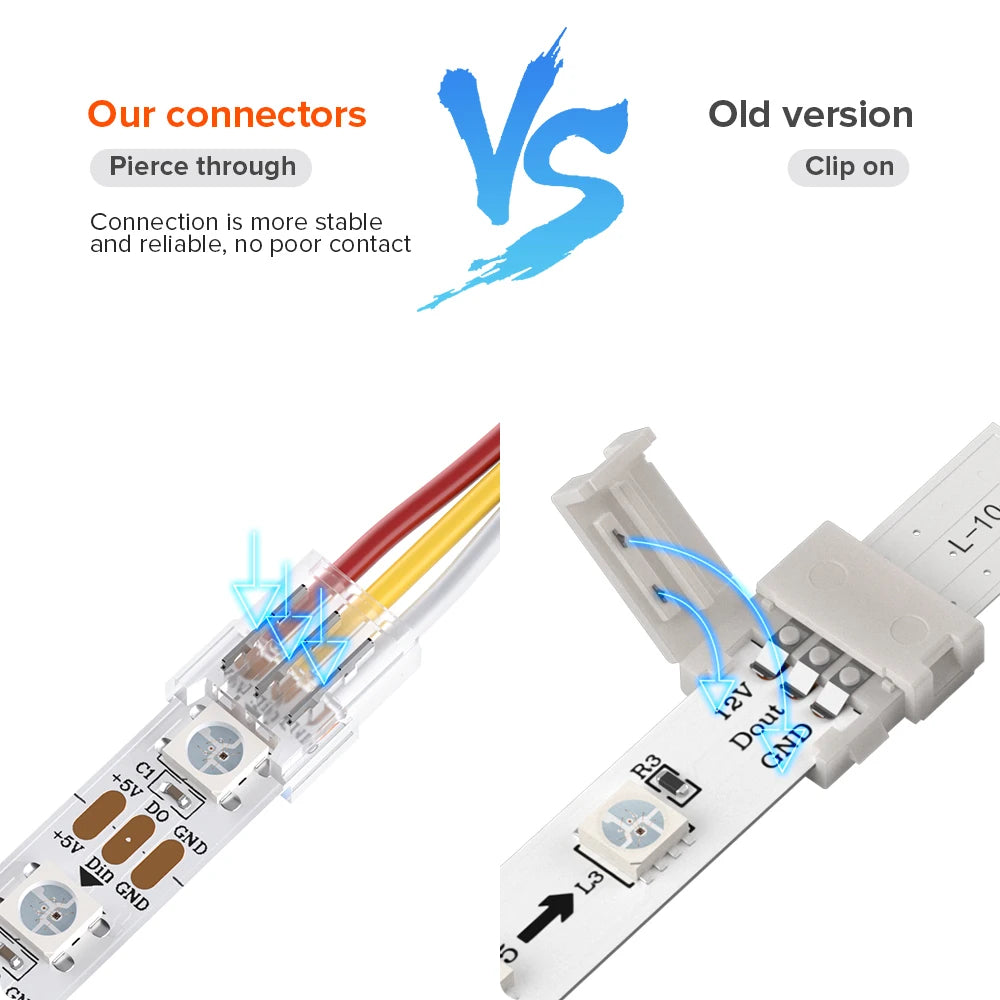

• Connect LED strips without soldering: Solderless clip connector design
• Bridge gaps between LED strip sections easily: Built-in 15 cm connection cable
• Extend LED strip installations cleanly: Flexible wire connection
• Work with multiple LED strip types: Compatible with COB, SMD and RGB strips

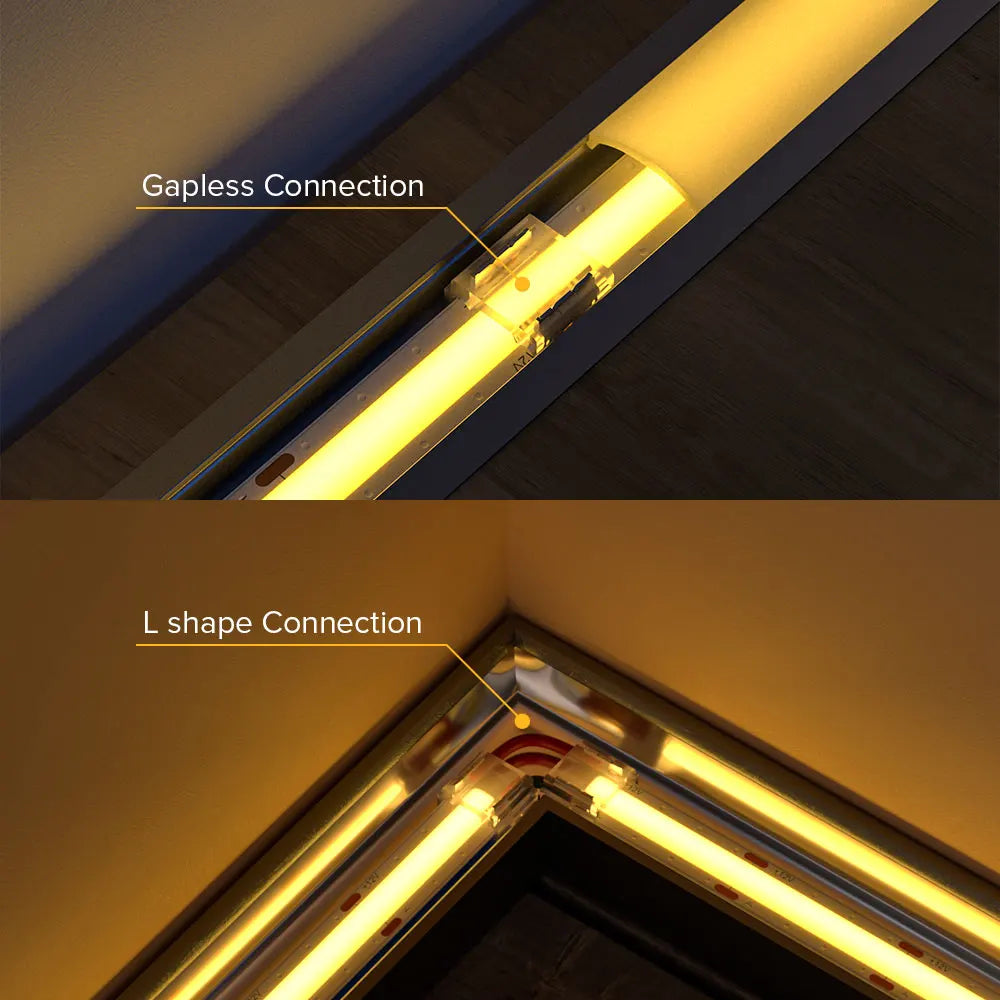

• Keep installations neat and organized: Transparent connector housing
• Install lighting faster with simple tools: Quick clip-in installation

Compatibility & important notes

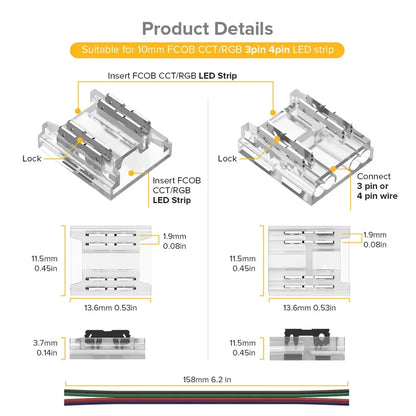

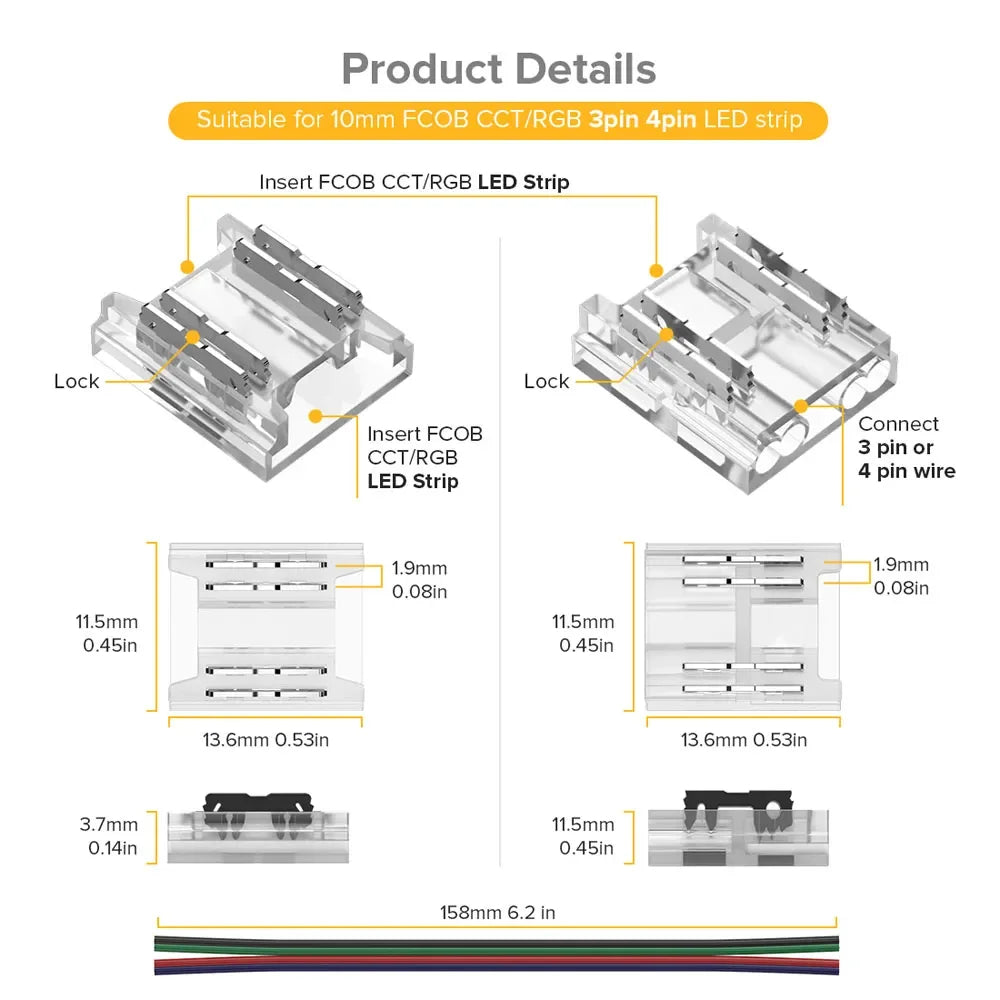

• Compatible with 10 mm LED strips depending on the selected variant
• Pin configuration must match the LED strip type

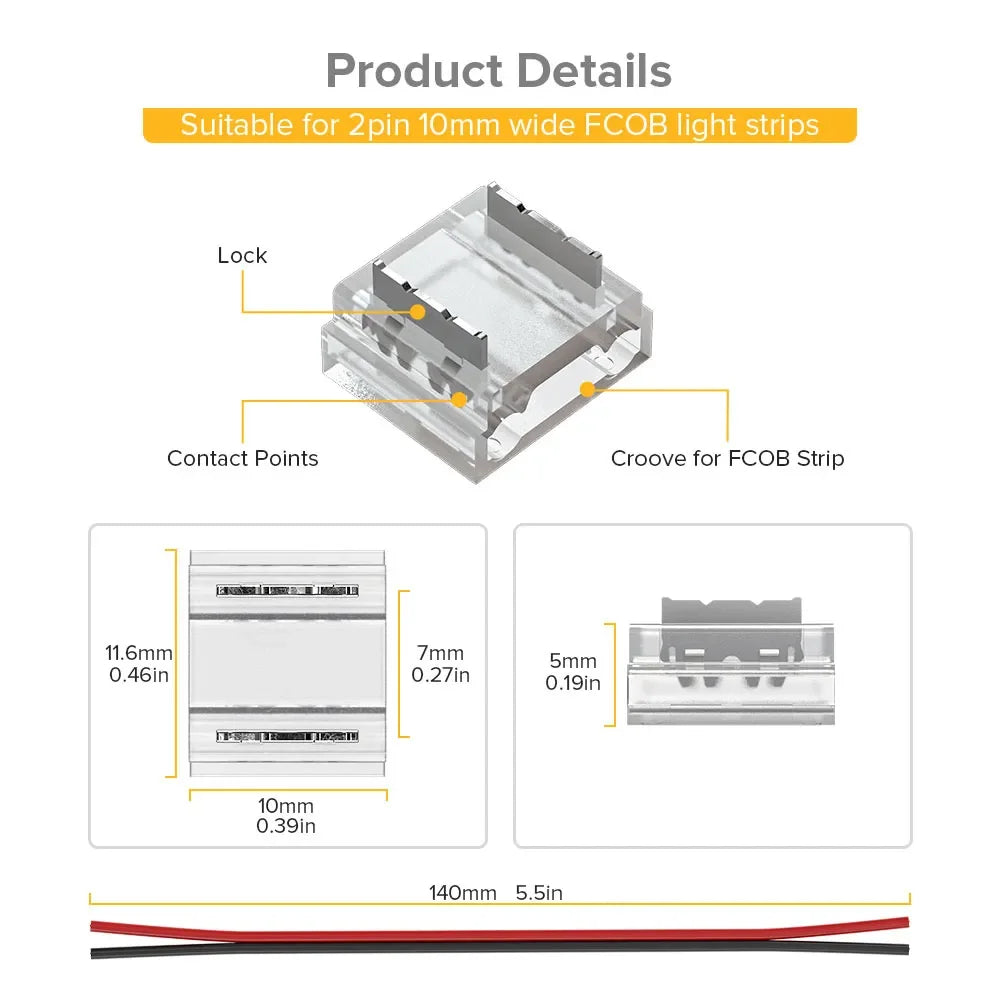

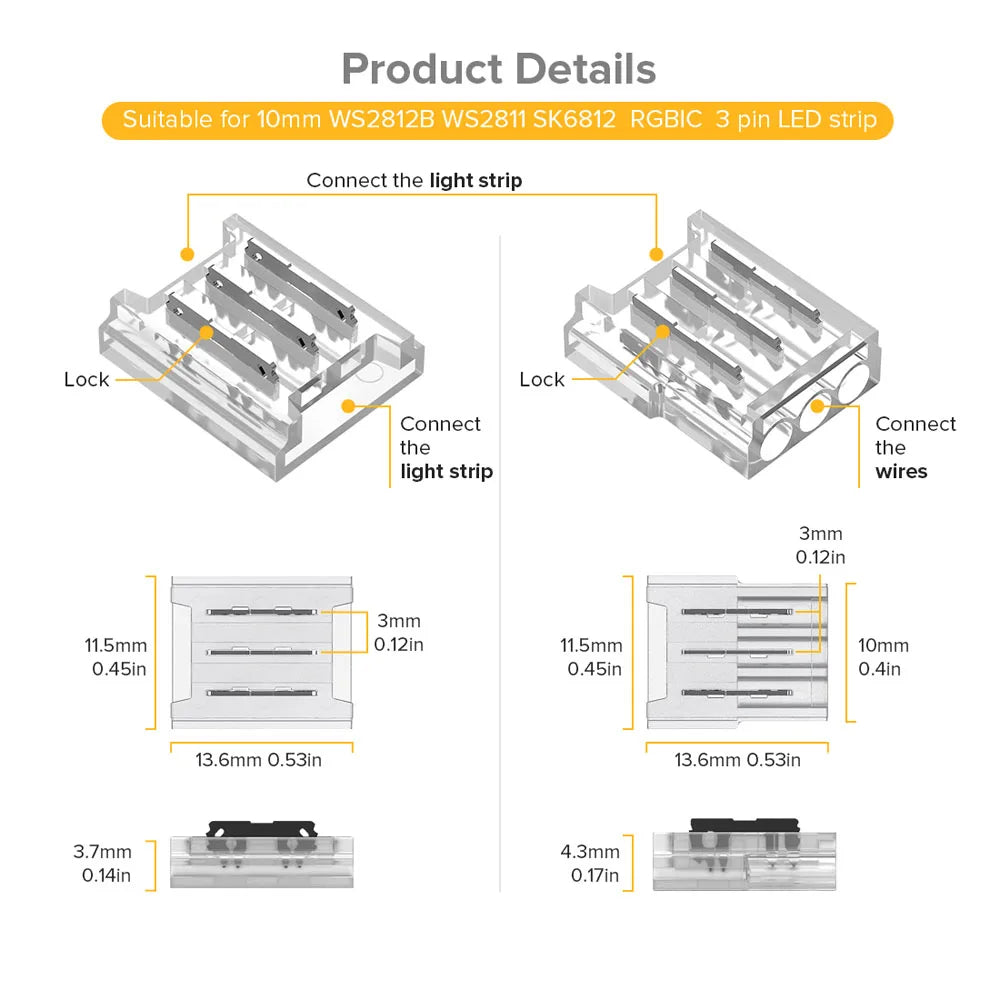

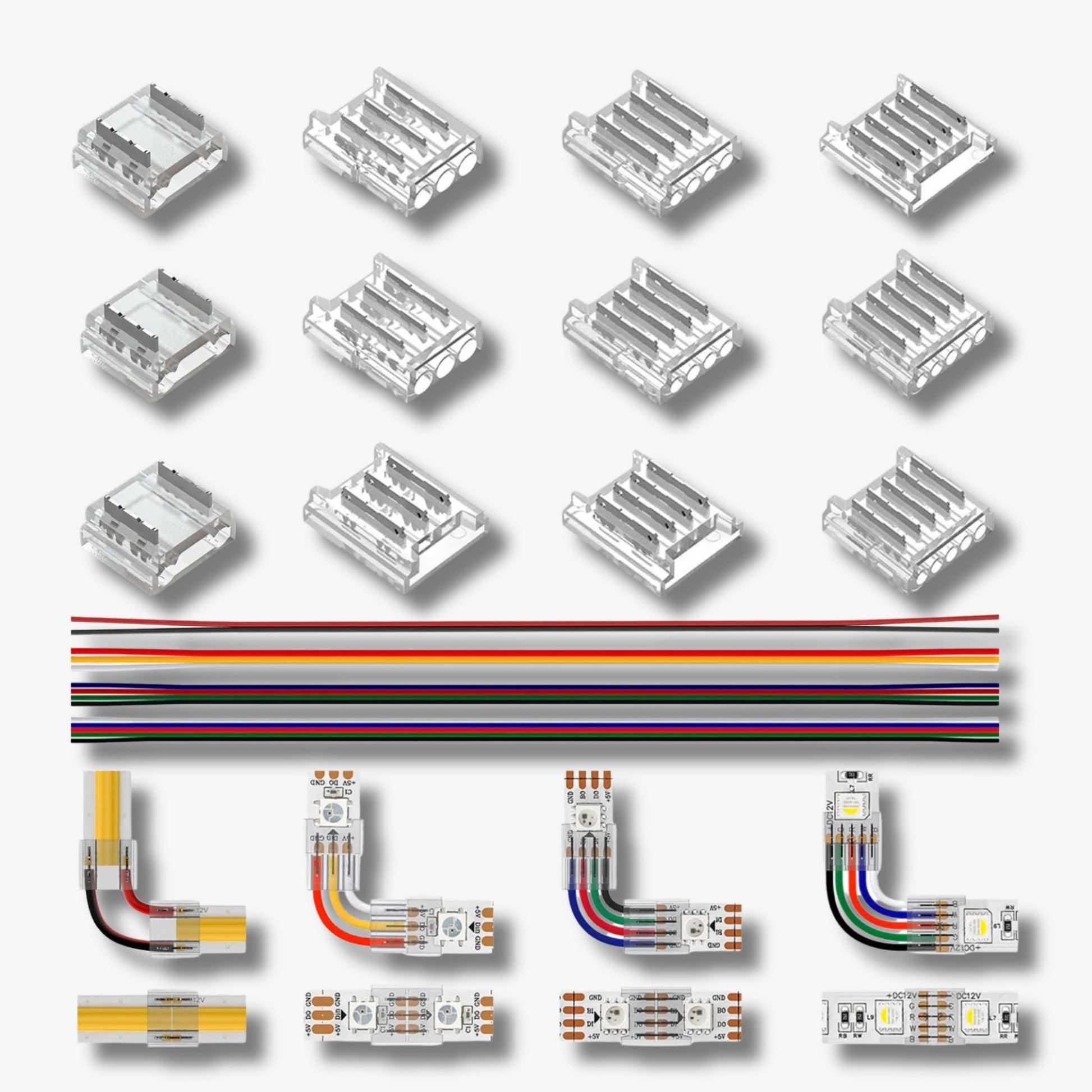

• Available variants include: 10 mm 2-pin – FCOB, 10 mm 3-pin – SMD LED, 10 mm 4-pin – RGB, 10 mm 4-pin – CCT
• LED strip positive and negative terminals must align correctly when inserting into the connector
• LED strips must be cut on the marked cutting points before inserting
• Designed for indoor LED strip installations

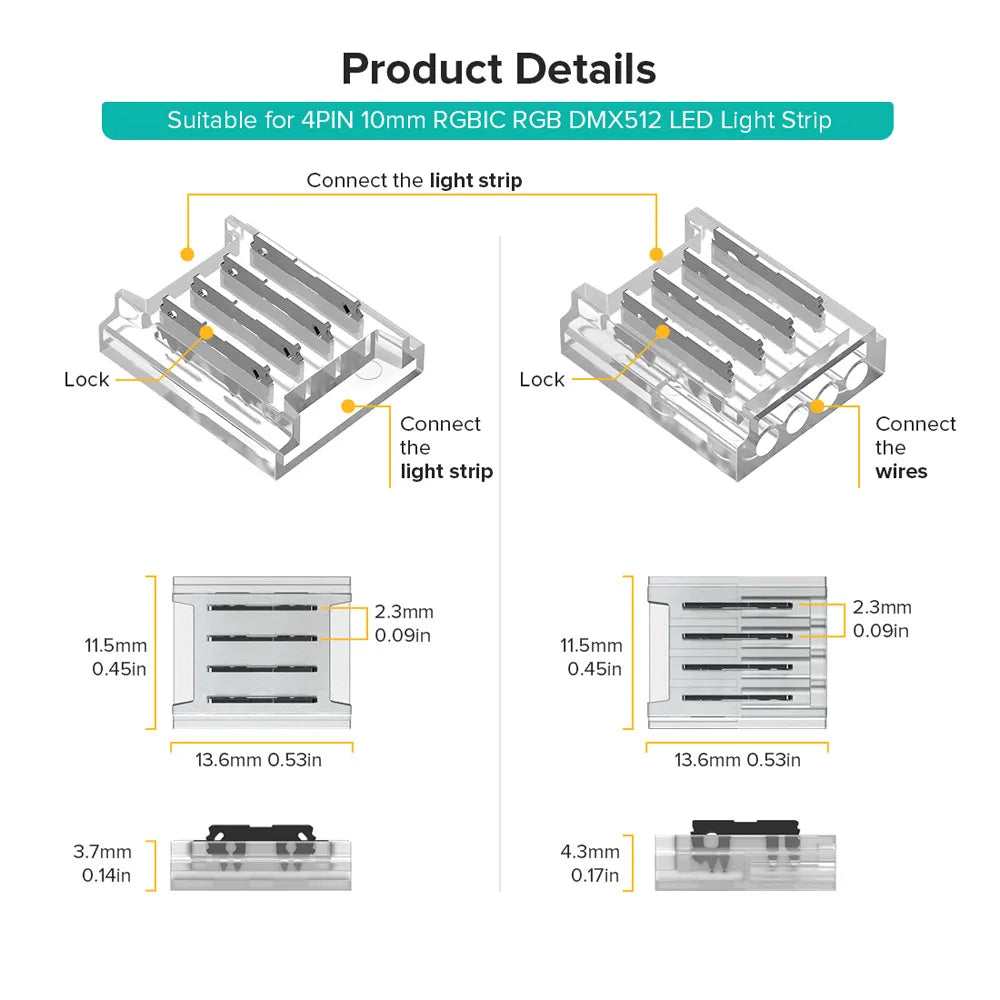

Specifications

• Connector type: LED strip bridge connector with cable
• Cable length: 15 cm
• Connector width: 10 mm LED strip compatibility
• Pin options: 2 pin / 3 pin / 4 pin variants
• Material: Transparent PVC cover
• Connection type: Solderless clip connector
• Compatible LED types: FCOB, COB, SMD LED strips
• Typical compatibility: DIM, CCT, RGB, RGBW, RGBCCT LED strips


Package

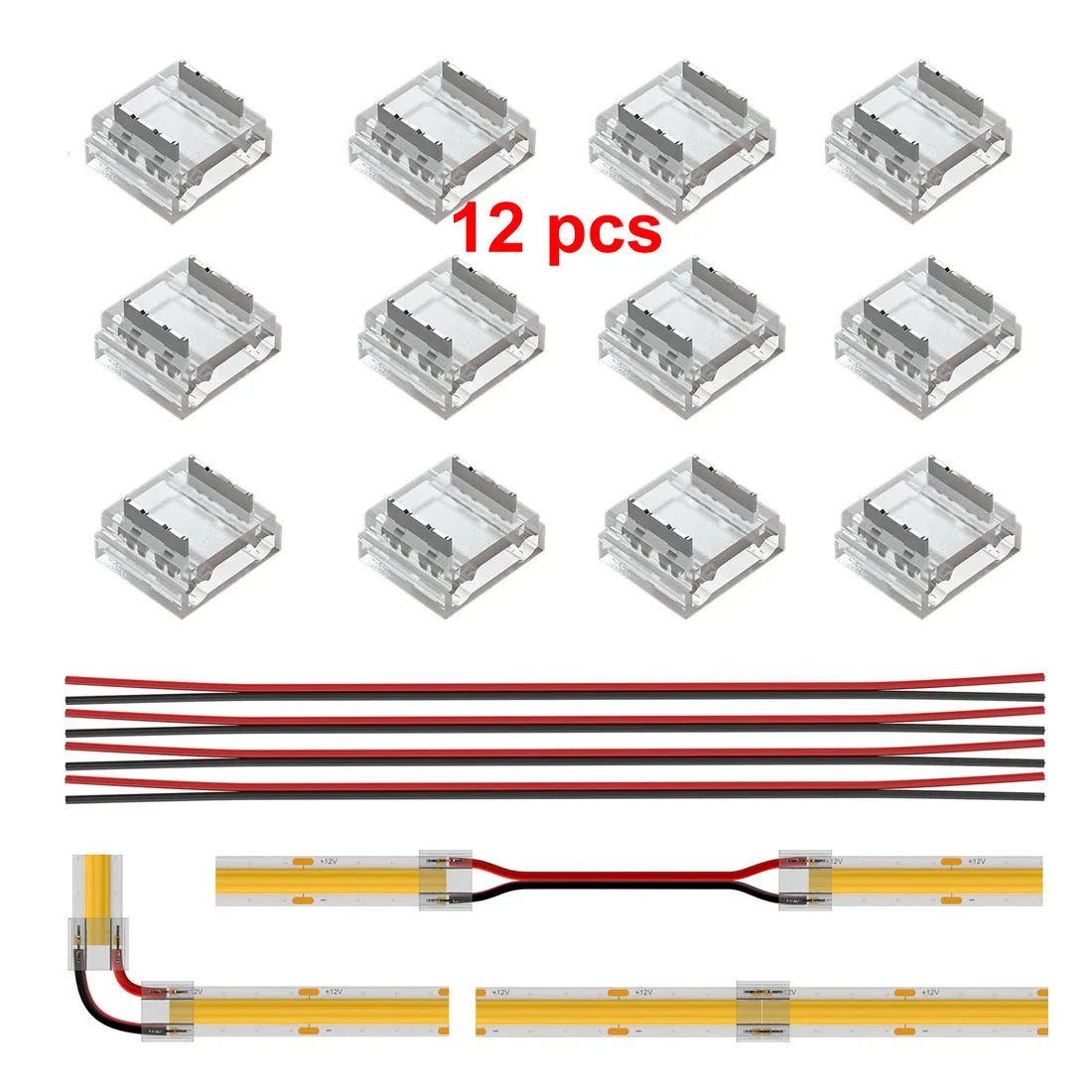

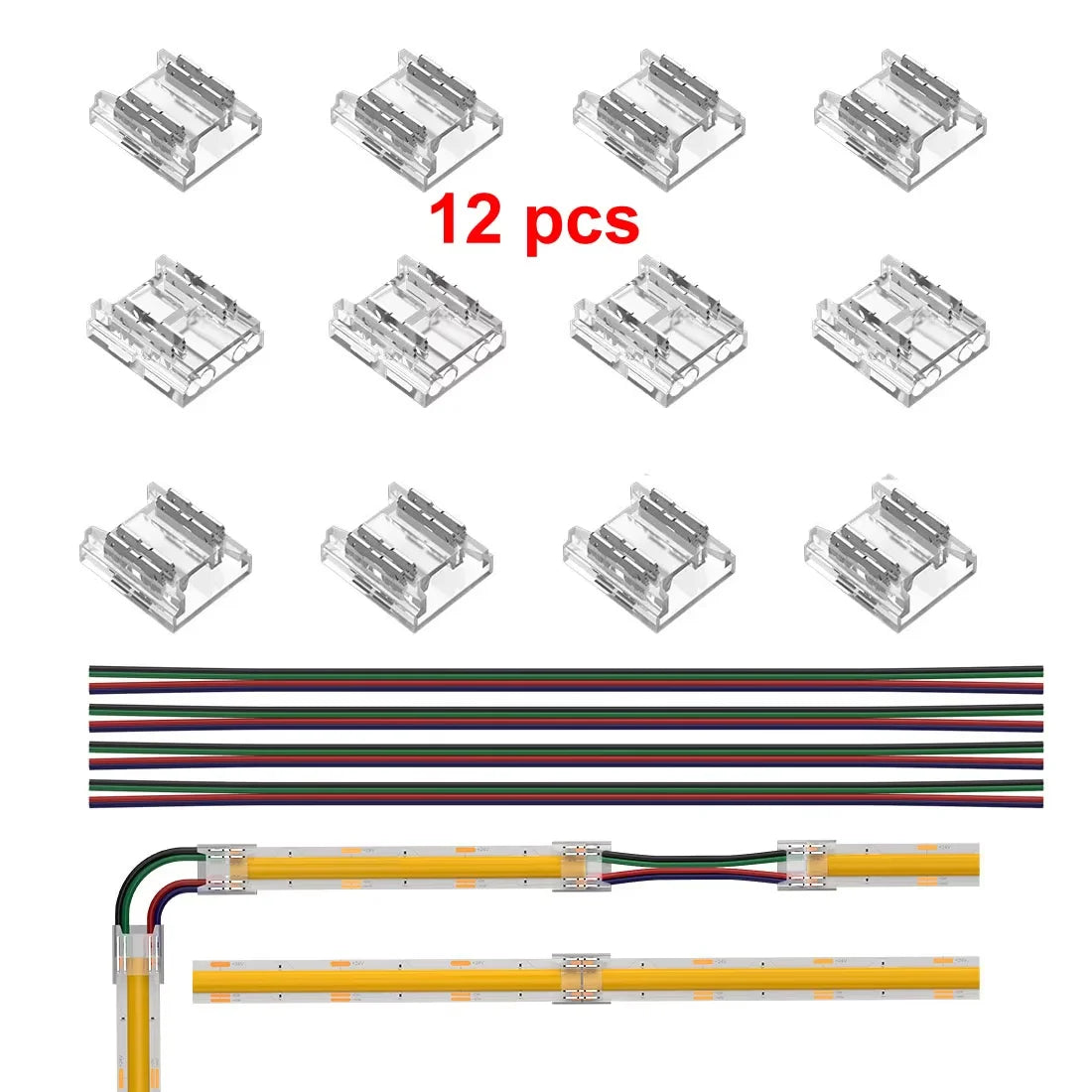

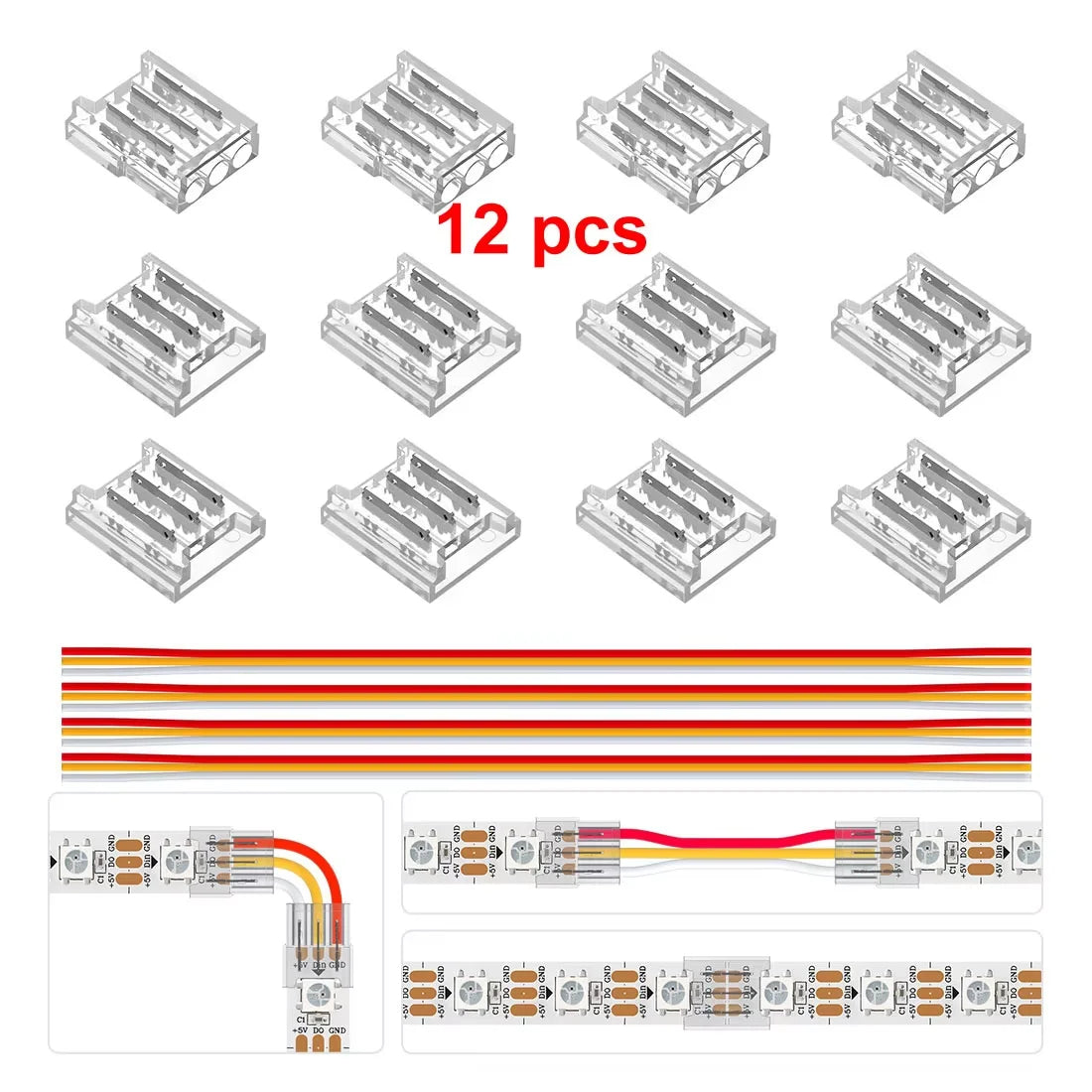

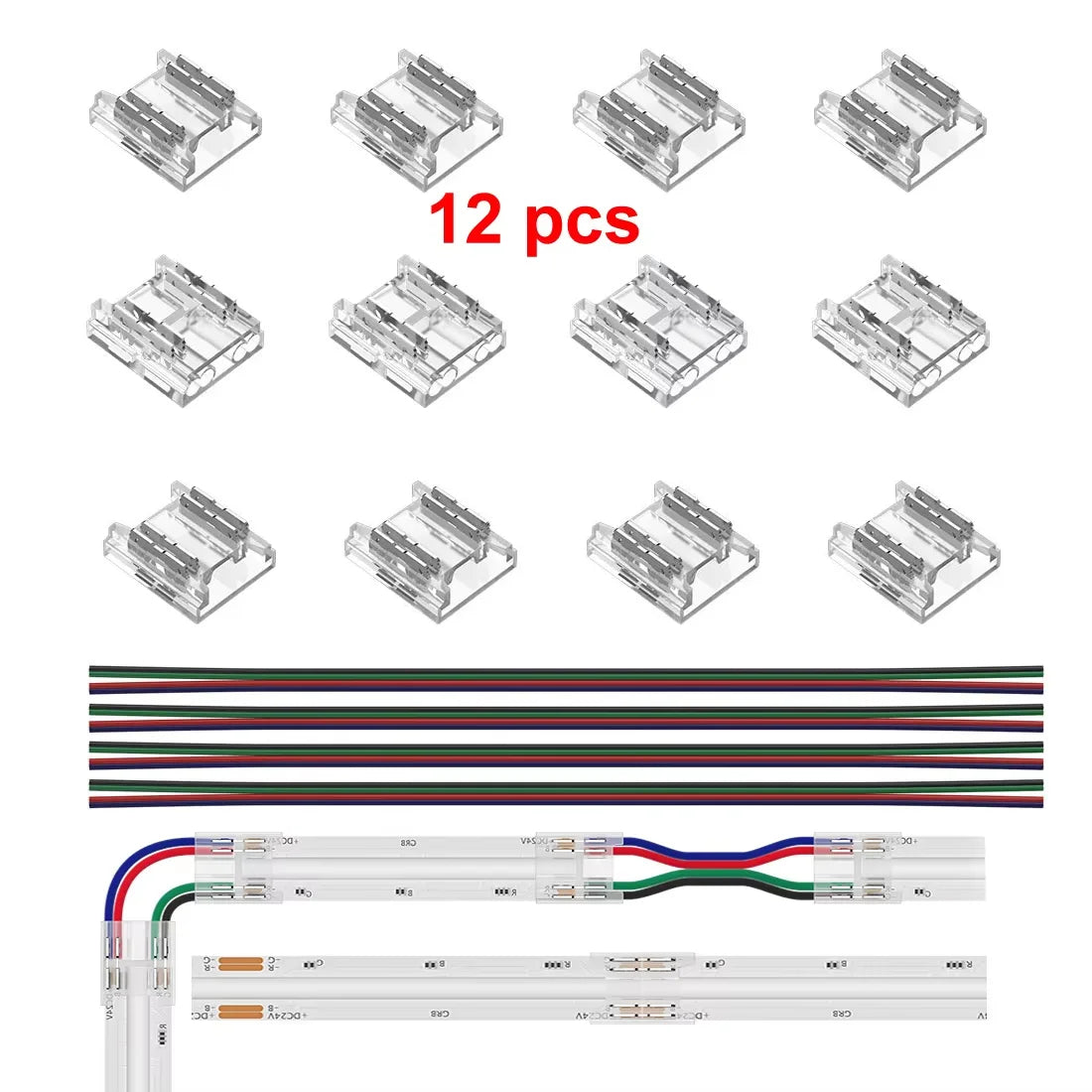

• 12 × LED strip connectors with 15 cm cable
