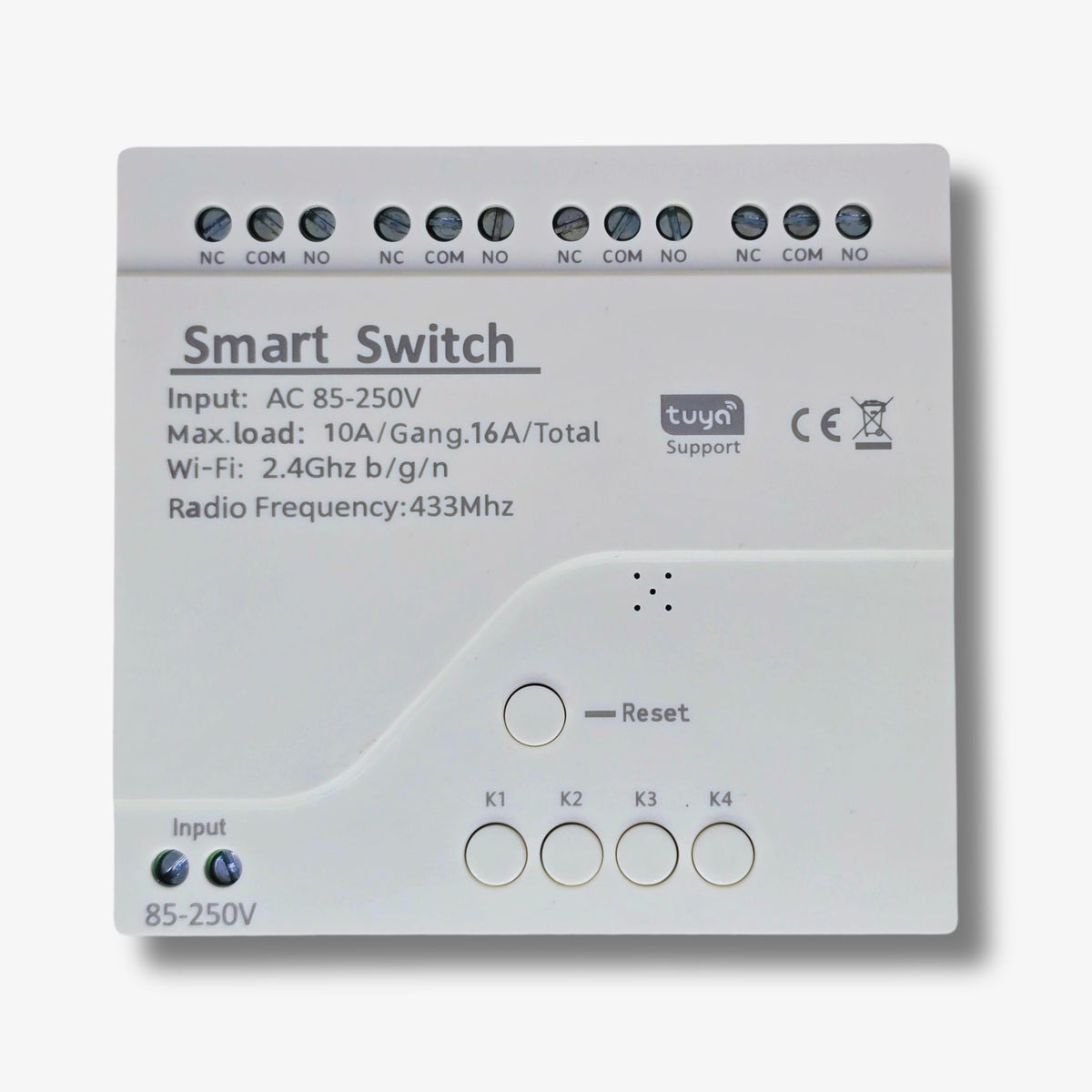

4CH Wi-Fi/RF Smart Dry Contact Relay – Control Multiple Gates and Systems Remotely

Product description

Do you have to manage multiple gates or access systems separately, one at a time?

What if you could control all four of them from one device and one app?

This 4-channel smart dry contact relay fixes that.

It connects to your existing gates, garage doors, and access systems and lets you trigger each one independently from your phone, voice, or RF remote. One device gives you centralized control over up to four separate systems.

Simpler access, smarter control, all from one place.

Key features & benefits

• Control four systems independently: Trigger each gate, door, or access system separately from one device.
• Control from anywhere: Open or close any channel remotely using your phone through the app.
• Hands-free control: Works with Alexa and Google Home voice commands.
• Safe dry contact output: Triggers systems without supplying voltage, compatible with most gate setups.
• High load capacity: Handles up to 2000W per channel and 3500W total across all four channels.
• RF 433MHz backup control: Works with compatible RF remotes for physical manual backup.
• Flexible operating modes: Supports self-locking and inching modes to match your system type.
• Share access easily: Allow family members or staff to control specific channels through the app.

Compatibility & important notes

• 2.4GHz Wi-Fi only
• Uses Tuya Smart or Smart Life app
• Supports Alexa and Google Home
• Compatible with 433MHz RF learning code remotes
• Dry contact output only, no voltage supplied
• Designed for systems that accept contact trigger inputs
• Bluetooth must be enabled on your phone during initial pairing
• Indoor installation recommended unless in a protective enclosure
• Always switch off power before installation
• Not sure about installation? Book our installation service

Specifications

• Channels: 4
• Input Voltage: AC 85 to 250V
• Output Type: Dry contact, no voltage output
• Maximum Current: 10A per channel
• Maximum Load: 2000W per channel
• Maximum Total Load: 3500W / 16A across all channels
• Connectivity: Wi-Fi 2.4GHz, RF 433MHz
• Operating Temperature: -20°C to 70°C
• Dimensions: 81 x 76 x 28mm

Package

• 1 x 4-Channel Wi-Fi/RF Smart Dry Contact Relay Module
• 1 x Instruction manual
