24V FCOB IC CCT LED Strip Light with Chasing and Dynamic Warm-to-Cool White Effects

Product description

Want more than a regular LED strip that simply changes from warm to cool white?

What if the light itself could flow, chase and transition along the strip?

This addressable FCOB CCT strip combines adjustable white lighting with programmable IC effects.

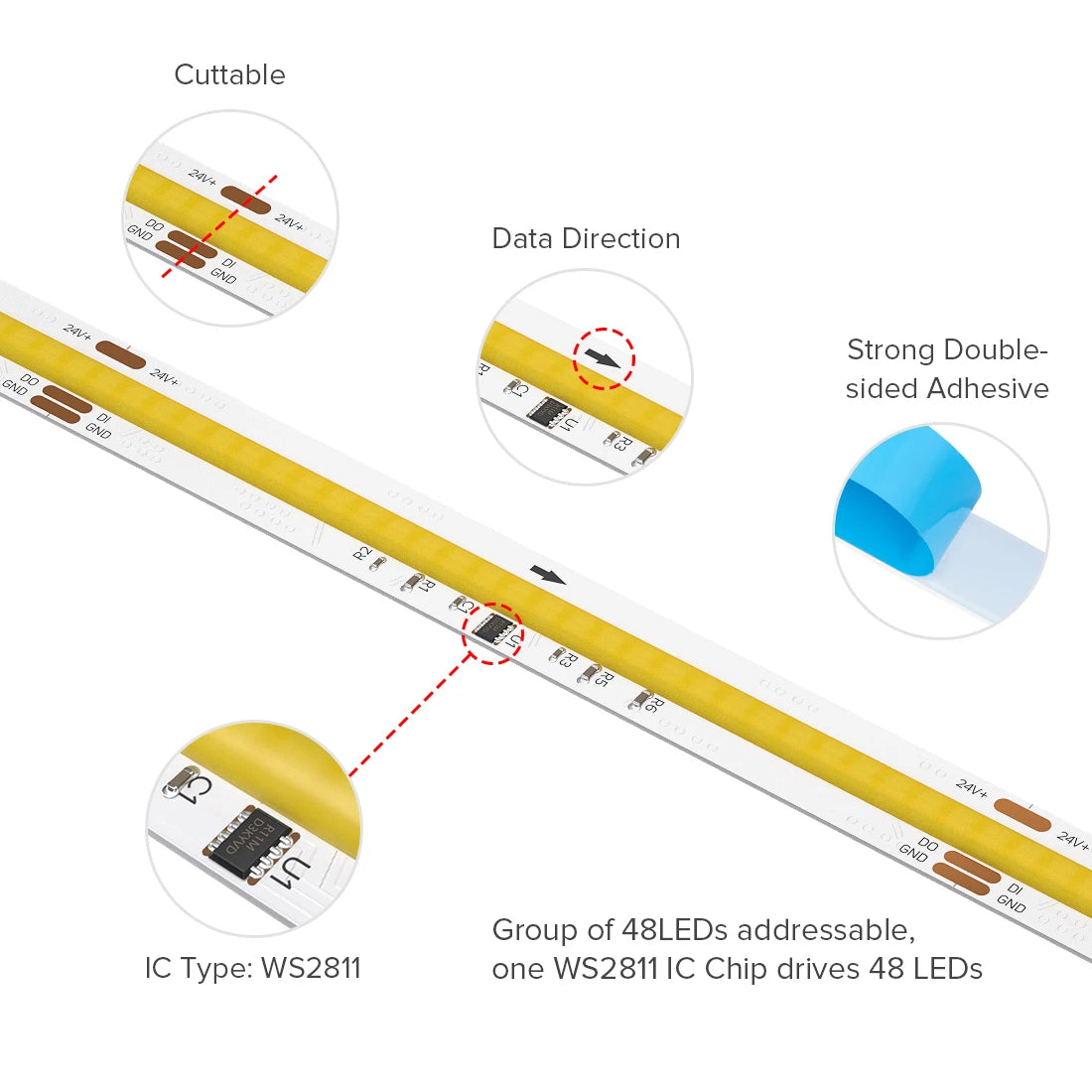

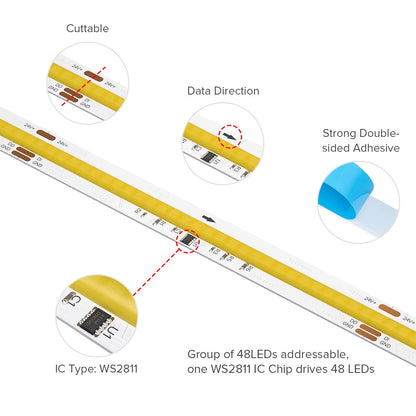

Its WS2811 IC allows compatible SPI controllers to control sections of the strip, creating dynamic effects instead of changing the entire strip at once.

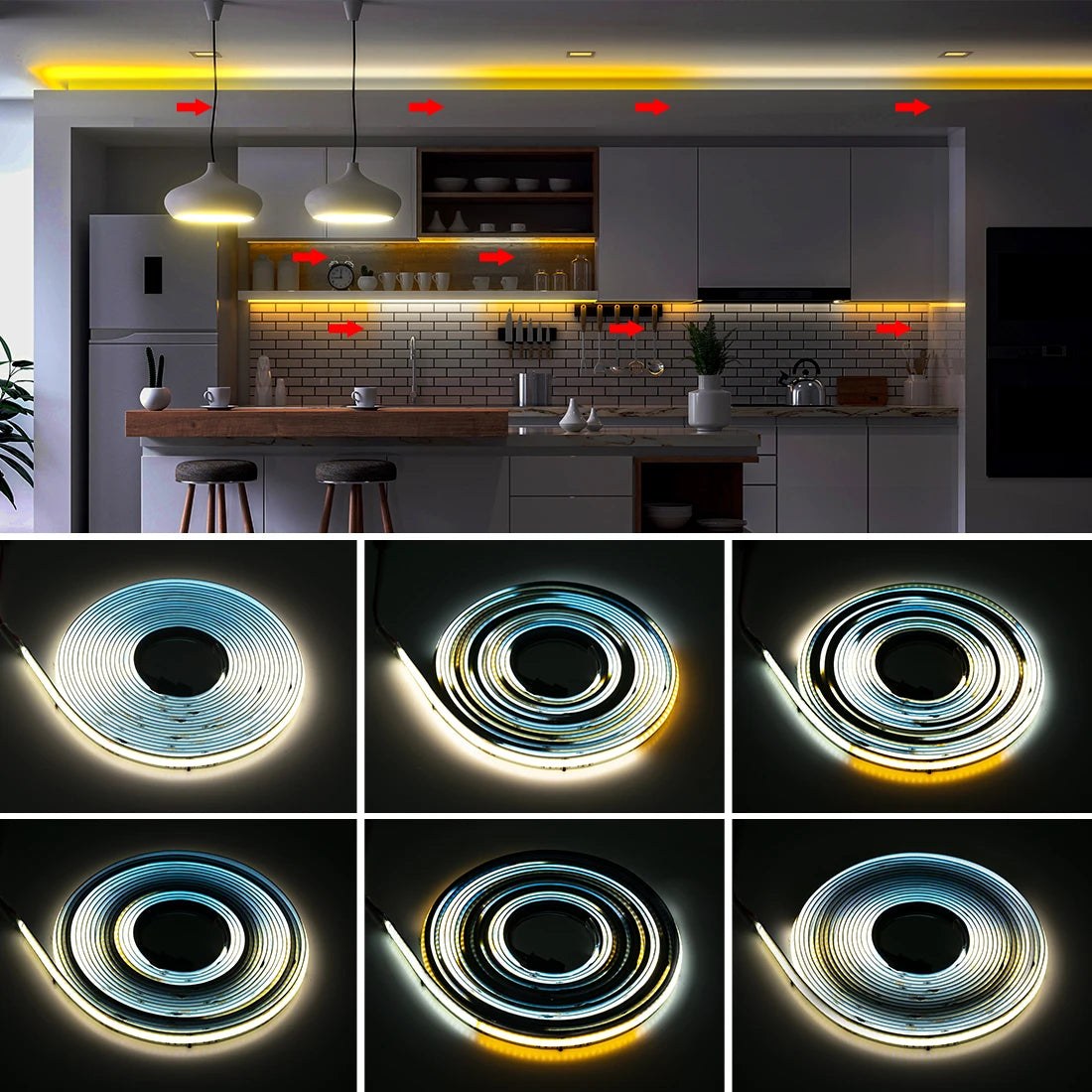

Create flowing transitions between warm 2700K and cool 6500K white, chasing effects, animated patterns and smooth dimming.

With 576 LEDs per metre, the effects appear as a smooth continuous line of light rather than individual LED dots.

Key features & benefits

• Create moving white-light effects: The WS2811 IC enables dynamic chasing, flowing and animated CCT effects with a compatible SPI controller.
• Control sections independently: Instead of forcing the entire strip to display the same white tone, addressable segments can produce changing patterns along the strip.

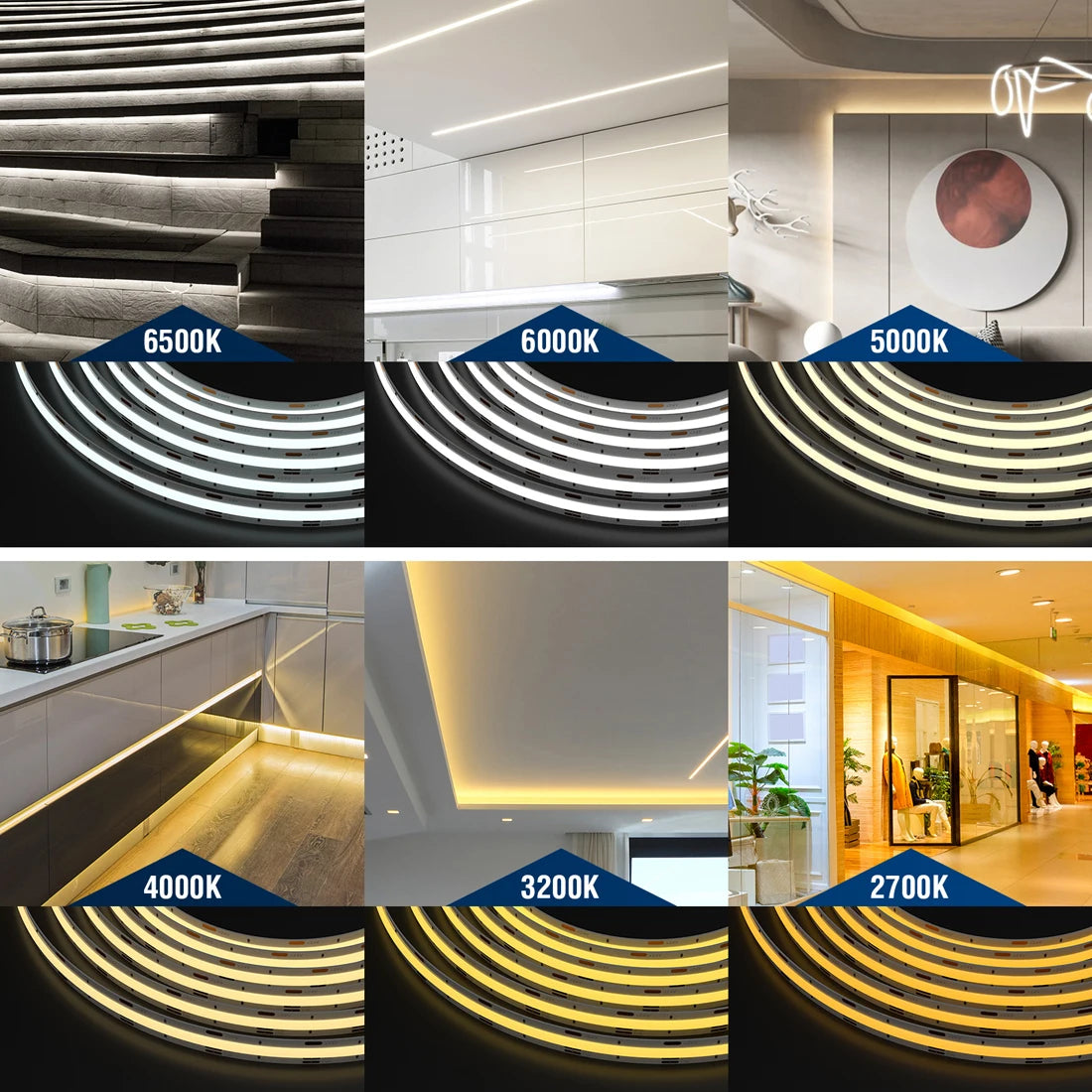

• Shift from warm to cool white: Adjust between relaxing 2700K warm white and crisp 6500K cool white.
• Get smoother-looking animations: 576 LEDs per metre help effects appear continuous instead of showing obvious individual LED dots.
• Enjoy more natural-looking light: Ra90+ colour rendering helps objects and interiors appear more accurate under the light.
• Create a wider glow: The 180° beam angle produces broad, even illumination.
• Build custom lighting layouts: The flexible 10mm strip works well for ceilings, cabinets, furniture, displays and architectural lighting.
• Cut it for your project: Cut points approximately every 83.33mm make it easier to size the strip for compatible installations.
• Use it for longer lighting runs: The 24V design is well suited to larger installations when paired with the correct power supply.


Where the IC effects stand out

This strip is especially useful when you want white lighting to become part of the visual design, rather than simply illuminating the room.

Use the programmable effects for:

• Ceiling coves
• Feature walls
• Entertainment rooms
• Bedrooms
• Staircases
• Cabinets and shelving
• Reception areas
• Hotels and restaurants
• Retail displays
• Signs and displays
• Custom lighting projects

You can use a simple warm or cool white for everyday lighting, then switch to animated CCT effects when you want something more eye-catching.

Compatibility & important notes

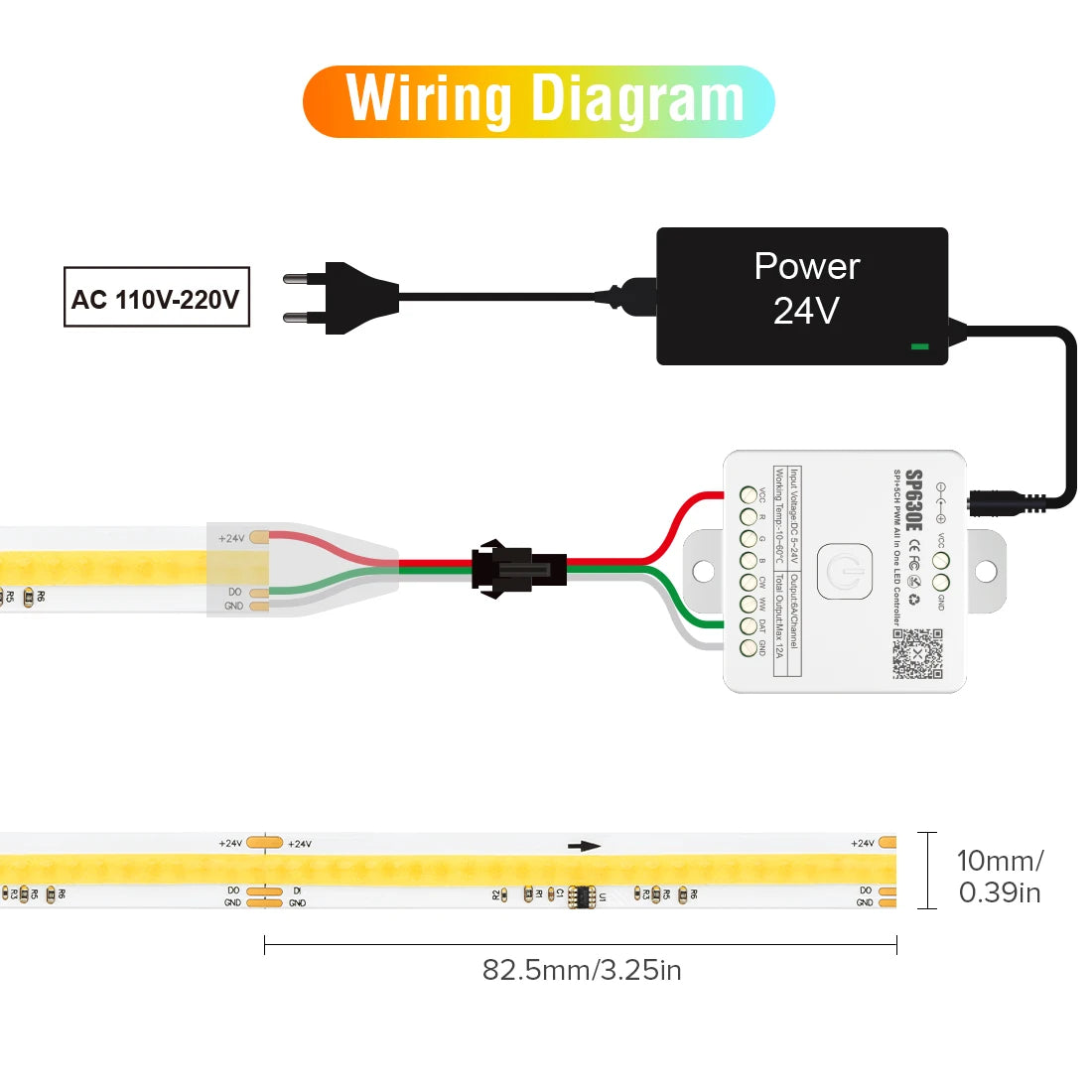

• Requires a 24V DC power supply
• Power supply is not included
• Requires a compatible WS2811 SPI CCT controller for adjustable color temperature, dimming and programmable effects
• Controller is not included
• 10mm FPCB width
• Cut only at the marked cut points
• Cut interval is approximately 83.33mm
• IP20 rated
• Not waterproof
• Designed for dry indoor installations
• Adhesive should be applied to a clean, smooth surface
• Power supply capacity should be selected based on the total strip length and 14W/m power consumption

Not sure about installation? Book our installation service

Specifications

• LED Type: FCOB CCT
• IC: WS2811
• Input Voltage: DC 24V
• Color Temperature: 2700K to 6500K
• LED Density: 576 LEDs/m
• Power Consumption: 14W/m
• FPCB Width: 10mm
• CRI: Ra >90
• Beam Angle: 180°
• Cutting Interval: 83.33mm
• Dimmable: Yes, with compatible controller
• Programmable: Yes, with compatible controller
• Waterproof Rating: IP20
• Operating Temperature: -20°C to +45°C
• Storage Temperature: -20°C to +60°C
• Certifications: CE / UL / FCC / RoHS
• Mounting: Adhesive Backing

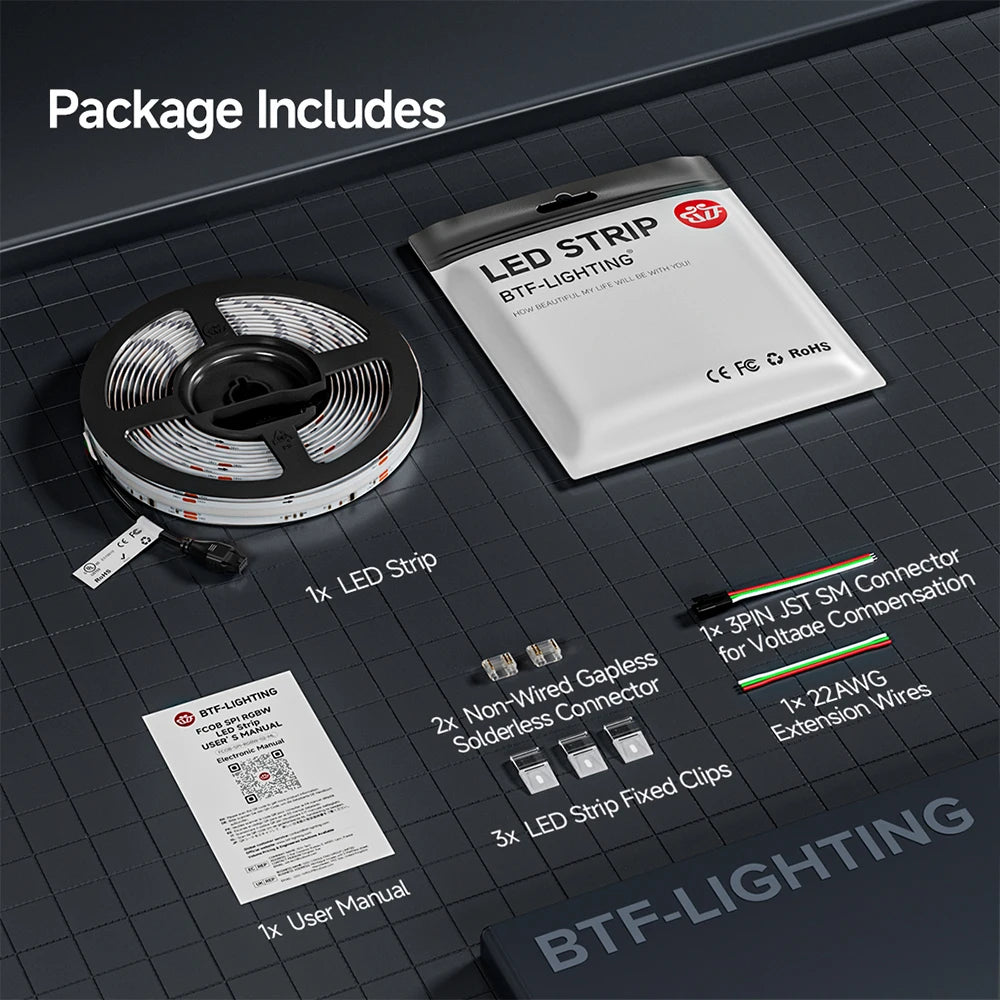

Package

• 1 x  24V FCOB IC CCT LED Strip Light
• 2 x Non-wired gapless solderless connectors
• 1 x 22AWG extension wire (0.5mm²)
• 3 x LED strip fixing clips
• 1 x User manual
